5G NR Waveform Capture and Analysis Using Software-Defined Radio

This example shows how to use the 5G Waveform Generator app to generate and transmit a standard-compliant 5G NR waveform continuously over the air using a software-defined radio (SDR). The example then shows how to capture the transmitted waveform from the air using an SDR and analyze the signal in MATLAB®.

Introduction

This diagram shows the main steps of the example.

  1. Generate a baseband waveform by using the 5G Waveform Generator app.

  2. Transmit the generated waveform over the air, directly from the app, by using a connected SDR hardware (requires an SDR support package).

  3. Capture the over-the-air waveform in MATLAB by using another connected SDR hardware or the same SDR hardware (requires an SDR support package).

  4. Analyze the PDCCH/PDSCH error vector magnitude (EVM) of the captured waveform in MATLAB.

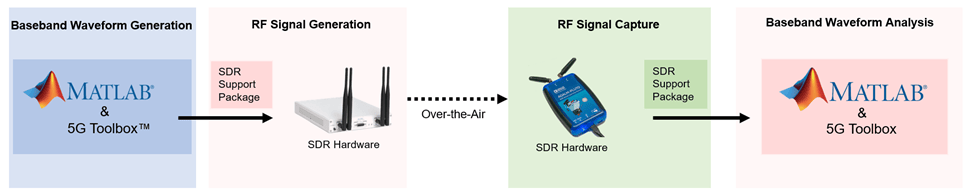

Block diagram showing workflow of trnasmitting and capturing a 5G NR waveform.

To transmit and capture waveforms with SDRs, you must install the corresponding hardware support package. This list provides information on which radios can be used by this example along with the required products.

  • ADALM-PLUTO (requires Communications Toolbox Support Package for Analog Devices® ADALM-PLUTO Radio)

  • USRP™ B200/B210/N200/N210/USRP2/N300/N310/N320/N321/X300/X310 (requires Communications Toolbox Support Package for USRP™ Radio )

  • USRP™ E310/E312 (requires Communications Toolbox Support Package for USRP™ Embedded Series Radio)

  • AD9361/FMCOMMS2/3/4/5 (requires Communications Toolbox Support Package for Xilinx® Zynq®-Based Radio)

Generate Baseband Waveform

In MATLAB, on the Apps tab, click the 5G Waveform Generator app.

In the Waveform Type section, click Downlink FRC. In the leftmost pane of the app, you can set the parameters for the selected waveform. For this example:

  • Set Frequency range to FR1 (410 MHz - 7.125 GHz).

  • Set MCS to 64QAM, R=3/4.

  • Set Subcarrier spacing (kHz) to 30.

  • Set Channel bandwidth (MHz) to 10.

  • Set Duplex mode to FDD.

  • Set RNTI to 0.

  • Select the OCNG check box.

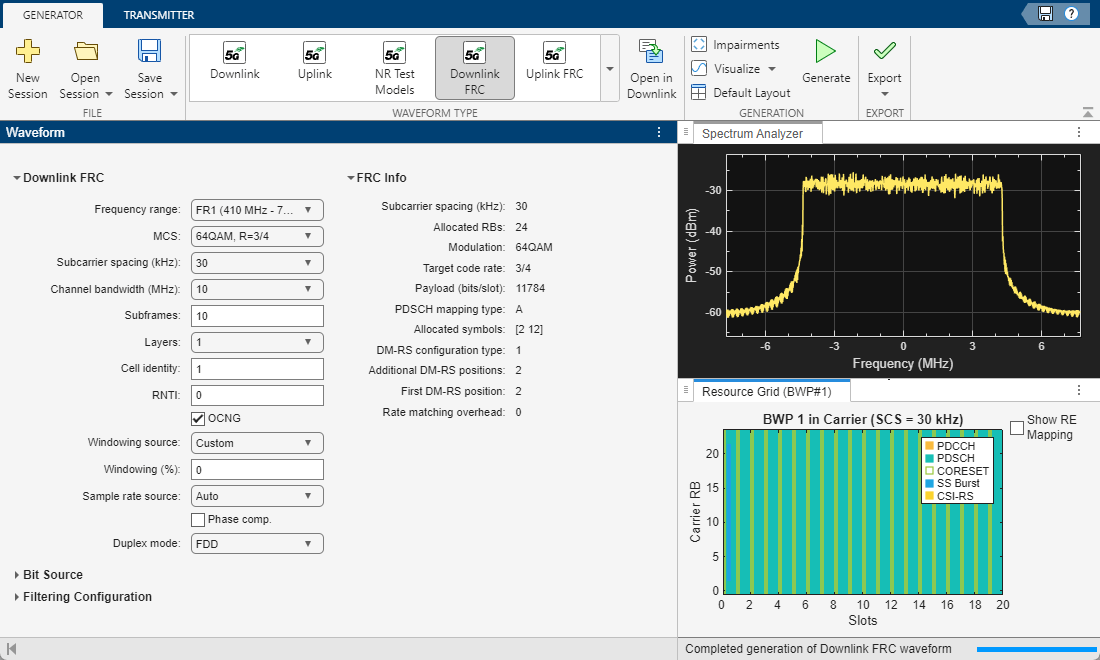

On the app toolstrip, click Generate.

Transmit Generated Waveform

On the Transmitter tab of the app, in the Transmitter Type section, select your SDR for waveform transmission.

  • If you have an ADALM-PLUTO radio corresponding to the Communications Toolbox Support Package for Analog Devices® ADALM-PLUTO Radio, select Pluto.

  • If you have a USRP™ B200, B210, N200, N210, USRP2, N300, N310, N321, X300, or X310 radio corresponding to the Communications Toolbox Support Package for USRP™ Radio, select USRP B/N/X. In this case, this examples requires a secondary SDR and MATLAB session to capture the transmitted signal. Otherwise, you can use the same SDR for reception as you do for transmission.

  • If you have a USRP™ E310 or E312 radio corresponding to the Communications Toolbox Support Package for USRP™ Embedded Series Radio, select USRP E.

  • If you have a AD936x or FMCOMMS5 radio corresponding to the Communications Toolbox Support Package for Xilinx® Zynq®-Based Radio, select Zynq Based.

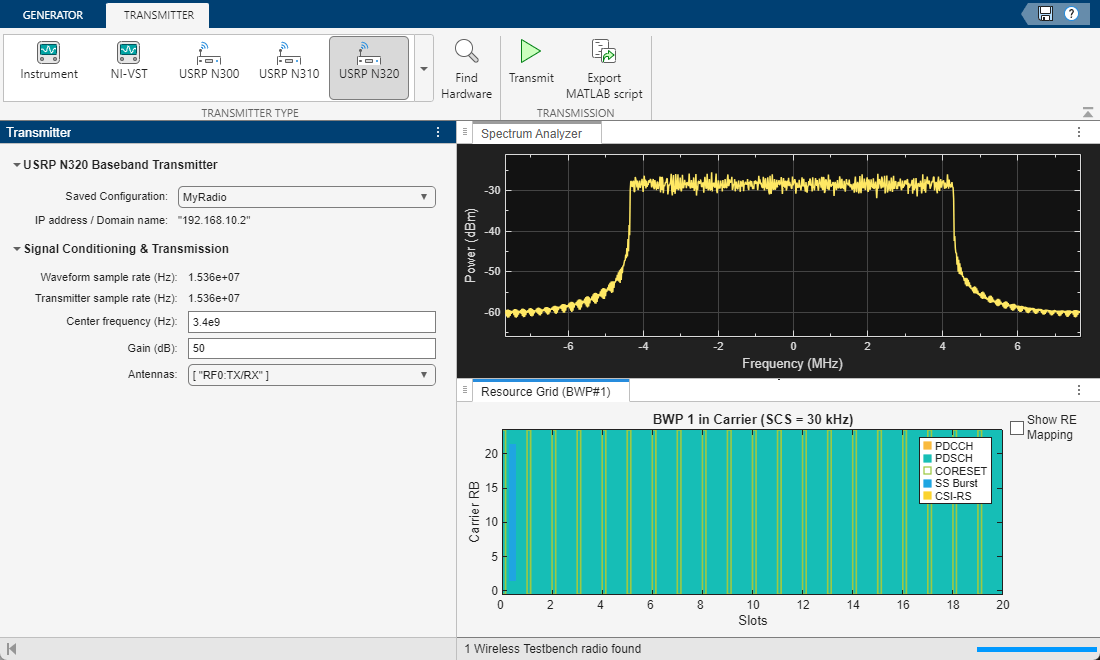

Specify your transmission parameters, such as Center frequency (Hz) and Gain (dB). The app automatically obtains the baseband sample rate from the generated waveform and performs any oversampling, if necessary.

Capture Transmitted Waveform

Set Up Receiver Processing Parameters

Set the downlink waveform parameters used in the app for receiver processing.

rc   = "DL-FRC-FR1-64QAM"; % Reference channel
bw   = "10MHz"; % Channel bandwidth
scs  = "30kHz"; % Subcarrier spacing
dm   = "FDD"; % Duplexing mode
rnti = 0; % Radio network temporary identifier

Configure SDR Receiver Object

To capture the waveform that the app continuously transmits, create an hSDRReceiver object and then set the object properties.

  • Set rx.CenterFrequency to 3.4e9, as specified in the Transmitter tab of the app.

  • Set rx.SampleRate to a value greater than or equal to the Transmitter sample rate (Hz) parameter value in the app.

  • Set rx.Gain to any valid value that provides a successful decode of the captured waveform. Valid values of gain include 'AGC Fast Attack', 'AGC Slow Attack', or an integer value for the Zynq-Based, USRP Embedded, or ADALM-PLUTO radios. USRP radios only support integer values.

rx    = hSDRReceiver("Pluto"); % SDR receiver object
rx.CenterFrequency = 3.4e9;
rx.SampleRate      = 30.72e6;
rx.Gain            =  60;

Specify the number of contiguous 5G frames to capture. One frame equates to 10 milliseconds.

framesToCapture    = 1;

% Derived parameters
captureDuration = milliseconds(10)*(framesToCapture+1); % Increase capture frame by 1 to account for a full frame not being captured

Initiate Waveform Capture

Initiate a capture of the 5G NR waveform transmitted by the app.

rxWaveform = capture(rx,captureDuration);
## Establishing connection to hardware. This process can take several seconds.

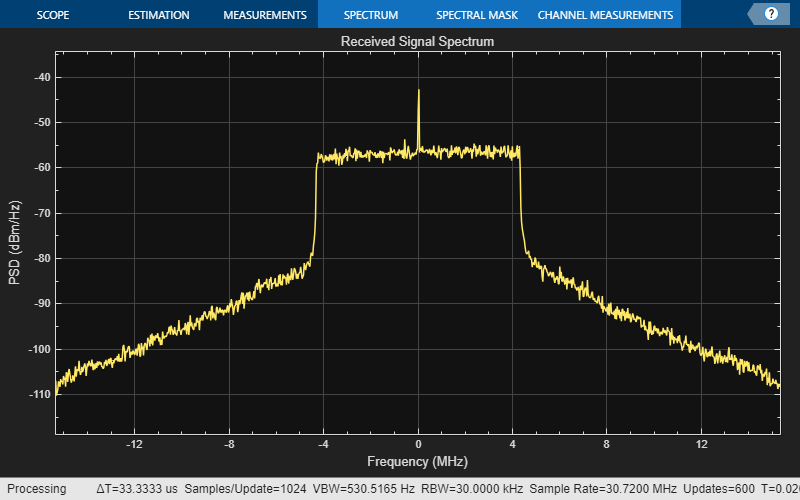

Plot the power spectral density (PSD) of the received signal.

spectrumPlotRx = spectrumAnalyzer;
spectrumPlotRx.SampleRate =  rx.SampleRate;
spectrumPlotRx.SpectrumType = "Power density";
spectrumPlotRx.YLabel = "PSD";
spectrumPlotRx.Title = "Received Signal Spectrum";
spectrumPlotRx(rxWaveform);

Measure EVM of Received Waveform

Generate and extract a nrDLCarrierConfig object for a specific test model (TM) or fixed reference channel (FRC) using the hNRReferenceWaveformGenerator helper file.

rcwavegen = hNRReferenceWaveformGenerator(rc,bw,scs,dm);
cfgDL = rcwavegen.Config;

Use the hNRDownlinkEVM function to analyze the waveform. In this example, the function performs these steps:

  • Estimates and compensates for any frequency offset

  • Estimates and corrects I/Q imbalance

  • Synchronizes the DM-RS over one frame for frequency division duplexing (FDD) or two frames for time division duplexing (TDD)

  • Demodulates the received waveform

  • Punctures the DC subcarrier component

  • Estimates the channel

  • Equalizes the symbols

  • Estimates and compensates for common phase error (CPE)

  • Computes the physical downlink shared channel (PDSCH) EVM

  • Computes the physical downlink control channel (PDCCH) EVM

For more information on the hNRDownlinkEVM function, see the EVM Measurement of 5G NR Downlink Waveforms with RF Impairments example.

Define the configuration settings for the hNRDownlinkEVM function.

cfg = struct();
cfg.PlotEVM = true;             % Plot EVM statistics
cfg.DisplayEVM = true;          % Print EVM statistics
cfg.Label = rc;                 % Set to TM name of captured waveform
cfg.SampleRate = rx.SampleRate; % Use sample rate during capture
cfg.IQImbalance = true;
cfg.TargetRNTIs = rnti;
cfg.CorrectCoarseFO = true;
cfg.CorrectFineFO = true;
cfg.ExcludeDC = true;

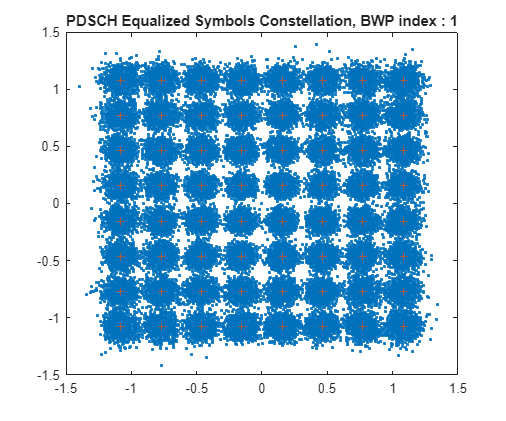

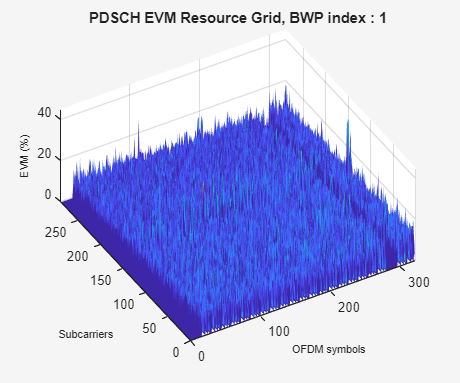

[evmInfo,eqSym,refSym] = hNRDownlinkEVM(cfgDL,rxWaveform,cfg);
EVM stats for BWP idx : 1
PDSCH RMS EVM, Peak EVM, slot 1: 3.549 11.660%
PDSCH RMS EVM, Peak EVM, slot 2: 3.269 11.206%
PDSCH RMS EVM, Peak EVM, slot 3: 3.321 14.776%
PDSCH RMS EVM, Peak EVM, slot 4: 3.240 12.982%
PDSCH RMS EVM, Peak EVM, slot 5: 3.269 12.564%
PDSCH RMS EVM, Peak EVM, slot 6: 3.244 12.960%
PDSCH RMS EVM, Peak EVM, slot 7: 3.517 17.604%
PDSCH RMS EVM, Peak EVM, slot 8: 3.446 13.599%
PDSCH RMS EVM, Peak EVM, slot 9: 3.613 20.750%
PDSCH RMS EVM, Peak EVM, slot 10: 3.555 16.538%
PDSCH RMS EVM, Peak EVM, slot 11: 3.430 11.846%
PDSCH RMS EVM, Peak EVM, slot 12: 3.588 11.771%
PDSCH RMS EVM, Peak EVM, slot 13: 3.533 13.308%
PDSCH RMS EVM, Peak EVM, slot 14: 3.375 15.249%
PDSCH RMS EVM, Peak EVM, slot 15: 3.272 11.033%
PDSCH RMS EVM, Peak EVM, slot 16: 3.454 14.465%
PDSCH RMS EVM, Peak EVM, slot 17: 3.297 12.114%
PDSCH RMS EVM, Peak EVM, slot 18: 3.283 10.228%
PDSCH RMS EVM, Peak EVM, slot 19: 3.297 15.695%
PDSCH RMS EVM, Peak EVM, slot 21: 3.521 12.194%
PDSCH RMS EVM, Peak EVM, slot 22: 3.461 15.143%
PDSCH RMS EVM, Peak EVM, slot 23: 3.487 15.071%
PDSCH RMS EVM, Peak EVM, slot 24: 3.290 10.475%
PDSCH RMS EVM, Peak EVM, slot 25: 3.363 13.732%
PDSCH RMS EVM, Peak EVM, slot 26: 3.379 14.075%
PDSCH RMS EVM, Peak EVM, slot 27: 3.509 15.805%
PDSCH RMS EVM, Peak EVM, slot 28: 3.383 13.523%
PDSCH RMS EVM, Peak EVM, slot 29: 3.319 15.172%
PDSCH RMS EVM, Peak EVM, slot 30: 3.167 14.771%
PDSCH RMS EVM, Peak EVM, slot 31: 3.300 17.898%
PDSCH RMS EVM, Peak EVM, slot 32: 3.246 13.593%
PDSCH RMS EVM, Peak EVM, slot 33: 3.196 9.770%
PDSCH RMS EVM, Peak EVM, slot 34: 3.325 14.494%
PDSCH RMS EVM, Peak EVM, slot 35: 3.488 11.696%
PDSCH RMS EVM, Peak EVM, slot 36: 3.340 14.638%
Averaged RMS EVM frame 0: 3.400%

Averaged overall PDSCH RMS EVM: 3.400%
Overall PDSCH Peak EVM = 20.7504%

The output of the hNRDownlinkEVM function shows that the demodulation of the received waveform is successful.
