nrPerfectTimingEstimate

Perfect timing estimation

Description

[offset,mag] = nrPerfectTimingEstimate(pathGains,pathFilters) performs perfect timing estimation. To find the peak of the channel impulse response, the function first reconstructs the impulse response from the channel path gains pathGains and the path filter impulse response pathFilters. The channel impulse response is averaged across all channel snapshots and summed across all transmit and receive antennas before timing estimation. The function returns the estimated timing offset offset and the channel impulse response magnitude mag.

example

Examples

collapse all

Define a channel configuration structure using an nrTDLChannel System object. Use delay profile TDL-C from TR 38.901 Section 7.7.2.

tdl = nrTDLChannel;
tdl.DelayProfile = 'TDL-C';
tdl.DelaySpread = 100e-9;

Create a random waveform with a duration of 1 subframe.

tdlInfo = info(tdl);
Nt = tdlInfo.NumTransmitAntennas;
in = complex(zeros(100,Nt),zeros(100,Nt));

Transmit the input waveform through the channel.

[~,pathGains] = tdl(in);

Obtain the path filters used in channel filtering.

pathFilters = getPathFilters(tdl);

Estimate timing offset. The function also returns the channel impulse response magnitude for each receive antenna, summed across all transmit antennas.

[offset,mag] = nrPerfectTimingEstimate(pathGains,pathFilters);

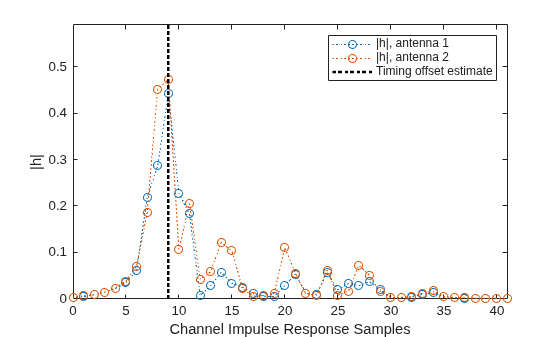

Plot the magnitude of the channel impulse response and the timing offset estimate.

[Nh,Nr] = size(mag);
plot(0:(Nh-1),mag,'o:');
hold on;
plot([offset offset],[0 max(mag(:))*1.25],'k:','LineWidth',2);
axis([0 Nh-1 0 max(mag(:))*1.25]);
legends = "|h|, antenna " + num2cell(1:Nr);
legend([legends "Timing offset estimate"]);
ylabel('|h|');
xlabel('Channel Impulse Response Samples');

Figure contains an axes object. The axes object with xlabel Channel Impulse Response Samples, ylabel |h| contains 3 objects of type line. These objects represent |h|, antenna 1, |h|, antenna 2, Timing offset estimate.

Input Arguments

collapse all

Channel path gains of the fading process, specified as an NCS-by-NP-by-NT-by-NR complex matrix, where:

  • NCS is the number of channel snapshots.

  • NP is the number of paths.

  • NT is the number of transmit antennas.

  • NR is the number of receive antennas.

Data Types: single | double
Complex Number Support: Yes

Path filter impulse response, specified as an NH-by-NP real matrix, where:

  • NH is the number of impulse response samples.

  • NP is the number of paths.

Each column of the matrix contains the filter impulse response for each path of the delay profile.

Data Types: double

Output Arguments

collapse all

Timing offset in samples, returned as a nonnegative integer. The number of samples is relative to the first sample of the channel impulse response reconstructed from pathGains and pathFilters.

Data Types: double

Channel impulse response magnitude for each receive antenna, summed across all transmit antennas, returned as an NH-by-NR real matrix.

  • NH is the number of impulse response samples.

  • NR is the number of receive antennas.

mag inherits its data type from pathGains.

Data Types: single | double

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2018b
