Basic WLAN Link Modeling

This example shows how to create a basic WLAN link model using WLAN Toolbox™. An IEEE® 802.11™ [ 1 ] VHT packet is created, passed through a TGac channel. The received signal is equalized and decoded in order to recover the transmitted bits.

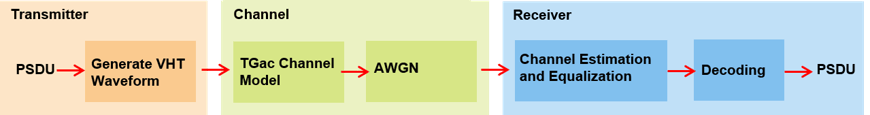

This example shows how a simple transmitter-channel-receiver simulation may be created using functions from WLAN Toolbox. A VHT transmit and receive link is implemented as shown in the figure below. A VHT packet is transmitted through a TGac channel, demodulated and the equalized symbols are recovered. The equalized symbols are decoded to recover the transmitted bits.

Waveform Generation

An 802.11ac VHT transmission is simulated in this example. The transmit parameters for the VHT format of the 802.11™ standard are configured using a VHT configuration object. The wlanVHTConfig creates a VHT configuration object. In this example the object is configured for a 20 MHz channel bandwidth, MCS 5 and single transmit antenna.

% Create a format configuration object for a SISO VHT transmission
cfgVHT = wlanVHTConfig;
cfgVHT.NumTransmitAntennas = 1;    % Transmit antennas
cfgVHT.NumSpaceTimeStreams = 1;    % Space-time streams
cfgVHT.APEPLength = 4096;          % APEP length in bytes
cfgVHT.MCS = 5;                    % Single spatial stream, 64-QAM
cfgVHT.ChannelBandwidth = 'CBW20'; % Transmitted signal bandwidth
Rs = wlanSampleRate(cfgVHT);       % Sampling rate

A single VHT packet is generated consisting of training, signal and data fields:

  • Non-HT Short Training Field (L-STF)

  • Non-HT Long Training Field (L-LTF)

  • Non-HT Signal (L-SIG) Field

  • VHT Signal A (VHT-SIG-A) Field

  • VHT Short Training Field (VHT-STF)

  • VHT Long Training Field (VHT-LTF)

  • VHT Signal B (VHT-SIG-B) Field

  • Data Field

These fields are generated separately using functions from WLAN Toolbox and are concatenated to produce a VHT transmit packet.

The first field in the PPDU is the L-STF and is used for the start of packet detection and automatic gain control (AGC) setting. It is also used for initial frequency offset estimation and coarse timing synchronization. The wlanLSTF function generates the L-STF field in the time-domain using some of the parameters included in configuration object cfgVHT.

lstf = wlanLSTF(cfgVHT);

The L-LTF is used for fine time synchronization, channel estimation and fine frequency offset estimation. The wlanLLTF function generates the L-LTF in the time-domain.

lltf = wlanLLTF(cfgVHT);

The L-SIG field carries packet configuration such as data rate, modulation and code rate for non-HT format. The wlanLSIG function generates the L-SIG field in the time-domain.

lsig = wlanLSIG(cfgVHT);

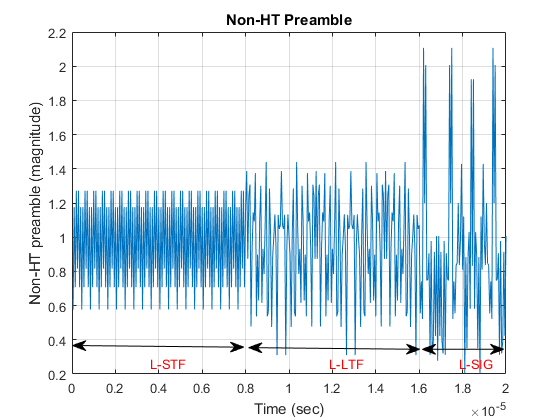

The figure below shows the L-STF, L-LTF and L-SIG fields. These fields are common to the VHT, HT-Mixed and non-HT OFDM transmission formats.

nonHTPreamble = [lstf;lltf;lsig]; % Combine the non-HT fields

The VHT specific signal and training fields are generated after the non-HT preamble fields. The purpose of the VHT-SIG-A field is to provide information to allow the receiver to decode the data payload. The VHT-SIG-A is composed of two symbols VHT-SIG-A1 and VHT-SIG-A2. The wlanVHTSIGA function generates the VHT-SIG-A field in the time-domain.

vhtSIGA = wlanVHTSIGA(cfgVHT);

The purpose of the VHT-STF is to improve the gain control estimation in a MIMO transmission and help the receiver detect the repeating pattern similar to the L-STF field. The wlanVHTSTF function generates the VHT-STF field in the time-domain.

vhtstf = wlanVHTSTF(cfgVHT);

The VHT-LTF provides a mean for the receiver to estimate the channel between the transmitter and the receiver. Depending on the number of space time streams, it consists of 1,2,4,6 or 8 VHT-LTF symbols. The wlanVHTLTF function generates the VHT-LTF in the time-domain.

vhtltf = wlanVHTLTF(cfgVHT);

The VHT-SIG-B field is used to set the data rate and the length of the data field payload of the transmitted packet. The wlanVHTSIGB function generates the VHT-SIG-B field in the time-domain.

vhtSIGB = wlanVHTSIGB(cfgVHT);

Construct the preamble by concatenating the non-HT and VHT preamble fields. The VHT preamble consists of signal and training fields.

vhtPreamble = [nonHTPreamble;vhtSIGA;vhtstf;vhtltf;vhtSIGB];

The wlanVHTData function generates the time-domain VHT data field. The VHT format configuration cfgVHT specifies the parameters for generating the data field from the PSDU bits. The cfgVHT.PSDULength property gives the number of bytes to be transmitted in the VHT data field. This property is used to generate the random PSDU bits txPSDU.

rng(0) % Initialize the random number generator
txPSDU = randi([0 1],cfgVHT.PSDULength*8,1); % Generate PSDU data in bits
data = wlanVHTData(txPSDU,cfgVHT);

% A VHT waveform is constructed by concatenating the VHT preamble and data
txWaveform = [vhtPreamble;data]; % Transmit VHT PPDU

Alternatively the waveform for a given format configuration can also be generated using a single function call wlanWaveformGenerator function. This function can produce one or more VHT packets. By default OFDM windowing is applied to the generated waveform. For more information on OFDM windowing, see the reference page for the wlanWaveformGenerator function.

Channel Impairments

This section simulates the effects of over-the-air transmission. The transmitted signal is impaired by the channel and AWGN. The level of the AWGN is given in dBs. In this example the TGac channel model [ 2 ] is used with delay profile Model-B. For this delay profile when the distance between transmitter and receiver is greater than or equal to 5 meters, the model is in Non-Line-of-Sight (N-LOS) configuration. This is described further in the help for wlanTGacChannel.

% Parameterize the channel
tgacChannel = wlanTGacChannel;
tgacChannel.DelayProfile = 'Model-B';
tgacChannel.NumTransmitAntennas = cfgVHT.NumTransmitAntennas;
tgacChannel.NumReceiveAntennas = 1;
tgacChannel.LargeScaleFadingEffect = 'None';
tgacChannel.ChannelBandwidth = 'CBW20';
tgacChannel.TransmitReceiveDistance = 5;
tgacChannel.SampleRate = Rs;
tgacChannel.RandomStream = 'mt19937ar with seed';
tgacChannel.Seed = 10;

% Pass signal through the channel. Append zeroes to compensate for channel
% filter delay
txWaveform = [txWaveform;zeros(10,1)];
chanOut = tgacChannel(txWaveform);

snr = 40; % In dBs
rxWaveform = awgn(chanOut,snr,0);

% Display the spectrum of the transmitted and received signals. The
% received signal spectrum is affected by the channel
spectrumScope  = spectrumAnalyzer(SampleRate=Rs, ...
            AveragingMethod='exponential',ForgettingFactor=0.99, ...
            YLimits=[-30 10],ShowLegend=true, ...
            ChannelNames={'Transmitted waveform','Received waveform'});
spectrumScope([txWaveform rxWaveform]);

Channel Estimation and Equalization

In this section the time-domain VHT-LTF is extracted from the received waveform. The waveform is assumed to be synchronized to the start of the packet by taking the channel filter delay into account. The VHT-LTF is demodulated and is used to estimate the channel. The received signal is then equalized using the channel estimate obtained from the VHT-LTF.

In this example the received signal is synchronized to the start of the packet by compensating for a known channel filter delay. For more information on how to automatically detect and synchronize to the received signal see the following examples:

chInfo = info(tgacChannel); % Get characteristic information
% Channel filter delay, measured in samples
chDelay  = chInfo.ChannelFilterDelay;
rxWaveform = rxWaveform(chDelay+1:end,:);

After synchronization the receiver has to extract the relevant fields from the received packet. The wlanFieldIndices function is used to return the start and end time-domain sample indices of all fields relative to the first sample in a packet. These indices are used to extract the required fields for further processing.

indField = wlanFieldIndices(cfgVHT);

To extract the VHT-LTF from the received signal the start and end indices are used to generate a vector of indices.

indVHTLTF = indField.VHTLTF(1):indField.VHTLTF(2);

The VHT-LTF is used to estimate the channel between all space-time streams and receive antennas. The VHT-LTF is extracted from the received waveform and is demodulated using the wlanVHTLTFDemodulate function.

demodVHTLTF = wlanVHTLTFDemodulate(rxWaveform(indVHTLTF,:),cfgVHT);

The channel estimate includes the effect of the applied spatial mapping and cyclic shifts at the transmitter for a multi antenna configuration. The wlanVHTLTFChannelEstimate function returns the estimated channel between all space-time streams and receive antennas.

chanEstVHTLTF = wlanVHTLTFChannelEstimate(demodVHTLTF,cfgVHT);

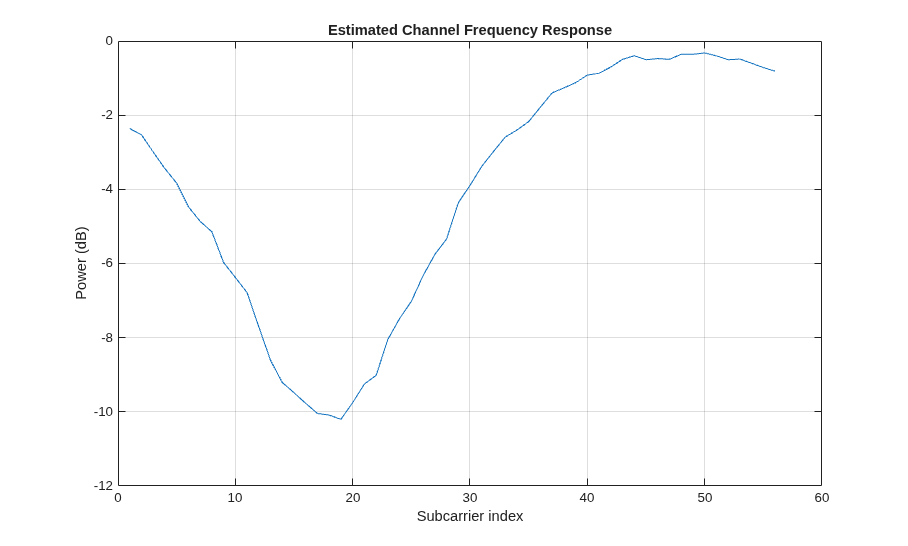

The transmit signal encounters a deep fade as shown in the channel frequency response in the figure below. The effect of channel fades can also be seen in the spectrum plot shown previously.

grid on;
title('Estimated Channel Frequency Response');
xlabel('Subcarrier index');
ylabel('Power (dB)');

To extract the data field from the received signal the start and end indices for the data field are used to generate a vector of indices.

indData = indField.VHTData(1):indField.VHTData(2);

% Get channel estimates at pilot subcarriers
ofdmInfo = wlanVHTOFDMInfo("VHT-Data",cfgVHT.ChannelBandwidth,cfgVHT.GuardInterval);
chanEstPilots = chanEstVHTLTF(ofdmInfo.PilotIndices);

% Estimate the noise power in VHT data field
nVar = vhtNoiseEstimate(rxWaveform(indData,:),chanEstPilots,cfgVHT);

% Recover the bits and equalized symbols in the VHT Data field using the
% channel estimates from VHT-LTF
[rxPSDU,~,eqSym] = wlanVHTDataRecover(rxWaveform(indData,:),chanEstVHTLTF,nVar,cfgVHT);

% Compare transmit and receive PSDU bits
numErr = biterr(txPSDU,rxPSDU);

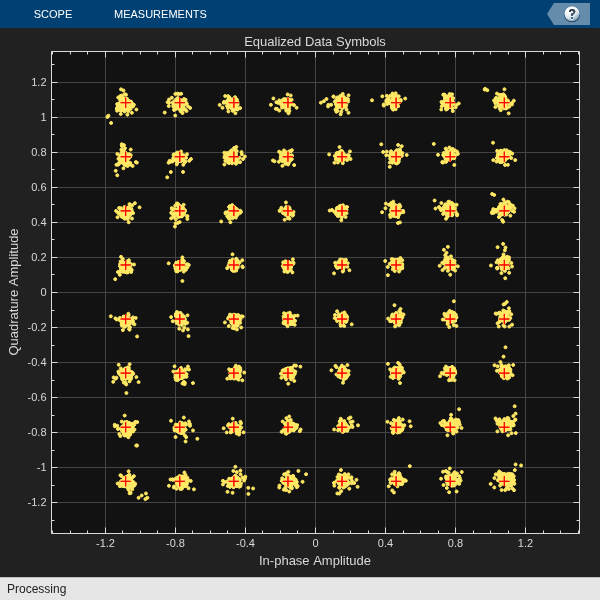

The following plot shows the constellation of the equalized symbols at the output of the wlanVHTDataRecover function compared against the reference constellation. Increasing the channel noise should begin to spread the distinct constellation points.

% Plot equalized symbols
constellationDiagram = comm.ConstellationDiagram;
constellationDiagram.ReferenceConstellation = wlanReferenceSymbols(cfgVHT);
% Compare received and reference constellation
constellationDiagram.Title = 'Equalized Data Symbols';

Selected Bibliography

  1. IEEE Std 802.11™-2020. IEEE Standard for Information Technology - Telecommunications and Information Exchange between Systems - Local and Metropolitan Area Networks - Specific Requirements - Part 11: Wireless LAN Medium Access Control (MAC) and Physical Layer (PHY) Specifications.

  2. Breit, G., H. Sampath, S. Vermani, et al. TGac Channel Model Addendum. Version 12. IEEE 802.11-09/0308r12, March 2010.
