802.11az Waveform Generation

This example shows how to parameterize and generate IEEE® 802.11az™ high-efficiency (HE) ranging null data packet (NDP) waveforms and highlights some of the key features of the standard.

Introduction

The emerging 802.11az standard [1], commonly referred to as next generation positioning (NGP), enables a station to identify its position relative to other stations. This standard supports two HE ranging physical layer (PHY) protocol data unit (PPDU) formats:

  • HE ranging NDP

  • HE trigger-based (TB) ranging NDP

The HE ranging NDP and HE TB ranging NDP are the respective analogues of the HE sounding NDP and HE TB NDP feedback PPDU formats, as defined in the 802.11ax™ standard. For more information on these HE PPDU formats, see [2].

The HE ranging NDP supports the positioning of one or more users with an optional secure HE long training field (HE-LTF) sequence. The single-user HE ranging waveform contains HE-LTF symbols for a single user, which also support an optional secure HE-LTF sequence. The multi-user HE ranging waveform permits only secure HE-LTF symbols for multiple users. To improve distance estimation accuracy, single-user and multi-user waveforms can contain multiple repetitions of the HE-LTF symbols.

Since 802.11az uses the same underlying PHY technologies as 802.11ax, the processing chains are very similar. This example shows how to generate 802.11az HE ranging NDP waveforms with secure and non-secure HE-LTF sequences.

HE Ranging NDP without Secure HE-LTF

The HE Ranging NDP contains HE-LTF symbols for a single user and uses the regular HE-LTF sequence defined in [2]. The number of HE-LTF symbols is the product of the number of HE-LTF repetitions and the number of HE-LTF symbols per repetition. The number of HE-LTF symbols depends on the number of space-time streams as specified in Table 21-13 of [3]. The construction of HE-LTF symbols in an HE Ranging NDP follows the steps defined in section 27.3.10.10 of [2] for all repeated HE-LTF symbols within an HE-LTF.

Generate Single-User HE Ranging NDP

Configure a transmission with two antennas, two space-times stream, and two HE-LTF repetitions.

cfg = heRangingConfig('NumTransmitAntennas',2);
cfg.User{1}.NumSpaceTimeStreams = 2;
cfg.User{1}.NumHELTFRepetition = 2;

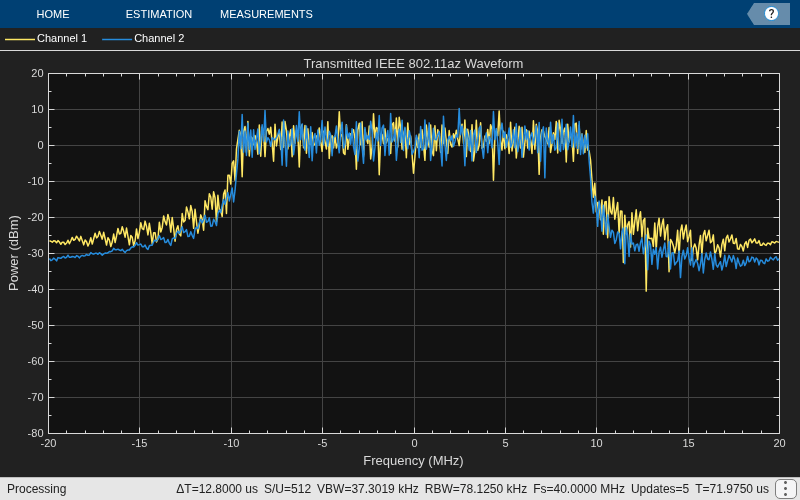

Generate the HE ranging NDP waveform for the specified configuration and plot the transmission power on the first antenna.

tx = heRangingWaveformGenerator(cfg);
heRangingWavGenPlot(tx,cfg);

HE Ranging NDP with Secure HE-LTF

To generate an HE ranging NDP with secure HE-LTF symbols, as defined in [2], specify either of these transmission parameter combinations.

  • A single-user heRangingConfig object with the SecureHELTF property set to true

  • A multi-user heRangingConfig object

The secure HE-LTF comprises a randomized LTF sequence as defined in Section 27.3.17c of [1]. To specify this sequence for a chosen user, set the SecureHELTFSequence property of the corresponding User property of the heRangingConfig object. If the number of bits in the SecureHELTFSequence property is less than the required number of bits for the given user configuration, the object cyclically extends the secure sequence. If the number of bits in SecureHELTFSequence is more than the required number of bits for the given user configuration, the object uses only the required number of bits, which it extracts from the specified hexadecimal sequence. When the transmission contains a secure HE-LTF sequence, it must also use a zero-power guard interval for the HE-LTF symbols. The packet extension (PE) starts with zero-power guard interval.

Generate Single-User HE Ranging NDP with Secure HE-LTF

Configure a transmission with two antennas, two space-times stream, three HE-LTF repetitions, and secure HE-LTF symbols.

cfg = heRangingConfig('NumTransmitAntennas',2,'SecureHELTF',true);
cfg.User{1}.NumSpaceTimeStreams = 2;
cfg.User{1}.NumHELTFRepetition = 3;
cfg.User{1}.SecureHELTFSequence = '12345678ABCDEF1234';

Generate the HE ranging NDP waveform for the specified configuration and plot the transmission power on the first antenna.

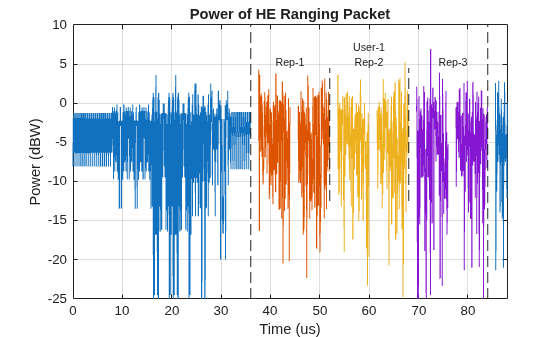

tx = heRangingWaveformGenerator(cfg);
heRangingWavGenPlot(tx,cfg);

Generate Multi-User HE Ranging NDP

A multi-user HE ranging NDP waveform contains secure HE-LTF symbols for multiple users. The transmisison concatenates HE-LTF symbols for each user up to a maximum of 64 consecutive symbols. This example demonstrates waveform generation with a secure HE-LTF sequence shown for two users. Configure transmission parameters, specifying two users and the number of space-time streams and HE-LTF repetitions for each.

cfg = heRangingConfig(2);
cfg.User{1}.NumSpaceTimeStreams = 1;
cfg.User{1}.NumHELTFRepetition = 2;
cfg.User{2}.NumSpaceTimeStreams = 1;
cfg.User{2}.NumHELTFRepetition = 3;

Determine the number of secure HE-LTF bits require to generate the secure HE-LTF symbols for by using the numSecureHELTFBits object function, then set the secure HE-LTF sequences for each user.

numNibbles = numSecureHELTFBits(cfg)/4; % 4 bits per nibble
secureSeqUser1 = 'a12c67f8b90dc56e78a2b3f1';
cfg.User{1}.SecureHELTFSequence = secureSeqUser1(1:numNibbles(1));
secureSeqUser2 = 'b3a49c5e6c1a2d35ed47c2d915f';
cfg.User{2}.SecureHELTFSequence = secureSeqUser2(1:numNibbles(2));

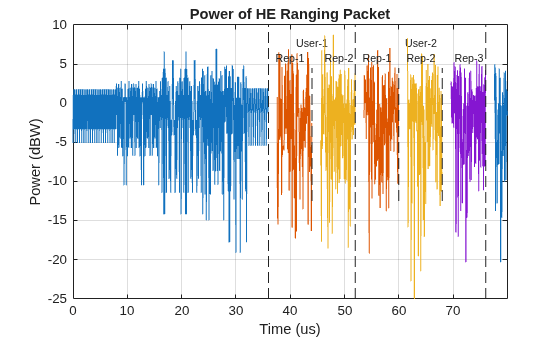

Generate the HE ranging NDP waveform for the specified configuration and plot the transmission power on the first antenna.

tx = heRangingWaveformGenerator(cfg);
heRangingWavGenPlot(tx,cfg);
