Test and Measurement

Waveform generation, visualization, and transmitter performance analysis

WLAN Toolbox™ provides functions that let you measure transmitter performance characteristics. The examples featured here demonstrate transmitter modeling and performance analysis. Communications Toolbox™ and DSP System Toolbox™ System objects provide additional quantitative tools for measuring system performance, and graphical utilities for visualizing waveforms.

Apps

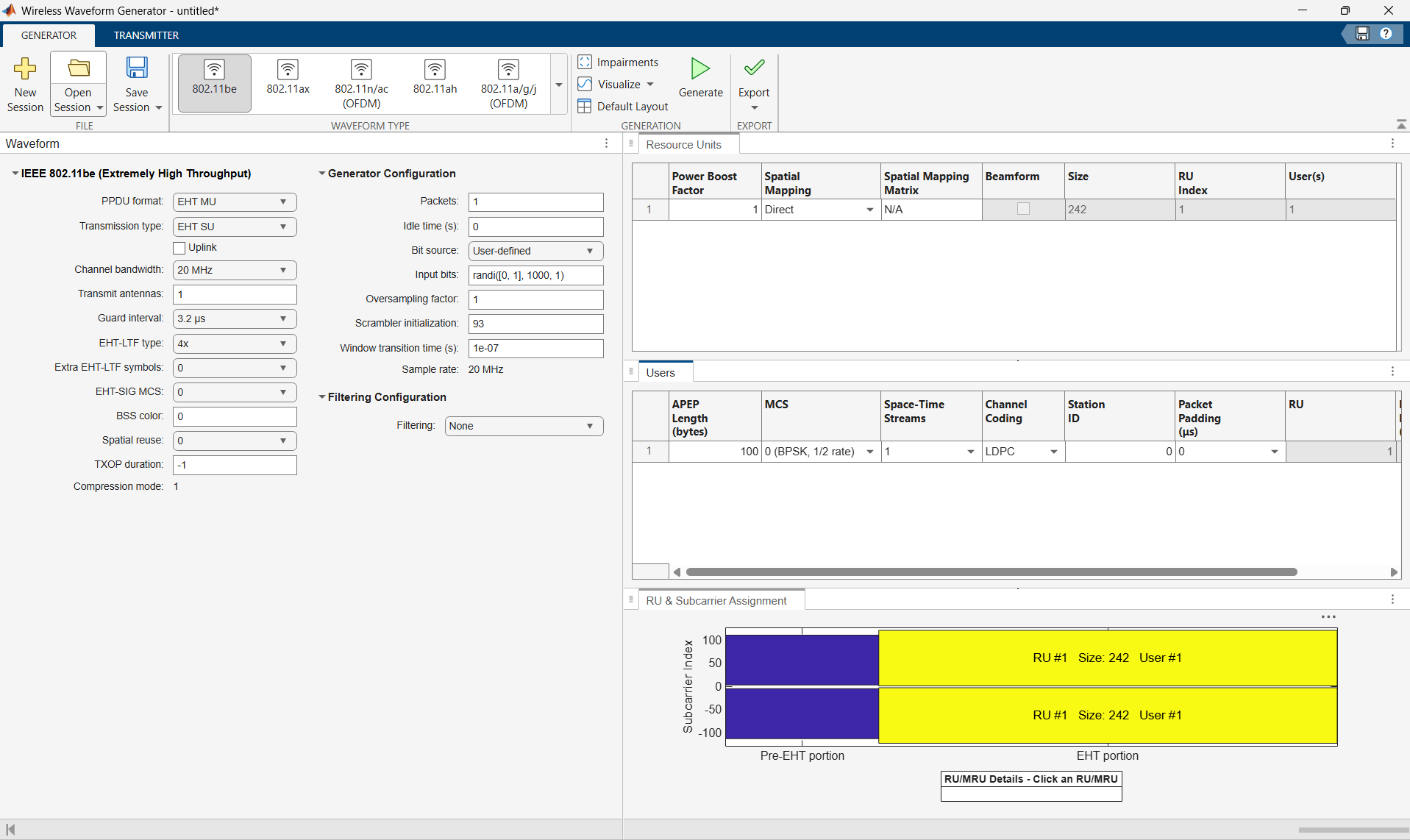

WLAN Waveform GeneratorCreate, impair, visualize, and export WLAN waveforms

Blocks

Waveform From Wireless Waveform Generator AppWireless waveform source exported to Simulink

Functions

wlanWaveformGeneratorGenerate WLAN waveform

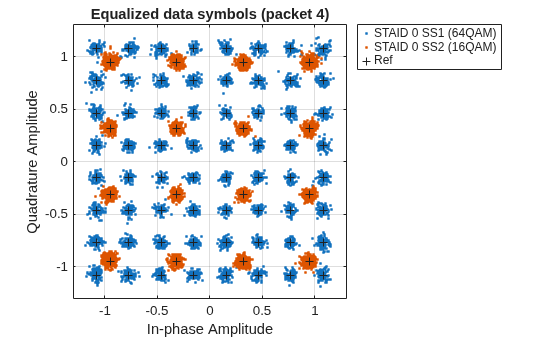

wlanReferenceSymbolsFind reference symbols of constellation diagram
wlanClosestReferenceSymbolFind closest constellation points
wlanChannelFrequencyDetermine channel center frequency

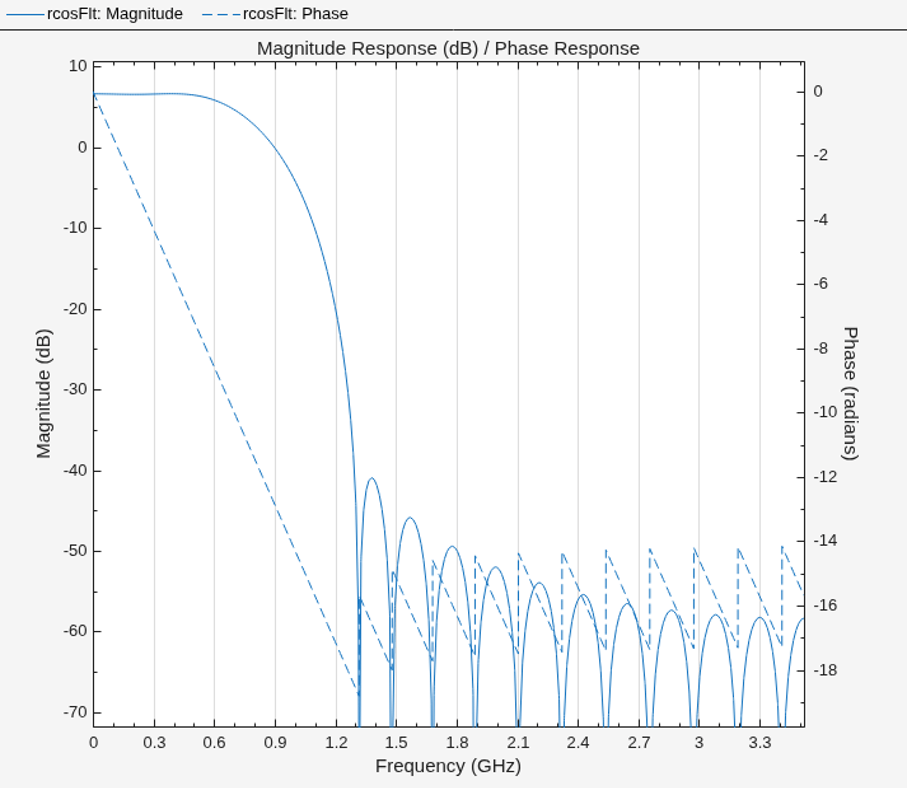

wlanSpectralFlatnessTest spectral flatness

Objects

expand all

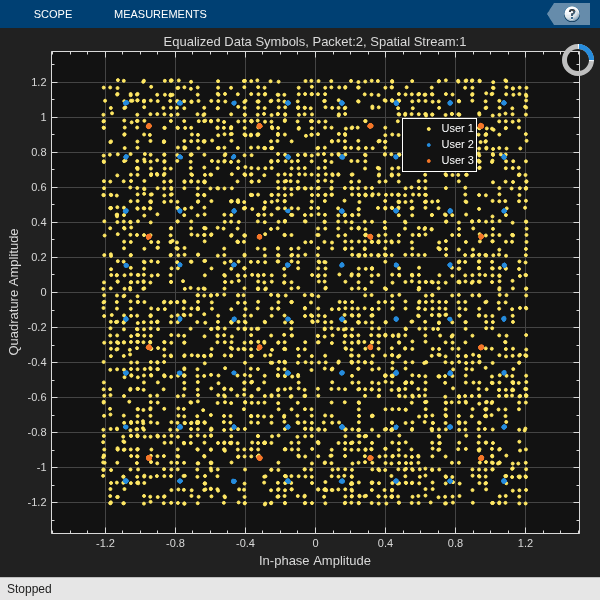

comm.ConstellationDiagramDisplay and analyze input signals in IQ-plane

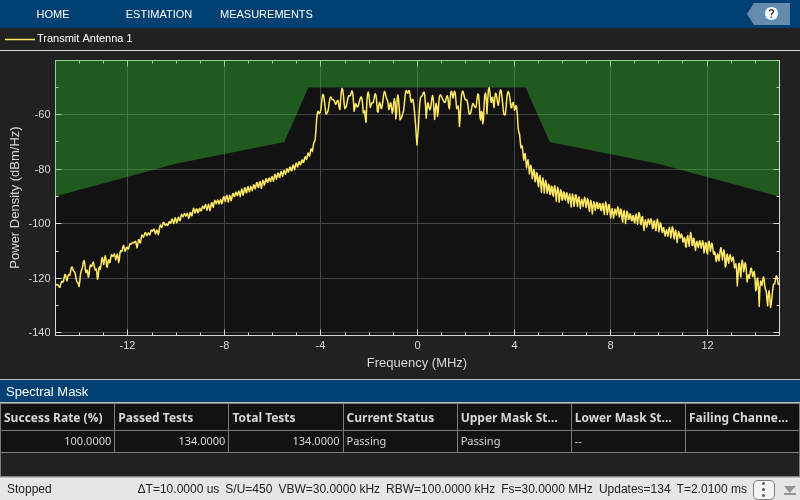

spectrumAnalyzerDisplay frequency spectrum of time-domain signals
timescopeDisplay time-domain signals
dsp.ArrayPlotDisplay vectors or arrays
comm.ErrorRateCompute bit or symbol error rate of input data

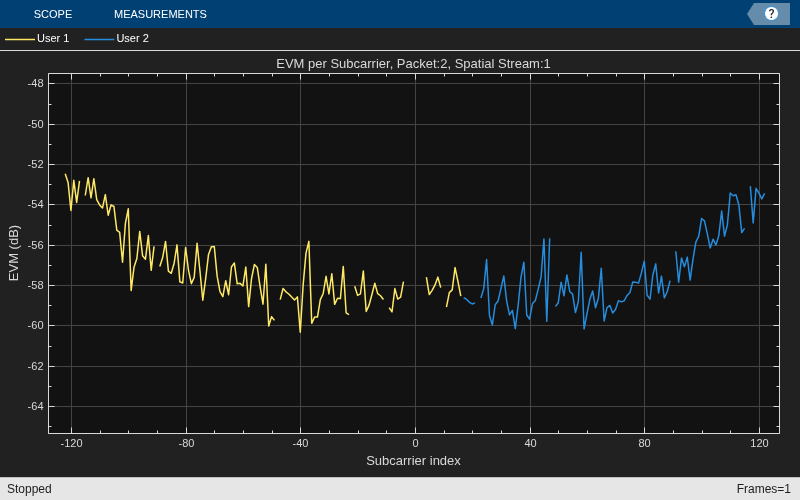

comm.EVMMeasure error vector magnitude (EVM) of received signal
