802.11n/ac (Wi-Fi 4 and Wi-Fi 5)

Receive 802.11n/ac (HT and VHT) waveforms

Model HT- and VHT-related signal reception functionality.

Functions

Waveform Detection and Synchronization

`wlanPacketDetect`	Estimate timing offset of OFDM packet using L-STF
`wlanFormatDetect`	Detect packet format
`wlanSymbolTimingEstimate`	Fine symbol timing estimate using L-LTF
`wlanCoarseCFOEstimate`	Perform coarse CFO estimation
`wlanFineCFOEstimate`	Perform fine CFO estimation
`wlanSampleRate`	Nominal sample rate
`wlanVHTTrackPilotError`	Track errors using pilot subcarriers of VHT waveform (Since R2025a)

Channel and Noise Estimation

`wlanLLTFChannelEstimate`	Channel estimation using L-LTF
`wlanLLTFNoiseEstimate`	Noise estimation using L-LTF or S1G-LTF1 (Since R2023a)
`wlanVHTLTFChannelEstimate`	Channel estimation using VHT-LTF
`wlanHTLTFChannelEstimate`	Channel estimation using HT-LTF

OFDM Demodulation and Equalization

`wlanVHTDemodulate`	OFDM-demodulate received time-domain VHT waveform (Since R2025a)
`wlanVHTEqualize`	Equalize demodulated VHT field symbols (Since R2025a)
`wlanLLTFDemodulate`	Demodulate L-LTF waveform
`wlanVHTLTFDemodulate`	Demodulate VHT-LTF waveform
`wlanHTLTFDemodulate`	Demodulate HT-LTF waveform
`wlanVHTOFDMInfo`	OFDM information for VHT transmission
`wlanHTOFDMInfo`	OFDM information for HT transmission

Signal Recovery

`wlanVHTDataBitRecover`	Recover bits from VHT-Data field (Since R2025a)
`wlanFieldIndices`	PPDU field indices
`wlanLSIGBitRecover`	Recover information bits in L-SIG field
`wlanLSIGRecover`	Recover L-SIG information bits
`wlanInterpretScramblerState`	Recover bandwidth signaling from initial scrambler state
`wlanVHTSIGARecover`	Recover bits from VHT-SIG-A field
`wlanVHTSIGBRecover`	Recover VHT-SIG-B information bits
`wlanHTSIGRecover`	Recover HT-SIG information bits
`wlanHTDataRecover`	Recover bits from HT-Data field
`wlanVHTDataRecover`	Recover bits from VHT-Data field

Bit-Level Processing

`wlanScramble`	Scramble and descramble binary input sequence
`wlanConstellationDemap`	Constellation demapping
`wlanStreamDeparse`	Stream-deparse spatial streams
`wlanBCCDecode`	BCC-decode input data
`wlanBCCDeinterleave`	Deinterleave BCC-interleaved input
`wlanSegmentDeparseBits`	Segment-deparse data bits
`wlanSegmentParseSymbols`	Segment-parse data subcarriers

MAC Frame Parsing

`wlanAMPDUDeaggregate`	Deaggregate A-MPDU and extract MPDUs
`wlanMPDUDecode`	Decode MPDU
`displayIEs`	Display list of IEs in MAC management frame

Topics

Basic VHT Data Recovery
Perform basic VHT data recovery.
End-to-End VHT Simulation with Frequency Correction
Generate, transmit, recover, and view a VHT MIMO waveform.
Transmit and Recover L-SIG, VHT-SIG-A, and VHT-SIG-B in Fading Channel
Transmit a VHT waveform through a noisy MIMO channel.

See Also

802.11n/ac (Wi-Fi 4 and Wi-Fi 5)

Transmit 802.11n/ac (HT and VHT) signals

Featured Examples

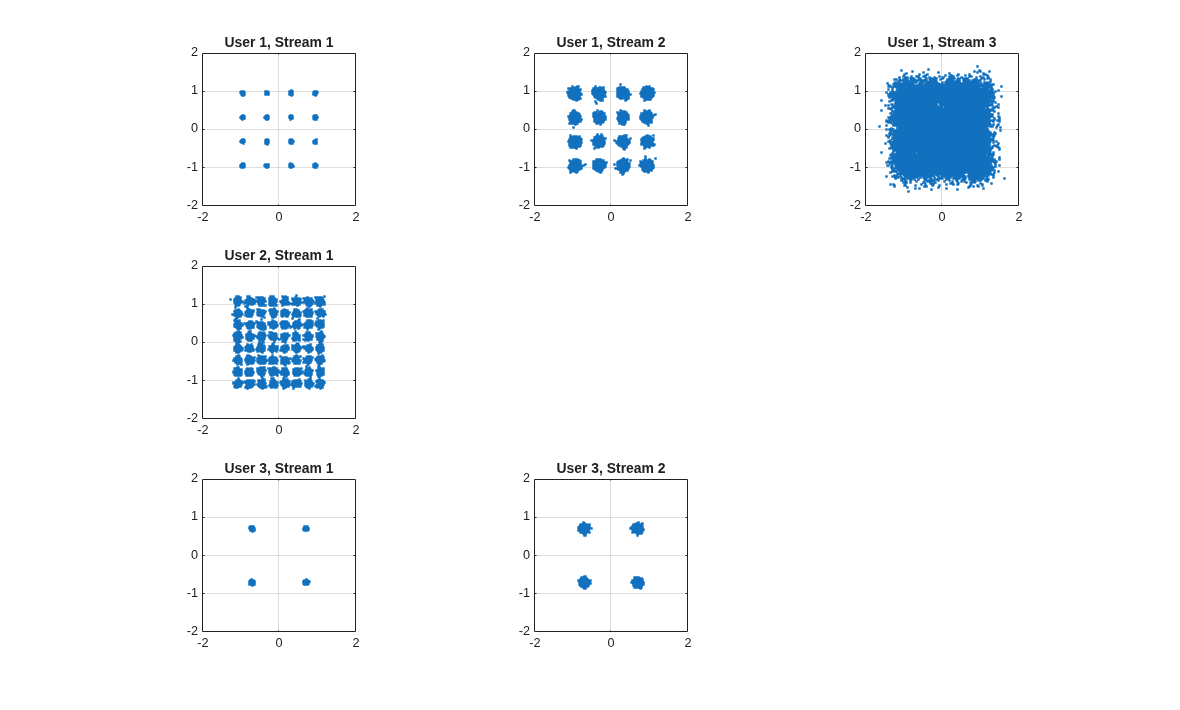

802.11ac Multi-User MIMO Precoding

802.11ac Multi-User MIMO Precoding

Perform transmit and receive processing for an IEEE^® 802.11ac™ multi-user downlink transmission over a fading channel.

Open Script

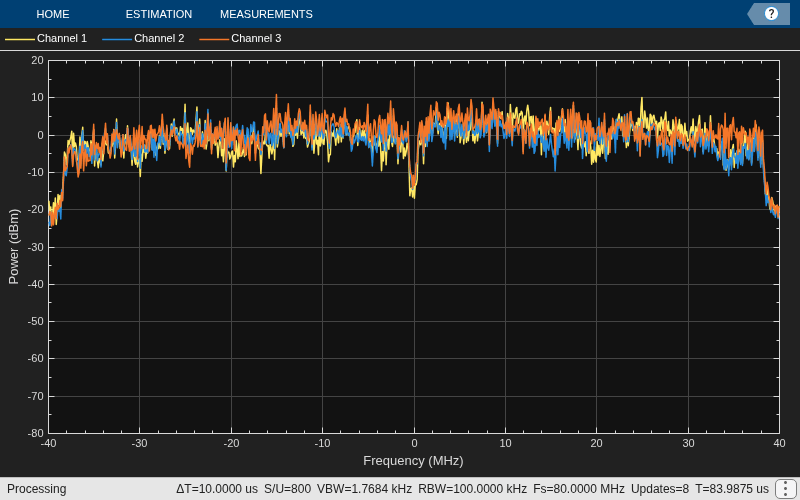

Recovery Procedure for an 802.11ac Packet

Recovery Procedure for an 802.11ac Packet

Detect a packet and decode payload bits in an IEEE 802.11ac waveform.

Open Live Script

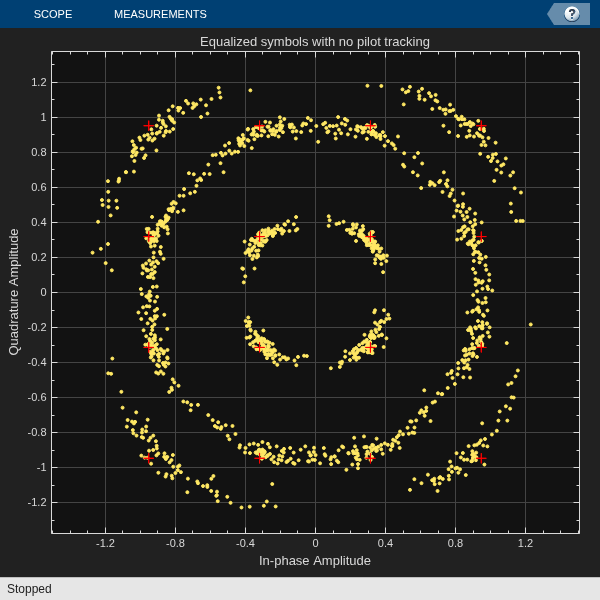

Joint Sampling Clock and Carrier Frequency Offset Tracking

Joint Sampling Clock and Carrier Frequency Offset Tracking

Measure and correct offset of sampling rate and carrier frequency in a WLAN receiver.

Open Live Script

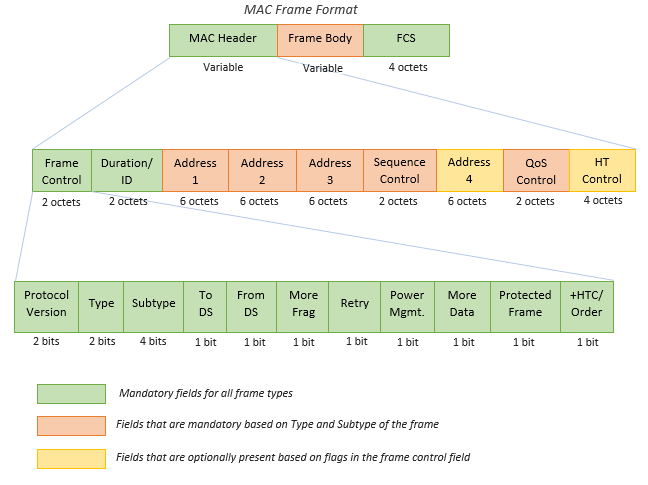

802.11 MAC Frame Decoding

802.11 MAC Frame Decoding

Decode IEEE 802.11™ MAC frames.

Open Script
