Dynamically Change CAN IDs by CAN Pack Block Input Ports

Open Live Script

This example shows how to dynamically control the CAN identifier (CAN ID) provided to the CAN Pack block by specifying the CAN ID through an input port.

Using this method, messages are dynamically packed with varying CAN IDs.

Explore the Model

model = 'demoDynamicCANID';
open_system(model);

The model is structured to demonstrate the flow of messages from packing to transmission over a virtual CAN network. Key components include:

  • CAN Pack block: Configured to accept CAN IDs dynamically through an input port, facilitating the flexible packaging of CAN messages.

  • CAN Transmit block: Serves as the gateway for sending packed messages into the virtual CAN network.

  • CAN Configuration block: Configures parameters for a CAN device that you can use to transmit and receive messages.

  • Step block: Provides a varying input to the CAN Pack blocks.

Inspect the CAN Pack Block

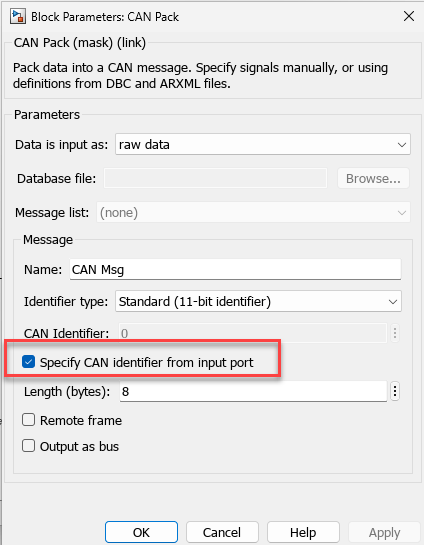

Double-click the CAN Pack block to open its parameters dialog. Select the option Specify CAN identifier from input port.

Enabling this checkbox adds a new input port, allowing for the provision of changing CAN IDs dynamically.

Set Up CAN Transmit Block

The messages are packed and sent to a CAN Transmit block, which is connected to MathWorks® virtual channel 1.

Create a CAN Channel in MATLAB

To receive these messages and observe them, use MathWorks virtual channel 2.

rxCh = canChannel('MathWorks', 'Virtual 1', 2);

Start the receive channel.

start(rxCh);

Simulate the model.

sim(model);

Receive the messages in a timetable format.

rxMsg = receive(rxCh, Inf, "OutputFormat", "timetable")
rxMsg=11×8 timetable
    1.8717 sec    1    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    2.8777 sec    1    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    3.8816 sec    1    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    4.8831 sec    1    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    5.8903 sec    1    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    6.8906 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    7.8868 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    8.8831 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    9.8793 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    10.876 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0
    11.874 sec    5    0    ''    [8,0,0,0,0,0,0,0]    8    0×0 struct    0    0

Observe the change in CAN ID in the received messages.

stop(rxCh);

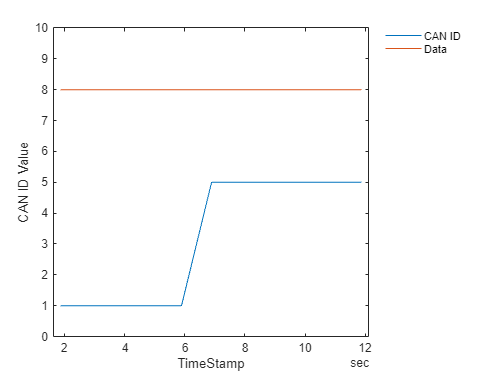

To visualize the varying CAN ID, plot the CAN IDs received.

plot(rxMsg.Time, rxMsg.ID);
hold on
data = vertcat(rxMsg.Data{:});
plot(rxMsg.Time, data(:,1));
hold off
xlabel("TimeStamp");
ylabel("CAN ID Value");
legend("CAN ID","Data","Location","northeastoutside");
legend("boxoff");
yMax = max(rxMsg.ID)+5;
ylim([0 yMax]);
