# Ground Plane Segmentation of Lidar Data on FPGA

This example shows how to segment organized 3-D lidar point cloud data into ground and nonground parts on FPGA. Ground plane removal is an essential video preprocessing step in lidar applications.

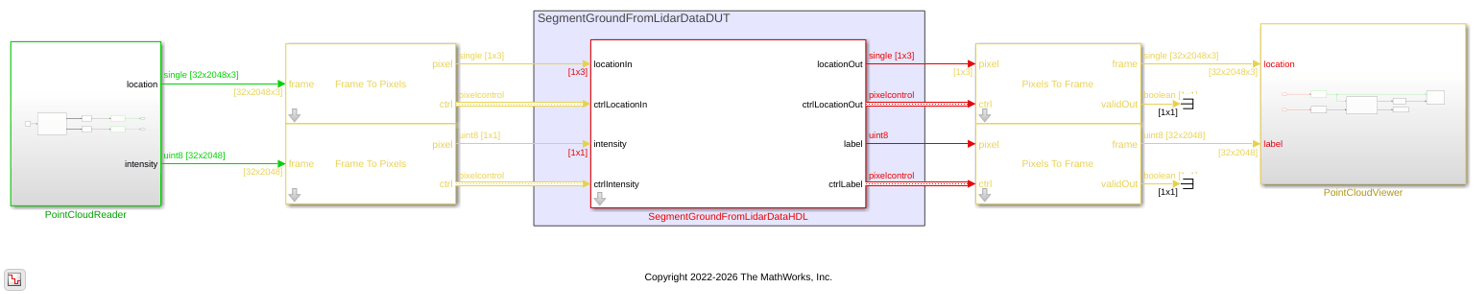

The example model loads a Velodyne® packet capture (PCAP) file from an HDL-32E lidar sensor. The `PointCloudReader`

subsystem uses `readFrame`

to read the input lidar data and separate its location and intensity components. The `SegmentGroundFromLidarDataHDL`

subsystem performs ground plane segmentation in two major steps, Savitzky-Golay smoothing and breadth-first search ground labeling. To observe the segmented lidar data, the `PointCloudViewer`

subsystem uses `pcpplayer`

to create a point cloud visualization. The labeling algorithm assumes the lidar sensor is mounted horizontally so that it observes all ground points closest to the sensor. For more details, see `segmentGroundFromLidarData`

(Computer Vision Toolbox).

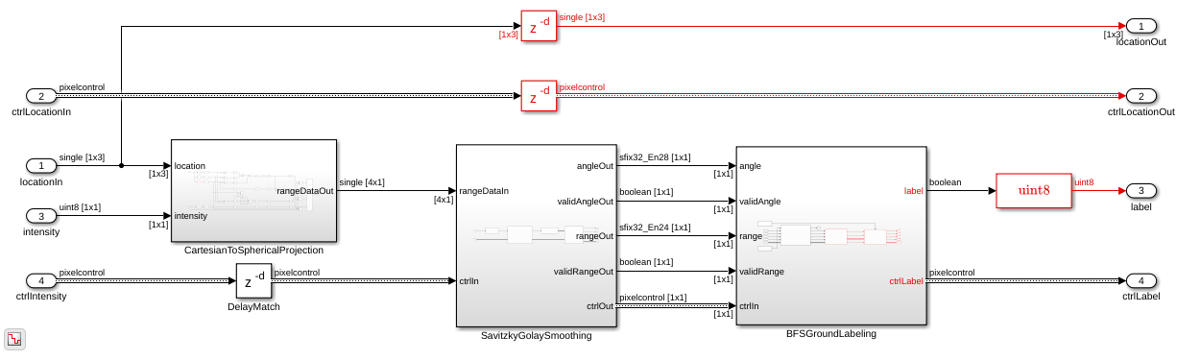

### Ground Segmentation HDL Subsystem

The input to the HDL subsystem is an organized point cloud, available as a 32-by-2048-by-3 array. The three channels represent the *x*-, *y*-, and *z*- coordinates of the points. The `CartesianToSphericalProjection`

converts these coordinates into a spherical system of range, pitch, and yaw. The `SatizskyGolaySmoothing`

subsystem interpolates any nonfinite outlier values in the lidar measurements. Finally, the `BFSGroundLabeling`

subsystem flood fills the space and labels the connected ground components. To reduce latency and resource use in the flood-fill operation, the model reads the values in an upside-down (row-wise) order.

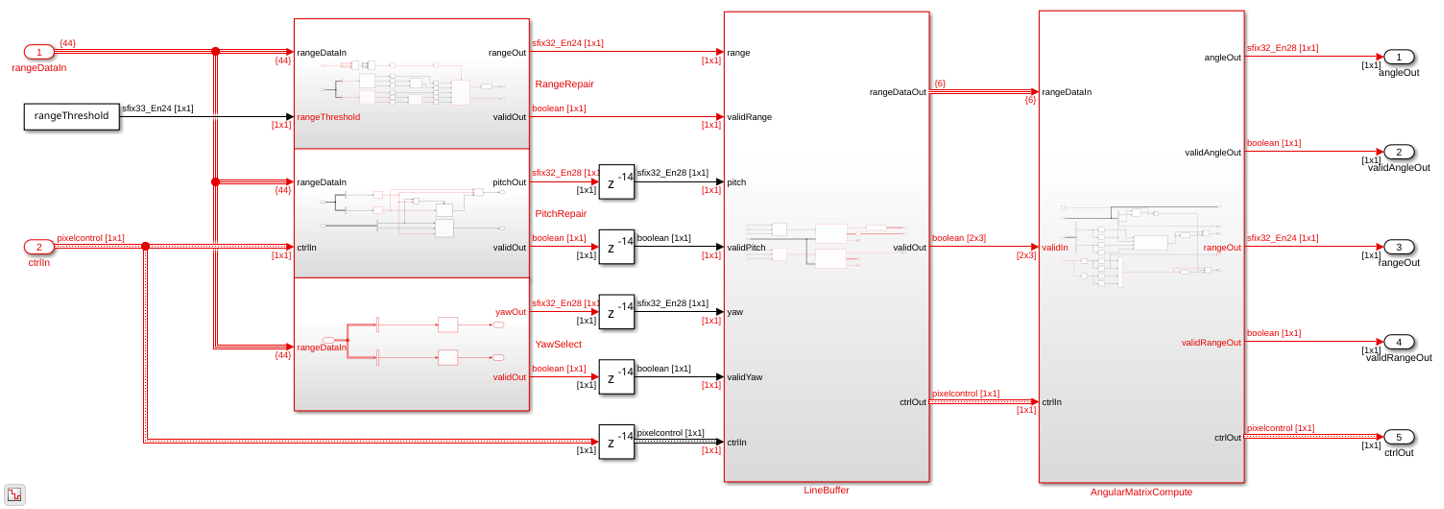

### Savitzky-Golay Interpolate Subsystem

The `SavitzkyGolayInterpolate`

subsystem interpolates the nonfinite values in the range and pitch plane. For range plane interpolation, the subsystem uses the neighbors in the column. If the difference of the neighbors and the current pixel is less than the required `rangeThreshold`

, the mean of the differences is the new interpolated value of the current nonfinite pixel. For pitch plane interpolation, the subsystem uses the left neighbor in the row. Using only the left neighbor optimizes the resources of the design while maintaining performance.

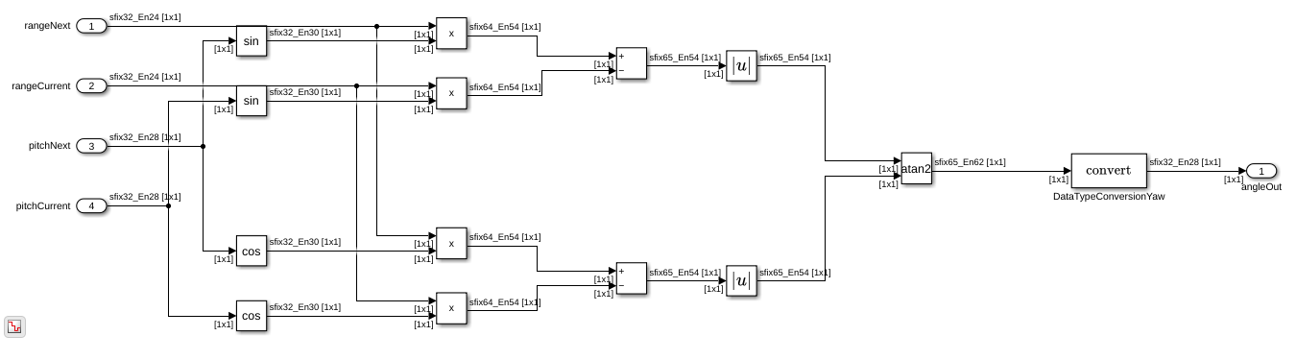

### Angle Compute Subsystem

After interpolation, the `AngleCompute`

subsystem computes the angle of inclination from consecutive range values. It takes each column of the range image and calculates the angle. The `FloodFill`

subsystem uses this angle to threshold and label the ground points. Let and be the range values corresponding to the rows and in the range image, then the angle can be computed as, . Here, and are the vertical angles or pitch values corresponding to the rows and , respectively.

### Flood-Fill Subsystem

The `BFSGroundLabeling`

subsystem uses the flood-fill algorithm to segment the ground points. It involves two steps that the `SeedsCompute`

and `FloodFill`

subsystems implement. The seeds act as a starting point for segmenting the ground points. The `seedThreshold`

value is the initial elevation angle of the ground point in the scanning line closest to the lidar sensor. The `SeedsCompute`

subsystem checks if the elevation angle falls below the threshold and marks valid seeds as ground points for every column.

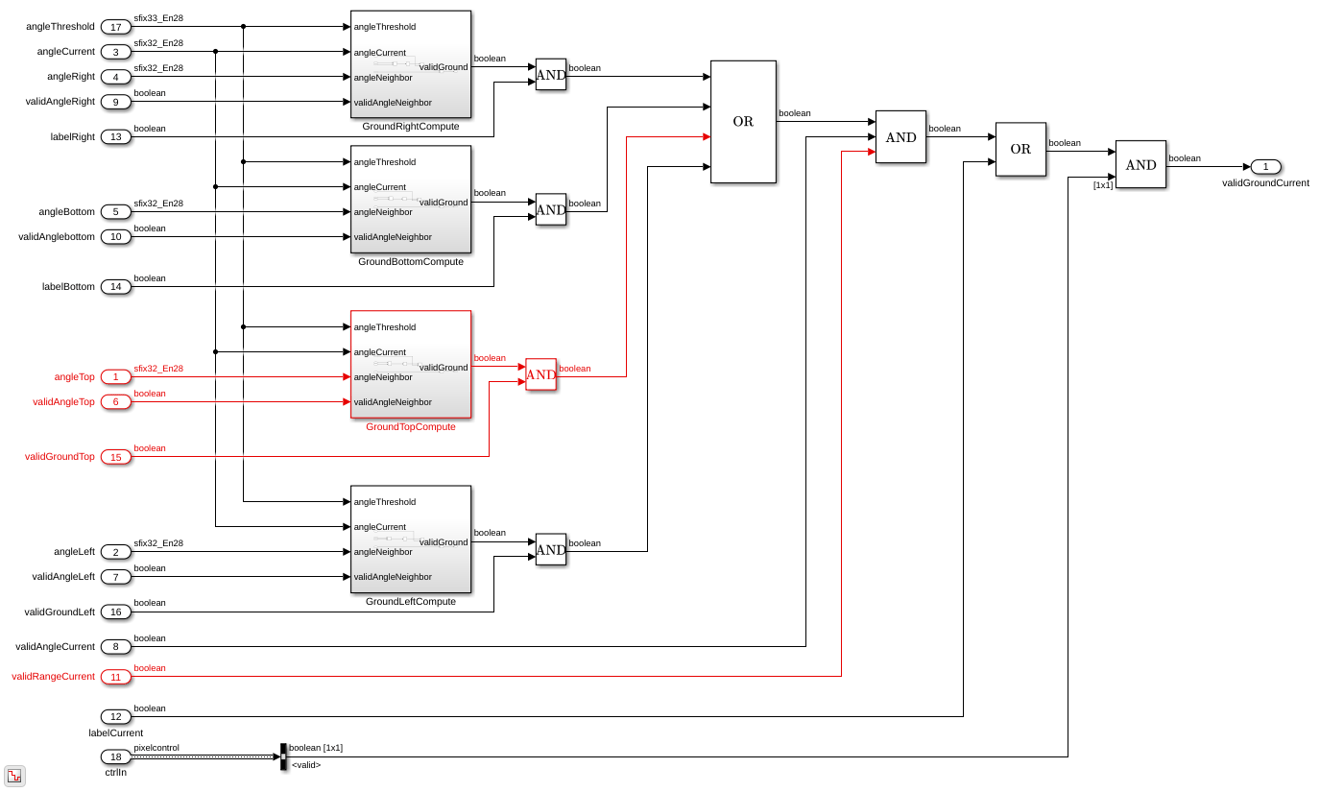

The `FloodFill`

subsystem labels points as ground and nonground points. The flood-fill algorithm accuracy increases with more iterations. However, each iteration requires more hardware resources. This example implements a single iteration that filters more than 90% of the points accurately. The `FloodFill`

subsystem computes the elevation angle difference between one labeled ground point and its four connected neighbors: top, bottom, left, and right. If any of the four neighbors is a ground pixel and the angle difference is less than a specified `angleThreshold`

, then the `GroundLabelCompute`

subsystem labels the point as a ground point.

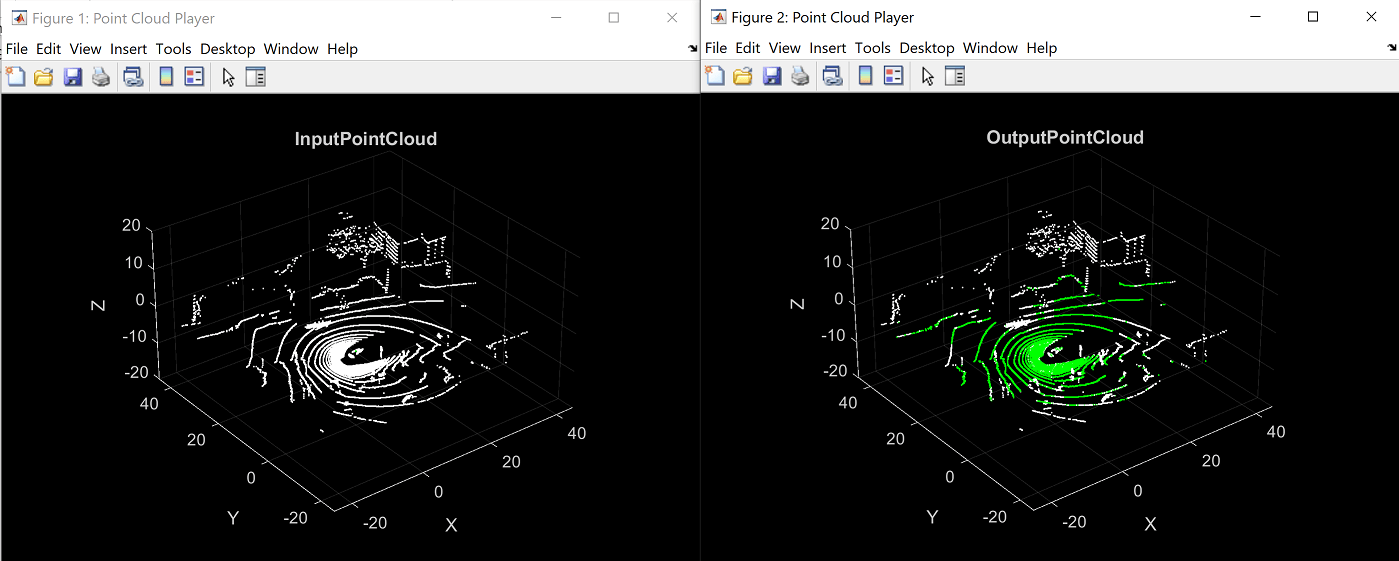

### Simulation and Output

The `PointCloudViewer`

subsystem uses the ground point labels from the point cloud to color all ground points green and nonground points white and plot the resulting lidar point cloud. The plots show the result of ground plane segmentation for the HDL-32E lidar sensor.

### Implementation Results

To generate and verify the HDL code from this example, you must have the HDL Coder™ product. To generate the HDL code, use this command.

```
makehdl('SegmentGroundFromLidarDataHDL/SegmentGroundFromLidarDataHDL')
```

The generated code was synthesized for a Xilinx® ZC706 SoC target. The design meets a 150 MHz timing constraint. The table shows the hardware resources for this design.

T = 5x2 table Resource Usage ________ ______________ DSP48 26 (2.89%) Register 39035 (8.93%) LUT 33550 (15.35%) BRAM 160 (29.36%) URAM 0 (0%)

### References

[1] Bogoslavskyi, I. "Efficient Online Segmentation for Sparse 3D Laser Scans." Journal of Photogrammetry, Remote Sensing and Geoinformation Science. Vol. 85, Number 1, 2017, pp. 41-52.
