Face Detection and Tracking Using CAMShift
This example shows how to automatically detect and track a face.
Object detection and tracking are important in many computer vision applications including activity recognition, automotive safety, and surveillance. In this example, you will develop a simple face tracking system by dividing the tracking problem into three separate problems:
Detect a face to track
Identify facial features to track
Track the face
Step 1: Detect a Face To Track
Before you begin tracking a face, you need to first detect it. Use the
vision.CascadeObjectDetector to detect the location of a face in a video frame. The cascade object detector uses the Viola-Jones detection algorithm and a trained classification model for detection. By default, the detector is configured to detect faces, but it can be configured for other object types.

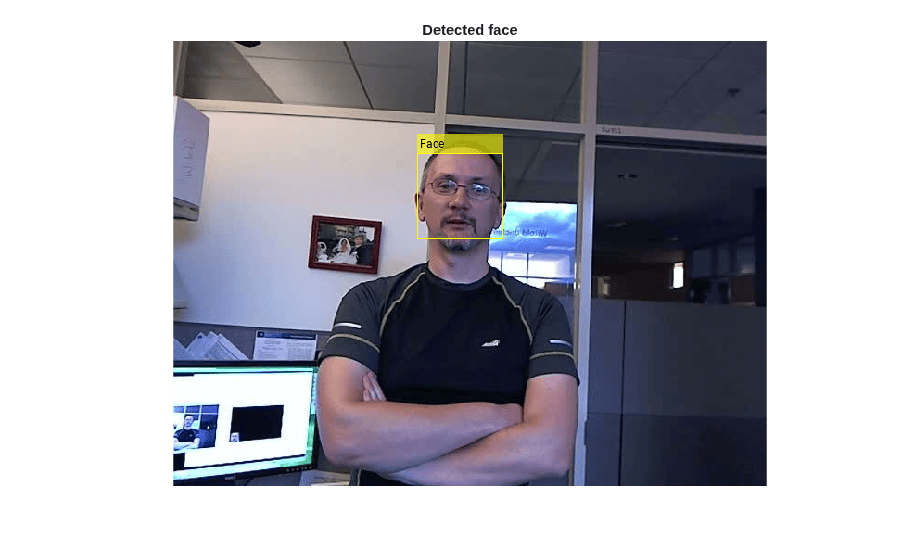

% Create a cascade detector object. faceDetector = vision.CascadeObjectDetector(); % Read a video frame and run the detector. videoFileReader = VideoReader('visionface.avi'); videoFrame = readFrame(videoFileReader); bbox = step(faceDetector, videoFrame); % Draw the returned bounding box around the detected face. videoOut = insertObjectAnnotation(videoFrame,'rectangle',bbox,'Face'); figure, imshow(videoOut), title('Detected face');
You can use the cascade object detector to track a face across successive video frames. However, when the face tilts or the person turns their head, you may lose tracking. This limitation is due to the type of trained classification model used for detection. To avoid this issue, and because performing face detection for every video frame is computationally intensive, this example uses a simple facial feature for tracking.
Step 2: Identify Facial Features To Track
Once the face is located in the video, the next step is to identify a feature that will help you track the face. For example, you can use the shape, texture, or color. Choose a feature that is unique to the object and remains invariant even when the object moves.
In this example, you use skin tone as the feature to track. The skin tone provides a good deal of contrast between the face and the background and does not change as the face rotates or moves.

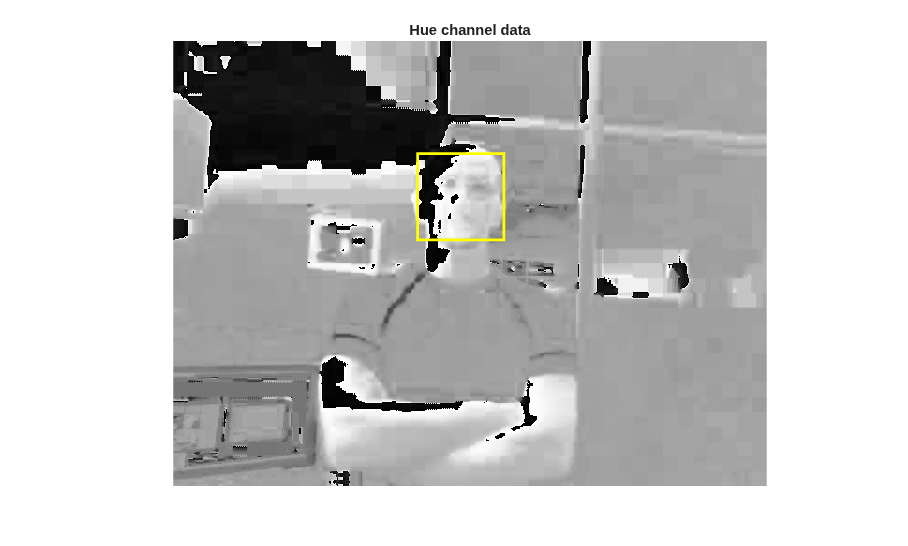

Get the skin tone information by extracting the Hue from the video frame converted to the HSV color space.
[hueChannel,~,~] = rgb2hsv(videoFrame); % Display the Hue Channel data and draw the bounding box around the face. figure, imshow(hueChannel), title('Hue channel data'); rectangle('Position',bbox(1,:),'LineWidth',2,'EdgeColor',[1 1 0])
Step 3: Track the Face
With the skin tone selected as the feature to track, you can now use the
vision.HistogramBasedTracker for tracking. The histogram based tracker uses the CAMShift algorithm, which provides the capability to track an object using a histogram of pixel values. In this example, the Hue channel pixels are extracted from the nose region of the detected face. These pixels are used to initialize the histogram for the tracker. The example tracks the object over successive video frames using this histogram.
Detect the nose within the face region. The nose provides a more accurate measure of the skin tone because it does not contain any background pixels.

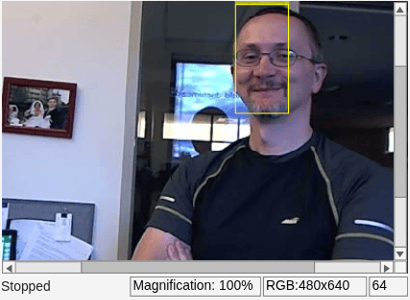

noseDetector = vision.CascadeObjectDetector('Nose', 'UseROI', true); noseBBox = step(noseDetector, videoFrame, bbox(1,:)); % Create a tracker object. tracker = vision.HistogramBasedTracker; % Initialize the tracker histogram using the Hue channel pixels from the % nose. initializeObject(tracker, hueChannel, noseBBox(1,:)); % Create a video player object for displaying video frames. videoPlayer = vision.VideoPlayer; % Track the face over successive video frames until the video is finished. while hasFrame(videoFileReader) % Extract the next video frame videoFrame = readFrame(videoFileReader); % RGB -> HSV [hueChannel,~,~] = rgb2hsv(videoFrame); % Track using the Hue channel data bbox = step(tracker, hueChannel); % Insert a bounding box around the object being tracked videoOut = insertObjectAnnotation(videoFrame,'rectangle',bbox,'Face'); % Display the annotated video frame using the video player object step(videoPlayer, videoOut); end % Release resources release(videoPlayer);
In this example, you created a simple face tracking system that automatically detects and tracks a single face. Try changing the input video and see if you are able to track a face. If you notice poor tracking results, check the Hue channel data to see if there is enough contrast between the face region and the background.
 G.R. Bradski "Real Time Face and Object Tracking as a Component of a Perceptual User Interface", Proceedings of the 4th IEEE Workshop on Applications of Computer Vision, 1998.
 Viola, Paul A. and Jones, Michael J. "Rapid Object Detection using a Boosted Cascade of Simple Features", IEEE CVPR, 2001.
