2-D Maximum

Compute maximum value of input or sequence of inputs

  • Library:
  • Computer Vision Toolbox / Statistics

  • 2-D Maximum block

Description

The 2-D Maximum block identifies the index of the largest element in an input array. The input can be a 1-D vector, 2-D matrix, or an N-D-array. The block can compute the maximum value along a specified dimension of the input or the entire input. The 2-D Maximum block can also track the maximum values in a sequence of inputs over a period of time.

Ports

Input

expand all

Input array, specified as a vector, matrix, or N-D- array. This port is unnamed until you select the Enable ROI processing parameter or set the Mode parameter to Running.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point
Complex Number Support: Yes

Reset port, specified as a scalar. This port specifies the event that causes the block to reset the running maximum. The sample time of the Rst input must be a positive integer and a multiple of the input sample time.

Dependencies

To enable this port, set the Mode parameter to Running and set the Reset port parameter to Rising edge, Falling edge, Either edge, or Non-zero sample.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Boolean

Region of interest (ROI), specified as a four-element vector, m-by-4 matrix, or M-by-N matrix. The input value to this port depends on the ROI type parameter.

Note

You can use the ROI port only if the input is a matrix.

Dependencies

To enable this port, set the Find the maximum value over parameter to Entire input and select the Enable ROI processing parameter.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Label matrix, specified as a matrix of nonnegative integers. The label matrix represents the objects in an image. The pixels labeled 0 are the background. The pixels labeled 1 make up one object; the pixels labeled 2 make up a second object; and so on. The size of the label matrix must be the same size as the 2-D input.

Dependencies

To enable this port, select the Enable ROI processing parameter and set the ROI type parameter to Label matrix.

Data Types: uint8 | uint16 | uint32

Label values of ROIs, specified as a M-element vector. The value of M can be less than or equal to the number of objects that are labeled in the label matrix.

Dependencies

To enable this port, select the Enable ROI processing parameter and set the ROI type parameter to Label matrix.

Data Types: uint8 | uint16 | uint32

Output

expand all

Output maximum value, returned as a scalar, vector, matrix, or N-D-array. The size of the returned maximum value depends on the size of the input, and the settings for the Find the maximum value over parameter.

This port is unnamed if Mode is set to Running.

Compute Maximum Value of Input Array

The Mode parameter is set to Value and Index or Value. In this case, you can compute the maximum value along any specified dimension of the input or the entire input. The output maximum value is a:

  • Scalar if the input is of any size and Find the maximum value over parameter is set to Entire input.

  • Vector if the input is a matrix and the Find the maximum value over parameter is set to any one of Each row, Each column, and Specified dimension. In this case, the Dimension value for Specified dimension can be either 1 or 2.

  • (N-1)-D array if the input is an N-D array and the Find the maximum value over parameter is set to Specified dimension and the Dimension value is N.

  • N-D array with one singleton dimension if the input is an N-D array and the Find the maximum value over parameter is set to either of Each row, Each column, and Specified dimension.

    Example: For a 3-D input array of size M-by-N-by-P, the dimension of the returned output is:

    • 1-by-N-by-P if you set the Find the maximum value over parameter to Entire row.

    • M-by-1-by-P if you set the Find the maximum value over parameter to Entire column.

    • M-by-N if you set the Find the maximum value over parameter to Specified dimension and the Dimension value to 3.

Compute Maximum Value of Sequence of Inputs

When you set the Mode parameter to Running, the block computes the maximum value relative to each sample in the input sequence. The output is of the same size as the input.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | fixed point

Indices of maximum values in the input array, returned as a scalar, vector, matrix, or N-D-array. The size of the returned indices depends on the size of the input, and the settings for the Find the maximum value over parameter.

To enable this port set the Mode parameter to Value and Index or Index. The indices returned at the output is a:

  • Scalar if the input is a N- element vector and Find the maximum value over parameter is set to Entire input.

  • Vector if the input is a matrix and the Find the maximum value over parameter is set to any one of Entire input, Each row, Each column, and Specified dimension. In this case, the Dimension value for Specified dimension can be either 1 or 2.

  • (N-1)-D array if the input is a N-D array and the Find the maximum value over parameter is set to Specified dimension and the Dimension value is N.

  • N-D array with one singleton dimension if the input is an N-D array. In this case the Find the maximum value over parameter is set to Each row, Each column, or Specified dimension. In this case, the Dimension value for Specified dimension is an integer less than N.

    Example: For a 3-D input array of size M-by-N-by-P, the dimension of the returned output is:

    • 1-by-N-by-P if you set the Find the maximum value over parameter to Entire row.

    • M-by-1-by-P if you set the Find the maximum value over parameter to Entire column.

    • M-by-N if you set the Find the maximum value over parameter to Specified dimension and the Dimension value to 3.

Note

When a maximum value occurs more than once, the computed index corresponds to the first occurrence. For example, in the input vector [3 2 1 2 3], the maximum value is 3 and the one-based index of the maximum value is 1.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64 | Boolean | fixed point | enumerated | bus

Validation for ROI, returned as 0 or 1. The output value signifies if all of the ROIs specified at the input lie within the image bounds. The output value depends on the values of the Output and ROI Type parameters.

ROI TypeOutputOutput from Flag portDescription
  • Rectangles

  • Lines

Individual statistics for each ROI0ROI is completely outside the input image.
1ROI is either completely or partially inside the input image.
Single statistic for all ROIs0ROI is completely outside the input image.
1ROI is either completely or partially inside the input image.
Label matrixIndividual statistics for each ROI0Label number is not in the label matrix.
1Label number is in the label matrix.
Single statistic for all ROIs0None of the label numbers are in the label matrix.
1At least one of the label numbers is in the label matrix.

Note

If the ROI is partially outside the image, the block computes the variance values only for the portion of the ROI that lies within the image bounds.

Dependencies

To enable this port, select the Output flag indicating if ROI is within image bounds parameter and set the value of ROI type parameter to Rectangle, Lines, or Label Matrix.

Parameters

expand all

Main Tab

Specify the type of output to be returned by the block. Select the output mode as:

  • Value and Index to return the maximum values and the corresponding indices in the given input.

  • Value to return only the computed maximum values.

  • Index to return only the indices of the maximum values in the given input.

  • Running to return the maximum values in a sequence of inputs.

Specify the index for the first element in the input array. Select the index origin as:

  • One for one-based numbering. The range of the index values for the elements in an N-D input array is set to (1, N). For example, the index value for the first element in the matrix is set to (1,1).

  • Zero for zero-based numbering. The range of the index value for the elements in an N-D input array is set to (0, N-1). For example, the index value for the first element in the matrix is set to (0,0).

Specify the dimension of the input along which the block computes the maximum.

  • Entire input — Computes maximum over the entire input.

  • Each row — Computes maximum over each row.

  • Each column — Computes maximum over each column.

  • Specified dimension— Computes maximum over the dimension specified in the Dimension parameter.

    • If Dimension is 1, the output is the same as when you select Each column.

    • If Dimension is 2, the output is the same as when you select Each row.

Dependencies

To enable this parameter, set the Mode parameter to Value and Index, Value, or Index.

Specify the dimension of the input array over which the maximum is computed as a one-based value. The value of this parameter must be greater than 0 and less than or equal to the number of dimensions in the input array.

Dependencies

To enable this parameter, set the Find the maximum value over parameter to Specified dimension.

Specify when the block detects a reset event. The block resets the running mode when a reset event is detected at the optional Rst port. The reset sample time must be a positive integer and a multiple of the input sample time.

Specify the reset event as:

  • None to disable the Rst port.

  • Rising edge to trigger a reset event when the Rst input does one of the following:

    • Rises from a negative value to either a positive value or zero

    • Rises from zero to a positive value, where the rise is not a continuation of a rise from a negative value to zero

  • Falling edge to trigger a reset event when the Rst input does one of the following:

    • Falls from a positive value to either a negative value or zero

    • Falls from zero to a negative value, where the fall is not a continuation of a fall from a positive value to zero

  • Either edge to trigger a reset event when the Rst input is a Rising edge or Falling edge.

  • Non-zero sample to trigger a reset event at each sample time, when the Rst input is not zero.

    Note

    When running simulations in the Simulink® multitasking mode, reset signals have a one-sample latency. Therefore, when the block detects a reset event, there is a one-sample delay at the reset port rate before the block applies the reset.

Dependencies

To enable this parameter, set the Mode parameter to Running.

ROI Processing

Select to calculate maximum within a particular ROI in the image.

Note

Full ROI processing is available only if you have a Computer Vision Toolbox™ license. If you do not have a Computer Vision Toolbox license, you can still use ROI processing, but the ROI type is limited to Rectangles.

Dependencies

To enable this parameter, set the Find the maximum value over parameter to Entire input.

Specify the type of ROI that represents the regions in the image over which the block computes the variance. The type of ROI can be a rectangle, line, label matrix, or a binary mask.

ParametersDescription
ROI typeInputs to the ROI port
Rectangles
  • Four-element row vector
    [x y width height]

  • m-by-4 matrix

    [x1y1width1height1x2y2width2height2xMyMwidthMheightM]

    ,

    where m is the number of rectangles. Each row of the matrix corresponds to a different rectangle.

  • x and y are the one-based coordinates of the upper left corner of the rectangle.

  • width and height are the width and height, in pixels, of the rectangle. The values of width and height must be greater than 0.

Lines
  • Four-element row vector
    [x1 y1 x2 y2]

  • m-by-4 matrix

    [x11y11x12y12x21y21x22y22xM1yM1xM2yM2]

    ,

    where m is the number of lines. Each row of the matrix corresponds to a different line.

  • x1 and y1 are the coordinates of the beginning of the line.

  • x2 and y2 are the coordinates of the end of the line.

Label matrixM-by-N matrixMatrix of the same size as the input image. The matrix contains label values that represent different objects in an image. The pixels labeled 0 are the background. The pixels labeled 1 make up one object; the pixels labeled 2 make up a second object; and so on.
Binary maskM-by-N matrixMatrix of the same size as the input image. The binary mask classifies image pixels as belonging to either the region of interest or the background. The mask pixel values of 1 indicate that the image pixel belongs to the ROI. The mask pixel values of 0 indicate that the image pixel is part of the background.

Dependencies

To enable this parameter, set the Find the maximum value over parameter to Entire input and select the Enable ROI processing parameter.

Specify the portion of the ROI from which the block has to calculate 2-D maximum. The ROI portion is either the entire ROI or the ROI perimeter.

Dependencies

To enable this parameter, select the Enable ROI processing parameter and set the ROI type parameter to Rectangles.

Specify whether to calculate 2-D maximum individually for each ROI or for the entire ROI.

  • If you select Individual statistics for each ROI, the block outputs a vector of maximum values. The size of the output vector is equal to the number of ROIs.

  • If you select Single statistic for all ROIs, the block outputs a scalar value. The scalar value represents the statistical value for all the specified ROIs.

Dependencies

To enable this parameter, select the Enable ROI processing parameter and set the ROI type parameter to Rectangles, Lines, or Label matrix.

Select to expose the Flag port. For a description of the Flag port output, see Flag.

Dependencies

To enable this parameter, select the Enable ROI processing parameter and set the ROI type parameter to Rectangles, Lines, or Label matrix.

Data Types Tab

For details on the fixed-point block parameters, see Specify Fixed-Point Attributes for Blocks.

Select this parameter to prevent the fixed-point tools from overriding the data types you specify in this block. For more information, see Lock the Output Data Type Setting (Fixed-Point Designer).

Block Characteristics

Data Types

double | fixed point | integer | single

Multidimensional Signals

no

Variable-Size Signals

yes

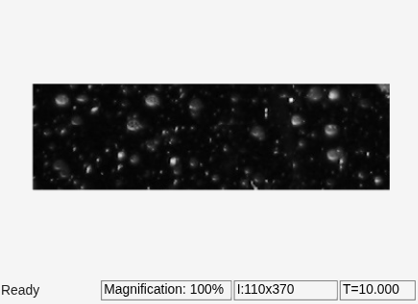

More About

expand all

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Introduced in R2011a
