# PartitionedDirectForecaster

## Description

`PartitionedDirectForecaster`

is a set of direct forecasting models
trained on partitioned, regularly sampled time series data. You can evaluate the quality of
the cross-validated direct forecasting model by using the `cvloss`

and
`cvpredict`

object
functions.

The `cvloss`

and `cvpredict`

object functions use
models trained on training observations to predict the response for test observations. For
example, suppose you cross-validate a direct forecasting model that predicts one step ahead by
using five sliding windows. In this case, the software splits the data set into five windows
with fixed-size training and test sets. Cross-validation proceeds as follows:

The software trains the first model (stored in

`CVMdl.Learners{1}`

) by using the observations in the first training set, and uses the observations in the first test set for validation.The software trains the second model (stored in

`CVMdl.Learners{2}`

) by using the observations in the second training set, and uses the observations in the second test set for validation.The software proceeds in a similar way for the third, fourth, and fifth models.

If you validate by using `cvpredict`

, the software computes predictions
for the observations in test set *i* by using model *i*. If
an observation is in more than one test set, then the function returns the prediction for that
observation, averaged over all test sets, by default.

## Creation

You can create a `PartitionedDirectForecaster`

model in two ways:

Create a cross-validated model from a direct forecasting object

`DirectForecaster`

by using the`crossval`

object function.Create a cross-validated model by using the

`directforecaster`

function and specifying the`Partition`

name-value argument.

## Properties

### Partition and Learner Properties

`Learners`

— Compact direct forecasting models used for cross-validation

cell array of `CompactDirectForecaster`

model objects

This property is read-only.

Compact direct forecasting models used for cross-validation, specified as a cell
array of `CompactDirectForecaster`

model objects. The number of models in
`Learners`

matches the number of test sets in the data partition
`Partition`

.

**Data Types: **`cell`

`LearnerTemplate`

— Template for regression models

output of template function

This property is read-only.

Template for the regression models in each `Learners`

model,
specified as the output of one of these template functions.

Template Function | Description |
---|---|

`templateEnsemble` | Ensemble learning template, with the ensemble aggregation method specified as
`"Bag"` or `"LSBoost"` |

`templateGAM` | General additive model template |

`templateGP` | Gaussian process regression model template |

`templateKernel` | Kernel model template |

`templateLinear` | Linear learner template |

`templateSVM` | Support vector machine template |

`templateTree` | Decision tree template |

`Partition`

— Data partition

`tspartition`

object

This property is read-only.

Data partition indicating how the software splits the data for cross-validation,
specified as a `tspartition`

object. The model uses expanding window cross-validation, sliding window
cross-validation, or holdout validation.

### Data Properties

`CategoricalPredictors`

— Indices of categorical exogenous predictors

positive integer vector | `[]`

This property is read-only.

Indices of categorical exogenous predictors, specified as a positive integer
vector. Each index value in `CategoricalPredictors`

indicates that
the corresponding exogenous predictor in `X`

is categorical. (See
`PredictorNames`

for the list of exogenous predictors.) If none
of the exogenous predictors are categorical, then this property is empty
(`[]`

).

**Data Types: **`double`

`NumObservations`

— Number of observations

positive integer scalar

This property is read-only.

Number of observations in the data stored in `X`

and
`Y`

, specified as a positive integer scalar.

**Data Types: **`double`

`PredictorNames`

— Names of exogenous predictors

cell array of character vectors

This property is read-only.

Names of the exogenous predictors, specified as a cell array of character vectors.
The order of the elements in `PredictorNames`

corresponds to the
order of the exogenous predictors in `X`

.

**Data Types: **`cell`

`ResponseName`

— Name of response variable

character vector

This property is read-only.

Name of the response variable, specified as a character vector.

**Data Types: **`char`

`X`

— Exogenous predictor data

numeric matrix | table | timetable

This property is read-only.

Exogenous predictor data used to cross-validate the model, specified as a numeric
matrix, table, or timetable. Each row of `X`

corresponds to one
observation, and each column corresponds to one variable.

`Y`

— Response data

numeric vector | one-column table | one-column timetable

This property is read-only.

Response data used to cross-validate the model, specified as a numeric vector,
one-column table, or one-column timetable. Each row of `Y`

corresponds to one observation.

### Forecasting and Prepared Data Properties

`Horizon`

— Future time steps at which to forecast

positive integer vector

This property is read-only.

Future time steps at which to forecast, specified as a positive integer vector.
Each of the compact direct forecasting models in `Learners`

contains a regression model for each horizon step.

For example, if the `Horizon`

value of a cross-validated direct
forecasting model `CVMdl`

is `[1 3]`

, then
`CVMdl.Learners{1}.Learners`

contains two regression models: one
that forecasts at horizon step `1`

and one that forecasts at horizon
step `3`

.

**Data Types: **`double`

`LeadingPredictorLags`

— Predictor lags used for preparing leading exogenous predictors

nonnegative integer vector | cell array of nonnegative integer vectors | `[]`

This property is read-only.

Leading predictor lags used for preparing leading exogenous predictors, specified as a nonnegative integer vector or cell array of nonnegative integer vectors.

If

`LeadingPredictorLags`

is a vector, then for each element`i`

in the vector, the software shifts the leading exogenous predictors backward in time by`i`

steps, relative to the horizon time step. The software uses the resulting features as predictors. When the`LeadingPredictorLags`

value is`0`

, the software uses the unshifted leading predictors.For example, if the

`Horizon`

value of a cross-validated direct forecasting model`CVMdl`

is`3`

and the`LeadingPredictorLags`

value is`0`

, then the software uses the unshifted leading predictor values at horizon step`3`

as predictor values.If

`LeadingPredictorLags`

is a cell array, then the numeric values in element`i`

of the cell array indicate the lags for leading exogenous predictor`i`

.

If no leading predictor lags are used, then this property is empty
(`[]`

).

**Data Types: **`double`

| `cell`

`LeadingPredictors`

— Indices of leading exogenous predictors

positive integer vector | `[]`

This property is read-only.

Indices of the leading exogenous predictors, specified as a positive integer
vector. Leading predictors are predictors for which future values are known. Each
index value in `LeadingPredictors`

indicates that the corresponding
exogenous predictor in `X`

is leading. (See
`PredictorNames`

for the list of exogenous predictors.) If no
exogenous predictors are leading predictors, then this property is empty
(`[]`

).

**Data Types: **`double`

`MaxLag`

— Maximum lag value

nonnegative integer scalar

This property is read-only.

Maximum lag value, specified as a nonnegative integer scalar. The
`MaxLag`

value depends on the values in
`ResponseLags`

, `PredictorLags`

, and
`LeadingPredictorLags`

. Specifically, the software computes the
maximum lag as
follows:

```
MaxLag = max([0,ResponseLags,PredictorLags, ...
LeadingPredictorLags - min(Horizon) + 1])
```

**Data Types: **`double`

`PredictorLags`

— Predictor lags used for preparing nonleading exogenous predictors

positive integer vector | cell array of positive integer vectors | `[]`

This property is read-only.

Predictor lags used for preparing nonleading exogenous predictors, specified as a positive integer vector or cell array of positive integer vectors.

If

`PredictorLags`

is a vector, then for each element`i`

in the vector, the software shifts the nonleading exogenous predictors backward in time by`i`

steps and uses the resulting features as predictors.If

`PredictorLags`

is a cell array, then the numeric values in element`i`

of the cell array indicate the lags for nonleading exogenous predictor`i`

.

If no predictor lags are used, then this property is empty
(`[]`

).

**Data Types: **`double`

| `cell`

`PreparedCategoricalPredictors`

— Indices of prepared categorical predictors

positive integer vector | `[]`

This property is read-only.

Indices of the prepared categorical predictors, specified as a positive integer
vector. Each index value in `PreparedCategoricalPredictors`

indicates that the corresponding predictor listed in
`PreparedPredictorNames`

is categorical. If no prepared
predictors are categorical predictors, then this property is empty
(`[]`

).

**Data Types: **`double`

`PreparedPredictorNames`

— Names of prepared predictors

cell array of character vectors

This property is read-only.

Names of the prepared predictors, specified as a cell array of character vectors.
These prepared predictors include variables created from both the predictor variables
in `X`

and the response variable `Y`

. Not every
predictor is used at every horizon step. To see which predictors are used at a
specific horizon step, consult the `PreparedPredictorsPerHorizon`

table.

**Data Types: **`cell`

`PreparedPredictorsPerHorizon`

— Prepared predictors at each horizon step

table of logical values

This property is read-only.

Prepared predictors at each horizon step, specified as a table of logical values.
Each row of the table corresponds to a horizon step, and each column of the table
corresponds to a prepared predictor as listed in
`PreparedPredictorNames`

. The logical value in row
`i`

and column `j`

indicates whether the software
uses prepared predictor `j`

at horizon step `i`

. If
the value is `1`

(`true`

), then the software uses
the predictor. If the value is `0`

(`false`

), then
the software does not use the predictor.

**Data Types: **`table`

`PreparedResponseNames`

— Names of prepared responses at each horizon step

cell array of character vectors

This property is read-only.

Names of the prepared responses at each horizon step, specified as a cell array of
character vectors. That is, element `i`

of
`PreparedResponseNames`

is the name of the response variable at
horizon step `i`

.

For example, given a cross-validated direct forecasting model
`CVMdl`

, the name of the response variable at horizon step
`1`

, `CVMdl.PreparedResponseNames{1}`

, matches the
response variable name used in the first regression model of each compact direct
forecasting model in `Learners`

(such as
`CVMdl.Learners{1}.Learners{1}.ResponseName`

).

**Data Types: **`cell`

`ResponseLags`

— Response lags used for preparing predictors

positive integer vector | `[]`

This property is read-only.

Response lags used for preparing predictors, specified as a positive integer
vector. Each element in `ResponseLags`

indicates the number of time
steps by which to shift the response backward in time. The resulting feature is used
as a predictor. If no response lags are used, then this property is empty
(`[]`

).

**Data Types: **`double`

## Object Functions

## Examples

### Evaluate Model Using Expanding Window Cross-Validation

Create a cross-validated direct forecasting model using expanding window cross-validation. To evaluate the performance of the model:

Compute the mean squared error (MSE) on each test set using the

`cvloss`

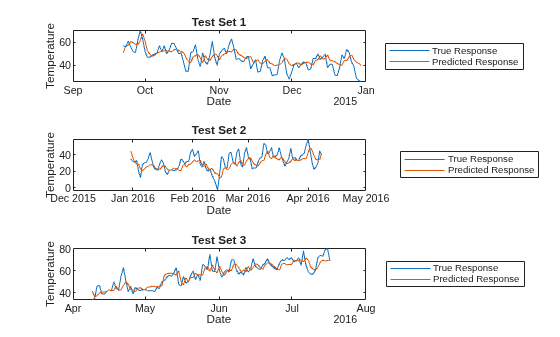

object function.For each test set, compare the true response values to the predicted response values using the

`cvpredict`

object function.

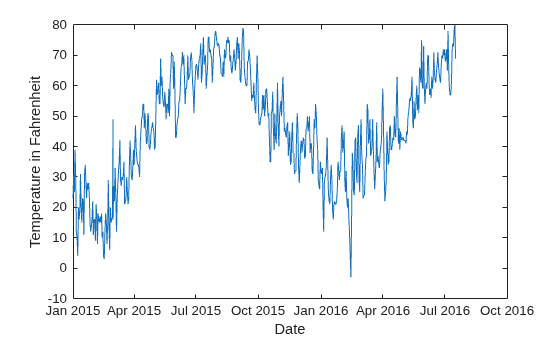

Load the sample file `TemperatureData.csv`

, which contains average daily temperature from January 2015 through July 2016. Read the file into a table. Observe the first eight observations in the table.

```
Tbl = readtable("TemperatureData.csv");
head(Tbl)
```

Year Month Day TemperatureF ____ ___________ ___ ____________ 2015 {'January'} 1 23 2015 {'January'} 2 31 2015 {'January'} 3 25 2015 {'January'} 4 39 2015 {'January'} 5 29 2015 {'January'} 6 12 2015 {'January'} 7 10 2015 {'January'} 8 4

Create a `datetime`

variable `t`

that contains the year, month, and day information for each observation in `Tbl`

.

numericMonth = month(datetime(Tbl.Month, ... InputFormat="MMMM",Locale="en_US")); t = datetime(Tbl.Year,numericMonth,Tbl.Day);

Plot the temperature values in `Tbl`

over time.

plot(t,Tbl.TemperatureF) xlabel("Date") ylabel("Temperature in Fahrenheit")

Create a direct forecasting model by using the data in `Tbl`

. Train the model using a bagged ensemble of trees. All three of the predictors (`Year`

, `Month`

, and `Day`

) are leading predictors because their future values are known. To create new predictors by shifting the leading predictor and response variables backward in time, specify the leading predictor lags and the response variable lags.

Mdl = directforecaster(Tbl,"TemperatureF", ... Learner="bag", ... LeadingPredictors="all",LeadingPredictorLags={0:1,0:1,0:7}, ... ResponseLags=1:7)

Mdl = DirectForecaster Horizon: 1 ResponseLags: [1 2 3 4 5 6 7] LeadingPredictors: [1 2 3] LeadingPredictorLags: {[0 1] [0 1] [0 1 2 3 4 5 6 7]} ResponseName: 'TemperatureF' PredictorNames: {'Year' 'Month' 'Day'} CategoricalPredictors: [2] Learners: {[1x1 classreg.learning.regr.CompactRegressionEnsemble]} MaxLag: [7] NumObservations: [565]

`Mdl`

is a `DirectForecaster`

model object. By default, the horizon is one step ahead. That is, `Mdl`

predicts a value that is one step into the future.

Partition the time series data in `Tbl`

using an expanding window cross-validation scheme. Create three training sets and three test sets, where each test set has 100 observations. Note that each observation in `Tbl`

is in at most one test set.

CVPartition = tspartition(size(Mdl.X,1),"ExpandingWindow",3, ... TestSize=100)

CVPartition = tspartition Type: 'expanding-window' NumObservations: 565 NumTestSets: 3 TrainSize: [265 365 465] TestSize: [100 100 100] StepSize: 100

The training sets increase in size from 265 observations in the first window to 465 observations in the third window.

Create a cross-validated direct forecasting model using the partition specified in `CVPartition`

. Inspect the `Learners`

property of the resulting `CVMdl`

object.

CVMdl = crossval(Mdl,CVPartition)

CVMdl = PartitionedDirectForecaster Partition: [1x1 tspartition] Horizon: 1 ResponseLags: [1 2 3 4 5 6 7] LeadingPredictors: [1 2 3] LeadingPredictorLags: {[0 1] [0 1] [0 1 2 3 4 5 6 7]} ResponseName: 'TemperatureF' PredictorNames: {'Year' 'Month' 'Day'} CategoricalPredictors: [2] Learners: {3x1 cell} MaxLag: [7] NumObservations: [565]

CVMdl.Learners

`ans=`*3×1 cell array*
{1x1 timeseries.forecaster.CompactDirectForecaster}
{1x1 timeseries.forecaster.CompactDirectForecaster}
{1x1 timeseries.forecaster.CompactDirectForecaster}

`CVMdl`

is a `PartitionedDirectForecaster`

model object. The `crossval`

function trains `CVMdl.Learners{1}`

using the observations in the first training set, `CVMdl.Learner{2}`

using the observations in the second training set, and `CVMdl.Learner{3}`

using the observations in the third training set.

Compute the average test set MSE.

averageMSE = cvloss(CVMdl)

averageMSE = 53.3480

To obtain more information, compute the MSE for each test set.

`individualMSE = cvloss(CVMdl,Mode="individual")`

`individualMSE = `*3×1*
44.1352
84.0695
31.8393

The models trained on the first and third training sets seem to perform better than the model trained on the second training set.

For each test set observation, predict the temperature value using the corresponding model in `CVMdl.Learners`

.

predictedY = cvpredict(CVMdl); predictedY(260:end,:)

`ans=`*306×1 table*
TemperatureF_Step1
__________________
NaN
NaN
NaN
NaN
NaN
NaN
50.963
57.363
57.04
60.705
59.606
58.302
58.023
61.39
67.229
61.083
⋮

Only the last 300 observations appear in any test set. For observations that do not appear in a test set, the predicted response value is `NaN`

.

For each test set, plot the true response values and the predicted response values.

tiledlayout(3,1) nexttile idx1 = test(CVPartition,1); plot(t(idx1),Tbl.TemperatureF(idx1)) hold on plot(t(idx1),predictedY.TemperatureF_Step1(idx1)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Test Set 1") hold off nexttile idx2 = test(CVPartition,2); plot(t(idx2),Tbl.TemperatureF(idx2)) hold on plot(t(idx2),predictedY.TemperatureF_Step1(idx2)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Test Set 2") hold off nexttile idx3 = test(CVPartition,3); plot(t(idx3),Tbl.TemperatureF(idx3)) hold on plot(t(idx3),predictedY.TemperatureF_Step1(idx3)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Test Set 3") hold off

Overall, the cross-validated direct forecasting model is able to predict the trend in temperatures. If you are satisfied with the performance of the cross-validated model, you can use the full `DirectForecaster`

model `Mdl`

for forecasting at time steps beyond the available data.

### Evaluate Model Using Holdout Validation

Create a partitioned direct forecasting model using holdout validation. To evaluate the performance of the model:

At each horizon step, compute the root relative squared error (RRSE) on the test set using the

`cvloss`

object function.At each horizon step, compare the true response values to the predicted response values using the

`cvpredict`

object function.

Load the sample file `TemperatureData.csv`

, which contains average daily temperature from January 2015 through July 2016. Read the file into a table. Observe the first eight observations in the table.

```
Tbl = readtable("TemperatureData.csv");
head(Tbl)
```

Year Month Day TemperatureF ____ ___________ ___ ____________ 2015 {'January'} 1 23 2015 {'January'} 2 31 2015 {'January'} 3 25 2015 {'January'} 4 39 2015 {'January'} 5 29 2015 {'January'} 6 12 2015 {'January'} 7 10 2015 {'January'} 8 4

Create a `datetime`

variable `t`

that contains the year, month, and day information for each observation in `Tbl`

.

numericMonth = month(datetime(Tbl.Month, ... InputFormat="MMMM",Locale="en_US")); t = datetime(Tbl.Year,numericMonth,Tbl.Day);

Plot the temperature values in `Tbl`

over time.

plot(t,Tbl.TemperatureF) xlabel("Date") ylabel("Temperature in Fahrenheit")

Create a direct forecasting model by using the data in `Tbl`

. Specify the horizon steps as one, two, and three steps ahead. Train a model at each horizon using a bagged ensemble of trees. All three of the predictors (`Year`

, `Month`

, and `Day`

) are leading predictors because their future values are known. To create new predictors by shifting the leading predictor and response variables backward in time, specify the leading predictor lags and the response variable lags.

rng("default") Mdl = directforecaster(Tbl,"TemperatureF", ... Horizon=1:3,Learner="bag", ... LeadingPredictors="all",LeadingPredictorLags={0:1,0:1,0:7}, ... ResponseLags=1:7)

Mdl = DirectForecaster Horizon: [1 2 3] ResponseLags: [1 2 3 4 5 6 7] LeadingPredictors: [1 2 3] LeadingPredictorLags: {[0 1] [0 1] [0 1 2 3 4 5 6 7]} ResponseName: 'TemperatureF' PredictorNames: {'Year' 'Month' 'Day'} CategoricalPredictors: [2] Learners: {3x1 cell} MaxLag: [7] NumObservations: [565]

`Mdl`

is a `DirectForecaster`

model object. `Mdl`

consists of three regression models: `Mdl.Learners{1}`

, which predicts one step ahead; `Mdl.Learners{2}`

, which predicts two steps ahead; and `Mdl.Learners{3}`

, which predicts three steps ahead.

Partition the time series data in `Tbl`

using a holdout validation scheme. Reserve 20% of the observations for testing.

`holdoutPartition = tspartition(size(Mdl.X,1),"Holdout",0.20)`

holdoutPartition = tspartition Type: 'holdout' NumObservations: 565 NumTestSets: 1 TrainSize: 452 TestSize: 113

The test set consists of the latest 113 observations.

Create a partitioned direct forecasting model using the partition specified in `holdoutPartition`

.

holdoutMdl = crossval(Mdl,holdoutPartition)

holdoutMdl = PartitionedDirectForecaster Partition: [1x1 tspartition] Horizon: [1 2 3] ResponseLags: [1 2 3 4 5 6 7] LeadingPredictors: [1 2 3] LeadingPredictorLags: {[0 1] [0 1] [0 1 2 3 4 5 6 7]} ResponseName: 'TemperatureF' PredictorNames: {'Year' 'Month' 'Day'} CategoricalPredictors: [2] Learners: {[1x1 timeseries.forecaster.CompactDirectForecaster]} MaxLag: [7] NumObservations: [565]

`holdoutMdl`

is a `PartitionedDirectForecaster`

model object. Because `holdoutMdl`

uses holdout validation rather than a cross-validation scheme, the `Learners`

property of the object contains one `CompactDirectForecaster`

model only.

Like `Mdl`

, `holdoutMdl`

contains three regression models. The `crossval`

function trains `holdoutMdl.Learners{1}.Learners{1}`

, `holdoutMdl.Learners{1}.Learners{2}`

, and `holdoutMdl.Learners{1}.Learners{3}`

using the same training data. However, the three models use different response variables because each model predicts values for a different horizon step.

holdoutMdl.Learners{1}.Learners{1}.ResponseName

ans = 'TemperatureF_Step1'

holdoutMdl.Learners{1}.Learners{2}.ResponseName

ans = 'TemperatureF_Step2'

holdoutMdl.Learners{1}.Learners{3}.ResponseName

ans = 'TemperatureF_Step3'

Compute the root relative squared error (RRSE) on the test data at each horizon step. Use the helper function `computeRRSE`

(shown at the end of this example). The RRSE indicates how well a model performs relative to the simple model, which always predicts the average of the true values. In particular, when the RRSE is less than 1, the model performs better than the simple model.

holdoutRRSE = cvloss(holdoutMdl,LossFun=@computeRRSE)

`holdoutRRSE = `*1×3*
0.4797 0.5889 0.6103

At each horizon, the direct forecasting model seems to perform better than the simple model.

For each test set observation, predict the temperature value using the corresponding model in `holdoutMdl.Learners`

.

predictedY = cvpredict(holdoutMdl); predictedY(450:end,:)

`ans=`*116×3 table*
TemperatureF_Step1 TemperatureF_Step2 TemperatureF_Step3
__________________ __________________ __________________
NaN NaN NaN
NaN NaN NaN
NaN NaN NaN
41.063 39.758 41.234
33.721 36.507 37.719
36.987 35.133 37.719
38.644 34.598 36.444
38.917 34.576 36.275
45.888 37.005 38.34
48.516 42.762 41.05
44.882 46.816 43.881
35.057 45.301 47.048
31.1 41.473 42.948
31.817 37.314 42.946
33.166 38.419 41.3
40.279 38.432 40.533
⋮

Recall that only the latest 113 observations appear in the test set. For observations that do not appear in the test set, the predicted response value is `NaN`

.

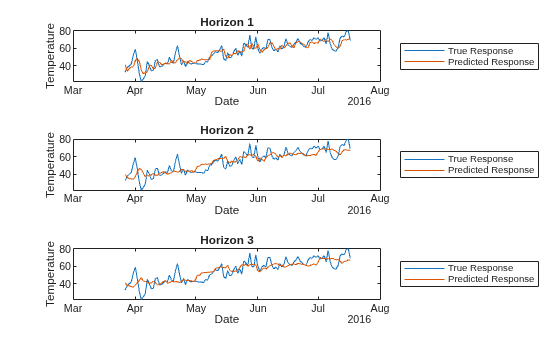

For each test set, plot the true response values and the predicted response values.

tiledlayout(3,1) idx = test(holdoutPartition); nexttile plot(t(idx),Tbl.TemperatureF(idx)) hold on plot(t(idx),predictedY.TemperatureF_Step1(idx)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Horizon 1") hold off nexttile plot(t(idx),Tbl.TemperatureF(idx)) hold on plot(t(idx),predictedY.TemperatureF_Step2(idx)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Horizon 2") hold off nexttile plot(t(idx),Tbl.TemperatureF(idx)) hold on plot(t(idx),predictedY.TemperatureF_Step3(idx)) legend("True Response","Predicted Response", ... Location="eastoutside") xlabel("Date") ylabel("Temperature") title("Horizon 3") hold off

Overall, `holdoutMdl`

is able to predict the trend in temperatures, although it seems to perform best when forecasting one step ahead. If you are satisfied with the performance of the partitioned model, you can use the full `DirectForecaster`

model `Mdl`

for forecasting at time steps beyond the available data.

**Helper Function**

The helper function `computeRRSE`

computes the RRSE given the true response variable `trueY`

and the predicted values `predY`

. This code creates the `computeRRSE`

helper function.

function rrse = computeRRSE(trueY,predY) error = trueY(:) - predY(:); meanY = mean(trueY(:),"omitnan"); rrse = sqrt(sum(error.^2,"omitnan")/sum((trueY(:) - meanY).^2,"omitnan")); end

## More About

### Direct Forecasting

Direct forecasting is a forecasting technique that uses separate models to predict the response values at different future time steps (horizon steps). This technique differs from recursive forecasting, where one model is used to predict values at multiple horizon steps.

The software prepares the predictor data for each model and then uses the model to forecast at a particular horizon step.

For more information, see `PreparedPredictorsPerHorizon`

and `Horizon`

.

### Forecasting Data

The `directforecaster`

function accepts data sets with regularly sampled values
that include a response variable and exogenous predictors (optional). That is, the time
steps between consecutive observations are the same. In this context, exogenous predictors
are predictors that are not derived from the response variable.

Consider the following data set.

In this example, the row times in `MeasurementTime`

show that the time difference between consecutive observations is one hour. The times `18-Dec-2015 14:00:00`

and `18-Dec-2015 15:00:00`

are future time steps that exist beyond the available data. They represent the first and second horizon steps. (See `Horizon`

.)

Suppose the `Temp`

variable is the response variable. The
`Pressure`

, `WindSpeed`

, and
`WorkHours`

variables are exogenous predictors. The
`WorkHours`

variable is a leading exogenous predictor because its
future values are known. (See `LeadingPredictors`

.)

Before fitting a forecasting model, the software creates time-shifted features from the response and exogenous predictors based on user-specified lag values. In this example, the red rectangles indicate a `ResponseLags`

value of `1`

, `PredictorLags`

value of `[1 2 3]`

, and `LeadingPredictorLags`

value of `[0 1]`

at horizon step `1`

(`18-Dec-2015 14:00:00`

).

## Version History

**Introduced in R2023b**

## See Also

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
