nlparci

Nonlinear regression parameter confidence intervals

Syntax

ci = nlparci(beta,r,"Covar",CovB)

ci = nlparci(beta,r,"Jacobian",J)

ci = nlparci(___,"Alpha",alpha)

Description

ci = nlparci(beta,r,"Covar",CovB) returns the 95% confidence intervals ci for the nonlinear least-squares parameter estimates beta. Before calling nlparci, get the estimated coefficients beta, residuals r, and estimated covariance matrix CovB by using the nlinfit function to fit a nonlinear regression model.

If you use a robust option with nlinfit, you must use this syntax for nlparci. The covariance matrix CovB is required with robust fitting.

ci = nlparci(beta,r,"Jacobian",J) returns the 95% confidence intervals ci for the nonlinear least-squares parameter estimates beta. Before calling nlparci, get the estimated coefficients beta, residuals r, and Jacobian J by using the nlinfit function to fit a nonlinear regression model.

ci = nlparci(___,"Alpha",alpha) returns the 100(1 — alpha)% confidence intervals, using any of the input argument combinations in the previous syntaxes.

example

Examples

collapse all

Fit Exponential Decay Model

Open Live Script

Fit an exponential decay model of the form

$y_{i} = β_{1} + β_{2} \exp (- β_{3} x_{i}) + ϵ_{i}$ ,

where $β_{j}$ are the parameters to estimate, $x_{i}$ are the data points, $y_{i}$ are the responses, and $ε_{i}$ is the noise term.

Write a function handle that represents the model.

mdl = @(beta,x)(beta(1) + beta(2)*exp(-beta(3)*x));

Generate synthetic data with true parameter values beta = [1;3;2], x data points distributed exponentially with parameter 2, and noise distributed normally with mean 0 and standard deviation 0.1.

rng(9845,'twister') % For reproducibility
beta = [1;3;2];
x = exprnd(2,100,1);
epsn = normrnd(0,0.1,100,1);
y = mdl(beta,x) + epsn;

Fit the model to data starting from the arbitrary value beta0 = [2;2;2].

beta0 = [2;2;2];
[betahat,r,J,CovB,mse] = nlinfit(x,y,mdl,beta0);
betahat

betahat = 3×1

    1.0153
    3.0229
    2.1070

Check the 95% confidence intervals using the covariance matrix. Note that the true parameter values [1;3;2] are within all three intervals.

ci = nlparci(betahat,r,"Covar",CovB)

ci = 3×2

    0.9869    1.0438
    2.9401    3.1058
    1.9963    2.2177

You can obtain the same result using the Jacobian.

ci = nlparci(betahat,r,"Jacobian",J)

ci = 3×2

    0.9869    1.0438
    2.9401    3.1058
    1.9963    2.2177

Determine if the true parameter values [1;3;2] are in the narrower 90% confidence intervals. Note that $β_{1}$ and $β_{2}$ are within these intervals, but $β_{3}$ is not.

ci = nlparci(betahat,r,"Covar",CovB,"Alpha",0.1)

ci = 3×2

    0.9915    1.0392
    2.9536    3.0923
    2.0144    2.1996

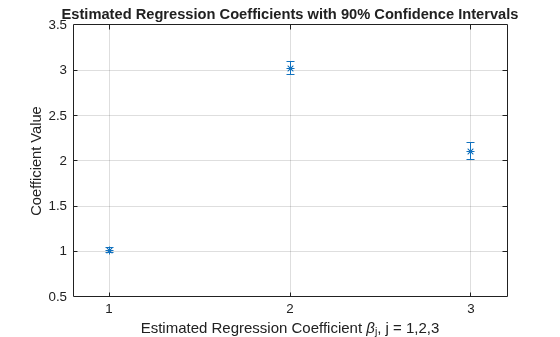

Plot the estimated regression coefficients with the 90% confidence intervals.

lowerBars = betahat - ci(:,1);
upperBars = ci(:,2) - betahat;
errorbar(1:3,betahat,lowerBars,upperBars,'*'), grid
title('Estimated Regression Coefficients with 90% Confidence Intervals')
ylabel('Coefficient Value')
xlabel('Estimated Regression Coefficient \beta_j, j = 1,2,3')
xticks([1 2 3])
xlim([.8 3.2])

Figure contains an axes object. The axes object with title Estimated Regression Coefficients with 90% Confidence Intervals, xlabel Estimated Regression Coefficient beta indexOf j baseline , blank j blank = 1,2,3, ylabel Coefficient Value contains an object of type errorbar.

Input Arguments

collapse all

`beta` — Estimated regression coefficients
numeric vector

Estimated regression coefficients, specified as a numeric vector returned by the nlinfit function.
