## Fit a Generalized Linear Mixed-Effects Model

This example shows how to fit a generalized linear mixed-effects model (GLME) to sample data.

### Load the sample data.

Load the sample data.

```
load mfr
```

A manufacturing company operates 50 factories across the world, and each runs a batch process to create a finished product. The company wants to decrease the number of defects in each batch, so it developed a new manufacturing process. However, the company wants to test the new process in select factories to ensure that it is effective before rolling it out to all 50 locations.

To test whether the new process significantly reduces the number of defects in each batch, the company selected 20 of its factories at random to participate in an experiment. Ten factories implemented the new process, while the other ten used the old process.

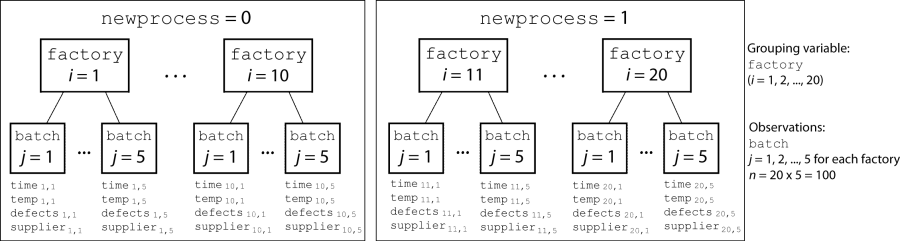

In each of the 20 factories (*i* = 1, 2, ..., 20), the company ran five batches (*j* = 1, 2, ..., 5) and recorded the following data in the table
`mfr`

:

Flag to indicate use of the new process:

If the batch used the new process, then

`newprocess = 1`

If the batch used the old process, then

`newprocess = 0`

Processing time for the batch, in hours (

`time`

)Temperature of the batch, in degrees Celsius (

`temp`

)Supplier of the chemical used in the batch (

`supplier`

)`supplier`

is a categorical variable with levels`A`

,`B`

, and`C`

, where each level represents one of the three suppliers

Number of defects in the batch (defects)

The data also includes `time_dev`

and
`temp_dev`

, which represent the absolute deviation of time
and temperature, respectively, from the process standard of 3 hours and 20
degrees Celsius. The response variable `defects`

has a Poisson
distribution. This is simulated data.

The company wants to determine whether the new process significantly reduces the number of defects in each batch, while accounting for quality differences that might exist due to factory-specific variations in time, temperature, and supplier. The number of defects per batch can be modeled using a Poison distribution:

$$defect{s}_{ij}~Poisson\left({\mu}_{ij}\right)$$

Use a generalized linear mixed-effects model to model the number of defects per batch:

$$\begin{array}{l}\mathrm{log}\left({\mu}_{ij}\right)={\beta}_{0}+{\beta}_{1}newproces{s}_{ij}+{\beta}_{2}time\_de{v}_{ij}\text{\hspace{0.17em}}\\ \text{\hspace{0.17em}}\text{\hspace{1em}}\text{\hspace{1em}}\text{\hspace{1em}}+{\beta}_{3}temp\_de{v}_{ij}+{\beta}_{4}supplier\_{C}_{ij}+{\beta}_{5}supplier\_{B}_{ij}+{b}_{i}\text{\hspace{0.17em}},\end{array}$$

where

*defects*is the number of defects observed in the batch produced by factory_{ij}*i*during batch*j*.*μ*is the mean number of defects corresponding to factory_{ij}*i*(where*i*= 1, 2, ..., 20) during batch*j*(where*j*= 1, 2, ..., 5).*newprocess*,_{ij}*time_dev*, and_{ij}*temp_dev*are the measurements for each variable that correspond to factory_{ij}*i*during batch*j*. For example,*newprocess*indicates whether the batch produced by factory_{ij}*i*during batch*j*used the new process.*supplier_C*and_{ij}*supplier_B*are dummy variables that use effects (sum-to-zero) coding to indicate whether company_{ij}`C`

or`B`

, respectively, supplied the process chemicals for the batch produced by factory*i*during batch*j*.*b*~ N(0,_{i}*σ*_{b}^{2}) is a random-effects intercept for each factory*i*that accounts for factory-specific variation in quality.

### Fit a GLME model and interpret the results.

Fit a generalized linear mixed-effects model using
`newprocess`

, `time_dev`

,
`temp_dev`

, and `supplier`

as
fixed-effects predictors. Include a random-effects term for intercept grouped by
`factory`

, to account for quality differences that might
exist due to factory-specific variations. The response variable
`defects`

has a Poisson distribution, and the appropriate
link function for this model is log. Use the Laplace fit method to estimate the
coefficients. Specify the dummy variable encoding as
`'effects'`

, so the dummy variable coefficients sum to
0.

glme = fitglme(mfr,... 'defects ~ 1 + newprocess + time_dev + temp_dev + supplier + (1|factory)',... 'Distribution','Poisson','Link','log','FitMethod','Laplace',... 'DummyVarCoding','effects')

glme = Generalized linear mixed-effects model fit by ML Model information: Number of observations 100 Fixed effects coefficients 6 Random effects coefficients 20 Covariance parameters 1 Distribution Poisson Link Log FitMethod Laplace Formula: defects ~ 1 + newprocess + time_dev + temp_dev + supplier + (1 | factory) Model fit statistics: AIC BIC LogLikelihood Deviance 416.35 434.58 -201.17 402.35 Fixed effects coefficients (95% CIs): Name Estimate SE tStat DF pValue '(Intercept)' 1.4689 0.15988 9.1875 94 9.8194e-15 'newprocess' -0.36766 0.17755 -2.0708 94 0.041122 'time_dev' -0.094521 0.82849 -0.11409 94 0.90941 'temp_dev' -0.28317 0.9617 -0.29444 94 0.76907 'supplier_C' -0.071868 0.078024 -0.9211 94 0.35936 'supplier_B' 0.071072 0.07739 0.91836 94 0.36078 Lower Upper 1.1515 1.7864 -0.72019 -0.015134 -1.7395 1.5505 -2.1926 1.6263 -0.22679 0.083051 -0.082588 0.22473 Random effects covariance parameters: Group: factory (20 Levels) Name1 Name2 Type Estimate '(Intercept)' '(Intercept)' 'std' 0.31381 Group: Error Name Estimate 'sqrt(Dispersion)' 1

The `Model information`

table displays the total number of
observations in the sample data (100), the number of fixed- and random-effects
coefficients (6 and 20, respectively), and the number of covariance parameters
(1). It also indicates that the response variable has a
`Poisson`

distribution, the link function is
`Log`

, and the fit method is
`Laplace`

.

`Formula`

indicates the model specification using Wilkinson’s
notation.

The `Model fit statistics`

table displays statistics used to
assess the goodness of fit of the model. This includes the Akaike information
criterion (`AIC`

), Bayesian information criterion
(`BIC`

) values, log likelihood
(`LogLikelihood`

), and deviance
(`Deviance`

) values.

The `Fixed effects coefficients`

table indicates that
`fitglme`

returned 95% confidence intervals. It contains
one row for each fixed-effects predictor, and each column contains statistics
corresponding to that predictor. Column 1 (`Name`

) contains the
name of each fixed-effects coefficient, column 2 (`Estimate`

)
contains its estimated value, and column 3 (`SE`

) contains the
standard error of the coefficient. Column 4 (`tStat`

) contains
the *t*-statistic for a hypothesis test that the coefficient is
equal to 0. Column 5 (`DF`

) and column 6
(`pValue`

) contain the degrees of freedom and
*p*-value that correspond to the
*t*-statistic, respectively. The last two columns
(`Lower`

and `Upper`

) display the lower
and upper limits, respectively, of the 95% confidence interval for each
fixed-effects coefficient.

`Random effects covariance parameters`

displays a table for
each grouping variable (here, only `factory`

), including its
total number of levels (20), and the type and estimate of the covariance
parameter. Here, `std`

indicates that
`fitglme`

returns the standard deviation of the random
effect associated with the factory predictor, which has an estimated value of
0.31381. It also displays a table containing the error parameter type (here, the
square root of the dispersion parameter), and its estimated value of 1.

The standard display generated by `fitglme`

does not
provide confidence intervals for the random-effects parameters. To compute and
display these values, use `covarianceParameters`

.

### Check significance of random effect.

To determine whether the random-effects intercept grouped by
`factory`

is statistically significant, compute the
confidence intervals for the estimated covariance parameter.

[psi,dispersion,stats] = covarianceParameters(glme);

`covarianceParameters`

returns the estimated covariance
parameter in `psi`

, the estimated dispersion parameter
`dispersion`

, and a cell array of related statistics
`stats`

. The first cell of `stats`

contains statistics for `factory`

, while the second cell
contains statistics for the dispersion parameter.

Display the first cell of `stats`

to see the confidence
intervals for the estimated covariance parameter for
`factory`

.

stats{1}

ans = Covariance Type: Isotropic Group Name1 Name2 Type factory '(Intercept)' '(Intercept)' 'std' Estimate Lower Upper 0.31381 0.19253 0.51148

The columns `Lower`

and `Upper`

display the
default 95% confidence interval for the estimated covariance parameter for
`factory`

. Because the interval [0.19253,0.51148] does not
contain 0, the random-effects intercept is significant at the 5% significance
level. Therefore, the random effect due to factory-specific variation must be
considered before drawing any conclusions about the effectiveness of the new
manufacturing process.

### Compare two models.

Compare the mixed-effects model that includes a random-effects intercept
grouped by `factory`

with a model that does not include the
random effect, to determine which model is a better fit for the data. Fit the
first model, `FEglme`

, using only the fixed-effects predictors
`newprocess`

, `time_dev`

,
`temp_dev`

, and `supplier`

. Fit the second
model, `glme`

, using these same fixed-effects predictors, but
also including a random-effects intercept grouped by
`factory`

.

FEglme = fitglme(mfr,... 'defects ~ 1 + newprocess + time_dev + temp_dev + supplier',... 'Distribution','Poisson','Link','log','FitMethod','Laplace'); glme = fitglme(mfr,... 'defects ~ 1 + newprocess + time_dev + temp_dev + supplier + (1|factory)',... 'Distribution','Poisson','Link','log','FitMethod','Laplace');

Compare the two models using a likelihood ratio test. Specify
`'CheckNesting'`

as `true`

, so `compare`

returns a warning if the nesting
requirements are not satisfied.

```
results = compare(FEglme,glme,'CheckNesting',true)
```

results = Theoretical Likelihood Ratio Test Model DF AIC BIC LogLik LRStat deltaDF FEglme 6 431.02 446.65 -209.51 glme 7 416.35 434.58 -201.17 16.672 1 pValue 4.4435e-05

`compare`

returns the degrees of freedom
(`DF`

), the Akaike information criterion
(`AIC`

), Bayesian information criterion
(`BIC`

), and log likelihood values for each model.
`glme`

has smaller AIC, BIC, and log likelihood values than
`FEglme`

, which indicates that `glme`

(the
model containing the random-effects term for intercept grouped by factory) is
the better-fitting model for this data. Additionally, the small
*p*-value indicates that `compare`

rejects the null hypothesis that the response vector was
generated by the fixed-effects-only model `FEglme`

, in favor of
the alternative that the response vector was generated by the mixed-effects
model `glme`

.

### Plot the results.

Generate the fitted conditional mean values for the model.

mufit = fitted(glme);

Plot the observed response values versus the fitted response values.

figure scatter(mfr.defects,mufit) title('Observed Values versus Fitted Values') xlabel('Fitted Values') ylabel('Observed Values')

Create diagnostic plots using conditional Pearson residuals to test model assumptions. Since raw residuals for generalized linear mixed-effects models do not have a constant variance across observations, use the conditional Pearson residuals instead.

Plot a histogram to visually confirm that the mean of the Pearson residuals is equal to 0. If the model is correct, we expect the Pearson residuals to be centered at 0.

plotResiduals(glme,'histogram','ResidualType','Pearson')

The histogram shows that the Pearson residuals are centered at 0.

Plot the Pearson residuals versus the fitted values, to check for signs of nonconstant variance among the residuals (heteroscedasticity). We expect the conditional Pearson residuals to have a constant variance. Therefore, a plot of conditional Pearson residuals versus conditional fitted values should not reveal any systematic dependence on the conditional fitted values.

plotResiduals(glme,'fitted','ResidualType','Pearson')

The plot does not show a systematic dependence on the fitted values, so there are no signs of nonconstant variance among the residuals.

Plot the Pearson residuals versus lagged residuals, to check for correlation among the residuals. The conditional independence assumption in GLME implies that the conditional Pearson residuals are approximately uncorrelated.

There is no pattern to the plot, so there are no signs of correlation among the residuals.
