Deploy Standalone Applications

Create and deploy standalone applications

Create and deploy standalone applications with Simulink^® Compiler™ to run simulations on target machines that do not have MATLAB^® and Simulink installed.

You can create and deploy standalone applications written in MATLAB code or built in MATLAB App Designer. To run a standalone application, install MATLAB Runtime. For more information, see Download and Install MATLAB Runtime.

Functions

`simulink.compiler.configureForDeployment`	Configure `Simulink.SimulationInput` object for deployment with Simulink Compiler (Since R2020a)
`simulink.compiler.setExternalInputsFcn`	Set callback to specify data to each external root inport port block at the start of each simulation step (Since R2020b)
`simulink.compiler.setExternalOutputsFcn`	Set callback to read external root outport block data after each simulation step (Since R2020b)
`simulink.compiler.setPostStepFcn`	Register a callback to run after each simulation step (Since R2020b)
`simulink.compiler.genapp`	Generate MATLAB App to simulate model and deploy application (Since R2020b)
`simulink.compiler.getTunableVariables`	Find names of all tunable variables (Since R2021a)
`simulink.compiler.getSimulationOutput`	Fetch the partial simulation output during simulation run time (Since R2022a)
`simulink.compiler.modifyParameters`	Tune block parameters at runtime via workspace variables (Since R2021b)
`simulink.compiler.stopSimulation`	Stop a long running simulation (Since R2020b)
`simulink.compiler.loadEnumTypes`	Configure model with enum types for deployment (Since R2020a)
`sim`	Run and script programmatic simulations of Simulink models
`Simulink.SimulationInput`	Create `Simulink.SimulationInput` objects to make changes to model for multiple or individual simulations
`mcc`	Compile MATLAB functions for deployment
`deploytool`	Open a list of application deployment apps

Topics

Deploy Simulations with Tunable Parameters
Create and deploy a simulation from a MATLAB function.
Deploy an App Designer Simulation with Simulink Compiler
Create and deploy a simulation using App Designer.
Simulation Callbacks for Deployable Applications
Debugging tips and best practices.
Generate, Modify, and Deploy a MATLAB App for a Simulink Model
Generate a MATLAB app with the simulink.compiler.genapp function and deploy it. Explore options to modify the generated app.

Related Information

MATLAB Runtime
Web Apps

Featured Examples

Deploying a Simulation App with Simulink Compiler

In this example, we use an app that is prepared in the App Designer and deploy it with Simulink® Compiler™.

Open Script

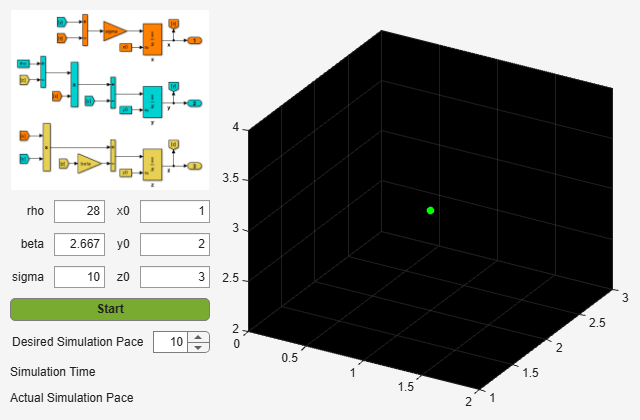

Deploy App with Live Simulation Results of Lorenz System

Develop an app that uses callbacks for simulation inputs and outputs to view the simulation of a Simulink® model of the Lorenz system. You can then deploy the app with Simulink Compiler™.

Open Live Script

Generate and Deploy a MATLAB App with SimAppTemplate for a Model

Use the simulink.compiler.genapp function to generate a MATLAB® app for a model, that is deployable. Typically when a Simulink® model is functionally complete, you can use it to run multiple simulations with different input and parameter values. To try simulations for your model with different input and parameter values, you can generate a MATLAB App. You can also deploy this generated app for use outside of MATLAB.

Open Live Script

Deploy Mass Spring Damper App with Live Data

In this example, you use an app with LiveIO functionality, that is prepared in the App Designer. You can then deploy it with Simulink® Compiler™.

Open Live Script
