Modeling Message Communication Patterns with SimEvents

This example shows how to create common communication patterns using SimEvents®. In message-based communication models, you can use SimEvents® to model and simulate middleware, and investigate the effects of communication and the environment on your distributed architecture.

The systems in this example represent common communication patterns created by using SimEvents® blocks that can be used to simulate various network types, such as cabled or wireless communication, and channel behavior such as failure, or packet loss.

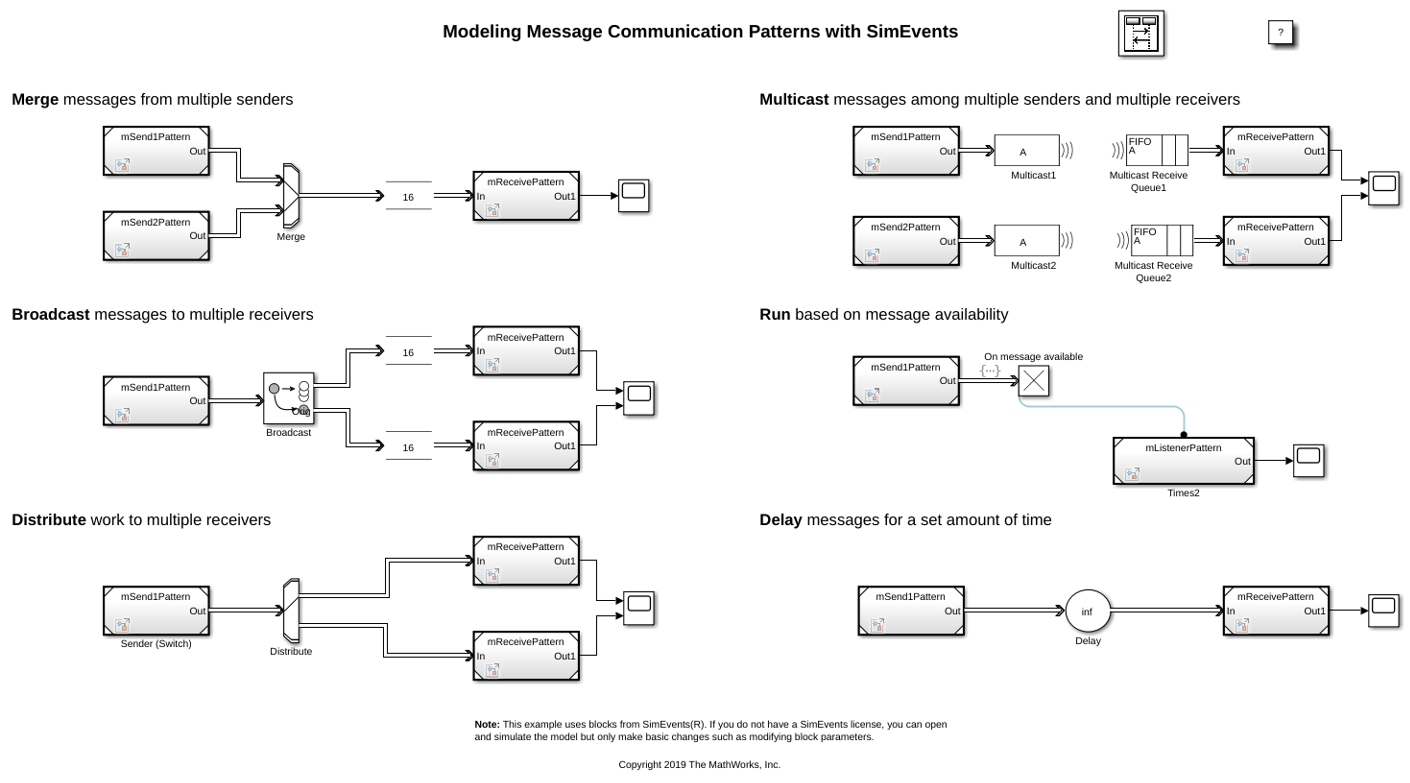

The communication patterns involve:

• Merging messages from multiple senders.

• Broadcasting messages to multiple receivers.

• Distributing work to multiple receivers.

• Multicasting messages among multiple senders and multiple receivers.

• Running a component based on message availability and data.

• Delaying messages for a set amount of time.

To create more complex networks and channel behavior, use combinations of these simple patterns.

By using these patterns, you can model:

• N -to- n communication with multiple senders and receivers with an ideal channel with communication delay. For an example, see Build a Shared Communication Channel with Multiple Senders and Receivers.

• N -to- n communication with channel failure and packet loss. For an example, see Model Wireless Message Communication with Packet Loss and Channel Failure.

• An N -to- n Ethernet communication network with an inter-component communication protocol. For an example, see Model an Ethernet Communication Network with CSMA/CD Protocol.
