Weighted Sample Time
Support calculations involving sample time
Libraries:
Simulink /
Signal Attributes
Description
The Weighted Sample Time block outputs a weighted sample time, weighted sample rate, or mathematically adjusted weighted sample time, depending on settings of the Operation and Weight value parameters and the execution context of the function outputs.
You specify the block operation by using the Operation parameter.
The sample time used to derive the output depends on whether the block is used within a periodic or aperiodic (or triggered) execution context. For a periodic execution context, the block uses the sample time of the model. For an aperiodic or triggered execution context, the block uses the sample time of the discrete signal.
Use the Weight value parameter to specify the sample time weight
factor. If the weight value, w
, is 1
, that value does
not appear in the equation on the block icon.
Tip
You can use the
Weighted Sample Time and Weighted Sample Time Math
blocks to extract the sample time from a Simulink® signal. Set the Operation parameter to
Ts Only
and the Weight value
parameter to 1.0
. With this configuration, the block outputs the
sample time of the input signal.
The block computes its output by using the precedence rules for MATLAB® operators. For example, if the Operation parameter is set
to +
, the block calculates the output by using this expression:
u + (Ts * w)
If the Operation parameter is set to /
, the block
calculates the output by using this expression:
(u / Ts) / w)
For more information, see Operator Precedence.
Examples

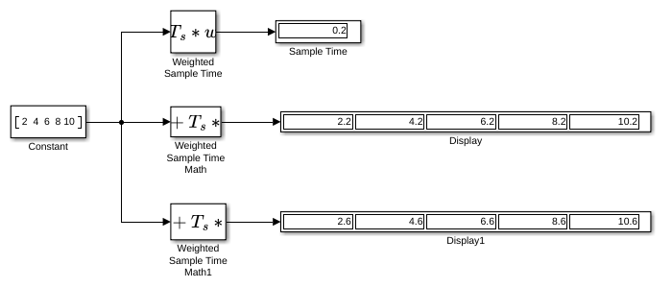

Sample Time Math Operations Using the Weighted Sample Time Math Block
This example shows how to add the sample time value to a signal using the Weighted Sample Time Math block.
Using the Weighted Sample Time block, you can see the sample time of this model is 0.2
. When you set the Operation parameter to +
and the Weight value to 1
on the Weighted Sample Time Math block, the block adds the sample time value of 0.2
to the input signal. When you set the Weight value to 3
in the Weighted Sample Time Math1 block, the block adds Ts*3
to the input signal, thus increasing each value by 0.6
.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix
Specify input signal as a scalar, vector, or matrix.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Output
Port_1 — Output signal
scalar | vector | matrix
Depending on settings of the Operation and Weight value parameters and the execution context of the function that contains the block, the block outputs a weighted sample time, weighted sample rate, or mathematically adjusted weighted sample time.
Weighted sample time –- When used in a periodic function, the weighted sample time is the sample time of an input signal times the value specified for the Weight value parameter (
Ts * w
). When used in an aperiodic or triggered function, the weighted sample time is the elapsed time since the last execution times the weight value.Weighted sample rate –- When used in a periodic function, the weighted sample rate is the reciprocal of the weighted sample time (
1/(Ts * w)
). The weighted sample rate is not relevant when the block is used in an aperiodic function.Mathematically adjusted weighted sample time –- The block adds the value of an input signal
u
to, subtractsu
from, or multiplies or dividesu
by a weighted sample time.
The sample time used to derive the output and the data type of the output depend on whether the block is used within a periodic or aperiodic (or triggered) execution context.
Execution Context of Block | Sample Time Used to Derive Output | Data Type of Output Signal |
---|---|---|
Periodic | Sample time of the model |
|
Aperiodic or triggered | Elapsed time since the last execution |
|
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
Main
Operation — Math operation
Ts Only
(default) | +
| -
| *
| /
| 1/Ts Only
Specify the operation to use for adjusting the value of the input signal. For example,
if you specify the +
operation, the block
adds the weighted sample time to the value of the input signal. The
value 1/Ts Only
is not relevant when you use
the block in an aperiodic function.
Programmatic Use
Block Parameter:
TsampMathOp |
Type: character vector |
Values:
'+' | '-' | '*' | '/' | 'Ts Only' | '1/Ts
Only' |
Default:
'Ts Only' |
Weight value — Weight for sample time
1.0
(default) | real-valued scalar
Enter the weight for the sample time as a real-valued scalar. The block multiplies the
sample time of the input signal by the value that you specify. For example, if you use
the block in a periodic function of a model that has a sample time of
0.2
and you specify a weight value of 3
, the
weighted sample time is 0.6
.
Programmatic Use
Block Parameter:
weightValue |
Type: character vector |
Values: real-valued scalar |
Default:
1.0 |
Implement using — Method for adjusting sample time
Online Calculations
(default) | Offline Scaling Adjustment
Select whether to adjust the sample time by applying online calculations or by applying offline scaling.
Result of Ts * w | Output Data Type of Two Modes | Block Execution |
---|---|---|
Power of 2 (positive or negative) or an integer value | The same when Output data type is set to Inherit: Inherit
via internal rule
| Equally efficient in both modes |
Not a power of 2 and not an integer value | Different | More efficient for the offline scaling mode |
Note
When the Implement using parameter is not enabled, operations default to online calculations.
Dependencies
To enable this parameter, set Operation to *
or /
.
Programmatic Use
Block Parameter: TsampMathImp |
Type: character vector |
Values: 'Online Calculations' | 'Offline Scaling Adjustment' |
Default: 'Online Calculations' |
Signal Attributes
Output data type — Data type of output signal
Inherit: Inherit via internal rule
(default) | Inherit: Inherit via back propagation
| double
| single
| int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| fixdt(1,16,0)
| fixdt(1,16,20,0)
| <data type expression>
Specify the data type for the block output signal.
Programmatic Use
Block Parameter:
OutDataTypeStr |
Type: character vector |
Values: 'Inherit: Inherit via
internal rule' | 'Inherit: Inherit via back
propagation' | double |
single | int8 |
uint8 | int16 |
uint16 | int32 |
uint32 | int64 |
uint64 | fixdt(1,16,0) |
fixdt(1,16,20,0) |
'<data type expression>' |
Default: 'Inherit: Inherit via
internal rule' |
Integer rounding mode — Rounding mode for fixed-point operations
Floor
(default) | Ceiling
| Convergent
| Nearest
| Round
| Simplest
| Zero
Specify the rounding mode for fixed-point operations. For more information, see Rounding Modes (Fixed-Point Designer).
Block parameters round to the nearest representable value. To control the rounding of a block parameter, enter an expression by using a MATLAB rounding function in the mask field.
Dependencies
To enable this parameter, set the Operation parameter to
+
, -
,
*
, or /
. If you set the
Operation to *
or
/
, you must also set the Implement
using parameter to Online
Calculations
.
Programmatic Use
Block Parameter:
RndMeth |
Type: character vector |
Values:
'Ceiling' | 'Convergent' | 'Floor' | 'Nearest' | 'Round' | 'Simplest' |
'Zero' |
Default:
'Floor' |
Saturate on integer overflow — Method of overflow action
off
(default) | on
Specify whether integer overflows saturate or wrap.
Goal | Action | Overflow Behavior | Example |
---|---|---|---|
Model has possible overflow conditions and you want explicit saturation protection in the generated code. | Select check box ( | Saturate to the minimum or maximum value that the data type can represent. | The maximum value that the |
You want to optimize generated code. You want to avoid overspecifying how a block handles out-of-range signals. For more information, see Troubleshoot Signal Range Errors. | Clear check box ( | Wrap overflows to the appropriate value that is representable by the data type. | The maximum value that the |
When you select Saturate on integer overflow, saturation applies to every internal operation on the block, not just the output, or result. When the code generator detects that overflow is not possible, it does not produce saturation code.
Dependencies
To enable this parameter, set the Operation parameter to
+
, -
,
*
, or /
. If you set
Operation to *
or
/
, you must also set the Implement
using parameter to Online
Calculations
.
Programmatic Use
Block Parameter: SaturateOnIntegerOverflow |
Type: character vector |
Values:
'off' | 'on' |
Default: 'off' |
Mode — Data type mode
Inherit
(default) | Built in
| Fixed point
| Expression
Select how you would like to specify the data type properties of the Output data type. You can choose:
Inherit
— Specify a rule for inheriting a data type, for example,Inherit: Same as input
.Built in
— Specify a built-in data type, for example,double
.Fixed point
— Specify the fixed-point attributes of the data type.Expression
— Specify an expression that evaluates to a valid data type, for example,fixdt(1,16)
.
For more information, see Specify Data Types Using Data Type Assistant.
Signedness — Signedness of fixed-point data
Signed
(default) | Unsigned
Specify whether the fixed-point data is signed or unsigned. Signed
data can represent positive and negative values, but Unsigned
data represents positive values only. For more information, see Specify Data Types Using Data Type Assistant.
Scaling — Method for scaling fixed-point data
Best precision
(default) | Binary point
Specify the method for scaling your fixed-point data to avoid overflow conditions and minimize quantization errors. For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, set Mode to Fixed point
Word length — Bit size of word that holds quantized integer
16
(default) | integer from 2 to 128
Specify the bit size of the word that holds the quantized integer as a positive integer from 2 to 128. For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, set Mode to Fixed point
.
Fraction length — Fraction length for fixed-point data type
0
(default) | integer scalar
Specify the fraction length of the fixed-point data type as a positive or negative integer scalar.
Dependencies
To enable this parameter, set Mode to Fixed point
and Scaling to Binary point
.
Slope — Specify slope for the fixed-point data type
2^0
(default) | positive, real-valued scalar
Specify slope for the fixed-point data type. For more information, see Specifying a Fixed-Point Data Type.
Dependencies
To enable this parameter, set Scaling to
Slope and bias
.
Bias — Specify bias for the fixed-point data type
0
(default) | real-valued scalar
Specify bias for the fixed-point data type as any real number. For more information, see Specifying a Fixed-Point Data Type.
Dependencies
To enable this parameter, set Scaling to
Slope and bias
.
Data type override — Data type override mode
Inherit
(default) | Off
Select the data type override mode for this signal. You can select:
Inherit
— Inherits the data type override setting specified for the model.Off
— Ignores the data type override setting specified for the model and uses the fixed-point data type you specify.
Dependencies
To enable this parameter, set Mode to Built in
or Fixed point
. For more information, see Specify Data Types Using Data Type Assistant.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced before R2006aR2023b: Weighted Sample Time Block Update
The Weighted Sample Time block now supports:
Additional output types
double
single
int8
uint8
int16
uint16
int32
uint32
int64
uint64
fixdt(1,16,0)
fixdt(1,16,20,0)
Fixed point
as a new option to the Mode parameter, which enables the fixed-point parameters:Signedness
Scaling
Word length
Slope
Bias
Data type override
