Find Nonzero Elements
Find nonzero elements in array
Libraries:
Simulink /
Math Operations
Description
The Find Nonzero Elements block locates all nonzero elements of the input signal and returns the linear indices of those elements. If the input is a multidimensional signal, the Find Nonzero Elements block can also return the subscripts of the nonzero input elements. In both cases, you can show an output port with the nonzero input values.
The Find Nonzero Elements block outputs a variable-size signal. The sample time for any variable-size signal must be discrete. If your model does not already use a fixed-step solver, you may need to select a fixed-step solver in the Configuration Parameters dialog. For more information, see Compare Solvers and Choose a Solver.
Examples
Find Nonzero Elements in an Array

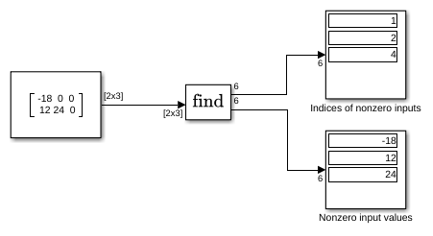

This example shows how to use the Find block to find nonzero elements in an array. In the following model, the block is configured to output both the one-based linear index and the value of each nonzero element.
Extended Examples
Parallel Channel Power Allocation
A potential use of the Find Nonzero Elements block. This block outputs a variable-size signal containing the indices of the nonzero values of the input.
Ports
Input
Port_1 — Input signal
scalar | vector | matrix | N-D array
Input signal from which the block finds all nonzero elements.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Output
Port_1 — Indices of nonzero elements
variable-size signal
The Find Nonzero Elements block outputs the indices of nonzero elements as a variable-size signal. You control the data type of the output using the Output data type block parameter.
Dependencies
By default, the block outputs linear indices from the first output port. When you
change the Index output format to
Subscripts
, the block instead
provides the element indices of a two-dimension or larger signal in
a subscript form. In this mode, you must specify the
Number of input dimensions, and the block
creates a separate output port for each dimension.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Port_2 — Values of nonzero elements
variable-size signal
The Find block can optionally output the values of all nonzero elements as a variable-size signal.
Dependencies
To enable this port, select Show output port for nonzero input values.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
| Boolean
| fixed point
Parameters
Main
Index output format — Format for indices of nonzero elements
Linear indices
(default) | Subscripts
Select the output format for the indices of the nonzero input values.
Selecting
Linear indices
provides the element indices of any dimension signal in a vector form. For one dimension (vector) signals, indices correspond to the position of nonzero values within the vector. For signals with more than one dimension, the conversion of subscripts to indices is along the first dimension. You do not need to know the signal dimension of the input signal.Selecting
Subscripts
provides the element indices of a two-dimension or larger signal in a subscript form. Because the block shows an output port for each dimension, this option requires you to specify the Number of input dimensions.
Programmatic Use
Block Parameter:
IndexOutputFormat
|
Type: character vector |
Values:
'Linear indices' |
'Subscripts'
|
Default:
'Linear indices'
|
Number of input dimensions — Number of dimensions for the input signal
1
(default) | scalar
Specify the number of dimensions for the input signal as a positive integer value from 1 to 32.
Dependencies
To enable this parameter, set Index output
format to
Subscripts
.
Programmatic Use
Block Parameter:
NumberOfInputDimensions
|
Type: character vector |
Values: scalar |
Default:
'1'
|
Index mode — Specify zero- or one-based indexing
Zero-based
(default) | One-based
Specify the indexing mode as Zero-based
or
One-based
.
For
Zero-based
indexing, an index of0
specifies the first element of the input vector. An index of1
specifies the second element, and so on.For
One-based
indexing, an index of1
specifies the first element of the input vector. An index of2
, specifies the second element, and so on.
Programmatic Use
Block Parameter:
IndexMode
|
Type: character vector |
Values:
'Zero-based' | 'One-based'
|
Default:
'Zero-based'
|
Show output port for nonzero input values — Enable output port for nonzero values
off
(default) | on
Show or hide the output port for nonzero input values.
When you clear this check box (
off
), the block hides the output port for nonzero input values.When you select this check box (
on
), the block displays the output port for nonzero input values. The additional output port provides values of the nonzero input elements.
Programmatic Use
Block Parameter:
ShowOutputPortForNonzeroInputValues
|
Type: character vector |
Values:
'on' | 'off'
|
Default:
'off'
|
Sample time (-1 for inherited) — Interval between samples
-1
(default) | scalar | vector
Specify the time interval between samples. To inherit the sample time, set this
parameter to -1
. For more information, see Specify Sample Time.
Dependencies
This parameter is visible only if you set it to a value other than
-1
. To learn more, see Blocks for Which Sample Time Is Not Recommended.
Programmatic Use
To set the block parameter value programmatically, use
the set_param
function.
Parameter: | SampleTime |
Values: | "-1" (default) | scalar or vector in quotes |
Data Types
Output data type — Output data type
Inherit: Inherit via internal
rule
(default) | int8
| uint8
| int16
| uint16
| int32
| uint32
| int64
| uint64
| fixdt(1,16)
| <data type expression>
Specify the output data type.
The Data Type Assistant helps you set data attributes. To use the Data Type Assistant, click . For more information, see Specify Data Types Using Data Type Assistant.
Programmatic Use
Block Parameter:
OutDataTypeStr
|
Type: character vector |
Values:
'Inherit: Inherit via internal rule' |
'int8' | 'uint8' |
'int16' | 'uint16' |
'int32' | 'uint32' |
'int64' | 'uint64' |
'fixdt(1,16)' | '<data type
expression>' |
Default:
'Inherit: Inherit via internal rule'
|
Mode — Select data type mode
Inherit
(default) | Built in
| Fixed Point
Select the category of data to specify.
Inherit
— Inheritance rules for data types. SelectingInherit
enables a second menu/text box to the right where you can select the inheritance mode.Built in
— Built-in data types. SelectingBuilt in
enables a second menu/text box to the right where you can select a built-in data type.Fixed point
— Fixed-point data types. SelectingFixed point
enables additional parameters that you can use to specify a fixed-point data type.Expression
— Expressions that evaluate to data types. SelectingExpression
enables a second menu/text box to the right, where you can enter the expression.
For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, click the Show data type assistant button.
Data type override — Specify data type override mode for this signal
Inherit
| Off
Select the data type override mode for this signal.
When you select
Inherit
, Simulink inherits the data type override setting from its context, that is, from the block,Simulink.Signal
object or Stateflow® chart in Simulink® that is using the signal.When you select
Off
, Simulink ignores the data type override setting of its context and uses the fixed-point data type specified for the signal.
For more information, see Specify Data Types Using Data Type Assistant in the Simulink documentation.
Dependencies
To enable this parameter, set Mode to Built
in
or Fixed point
.
Tips
The ability to turn off data type override for an individual data type provides greater control over the data types in your model when you apply data type override. For example, you can use this option to ensure that data types meet the requirements of downstream blocks regardless of the data type override setting.
Signedness — Specify signed or unsigned
Signed
(default) | Unsigned
Specify whether the fixed-point data is signed or unsigned. Signed data can represent positive and negative values, but unsigned data represents positive values only.
Signed
, specifies the fixed-point data as signed.Unsigned
, specifies the fixed-point data as unsigned.
For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, set the Mode to Fixed
point
.
Word length — Bit size of the word that holds the quantized integer
16
(default) | integer from 0 to 32
Specify the bit size of the word that holds the quantized integer. For more information, see Specifying a Fixed-Point Data Type.
Dependencies
To enable this parameter, set Mode to
Fixed point
.
Scaling — Method for scaling your fixed-point data
Integer
(default)
Specify the method for scaling your fixed-point data to avoid overflow conditions and
minimize quantization errors. Selecting
Integer
specifies a binary point location
for fixed-point data and sets the fraction length to
0
. For more information, see Specify Data Types Using Data Type Assistant.
Dependencies
To enable this parameter, set Mode to
Fixed point
.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Fixed-Point Conversion
Design and simulate fixed-point systems using Fixed-Point Designer™.
Version History
Introduced in R2010a
