OP-Amp 회로 - 반전 증폭기
이 모델은 표준 반전 op-amp 회로를 보여줍니다. 이득은 -R2/R1으로 지정되며, 값을 R1=1K옴 및 R2=10K옴으로 설정하면 0.1V의 피크 간 입력 전압이 1V의 피크 간 전압으로 증폭됩니다. Op-Amp 블록이 이상적인(무한 이득) 소자를 구현하므로 이 이득은 출력 부하에 관계없이 달성됩니다.
모델

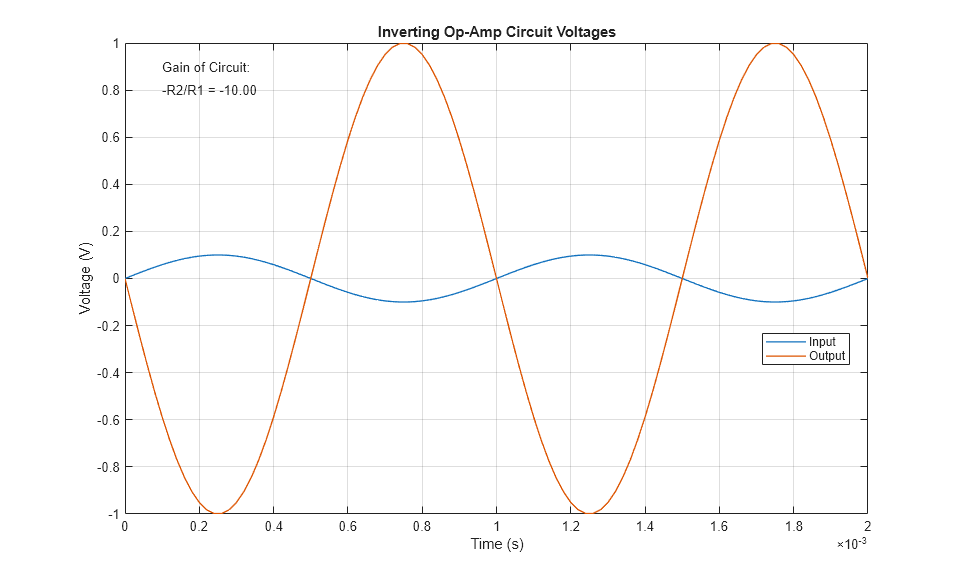

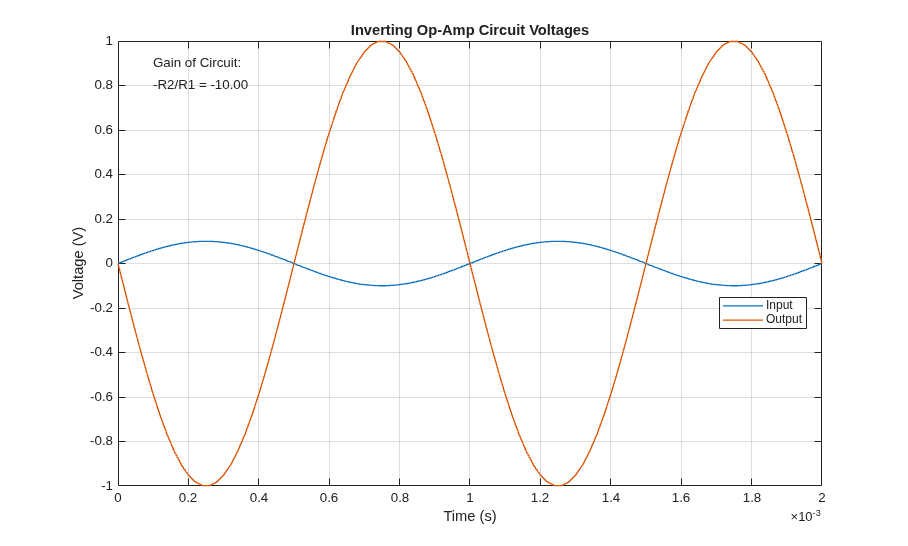

Simscape 기록의 시뮬레이션 결과
