Phase Shift

Model phase shift in RF systems

Libraries:
RF Blockset / Circuit Envelope / Elements

Description

The Phase Shift block models an ideal phase shift in the circuit envelope environment. To learn how to use Phase Shift block to measure image rejection ratio in receiver, see Measuring Image Rejection Ratio in Receivers example.

Examples

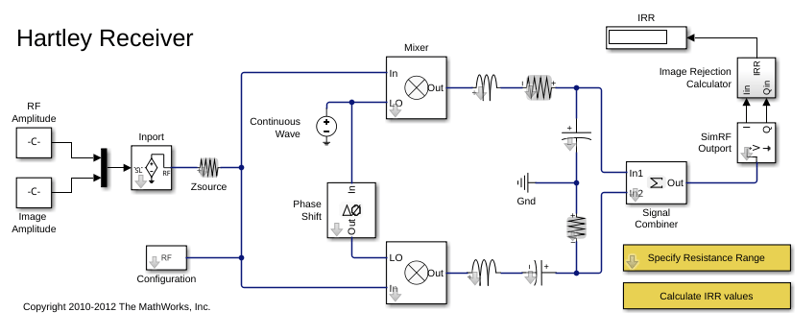

Measuring Image Rejection Ratio in Receivers

Calculate the image rejection ratio for high-side-injection in Weaver and Hartley receivers.

Open Script

Parameters

expand all

Phase shift — Phase shift angle
`90 deg` (default) | non-negative scalar integer

Phase shift angle, specified as a nonnegative scalar integer in degrees. The phase shift is applied to all nonzero simulation frequencies. For zero (DC) frequency, the shift is always zero.

Data Types: double

Version History

Introduced in R2015b
