winwrite

Class: sigwin.flattopwin
Namespace: sigwin

Save flat top window in ASCII file

Syntax

winwrite(H)
winwrite(H,'filename')


Description

winwrite(H) opens a dialog box to export the flat top window values to an ASCII file. The file extension .wf is automatically appended.

winwrite(H,'filename') saves the values of the flat top window object H in the current folder as a column vector in the ASCII file 'filename'. The file extension .wf is automatically appended to filename.

Examples

Flat Top Window

Generate a flat top window of length N = 16. Return its values as a column vector. Show information about the window object. Display the window.

H = sigwin.flattopwin(16);

win = generate(H)

win = 16×1

   -0.0004
   -0.0061
   -0.0314
   -0.0677
   -0.0316
    0.1982
    0.6069
    0.9487
    0.9487
    0.6069
    0.1982
   -0.0316
   -0.0677
   -0.0314
   -0.0061
      ⋮

wininfo = info(H)

wininfo = 4×26 char array
    'Flat Top Window           '
    '---------------           '
    'Length         : 16       '
    'Sampling Flag  : symmetric'

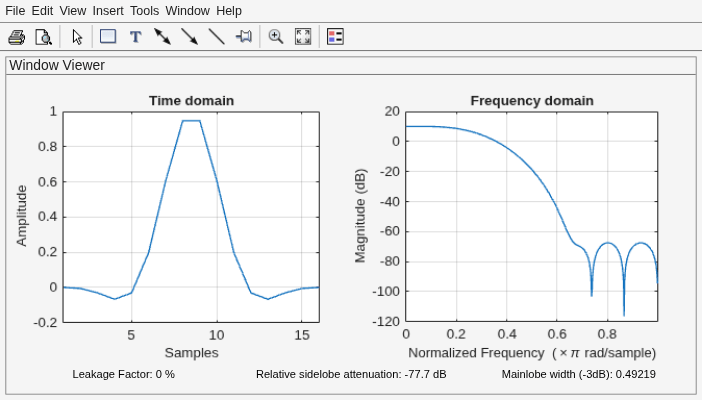

wvtool(H)
