유연체 응용 사례
Simscape™ Driveline™을 사용하면 샤프트의 비틀림 유연성과 횡방향 유연성을 모델링할 수 있습니다. 아래 예제에서는 Flexible Shaft 블록의 사용 방법을 보여줍니다.
추천 예제
Flexible Shaft
Two flexible aluminum shafts modeled using a lumped parameter approach. Both shafts consist of 20 segments containing inertias, damping, and stiff torsional springs. At the start of the simulation, the clutch is unlocked and the driven shaft is free. Note that the initial velocity of the motor shaft is set to 200 rad/s and that the system starts at steady state. The clutch engages and disengages during the test, and during each event the effect of the shaft flexibility can be seen in the simulation results.

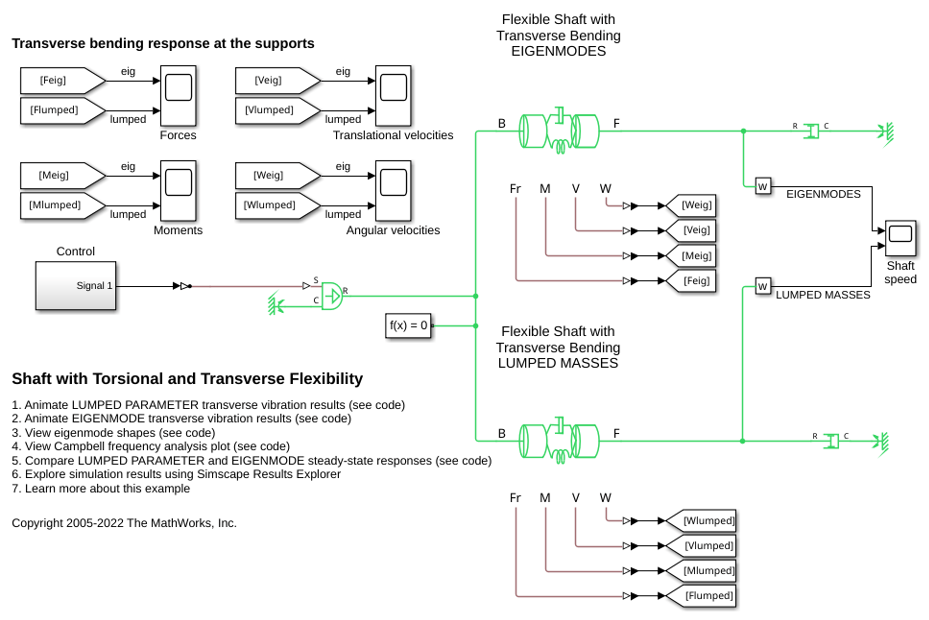

Shaft with Torsional and Transverse Flexibility
Two flexible shafts that have torsional and transverse flexibility. One shaft computes transverse motion using computed eigenmodes, and the other shaft uses a lumped parameter approach. The boundary conditions on the shafts can be changed on the block masks.
