report
Generate reports from Report Explorer setup files
Syntax
Description
report
opens the Report Explorer as the active window.
[
generates reports from the specified report setup files and returns the full paths of
the generated report files. The function generates the reports according to the
configuration of the report setup files.rptFile1,...,rptFileN
] = report(setup1,...,setupN
)
generates a report from the report setup file associated with the specified
Simulink® model.rptFile
= report(simulinkModel
)
Note
You can use this syntax only if you have Simulink Report Generator™ installed.
Load the Simulink model before using this syntax.
[___] = report(___,
generates the reports in the specified format.outFormat
)
[___] = report(___,
generates the reports using the specified template of
outFormat
,formatTemplate
)outFormat
.
[___] = report(___,
generates the reports using the specified style sheet of
outFormat
,formatStyleSheet
)outFormat
.
[___] = report(___,
creates the generated report files in the specified folder.targetFolder
)
[___] = report(___,
specifies the target root name for the generated report files.targetFile
)
[___] = report(___,
uses one or more options when generating the reports.genOpt1,...,genOptN
)
Examples
Generate Multiple Reports Simultaneously with Report Explorer
Use variables to store the names of the report setup files.
rpt_file_1 = "first_rpt.rpt"; rpt_file_2 = "second_rpt.rpt"; rpt_file_3 = "third_rpt.rpt";
Define the folder for the generated reports and store the path in the variable generated_reports_folder
. Include the backslash (\
) at the end so the report
function identifies the path as a folder and not as a root file name.
generated_reports_folder = "generated_reports\"
generated_reports_folder = "generated_reports\"
Define the output path argument for the report
function in the variable out_path_param
.
out_path_param = "-o"+generated_reports_folder
out_path_param = "-ogenerated_reports\"
Use the report
function once to generate and view reports for all three setup files. Specify the folder to generate the reports in by using the out_path_param
variable. Specify the generated reports type to be in the format dom-pdf
with the template default-rg-docx-numbered
.
The function generates and opens temporary DOCX files and converts the DOCX files to PDF files. If you get a Microsoft Word pop up warning about allowing the document to update the fields, click Yes.
Store the paths of the generated report files in the string array report_file_paths
and display the names of the files.
[report_file_paths(1),report_file_paths(2),report_file_paths(3)] = ... report(rpt_file_1,rpt_file_2,rpt_file_3,... "-fdom-pdf","-sdefault-rg-docx-numbered",out_path_param);
Beginning report Converting report Document conversion failed. Generating a PDF report from a template supported only on Windows platforms. Error running report Generating a PDF report from a template supported only on Windows platforms. Beginning report Converting report Document conversion failed. Generating a PDF report from a template supported only on Windows platforms. Error running report Generating a PDF report from a template supported only on Windows platforms. Beginning report Converting report Document conversion failed. Generating a PDF report from a template supported only on Windows platforms. Error running report Generating a PDF report from a template supported only on Windows platforms.
[~,generated_report_names] = fileparts(report_file_paths); disp(generated_report_names');
"" "" ""
Report on Simulink Model with Report Explorer
This example shows how to use the Report Explorer to report on a Simulink model. You must have Simulink Report Generator installed to run this example.
Load the model and check which report setup file is associated with the model.
model_name = "simple_model"; load_system(model_name); model_report_name = get_param(model_name,"ReportName")
model_report_name = 'simple_RPT.rpt'
Use the report
function to generate a report named reportOnSimpleModel
in the current directory using the dom-pdf-direct

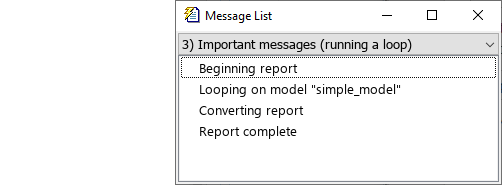

format. Launch the Message List dialog box of the Report Explorer by using the -graphical
option.
Store the path of the generated report file in the variable generated_report_path
and display the file name and extension.
generated_report_path = report(model_name,"-fdom-pdf-direct","-oreportOnSimpleModel","-graphical"); [~,generated_report_name,generated_report_extension] = fileparts(generated_report_path)
generated_report_name = "reportOnSimpleModel"
generated_report_extension = ".pdf"
Avoid File Overwriting When Generating Multiple Reports
This example shows how to avoid overwriting when generating multiple reports with the same root name.
Configure the Report Setup Files
Use variables to store the names of the report setup files.
rpt_file_1 = "my_first_rpt.rpt"; rpt_file_2 = "my_second_rpt.rpt"; rpt_file_3 = "my_third_rpt.rpt";
Use the function setedit
to open the report setup files in the Report Explorer. Make sure the If report already exists, increment to prevent overwriting check box is selected for all three files.
setedit(rpt_file_1); setedit(rpt_file_2); setedit(rpt_file_3);
Generate the Reports
Define the base path for the generated reports.
base_report_path = fullfile("","generated_reports","myGeneratedReport")
base_report_path = "generated_reports/myGeneratedReport"
Define the output path argument for the report
function in the variable out_path_param
. The function appends a different number to base_report_path
for each report and generates report files with different names.
out_path_param = "-o"+base_report_path
out_path_param = "-ogenerated_reports/myGeneratedReport"
Use the report
function to generate and view reports for the three setup files simultaneously. Specify the root name for the generated reports using the out_path_param
parameter. Specify the generated reports type to be in the format pdf-fop
with the style sheet fo-YesChapterNumbers
. Store the paths of the generated report files in the string array report_file_paths
and display the names of the files. Note that the generated report files have different names because the increment to prevent overwriting option is selected.
[report_file_paths(1),report_file_paths(2),report_file_paths(3)] = ... report(rpt_file_1,rpt_file_2,rpt_file_3,... "-fpdf-fop","-sfo-YesChapterNumbers",out_path_param);
Beginning report Converting report Report complete Beginning report Converting report Report complete Beginning report Converting report Report complete
[~,generated_report_names] = fileparts(report_file_paths); disp(generated_report_names');
"myGeneratedReport0" "myGeneratedReport1" "myGeneratedReport2"
Input Arguments
setup1,...,setupN
— Names of report setup files
character vector | string scalar
Names of report setup files to generate reports from, specified as string scalars or character vectors.
simulinkModel
— Name of Simulink model associated with report setup file
character vector | string scalar
Name of the Simulink model associated with the report setup file from which to generate the report, specified as a character vector or string scalar.
To see which report setup file is associated with a model, check the value of the
ReportName
property of the model. For example:
model_name = "myModel"; load_system(model_name); model_report_name = get_param(model_name,"ReportName") ans = 'modelRptFile.rpt'
ReportName
property to the name of the report setup file. For example:model_name = "myModel"; new_rpt_file_name = "modelRptFile.rpt"; load_system(model_name); set_param(model_name,"ReportName",new_rpt_file_name);
Note
The report setup file name must include the .rpt
file
extension.
By default, all models are associated with simulink-default.rpt
,
which is a report setup file that generates a report for the current Simulink system.
outFormat
— Output report format
character vector | string scalar
Output report format, specified as a character vector or string scalar in the
form of -fFORMAT
, where FORMAT
is a valid
format value.
To get the list of DOM formats use:
rptconvert("-domformatlist")
rptconvert("-formatlist")
formatTemplate
— Template of output format
character vector | string scalar
Template of outFormat
to use for generating the report,
specified as a character vector or string scalar in the form of
-sTEMPLATE
, where TEMPLATE
is a valid
template for the format outFormat
. Legacy formats do not have
templates. All DOM formats have templates. To see the list of valid templates for
the outFormat
format, which can be any valid DOM format, enter
the
command:
rptconvert("-templatelist",outFormat)
formatStyleSheet
— Style sheet of output format
character vector | string scalar
Style sheet of outFormat
to use for generating the report,
specified as a character vector or string scalar in the form of
-sSTYLE_SHEET
, where STYLE_SHEET
is a
valid style sheet for the format outFormat
. DOM formats do
not have style sheets. All non-DOM formats, except db
, have
style sheets. To see the list of valid style sheets for the
outFormat
format, which can be any valid non-DOM format
except db
, enter the
command:
rptconvert("-stylesheetlist",outFormat)
targetFile
— Base target file name for created report files
character vector | string scalar
Base target file name for the created report files, specified as a character vector or string scalar in the form of -oNAME
, where
NAME
is the base name or path of the files to create.
Note
Specify targetFile
as a single base name or path. To
prevent the function from trying to generate multiple report files with the
same name, when using this syntax with multiple report setup files, select
each report setup file in the Outline pane of the
Report Explorer and, in the Properties pane, ensure
that you select the If report already exists, increment to prevent
overwriting check box. The function then creates each report
file with a different name by appending a different number to the base file
name or path.
targetFolder
— Target folder in which to create report files
character vector | string scalar
Target folder in which to create report files, specified as a character vector or string scalar in the form of -oPATH
, where
PATH
is a relative or full path.
Note
PATH
must end with a slash (/
) or
back-slash (\
).
genOpt1,...,genOptN
— Options for generating the report
"-noview"
| "-graphical"
| "-debug"
| "-quiet"
Options for generating the report, specified as:
Value | Description |
---|---|
"-noview" | Does not open the generated reports for viewing |
"-graphical" | Loads the report setup files in the Report Explorer and launches the Message List dialog box prior to generating the report. Setup files that were not loaded in the Report Explorer before report generation are unloaded after the reports are generated. |
"-debug" | Outputs debugging info in the MATLAB® command line. |
"-quiet" | Suppresses command-line output. This option is ignored
when used with the |
Output Arguments
rptFile1,...,rptFileN
— Full paths of generated report files
string scalars
Full paths of the generated report files, returned as one or more string scalars, one for each generated report file.
Version History
Introduced before R2006a
