rncf

Right normalized coprime factorization

Since R2019a

Syntax

fact = rncf(sys)

[fact,Mr,Nr] = rncf(sys)

Description

fact = rncf(sys) computes the right normalized coprime factorization of the dynamic system model sys. The factorization is given by:

$$sys=N_r{M}_r^{-1},M_r^{*}{M}_r+N_r^{*}{N}_r=I.$$

Here, $$M_r^{*}$$ denotes the conjugate of M_r (see ctranspose). The returned model fact is a minimal state-space realization of the stable system [M_r;N_r]. This factorization is used in other normalized coprime factor computations such as model reduction (ncfmr) and controller synthesis (ncfsyn).

[fact,Mr,Nr] = rncf(sys) also returns the coprime factors M_r and N_r.

Examples

Right Normalized Coprime Factorization of SISO System

Compute the right normalized coprime factorization of a SISO system.

sys = zpk([1 -1+2i -1-2i],[-1 2+1i 2-1i],1);
[fact,Mr,Nr] = rncf(sys);

Examine the original system and its factors.

sys

sys =

  (s-1) (s^2 + 2s + 5)
  --------------------
  (s+1) (s^2 - 4s + 5)

Continuous-time zero/pole/gain model.

zpk(Mr)

ans =

  0.70711 (s+1) (s^2 - 4s + 5)
  ----------------------------
    (s+1) (s^2 + 3.162s + 5)

Continuous-time zero/pole/gain model.

zpk(Nr)

ans =

  0.70711 (s-1) (s^2 + 2s + 5)
  ----------------------------
    (s+1) (s^2 + 3.162s + 5)

Continuous-time zero/pole/gain model.

The numerators of the factors Mr and Nr are the denominator and numerator of sys, respectively. Thus, sys = Nr/Mr. rncf chooses the denominators of the factors such that the system $\left[{\mathit{M}}_{\mathit{r}}\left(\mathit{j}\omega \right);{\mathit{N}}_{\mathit{r}}\left(\mathit{j}\omega \right)\right]$ is a unit vector at all frequencies. To confirm that property of the factorization, examine the singular values of fact, which is a stable minimal realization of $\left[{\mathit{M}}_{\mathit{r}}\left(\mathit{j}\omega \right);{\mathit{N}}_{\mathit{r}}\left(\mathit{j}\omega \right)\right]$.

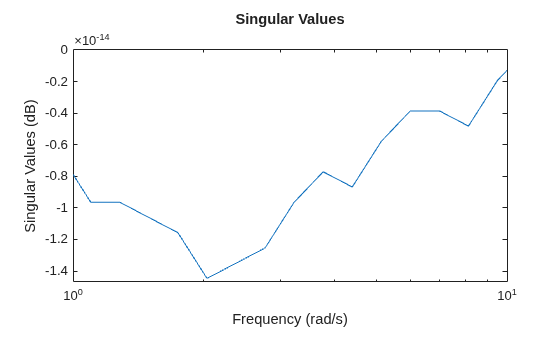

sigma(fact)

Within a small numerical error, the singular value of fact is 1 (0 dB) at all frequencies.

Right Normalized Coprime Factorization of MIMO System

Compute the right normalized coprime factorization of a state-space model that has two outputs, two inputs, and three states.

rng(0); % for reproducibility
sys = rss(3,2,2);
[fact,Mr,Nr] = rncf(sys);

fact is a stable minimal realization of the factorization given by [Mr;Nr].

isstable(fact)

ans = logical
   1

Another property of fact is that its frequency response F(jω) is an orthogonal matrix at all frequencies (F(jω)'F(jω) = I). Confirm this property by examining the singular values of fact. Within a small numerical error, the singular values are 1 (0 dB) at all frequencies.

sigma(fact)

Confirm that the factors satisfy sys = Nr/Mr by examining the singular values of both.

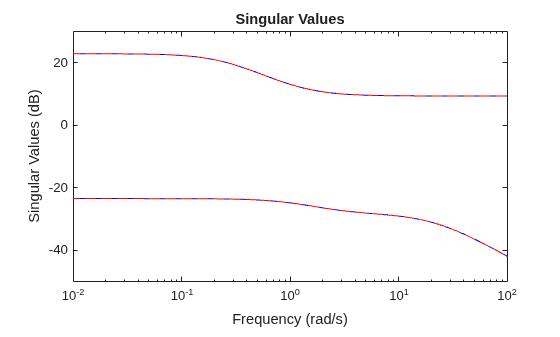

sigma(sys,'b-',Nr/Mr,'r--')

Input Arguments

sys — Input system

dynamic system model

Input system to factorize, specified as a dynamic system model such as a state-space (ss) model. If sys is a generalized state-space model with uncertain or tunable control design blocks, then the function uses the nominal or current value of those elements. sys cannot be an frd model or a model with time delays.

Output Arguments

fact — Minimal realization of [Mr;Nr]

ss model

Minimal realization of [Mr;Nr], returned as a state-space model. fact is stable and its frequency response is an orthogonal matrix at all frequencies. If sys has p outputs and m inputs, then fact has m+p outputs and m inputs. fact has the same number of states as sys.

Mr,Nr — Right coprime factors

ss models

Right coprime factors of sys, returned as state-space models. If sys has p outputs and m inputs, then:

• Mr has m outputs and m inputs.

• Nr has p outputs and m inputs.

Both factors have the same number of states as sys and the same A and B matrices as fact.

Tips

• fact is a minimal realization of [Mr;Nr]. If you need to use [Mr;Nr] or [Mr;Nr]' in a computation, it is better to use fact than to concatenate the factors yourself. Such manual concatenation results in extra (nonminimal) states, which can lead to decreased numerical accuracy.

Version History

Introduced in R2019a
