Explore Fairness Metrics for Credit Scoring Model

This example shows how to calculate and display fairness metrics for two sensitive attributes. You can use these metrics to test data and the model for fairness and then determine the thresholds to apply for your situation. You can also use the metrics to understand the biases in your model, the levels of disparity between groups, and how to assess the fairness of the model.

Fairness Metrics Calculations

Fairness metrics are a set of measures that enable you to detect the presence of bias in your data or model. Bias refers to the preference of one group over another group, implicitly or explicitly. When you detect bias in your data or model, you can decide to take action to mitigate the bias. Bias detection is a set of measures that enable you to see the presence of unfairness toward one group or another. Bias mitigation is a set of tools to reduce the amount of bias that occurs in the data or model for the current analysis.

A set of metrics exists for the data and a set of metrics also exists for the model. Group metrics measure information within the group, whereas bias metrics measure differences across groups. The example calculates two bias metrics (Statistical Parity Difference and Disparate Impact) and a group metric (group count) at the data level. In this example, you calculate four bias metrics and 11 group metrics at the model level.

Bias metrics:

  • Statistical Parity Difference (SPD) measures the difference that the majority and protected classes receive a favorable outcome. This measure must be equal to 0 to be fair.

SPD=P(Yˆ=1|A=minority)-P(Yˆ=1|A=majority),whereYˆarethemodelpredictionsandAisthegroupofthesensitiveattribute.

  • Disparate Impact (DI) compares the proportion of individuals that receive a favorable outcome for two groups, a majority group and a minority group. This measure must be equal to 1 to be fair.

DI=P(Yˆ=1|A=minority)/P(Yˆ=1|A=majority),whereYˆarethemodelpredictionsandAisthegroupofthesensitiveattribute.

  • Equal Opportunity Difference (EOD) measures the deviation from the equality of opportunity, which means that the same proportion of each population receives the favorable outcome. This measure must be equal to 0 to be fair.

EOD=P(Yˆ=1|A=minority,Y=1)-P(Yˆ=1|A=majority,Y=1),whereYˆarethemodelpredictions,Aisthegroupofthesensitiveattribute,andYarethetruelabels.

  • Average Absolute Odds Difference (AAOD) measures bias by using the false positive rate and true positive rate. This measure must be equal to 0 to be fair.

AAOD=12[|FPRA=minority-FPRA=majority|+|TPRA=minority-TPRA=majority|],whereAisthegroupofthesensitiveattribute.

Group metrics:

  • Group Count is the number of individuals in the group.

  • True Positive Rate (TPR) is the sensitivity.

TPR=TP(TP+FN),whereTPistruepositiveandFNisfalsenegative.

  • True Negative Rate (TNR) is the specificity or selectivity.

TNR=TN(TN+FP),whereTNistruenegativeandFPisfalsepositive.

  • False Positive Rate (FPR) is the Type-I error.

FPR=FP(FP+TN)

  • False Negative Rate (FNR) is the Type-II error.

FNR=FN(FN+TP)

  • False Discovery Rate (FDR) is the ratio of the number of false positive results to the number of total positive test results.

FDR=FP(FP+TP)

  • False Omission Rate (FOR) is the ratio of the number of individuals with a negative predicted value for which the true label is positive.

FOR=FN(FN+TN)

  • Positive Predictive Value (PPV) is the ratio of the number of true positives to the number of true positives and false positives.

PPV=TP(TP+FP)

  • Negative Predictive Value (NPV) is the ratio of the number of true negatives to the number of true positives and false positives.

NPV=TN(TN+FN)

  • Acceptance Rate (AR) is the ratio of the number of false and true positives to the total observations.

AR=(FP+TP)(TN+TP+FN+FP)

  • Accuracy (ACC) is the ratio of the number of true negatives and true positives to the total observations.

ACC=(TN+TP)(TN+TP+FN+FP)

The example focuses on bias detection in credit card data and explores bias metrics and group metrics based on the sensitive attributes of customer age and residential status. The data contains the residential status as a categorical variable and the customer age as a numeric variable. To create predictions and analyze the data for fairness, you group the customer age variable into bins.

Visualize Sensitive Attributes in Credit Card Data

Load the credit card data set. Group the customer age into bins. Use the discretize function for a numeric variable to create groups that identify age groups of interest for comparison on fairness. Retrieve the counts for both sensitive attributes of customer age and residential status.

load CreditCardData.mat

AgeGroup = discretize(data.CustAge,[min(data.CustAge) 30 45 60 max(data.CustAge)], ...
    'categorical',{'Age <= 30','30 < Age <= 45','45 < Age <= 60','Age > 60'});
data = addvars(data,AgeGroup,'After','CustAge');

gs_data_ResStatus = groupsummary(data,{'ResStatus','status'});
gs_data_AgeGroup = groupsummary(data,{'AgeGroup','status'});

Plot the count of customers who have defaulted on their credit card payments and who have not defaulted by age.

Attribute = "AgeGroup";
figure
bar(unique(data.(Attribute)), ...
    [eval("gs_data_"+Attribute+".GroupCount(1:2:end)"), ...
    eval("gs_data_"+Attribute+".GroupCount(2:2:end)")]');
title(Attribute +" True Counts");
ylabel('Counts')
legend({'Nondefaults','Defaults'})

Figure contains an axes object. The axes object with title AgeGroup True Counts contains 2 objects of type bar. These objects represent Nondefaults, Defaults.

Calculate Fairness Metrics for Data

Calculate fairness metrics for the residential status data. The fairnessMetrics function returns the result as two tables, one for bias metrics and the other for group metrics. Bias metrics take into account two classes (the majority and minority) at a time, while group metrics are within the individual group. In the data set, if we use residential status as the sensitive attribute, then the Home Owner group is the majority class because this class contains the largest number of individuals. Based on the SPD and DI metrics, the data set does not show a significant presence of bias for residential status.

[dataBiasMetrics_ResStatus,dataGroupMetrics_ResStatus] = fairnessMetrics(data.ResStatus, ...
    data.status)
dataBiasMetrics_ResStatus=3×3 table
       Group        StatisticalParityDifference    DisparateImpact
    ____________    ___________________________    _______________

    "Home Owner"                     0                       1
    "Tenant"                  0.025752                  1.0789
    "Other"                  -0.038525                 0.88203

dataGroupMetrics_ResStatus=3×2 table
       Group        GroupCount
    ____________    __________

    "Home Owner"       542
    "Tenant"           474
    "Other"            184

Calculate fairness metrics for the customer age data. In the data set, the age group between 45 and 60 is the majority class because this class contains the largest number of individuals. Compared to the residential status, based on the SPD and DI metrics, the age group that is greater than 60 shows a slightly larger presence of bias.

[dataBiasMetrics_AgeGroup,dataGroupMetrics_AgeGroup] = fairnessMetrics(data.AgeGroup, ...
    data.status)
dataBiasMetrics_AgeGroup=4×3 table
         Group          StatisticalParityDifference    DisparateImpact
    ________________    ___________________________    _______________

    "Age <= 30"                    0.0811                  1.2759
    "30 < Age <= 45"              0.10333                  1.3516
    "45 < Age <= 60"                    0                       1
    "Age > 60"                   -0.14783                   0.497

dataGroupMetrics_AgeGroup=4×2 table
         Group          GroupCount
    ________________    __________

    "Age <= 30"             64
    "30 < Age <= 45"       506
    "45 < Age <= 60"       541
    "Age > 60"              89

Create Credit Scorecard Model and Generate Predictions

Create a credit scorecard model using the creditscorecard function. Perform automatic binning of the predictors using the autobinning function. Fit a logistic regression model to the Weight of Evidence data using the fitmodel function. Store the predictor names and corresponding coefficients in the credit scorecard model.

PredictorVars = setdiff(data.Properties.VariableNames, ...
    {'AgeGroup','CustID','status'});
sc = creditscorecard(data,'IDVar','CustID', ...
    'PredictorVars',PredictorVars);
sc = autobinning(sc);
sc = fitmodel(sc);
1. Adding CustIncome, Deviance = 1490.8527, Chi2Stat = 32.588614, PValue = 1.1387992e-08
2. Adding TmWBank, Deviance = 1467.1415, Chi2Stat = 23.711203, PValue = 1.1192909e-06
3. Adding AMBalance, Deviance = 1455.5715, Chi2Stat = 11.569967, PValue = 0.00067025601
4. Adding EmpStatus, Deviance = 1447.3451, Chi2Stat = 8.2264038, PValue = 0.0041285257
5. Adding CustAge, Deviance = 1441.994, Chi2Stat = 5.3511754, PValue = 0.020708306
6. Adding ResStatus, Deviance = 1437.8756, Chi2Stat = 4.118404, PValue = 0.042419078
7. Adding OtherCC, Deviance = 1433.707, Chi2Stat = 4.1686018, PValue = 0.041179769

Generalized linear regression model:
    status ~ [Linear formula with 8 terms in 7 predictors]
    Distribution = Binomial

Estimated Coefficients:
                   Estimate       SE       tStat       pValue
                   ________    ________    ______    __________

    (Intercept)    0.70239     0.064001    10.975    5.0538e-28
    CustAge        0.60833      0.24932      2.44      0.014687
    ResStatus        1.377      0.65272    2.1097      0.034888
    EmpStatus      0.88565        0.293    3.0227     0.0025055
    CustIncome     0.70164      0.21844    3.2121     0.0013179
    TmWBank         1.1074      0.23271    4.7589    1.9464e-06
    OtherCC         1.0883      0.52912    2.0569      0.039696
    AMBalance        1.045      0.32214    3.2439     0.0011792


1200 observations, 1192 error degrees of freedom
Dispersion: 1
Chi^2-statistic vs. constant model: 89.7, p-value = 1.4e-16

Display unscaled points for predictors retained in the model using the displaypoints function.

pointsinfo = displaypoints(sc)
pointsinfo=37×3 table
      Predictors            Bin            Points
    ______________    ________________    _________

    {'CustAge'   }    {'[-Inf,33)'   }     -0.15894
    {'CustAge'   }    {'[33,37)'     }     -0.14036
    {'CustAge'   }    {'[37,40)'     }    -0.060323
    {'CustAge'   }    {'[40,46)'     }     0.046408
    {'CustAge'   }    {'[46,48)'     }      0.21445
    {'CustAge'   }    {'[48,58)'     }      0.23039
    {'CustAge'   }    {'[58,Inf]'    }        0.479
    {'CustAge'   }    {'<missing>'   }          NaN
    {'ResStatus' }    {'Tenant'      }    -0.031252
    {'ResStatus' }    {'Home Owner'  }      0.12696
    {'ResStatus' }    {'Other'       }      0.37641
    {'ResStatus' }    {'<missing>'   }          NaN
    {'EmpStatus' }    {'Unknown'     }    -0.076317
    {'EmpStatus' }    {'Employed'    }      0.31449
    {'EmpStatus' }    {'<missing>'   }          NaN
    {'CustIncome'}    {'[-Inf,29000)'}     -0.45716
      ⋮

For details about creating a more in depth credit scoring model, see the Binning Explorer Case Study Example.

Calculate the probability of default for the credit scorecard model using the probdefault function. Define the threshold for the probability of default as 0.35. Create an array of predictions where each value is greater than the threshold.

pd = probdefault(sc);
threshold = 0.35;
predictions = double(pd>threshold);

Add the resulting predictions to the data output table. To calculate bias metrics, you can set aside a set of validation data. Retrieve the counts for the residential status and customer age predictions. Plot the customer age predictions.

data = addvars(data,predictions,'After','status');
gs_predictions_ResStatus = groupsummary(data,{'ResStatus','predictions'}, ...
    'IncludeEmptyGroups',true);
gs_predictions_AgeGroup = groupsummary(data,{'AgeGroup','predictions'}, ...
    'IncludeEmptyGroups',true);

Attribute = "AgeGroup";
figure
bar(unique(data.(Attribute)), ...
    [eval("gs_predictions_"+Attribute+".GroupCount(1:2:end)"), ...
    eval("gs_predictions_"+Attribute+".GroupCount(2:2:end)")]');
title(Attribute +" Prediction Counts");
ylabel('Counts')
legend({'Nondefaults','Defaults'})

Figure contains an axes object. The axes object with title AgeGroup Prediction Counts contains 2 objects of type bar. These objects represent Nondefaults, Defaults.

Calculate and Visualize Fairness Metrics for Credit Scorecard Model

Calculate model bias and group metrics for residential status. For the DI model metric, the commonly used range to assess fairness is between 0.8 and 1.2 [3]. A value of less than 0.8 indicates the presence of bias. However, a value greater than 1.2 indicates that something is incorrect and additional investigation might be required. The model bias metrics in this example show a greater effect on fairness than the data bias metrics. After the model has been fitted, the negative SPD and EOD values mean that the Other group shows a slight presence of bias. In the group metrics, the FPR group metric of 39.7% is higher for tenants than home owners, which means that tenants are more likely to be falsely labeled as defaults. The FDR, FOR, PPV, and NPV group metrics show a very minimal presence of bias.

[biasMetrics_ResStatus,groupMetrics_ResStatus] = fairnessMetrics(data.ResStatus, ...
    data.status,predictions)
biasMetrics_ResStatus=3×5 table
       Group        StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
    ____________    ___________________________    _______________    __________________________    _____________________________

    "Home Owner"                    0                        1                        0                              0
    "Tenant"                  0.10173                   1.2743                   0.1136                         0.1007
    "Other"                  -0.11541                  0.68878                -0.082081                        0.10042

groupMetrics_ResStatus=3×16 table
       Group        GroupCount    TP     TN     FP     FN      TPR        TNR        FPR        FNR        FDR        FOR        PPV        NPV      AcceptanceRate    Accuracy
    ____________    __________    ___    ___    ___    __    _______    _______    _______    _______    _______    _______    _______    _______    ______________    ________

    "Home Owner"       542         88    252    113    89    0.49718    0.69041    0.30959    0.50282    0.56219      0.261    0.43781      0.739       0.37085        0.62731
    "Tenant"           474        102    185    122    65    0.61078    0.60261    0.39739    0.38922    0.54464       0.26    0.45536       0.74       0.47257        0.60549
    "Other"            184         22    106     25    31    0.41509    0.80916    0.19084    0.58491    0.53191    0.22628    0.46809    0.77372       0.25543        0.69565

Calculate model bias and group metrics for customer age. For model metrics SPD, DI, EOD, and AAOD, the 30 and under group has the greatest variance from the majority class and might require further investigation. Further, the age group over 60 shows the presence of bias based on the negative SPD and EOD values and the very low DI value. Also, based on the DI metrics, additional model bias mitigation might be required.

In the group metrics, the FPR group metric of 80% is much higher for the 30 and under group than the majority class, which means that those individuals whose age is 30 and under are more likely to be falsely labeled as defaults. The FDR group metric of 83.3% is much higher for the over 60 group than the majority class, which means that 83.3% of individuals whose age is over 60 and identified as defaults by the model are false positives. The Accuracy metric shows the highest accuracy for the over 60 group at 80.9%.

[biasMetrics_AgeGroup,groupMetrics_AgeGroup] = fairnessMetrics(data.AgeGroup, ...
    data.status,predictions)
biasMetrics_AgeGroup=4×5 table
         Group          StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
    ________________    ___________________________    _______________    __________________________    _____________________________

    "Age <= 30"                   0.55389                   3.4362                 0.41038                         0.51487
    "30 < Age <= 45"              0.35169                   2.5469                 0.35192                          0.3381
    "45 < Age <= 60"                    0                        1                       0                               0
    "Age > 60"                   -0.15994                  0.29652                 -0.2627                         0.18877

groupMetrics_AgeGroup=4×16 table
         Group          GroupCount    TP     TN     FP     FN       TPR         TNR        FPR         FNR        FDR        FOR        PPV        NPV      AcceptanceRate    Accuracy
    ________________    __________    ___    ___    ___    ___    ________    _______    ________    _______    _______    _______    _______    _______    ______________    ________

    "Age <= 30"             64         18      8     32      6        0.75        0.2         0.8       0.25       0.64    0.42857       0.36    0.57143        0.78125       0.40625
    "30 < Age <= 45"       506        139    151    154     62     0.69154    0.49508     0.50492    0.30846     0.5256    0.29108     0.4744    0.70892        0.57905       0.57312
    "45 < Age <= 60"       541         54    313     69    105     0.33962    0.81937     0.18063    0.66038    0.56098     0.2512    0.43902     0.7488        0.22736       0.67837
    "Age > 60"              89          1     71      5     12    0.076923    0.93421    0.065789    0.92308    0.83333    0.14458    0.16667    0.85542       0.067416       0.80899

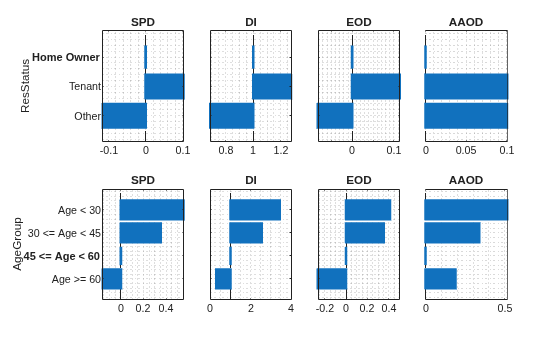

Plot these bias metrics for the two sensitive attributes using the plotMetrics function: SPD, DI, EOD, and AAOD.

plotMetrics(biasMetrics_ResStatus,biasMetrics_AgeGroup);

Figure contains 8 axes objects. Axes object 1 with title SPD contains an object of type bar. Axes object 2 with title DI contains an object of type bar. Axes object 3 with title EOD contains an object of type bar. Axes object 4 with title AAOD contains an object of type bar. Axes object 5 with title SPD contains an object of type bar. Axes object 6 with title DI contains an object of type bar. Axes object 7 with title EOD contains an object of type bar. Axes object 8 with title AAOD contains an object of type bar.

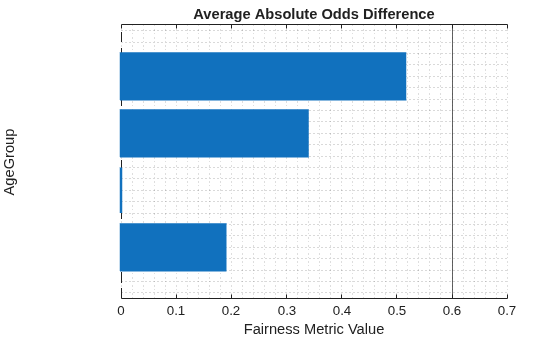

Choose the bias metric and plot it for each sensitive attribute. This code selects AAOD by default. The resulting plots show the metric values for residential status and customer age.

BiasMetric = "AverageAbsoluteOddsDifference";
plotMetrics(biasMetrics_ResStatus(:,["Group",BiasMetric]), ...
    biasMetrics_AgeGroup(:,["Group",BiasMetric]))

Figure contains 2 axes objects. Axes object 1 with title AverageAbsoluteOddsDifference contains an object of type bar. Axes object 2 with title AverageAbsoluteOddsDifference contains an object of type bar.

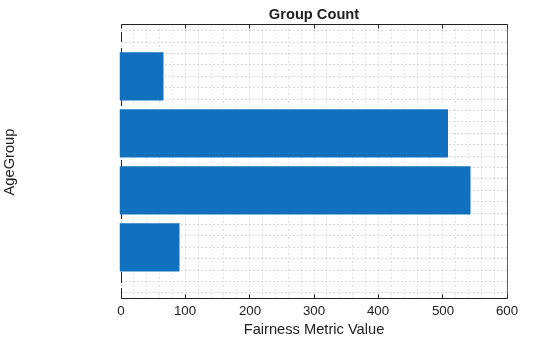

For the same sensitive attributes, choose the group metric and plot it for each sensitive attribute. This code selects the group count by default. The resulting plots show the metric values for residential status and customer age.

GroupMetric = "GroupCount";
plotMetrics(groupMetrics_ResStatus(:,["Group",GroupMetric]), ...
    groupMetrics_AgeGroup(:,["Group",GroupMetric]))

Figure contains 2 axes objects. Axes object 1 with title GroupCount contains an object of type bar. Axes object 2 with title GroupCount contains an object of type bar.

Bias preserving metrics seek to keep the historic performance in the outputs of a target model with equivalent error rates for each group as shown in the training data. These metrics do not alter the status quo that exists in society. A fairness metric is classified as bias preserving when a perfect classifier exactly satisfies the metric. In contrast, bias transforming metrics require the explicit decision regarding which biases the system should exhibit. These metrics do not accept the status quo and acknowledge that protected groups start from different points that are not equal. The main difference between these two types of metrics is that most bias transforming metrics are satisfied by matching decision rates between groups, whereas bias preserving metrics require matching error rates instead. To assess the fairness of a decision-making system, use both bias preserving and transforming metrics to create the broadest possible view of the bias in the system.

Evaluating whether a metric is bias preserving is straightforward with a perfect classifier. In the absence of a perfect classifier, you can substitute the predictions with the classifier response and observe if the formula is trivially true. EOD and AAOD are bias preserving metrics because they have no variance; however, SPD and DI are bias transforming metrics as they show a variance from the majority classes.

biasMetrics_ResStatus1 = fairnessMetrics(data.ResStatus,data.status,data.status)
biasMetrics_ResStatus1=3×5 table
       Group        StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
    ____________    ___________________________    _______________    __________________________    _____________________________

    "Home Owner"                     0                       1                    0                               0
    "Tenant"                  0.025752                  1.0789                    0                               0
    "Other"                  -0.038525                 0.88203                    0                               0

biasMetrics_AgeGroup1 = fairnessMetrics(data.AgeGroup,data.status,data.status)
biasMetrics_AgeGroup1=4×5 table
         Group          StatisticalParityDifference    DisparateImpact    EqualOpportunityDifference    AverageAbsoluteOddsDifference
    ________________    ___________________________    _______________    __________________________    _____________________________

    "Age <= 30"                    0.0811                  1.2759                     0                               0
    "30 < Age <= 45"              0.10333                  1.3516                     0                               0
    "45 < Age <= 60"                    0                       1                     0                               0
    "Age > 60"                   -0.14783                   0.497                     0                               0

References

  1. Schmidt, Nicolas, Sue Shay, Steve Dickerson, Patrick Haggerty, Arjun R. Kannan, Kostas Kotsiopoulos, Raghu Kulkarni, Alexey Miroshnikov, Kate Prochaska, Melanie Wiwczaroski, Benjamin Cox, Patrick Hall, and Josephine Wang. Machine Learning: Considerations for Fairly and Transparently Expanding Access to Credit. Mountain View, CA: H2O.ai, Inc., July 2020.

  2. Mehrabi, Ninareh, et al. “A Survey on Bias and Fairness in Machine Learning.” ArXiv:1908.09635 [Cs], Sept. 2019. arXiv.org, https://arxiv.org/abs/1908.09635.

  3. Saleiro, Pedro, et al. “Aequitas: A Bias and Fairness Audit Toolkit.” ArXiv:1811.05577 [Cs], Apr. 2019. arXiv.org, https://arxiv.org/abs/1811.05577.

  4. Wachter, Sandra, et al. Bias Preservation in Machine Learning: The Legality of Fairness Metrics Under EU Non-Discrimination Law. SSRN Scholarly Paper, ID 3792772, Social Science Research Network, 15 Jan. 2021. papers.ssrn.com, https://papers.ssrn.com/abstract=3792772.

Local Helper Function

This code creates the fairnessMetrics and plotMetrics functions.

function [biasMetrics,groupMetrics] = fairnessMetrics(Groups, ...
    Actual,varargin)
% fairnessMetrics uses a sensitive attribute, true labels, and predictions
% to calculate bias metrics and group metrics for the data and model.

    if isempty(varargin) % Calculate data metrics.
        [data_gs,cats,counts] = groupsummary(Actual,Groups,'mean');
        [~,maxInd] = max(counts);
        numGroups = numel(cats);
        groupMetrics = array2table(zeros(numGroups,1));
        groupMetrics.Properties.VariableNames = {'GroupCount'};
        biasMetrics = array2table(zeros(numGroups,2));
        % fairnessMetrics calculates only the Statistical Parity Difference and
        % Disparate Impact bias metrics.
        biasMetrics.Properties.VariableNames = {'StatisticalParityDifference', ...
            'DisparateImpact'};
        Group = string(cats);
        groupMetrics = addvars(groupMetrics,Group,'Before','GroupCount');
        biasMetrics = addvars(biasMetrics,Group,'Before', ...
            'StatisticalParityDifference');
        biasMetrics.StatisticalParityDifference = data_gs - data_gs(maxInd);
        biasMetrics.DisparateImpact = data_gs ./ data_gs(maxInd);
    else % Calculate model metrics with predictions.
        Predicted = varargin{1};
        [predicted_gs,cats,counts] = groupsummary(Predicted,Groups,'mean');
        [~,maxInd] = max(counts);
        MajorityClass = string(cats(maxInd));
        numGroups = numel(cats);
        % Set up output for group metrics.
        groupMetrics = array2table(zeros(numGroups,15));
        groupMetrics.Properties.VariableNames = {'GroupCount','TP','TN','FP', ...
            'FN','TPR','TNR','FPR','FNR','FDR','FOR','PPV','NPV', ...
            'AcceptanceRate','Accuracy'};
        % Set up output for bias metrics.
        biasMetrics = array2table(zeros(numGroups, 4));
        biasMetrics.Properties.VariableNames = {'StatisticalParityDifference', ...
            'DisparateImpact','EqualOpportunityDifference', ...
            'AverageAbsoluteOddsDifference'};
        Group = string(cats);
        groupMetrics = addvars(groupMetrics,Group,'Before','GroupCount');
        biasMetrics = addvars(biasMetrics,Group,'Before', ...
            'StatisticalParityDifference');
        for i = 1:numGroups
            c_mat = confusionmat(Actual(Groups==cats(i)),Predicted(Groups==cats(i)));

            % True Positive
            TP = c_mat(2,2);
            % True Negative
            TN = c_mat(1,1);
            % False Positive
            FP = c_mat(1,2);
            % False Negative
            FN = c_mat(2,1);

            % Set the values for group metrics.
            groupMetrics{i,'TP'} = TP;
            groupMetrics{i,'FP'} = FP;
            groupMetrics{i,'TN'} = TN;
            groupMetrics{i,'FN'} = FN;
            groupMetrics{i,'TPR'} = TP / (TP + FN); % True Positive Rate, Sensitivity (1-TypeII)
            groupMetrics{i,'TNR'} = TN / (TN + FP); % True Negative Rate, Specificity or Selectivity (1-TypeI)
            groupMetrics{i,'FPR'} = FP / (FP + TN); % False Positive Rate, Type-I error
            groupMetrics{i,'FNR'} = FN / (FN + TP); % False Negative Rate, Type-II error

            groupMetrics{i,'FDR'} = FP / (FP + TP); % False Discovery Rate
            groupMetrics{i,'FOR'} = FN / (FN + TN); % False Ommission Rate
            groupMetrics{i,'PPV'} = TP / (TP + FP); % Positive Predictive Value (1-FDR)
            groupMetrics{i,'NPV'} = TN / (TN + FN); % Negative Predictive Value (1-FOR)

            % Calculate Acceptance Rate and Accuracy.
            groupMetrics{i,'AcceptanceRate'} = (FP + TP) / (TN + TP + FN + FP);
            groupMetrics{i,'Accuracy'} =  (TN + TP) / (TN + TP + FN + FP);
        end
        for i = 1:numGroups
            % Equal Opportunity Difference
            biasMetrics{i,'EqualOpportunityDifference'} = groupMetrics{i,'TPR'} - ...
                groupMetrics{groupMetrics.Group==MajorityClass,'TPR'};
            % Average Absolute Odds Difference
            biasMetrics{i,'AverageAbsoluteOddsDifference'} = 0.5*(abs(groupMetrics{i,'FPR'} - ...
                groupMetrics{groupMetrics.Group==MajorityClass,'FPR'}) + ...
                abs(groupMetrics{i,'TPR'} - groupMetrics{groupMetrics.Group==MajorityClass,'TPR'}));
        end
        biasMetrics.StatisticalParityDifference = predicted_gs - predicted_gs(maxInd); % Statistical Parity Difference
        biasMetrics.DisparateImpact = predicted_gs ./ predicted_gs(maxInd); % Disparate Impact

    end
    groupMetrics.GroupCount = counts;
end

function plotMetrics(ResStatusMetrics,AgeGroupMetrics)
% plotMetrics creates plots that show the specified metrics in
% a series of subplots.
    if width(ResStatusMetrics)==5 % Create subplot with all metrics.
        tiledlayout(2,4); % Residential status subplots
        nexttile
        barh(ResStatusMetrics{:,2});
        yticklabels(ResStatusMetrics.Group)
        ax = gca;
        ax.YDir = 'reverse';
        ylabel('ResStatus');
        title('SPD'); % Statistical Parity Difference
        grid on

        nexttile
        barh(ResStatusMetrics{:,3});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('DI'); % Discrete Impact
        grid on

        nexttile
        barh(ResStatusMetrics{:,4});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('EOD'); % Equal Opportunity Difference
        grid on

        nexttile
        barh(ResStatusMetrics{:,5});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('AAOD'); % Average Absolute Odds Difference
        grid on

        nexttile
        barh(AgeGroupMetrics{:,2}); % Customer age subplots
        yticklabels(AgeGroupMetrics.Group)
        ax = gca;
        ax.YDir = 'reverse';
        ylabel('AgeGroup');
        title('SPD');
        grid on

        nexttile
        barh(AgeGroupMetrics{:,3});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('DI');
        grid on

        nexttile
        barh(AgeGroupMetrics{:,4});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('EOD');
        grid on

        nexttile
        barh(AgeGroupMetrics{:,5});
        ax = gca;
        ax.YDir = 'reverse';
        ax.YTickLabel = '';
        title('AAOD');
        grid on
    else % Create subplot with just one metric for each sensitive attribute.
        tiledlayout(2,1)
        nexttile
        barh(ResStatusMetrics{:,2});
        yticklabels(ResStatusMetrics.Group) % Residential status group metric
        ax(1) = gca;
        ax(1).YDir = 'reverse';
        ylabel('ResStatus');
        title(ResStatusMetrics.Properties.VariableNames{2});
        grid on

        nexttile
        barh(AgeGroupMetrics{:,2});
        yticklabels(AgeGroupMetrics.Group) % Customer age group metric
        ax(2) = gca;
        ax(2).YDir = 'reverse';
        ylabel('AgeGroup');
        title(AgeGroupMetrics.Properties.VariableNames{2});
        grid on

        linkaxes(ax,'x') % Link x-axes for both subplots
    end
end

See Also

| | | |

Related Topics
