## Common Binning Explorer Tasks

The **Binning Explorer** app supports the following tasks:

### Import Data

**Binning Explorer** enables you to import data by either
starting directly from the data stored in a MATLAB^{®} table or by
loading an existing `creditscorecard`

object.

#### Clean Start from Data

To start directly from data:

Place the credit scorecard data in your MATLAB workspace. The data must be in a MATLAB table, where each column of data can be any one of the following data types:

Numeric

Logical

Cell array of character vectors

Character array

Categorical

In addition, the table must contain a binary response variable.

Open

**Binning Explorer**from the MATLAB toolstrip: On the**Apps**tab, under**Computational Finance**, click the app icon.Click

**Import Data**and select the data from the**Step 1**pane of the Import Data window.From the

**Step 2**pane, set the**Variable Type**for each of the predictors, as needed. If the input MATLAB table contains a column for`weights`

, from the**Step 2**pane, using the**Variable Type**column, click the drop-down to select**Weights**. If the data contains missing values, from the**Step 2**pane, set**Bin missing data:**to**Yes**. For more information on working with missing data, see Credit Scorecard Modeling with Missing Values.From the

**Step 3**pane, select an initial binning algorithm and click**Import Data**. The bins are plotted and displayed for each predictor. By clicking an individual predictor plot in the**Overview**pane, the details for that predictor plot display in the main pane with additional information in the**Bin Information**and**Predictor Information**panes.

#### Start from an Existing `creditscorecard`

Object

To start using an existing `creditscorecard`

object:

Place the

`creditscorecard`

object in your MATLAB workspace. Create the`creditscorecard`

object either by using`creditscorecard`

or by clicking**Export**in the**Binning Explorer**to export and save a`creditscorecard`

object to the MATLAB workspace.Open Binning Explorer from the MATLAB toolstrip: On the

**Apps**tab, under**Computational Finance**, click the app icon.Click

**Import Data**and from**Step 1**pane of the Import Data window, select the`creditscorecard`

object.From the

**Step 3**pane, select a binning algorithm. When using an existing`creditscorecard`

object, it is recommended to select the**No Binning**option. To display the predictor plots, click**Import Data**.The bins are plotted and displayed for each predictor. By clicking an individual predictor plot in the

**Overview**pane, the predictor plot displays in the main pane and associated information displays in the**Bin Information**and**Predictor Information**panes.

#### Start from MATLAB Command Line Using Data or an Existing `creditscorecard`

Object

To start **Binning Explorer** from the MATLAB command line:

Place the credit scorecard data or existing

`creditscorecard`

object in your MATLAB workspace.At the MATLAB command prompt:

Enter

`binningExplorer(data)`

or`binningExplorer(data,Name,Value)`

to open a table in the**Binning Explorer**app by specifying a table (`data`

) as input.Enter

`binningExplorer(sc)`

to open an existing`creditscorecard`

object in the**Binning Explorer**app by specifying a`creditscorecard`

object (`sc`

) as input.

The bins are plotted and displayed for each predictor. By clicking an individual predictor plot in the

**Overview**pane, the details for that predictor plot display in the main pane and the associated details display in the**Bin Information**and**Predictor Information**panes.

### Change Predictor Type

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can change the predictor type.

Click any predictor plot. The name of the selected predictor displays on the

**Binning Explorer**toolstrip under**Selected Predictor**.On the

**Binning Explorer**toolstrip, the predictor type for the selected predictor displays under**Predictor Type**.To change the predictor type, under

**Predictor Type**, select:`Numeric`

,`Categorical`

, or`Ordinal`

. The predictor plot is updated and the details in the**Bin Information**and**Predictor Information**panes are also updated.

### Change Binning Algorithm for One or More Predictors

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can change the binning algorithm
for an individual predictor or for multiple predictors.

Click any predictor plot in the

**Overview**pane. The selected predictor plot displays in the main pane.**Tip**When you select a predictor plot, a status message appears above

**Bin Information**that displays the last binning information for that predictor. Use this information to determine which binning algorithm is most recently applied to an individual predictor plot.On the

**Binning Explorer**toolstrip, click to select**Monotone**,**Split**,**Merge**,**Equal Frequency**, or**Equal Width**. The predictor plot is updated with a change of algorithm. The details in the**Bin Information**and**Predictor Information**panes are also updated.To change the binning algorithm for multiple predictors, multiselect more than one predictor plot by using

**Ctrl**+ click or**Shift**+ click to highlight each predictor plot with a blue outline.Click to select

**Monotone**,**Split**,**Merge**,**Equal Frequency**, or**Equal Width**. All the selected predictor plots are updated for a change of algorithm.

### Change Algorithm Options for Binning Algorithms

After you import data or a `creditscorecard`

object into **Binning
Explorer**, you can change the binning algorithm options for an individual
predictor or for multiple predictors.

Click any predictor plot in the

**Overview**pane. The predictor plot displays with a blue outline and displays in the main pane.**Tip**When you select a predictor plot with the blue outline, a status message appears above

**Bin Information**that displays the last binning information for that predictor. Use this information to determine which binning algorithm is most recently applied to an individual predictor plot.On the

**Binning Explorer**toolstrip, click**Options**to open a list of options for the**Monotone**,**Split**,**Merge**,**Equal Frequency**, and**Equal Width**algorithms. Click an option to open the associated Algorithm options dialog box. For example, clicking**Monotone Options**opens the**Algorithm options dialog box for Monotone**.From the associated Algorithm options dialog box:

**Monotone**For

**Trend**, select one of the following:**Auto (default)**— Automatically determines if the WOE trend is increasing or decreasing.**Increasing**— Looks for an increasing WOE trend.**Decreasing**— Looks for a decreasing WOE trend.

The value of

**Trend**does not necessarily reflect that of the resulting WOE curve. The**Trend**option tells the algorithm to look for an increasing or decreasing trend, but the outcome might not show the desired trend. For example, the algorithm cannot find a decreasing trend when the data actually has an increasing WOE trend. For more information on the**Trend**option, see Monotone.For

**Initial number of bins**, enter an initial number of bins (default is`10`

). The initial number of bins must be an integer >`2`

. Used for numeric predictors only.For

**Category Sorting**, used for categorical predictors only, select one of the following:**Odds (default)**— The categories are sorted by order of increasing values of odds, defined as the ratio of “Good” to “Bad” observations, for the given category.**Goods**— The categories are sorted by order of increasing values of “Good.”**Bads**— The categories are sorted by order of increasing values of “Bad.”**Totals**— The categories are sorted by order of increasing values of the total number of observations (“Good” plus “Bad”).**None**— No sorting is applied. The existing order of the categories is unchanged before applying the algorithm.

For more information, see Sort Categories

**Split**For

**Measure**, select one of the following:**Gini**(default),**Chi2**,**InfoValue**, or**Entropy**.For

**Tolerance**, specify a tolerance value above which the gain in the information value has to be for the split to be accepted. The default is`1e-4`

.For

**Significance**, only for the**Chi2**measure, specify a significance level threshold for the chi-square statistic, above which splitting happens. Values are in the interval`[0,1]`

. Default is`0.9`

(90% significance level).For

**Bin distribution**, specify values for**MinBad**— Specifies the minimum number*n*(*n*>=`0`

) of Bads per bin. The default value is`1`

, to avoid pure bins.**MaxBad**— Specifies the maximum number*n*(*n*>=`0`

) of Bads per bin. The default value is`Inf`

.**MinGood**— Specifies the minimum number*n*(*n*>=`0`

) of Goods per bin. The default value is`1`

, to avoid pure bins.**MaxGood**— Specifies the maximum number*n*(*n*>=`0`

) of Goods per bin. The default value is`Inf`

.**MinCount**— Specifies the minimum number*n*(*n*>=`0`

) of observations per bin. The default value is`1`

, to avoid empty bins.**MaxCount**— Specifies the maximum number*n*(*n*>=`0`

) of observations per bin. The default value is`Inf`

.**MaxNumBins**— Specifies the maximum number*n*(*n*>=`2`

) of bins resulting from the splitting. The default value is`5`

.

For

**Initial number bins**, specify an integer that determines the number (*n*>0) of bins that the predictor is initially binned into before splitting. Valid for numeric predictors only. Default is`50`

.For

**Category sorting**, used for categorical predictors only, select a value:**Goods**— The categories are sorted by order of increasing values of “Good.”**Bads**— The categories are sorted by order of increasing values of “Bad.”**Odds**— (default) The categories are sorted by order of increasing values of odds, defined as the ratio of “Good” to “Bad” observations, for the given category.**Totals**— The categories are sorted by order of increasing values of total number of observations (“Good” plus “Bad”).**None**— No sorting is applied. The existing order of the categories is unchanged before applying the algorithm. (The existing order of the categories can be seen in the category grouping optional output from`bininfo`

.)

For more information, see Sort Categories

**Merge**For

**Measure**, select one of the following:**Chi2**(default),**Gini**,**InfoValue**, or**Entropy**.For

**Tolerance**, specify the minimum threshold below which merging happens for the information value and entropy statistics. Valid values are in the interval`(0.1)`

. Default is`1e-3`

.For

**Significance**, specify the significance level threshold for the chi-square statistic, below which merging happens. Values are in the interval`[0,1]`

. Default is`0.9`

(90% significance level).For

**Bin distribution**, specify the following:**MinNumBins**— Specifies the minimum number*n*(*n*>=`2`

) of bins that result from merging. The default value is`2`

.**MaxNumBins**— Specifies the maximum number*n*(*n*>=`2`

) of bins that result from merging. The default value is`5`

.

For

**Initial number of bins**, specify an integer that determines the number (*n*>0) of bins that the predictor is initially binned into before merging. Valid for numeric predictors only. Default is`50`

.For

**Category sorting**, used for categorical predictors only. Select a value:**Goods**— The categories are sorted by order of increasing values of “Good.”**Bads**— The categories are sorted by order of increasing values of “Bad.”**Odds**— (default) The categories are sorted by order of increasing values of odds, defined as the ratio of “Good” to “Bad” observations, for the given category.**Totals**— The categories are sorted by order of increasing values of total number of observations (“Good” plus “Bad”).**None**— No sorting is applied. The existing order of the categories is unchanged before applying the algorithm. (The existing order of the categories can be seen in the category grouping optional output from`bininfo`

.)

For more information, see Sort Categories

**Equal Frequency**For

**Number of bins**, enter the number of bins. The default is`5`

, and the number of bins must be a positive number.For

**Category Sorting**, select one of the following:**Odds (default)**— The categories are sorted by order of increasing values of odds, defined as the ratio of “Good” to “Bad” observations, for the given category.**Goods**— The categories are sorted by order of increasing values of “Good.”**Bads**— The categories are sorted by order of increasing values of “Bad.”**Totals**— The categories are sorted by order of increasing values of the total number of observations (“Good” plus “Bad”).**None**— No sorting is applied. The existing order of the categories is unchanged before applying the algorithm.

**Note**You can use

**Category Sorting**with categorical predictors only.

**Equal Width**For

**Number of bins**, enter the number of bins. The default is`5`

and the number of bins must be a positive number.For

**Category Sorting**, select one of the following:**Odds (default)**— The categories are sorted by order of increasing values of odds, defined as the ratio of “Good” to “Bad” observations, for the given category.**Goods**— The categories are sorted by order of increasing values of “Good.”**Bads**— The categories are sorted by order of increasing values of “Bad.”**Totals**— The categories are sorted by order of increasing values of the total number of observations (“Good” plus “Bad”).**None**— No sorting is applied. The existing order of the categories is unchanged before applying the algorithm.

**Note**You can use

**Category Sorting**with categorical predictors only.

Click

**OK**. The selected predictor plot is updated with the change of algorithm options. The details in the**Bin Information**and**Predictor Information**panes are also updated. In addition, the updated algorithm options apply to any subsequent application of that algorithm to other predictors as described in Change Binning Algorithm for One or More Predictors.To change the binning algorithm option for multiple predictors, multiselect more than one predictor plot by using

**Ctrl**+ click or**Shift**+ click to highlight each predictor plot with a blue outline.On the

**Binning Explorer**toolstrip, click**Options**to open a list of options for the**Monotone**,**Split**,**Merge**,**Equal Frequency**, and**Equal Width**algorithms. Click an option to open the associated Algorithm options dialog box. Make your selection from the respective Algorithm Options dialog box and click**OK**. The selected predictor plots are updated for the change of algorithm.

### Split Bins for a Numeric Predictor

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can split bins for a numeric
predictor.

Click any numeric predictor plot in the

**Overview**pane. The predictor plot displays in the main pane.On the

**Binning Explorer**toolstrip, the**Split**button is enabled. From the main pane, click a bin to apply the**Split**operation. To deselect a bin, use**Ctrl**+ click.On the

**Binning Explorer**toolstrip, the**Edges**text boxes display values for the edges of the selected bin. Click**Split**to open the Split dialog box.Use the

**Number of bins**control to split the selected bin into multiple bins. Click**OK**to complete the split operation.The plot for the selected numeric predictor is updated with the new bin information. The details in the

**Bin Information**and**Predictor Information**panes are also updated.

### Split Bins for a Categorical Predictor

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can split bins for a categorical
predictor.

Click any categorical predictor plot in the

**Overview**pane. The predictor plot displays in the main pane.From the main pane, click a bin to enable the

**Split**button for that bin. To deselect a bin, use**Ctrl**+ click.On the

**Binning Explorer**toolstrip, click**Split**to open the Split dialog for the selected bin.**Note**The

**Split**button is enabled when the selected bin has more than one unique category in it.Use the

**Number of bins**control to split the selected bin into multiple bins.Use the arrow controls on the Split dialog box to control the contents for each of the bins that you are splitting the selected bin into.

Click

**OK**to complete the split operation.The plot for the selected categorical predictor is updated with the new bin information. The details in the

**Bin Information**and**Predictor Information**panes are also updated.

### Manual Binning to Merge Bins for a Numeric or Categorical Predictor

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can split or merge bins for
a predictor.

Click any predictor plot in the

**Overview**pane. The selected predictor plot displays in the main pane.From the main pane, to merge bins, select two or more bins for merging by using

**Ctrl**+ click or**Shift**+ click to multiselect bins to display with blue outlines. To change your bin selection, use**Ctrl**+ click to deselect a bin.**Note**The

**Merge**button is active only when more than one bin is selected. Only adjacent bins can be merged for numeric or ordinal predictors. Nonadjacent bins can be merged for categorical predictors.Click

**Merge**to complete the merge operation. The plot for the selected predictor is updated with the new bin information. The details in the**Bin Information**and**Predictor Information**panes are also updated.

### Change Bin Boundaries for a Single Predictor

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can change the bin boundaries
for a single predictor.

Click any numeric predictor plot in the

**Overview**pane. The selected predictor plot displays with a blue outline and the predictor plot displays in the main pane.From the main pane, click to select a specific bin where you want to change the bin dimensions. The selected bin displays with a blue outline.

On the

**Binning Explorer**toolstrip, the**Edges**text boxes display values for the edges of the selected bin.Edit the values in the

**Edges**text boxes to change the selected bin’s dimensions.Click the main pane to complete the operation. The plot for the predictor is updated with the updated bin’s dimension information. The details in the

**Bin Information**and**Predictor Information**panes are also updated.

### Change Bin Boundaries for Multiple Predictors

After you import data or a `creditscorecard`

object
into **Binning Explorer**, you can change the algorithm applied
to one or more predictors and you can also redefine the number of
bins.

From the

**Overview**pane, click any predictor plot. The predictor plot displays with a blue outline.Alternatively, select two or more predictors by using

**Ctrl**+ click or**Shift**+ click to multiselect predictors to display with blue outlines.On the

**Binning Explorer**toolstrip, click**Options**to open a list of options for the**Monotone**,**Split**,**Merge**,**Equal Frequency**, and**Equal Width**algorithms. Click an option to open the associated Algorithm options dialog box. Make your selection from the respective Algorithm Options dialog box and click**OK**. The selected predictor plots are updated for the change of algorithm and the plots for the selected predictors are updated with the new bin information. The details in the**Bin Information**and**Predictor Information**panes are also updated.

### Set Options for Display

**Binning Explorer** has options for displaying predictor
plots and plot options and the associated tables displayed in **Bin
Information**.

#### Plot Options

From the

**Binning Explorer**toolstrip item for**Plot Options**, select any of the following predictor plot options:**No labels**(default)**Bin count****% Bin level****% Data level****% Total count**

The selected label is applied to all predictor plots.

#### Table Options

You can set the table display options for predictor information
displayed in **Bin Information**.

From the

**Binning Explorer**toolstrip item for**Table Columns**, select any of the following options:**Odds****WOE****InfoValue****Entropy****Gini****Chi2****Members**(option is enabled for categorical predictors)

When selected, these options are applied to all predictors for the information displayed in

**Bin Information**.

### Export and Save the Binning

**Binning Explorer** enables you to export and save your
credit scorecard binning definitions to a `creditscorecard`

object.

Click

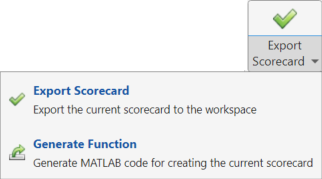

**Export**and then click**Export Scorecard**and provide a`creditscorecard`

object name. The`creditscorecard`

object is saved to the MATLAB workspace.To reopen a previously saved

`creditscorecard`

object, click**Import Data**and select the`creditscorecard`

object from the**Step 1**pane of the Import Data window.

### Troubleshoot the Binning

This topic shows some of the results when using **Binning
Explorer** with credit scorecards that need troubleshooting. For
details on the overall process of creating and developing credit scorecards,
see Overview of Binning Explorer and Binning Explorer Case Study Example.

#### Numeric Predictor Converted to Categorical Predictor Does Not Display Split Data Properly

When you convert a numeric predictor with hundreds of values (for example, continuous data) to categorical data, the resulting data has hundreds of categories. The following example illustrates this scenario.

```
load CreditCardData
```

Open the **Binning Explorer** and select the numeric predictor
**AMBalance** from the **Overview** pane.
From the Binning Explorer toolstrip, change the predictor type to
**Categorical**.

From the **Binning Explorer** toolstrip and click **Split**. The
Split dialog box displays as follows:

The predictor has too many categories to display properly.

**Solution**: If you have a categorical predictor with a large
number of categories, use the **Algorithm Options** to change
the binning algorithm for that predictor to **Equal
Frequency**, with the **Number of bins** set to
`100`

(or another smaller value). The Split dialog box then
displays properly.

#### Predictor Plot Appears Distorted

When using the **Binning Explorer**, if you import data that has not been previously
binned and you select **No Binning** from the Import Data
window, the resulting plots might be distorted. For example, if you load the
following data set into the MATLAB workspace and use **Binning Explorer** to import the data
using **No Binning**, the following plot displays for the
**TmAtAddress** predictor.

```
load CreditCardData
```

**Solution**: When you import data
that has not been previously binned, select **Monotone** from
the Import Data window instead. The following plot displays for the **TmAtAddress** predictor.

## See Also

### Apps

### Classes

## Related Examples

- Binning Explorer Case Study Example
- Case Study for Credit Scorecard Analysis
- Credit Scorecard Modeling with Missing Values
