Analyze the Sensitivity of Concentration to a Given Exposure

This example shows how to sweep through a range of values for an existing exposure from 0 to double the current value and plot the corresponding values. This could be used as one criterion (among others) for assessing portfolio limits.

Load credit portfolio data and use exposure at default (EAD) as the portfolio values. Compute current values of concentration indices.

load CreditPortfolioData.mat
P = EAD;
CurrentConcentration = concentrationIndices(P)
CurrentConcentration=1×8 table
        ID            CR         Deciles       Gini         HH          HK          HT         TE
    ___________    ________    ___________    _______    ________    ________    ________    _______

    "Portfolio"    0.058745    1x11 double    0.55751    0.023919    0.013363    0.022599    0.53485

Choose an index of interest. For instance, select a loan with maximum exposure.

[~,IndMax] = max(P);
CurrentExposure = P(IndMax);

Sweep through a range of multipliers for the selected exposure and get the corresponding concentration measures.

Multiplier = 0.0:0.05:2;
% Compute concentration with selected exposure removed from portfolio
P(IndMax) = 0;
ciSensitivity = concentrationIndices(P,'ID','Multiplier 0.0');
ciSensitivity = repmat(ciSensitivity,length(Multiplier),1);
for ii=2:length(Multiplier)
   P(IndMax) = CurrentExposure*Multiplier(ii);
   ci = concentrationIndices(P,'ID',['Multiplier ' num2str(Multiplier(ii))]);
   ciSensitivity(ii,:) = ci;
end
% Display first five rows
disp(ciSensitivity(1:5,:))
           ID               CR         Deciles       Gini         HH          HK          HT         TE
    _________________    ________    ___________    _______    ________    ________    ________    _______

    "Multiplier 0.0"     0.059442    1x11 double    0.55051    0.023102    0.013314    0.022248    0.51826
    "Multiplier 0.05"    0.059257    1x11 double     0.5467    0.022968    0.013185    0.022061    0.50991
    "Multiplier 0.1"     0.059074    1x11 double    0.54456    0.022855    0.013156    0.021957     0.5059
    "Multiplier 0.15"    0.058891    1x11 double    0.54355    0.022762    0.013143    0.021908    0.50352
    "Multiplier 0.2"     0.058709    1x11 double    0.54313    0.022688    0.013139    0.021888     0.5022

Plot the sensitivity to changes in exposure for a particular index.

IndexID = 'HH';
figure;
plot(Multiplier',ciSensitivity.(IndexID))
hold on
plot(1,CurrentConcentration.(IndexID),'*')
hold off
title(['Sensitivity of ' IndexID ' Index'])
xlabel('Exposure Multiplier')
ylabel('Concentration Index')
legend(IndexID,'Current')
grid on

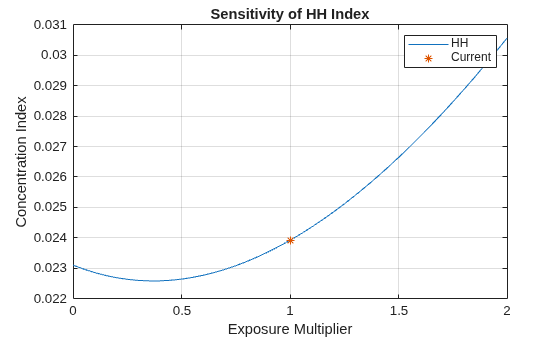

Figure contains an axes object. The axes object with title Sensitivity of HH Index contains 2 objects of type line. These objects represent HH, Current.
