Simulate and Test Models with Connected I/O

Prototype and test Simulink^® models using Raspberry Pi^® hardware before deployment, without code generation

Run Simulink models on host while communicating directly with Raspberry Pi hardware, enabling real-time interaction with hardware for rapid prototyping and testing before code generation.

For more information on the product stack required for connected I/O using Raspberry Pi Blockset, see Product Stack for Raspberry Pi Blockset.

Topics

Product Stack for Raspberry Pi Blockset
Identify minimum required product(s) for Raspberry Pi Blockset to best suit your end goals.
Communicate with Hardware Using Connected IO
Get peripheral data from the hardware before deploying the Simulink model on the hardware.
Model Configuration Raspberry Pi Blockset
This section describes about the model configuration parameters.

Model Settings

expand all

Connected IO Properties

Communication Interface

Transport layer that Normal mode uses to exchange data between host computer and the target hardware

Featured Examples

Implement Connected I/O on Raspberry Pi Hardware and Publish Data to WebSocket Server

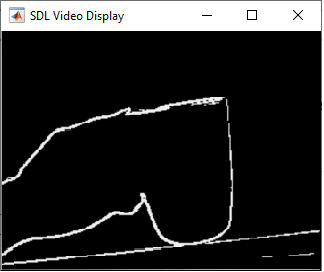

Use Raspberry Pi® Blockset to develop an image processing system on Raspberry Pi board using a camera in the connected I/O mode. The example also shows you how to publish the output on a web browser and on a SDL video display screen.

Open Model

Implement Connected I/O to Communicate with External Peripheral Devices Using Raspberry Pi

Implement connected I/O in Normal mode of simulation using Raspberry Pi® hardware. The example also highlights on the advantages of using connected I/O to improve efficiency while prototyping a Simulink® model.

Open Model
