# Analyze Gear Train Data and Extract Spectral Features Using Live Editor Tasks

This example shows how to use the Extract Spectral Features Live Editor task to analyze data from a current signal obtained from driving the gear train of a hobby-grade servo. The example also shows how to extract spectral features from the data to aid in fault detection and identification.

In particular, this example uses the Extract Spectral Features Live Editor task. This task helps with analyzing and understanding spectral data. Using a comprehensive interface, you can add components to represent various bearings, gear meshes, or other parts of your hardware setup. As you set the physical parameters of these components, the Extract Spectral Features Live Editor task plots fault frequency bands at the charateristic frequencies of the components.

You can overlay power spectrum data on the fault band plot to associate various peaks in the data with the components' characteristic frequencies. This comparison can make fault detection and fault isolation easier, as you can easily trace changes in the power spectrum data back to the physical components causing them.

In addition to a plot of the characteristic frequencies and the power spectrum data, the task can generate spectral metrics of the data within each characteristic frequency band. The output metrics table containing the peak amplitude, peak frequency, and band power of each band aids in characterizing potential mechanical faults.

### Hardware Overview

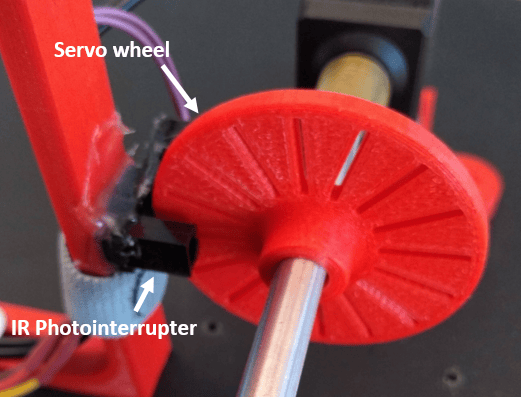

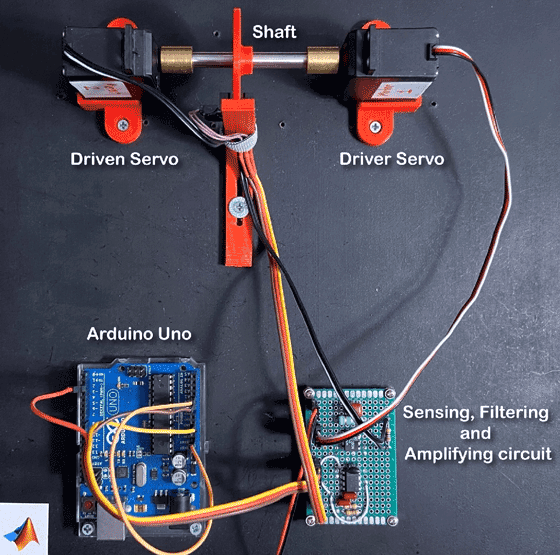

For this example, electrical current data was collected from a standard Futaba S3003 hobby servo, which was modified for continuous rotation. Servos convert the high speed of the internal DC motor to high torque at the output spline. To achieve this, servos consist of a DC motor, a set of nylon or metal drive gears, and the control circuit. The control circuit was removed to allow the current signal to the DC motor to be directly monitored. The tachometer signal at the output spline of the servo was collected using an infrared photointerrupter along with a 35 mm diameter, sixteen-slot wheel. The sixteen slots in the wheel were equally spaced and the IR photointerrupter was placed such that it emitted exactly sixteen pulses per rotation of the slotted wheel. The servo and photointerrupter were held in place by custom 3-D printed mounts.

The DC motor was driven at a constant 5 volts, and with four pairs of gears providing 278:1 speed reduction, the shaft speed at the spline was about 19.5 rpm. A second servo motor was shorted out and used as a load for the system. The current consumption was calculated using Ohm's law by measuring the voltage drop across a 0.5 ohm resistor. Since the change in current measurement values was too small for detection, the current signal was amplified using an AD22050 single-supply sensor interface amplifier. The amplified current signal was then filtered using a MAX7408 anti-aliasing fifth-order elliptic low-pass filter to smooth it and to eliminate noise before sending it to an Arduino Uno through an analog-to-digital converter (ADC).

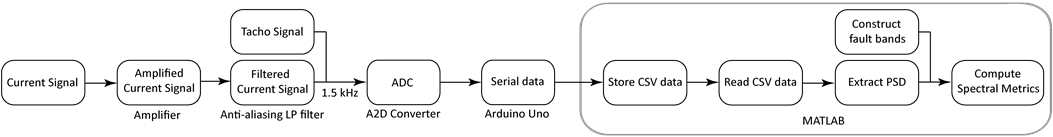

As the flowchart shows, the current signal was first amplified and filtered using the amplifier and the anti-aliasing low-pass filter, respectively. The Arduino Uno sampled the current signal through an ADC at 1.5 kHz and streamed it to the computer along with the tachometer pulses as serial data at a baud rate of 115,200 bps. A MATLAB script fetched the serial data from the Arduino Uno, pre-processed it, and wrote it to a .MAT file. The Extract Spectral Features Live Editor task was then used to extract the spectral metrics.

### Servo Gear Train

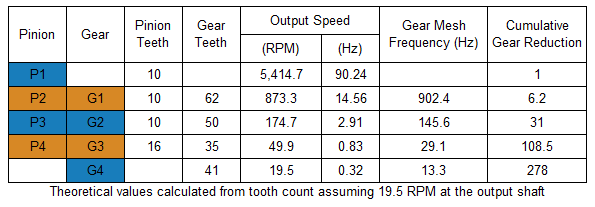

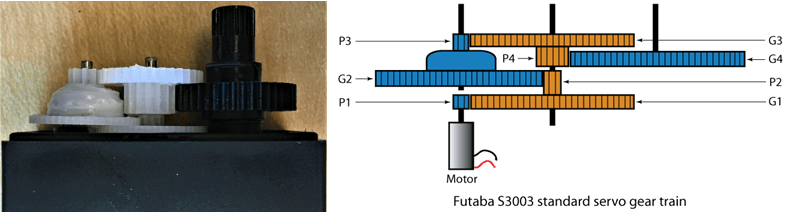

The Futaba S3003 servo consists of four pairs of nylon gears as illustrated in this figure. The pinion P1 on the DC motor shaft meshes with the stepped gear G1. The pinion P2 is a molded part of the stepped gear G1 and meshes with the stepped gear G2. The pinion P3, which is a molded part of gear G2, meshes with the stepped gear G3. Pinion P4, which is molded with G3, meshes with the final gear G4, which is attached to the output spline. The stepped gear sets G1 and P2, G2 and P3, and G3 and P4 are free spinning gears $-$ that is, they are not attached to their respective shafts. The set of drive gears provides a 278:1 reduction, going from a motor speed of 5414.7 rpm to about 19.5 rpm at the output spline when the motor is driven at 5 volts. The following table outlines the tooth count and theoretical values of output speed, gear mesh frequencies, and cumulative gear reduction at each gear mesh.

### Preprocess Data

The file servoData`.mat` contains two timetables corresponding to data from the servo. One timetable contains healthy data while the second timetable contains faulty data. Each data set contains about 11 seconds of data sampled at 1500 Hz.

```load('servoData.mat', 'healthyData', 'faultyData') healthyData```
```healthyData=16384×2 timetable Time MotorCurrent TachoPulse ______________ ____________ __________ 0 sec 307.62 1 0.00066667 sec 301.27 1 0.0013333 sec 309.08 1 0.002 sec 315.92 1 0.0026667 sec 304.2 1 0.0033333 sec 311.04 1 0.004 sec 311.52 1 0.0046667 sec 305.18 1 0.0053333 sec 315.43 0 0.006 sec 310.06 0 0.0066667 sec 305.66 0 0.0073333 sec 310.55 0 0.008 sec 304.69 0 0.0086667 sec 310.55 0 0.0093333 sec 310.06 0 0.01 sec 299.8 0 ⋮ ```
`faultyData`
```faultyData=16384×2 timetable Time MotorCurrent TachoPulse ______________ ____________ __________ 0 sec 313.48 0 0.00066667 sec 304.2 0 0.0013333 sec 303.22 0 0.002 sec 319.34 0 0.0026667 sec 304.2 0 0.0033333 sec 303.22 0 0.004 sec 319.82 0 0.0046667 sec 303.22 0 0.0053333 sec 306.64 0 0.006 sec 321.29 0 0.0066667 sec 303.71 0 0.0073333 sec 308.11 0 0.008 sec 319.34 0 0.0086667 sec 301.76 0 0.0093333 sec 309.08 0 0.01 sec 319.34 0 ⋮ ```

Each timetable contains one column with the motor current and one column with the tacho pulse from the servo setup. In order to visualize the data in the Extract Spectral Features Live Editor task, compute the power spectrum of the motor current data. Consider the healthy data first.

```fs = 1500; [healthyMagnitudes,healthyFrequencies] = pwelch(healthyData{:,1},16384,[],[],fs);```

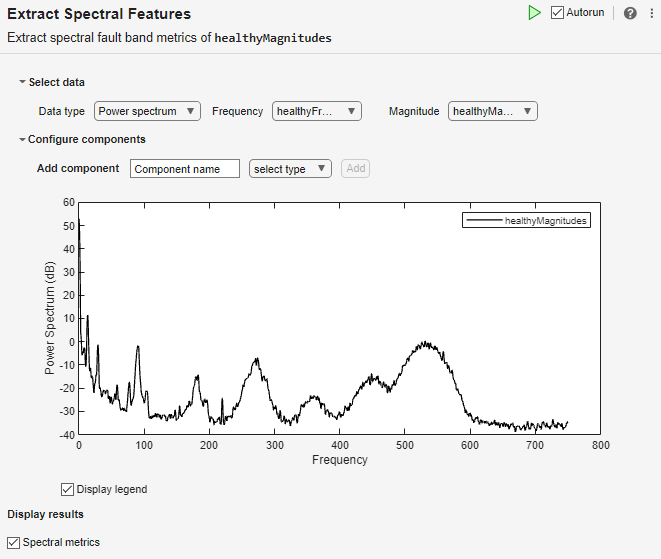

Use the Extract Spectral Features Live Editor task to plot the power spectrum data. In the task, specify `healthyFrequencies` for the frequency vector and `healthyMagnitudes` for the power spectrum magnitude.

### Analyze Power Spectrum Peaks with Harmonic Fault Frequency Bands

The power spectrum plot of the servo's current data contains several noticeable peaks. You can associate these peaks with the rotating shafts in the servo setup. To determine the source of the various peaks, add components to the Extract Spectral Features Live Editor task.

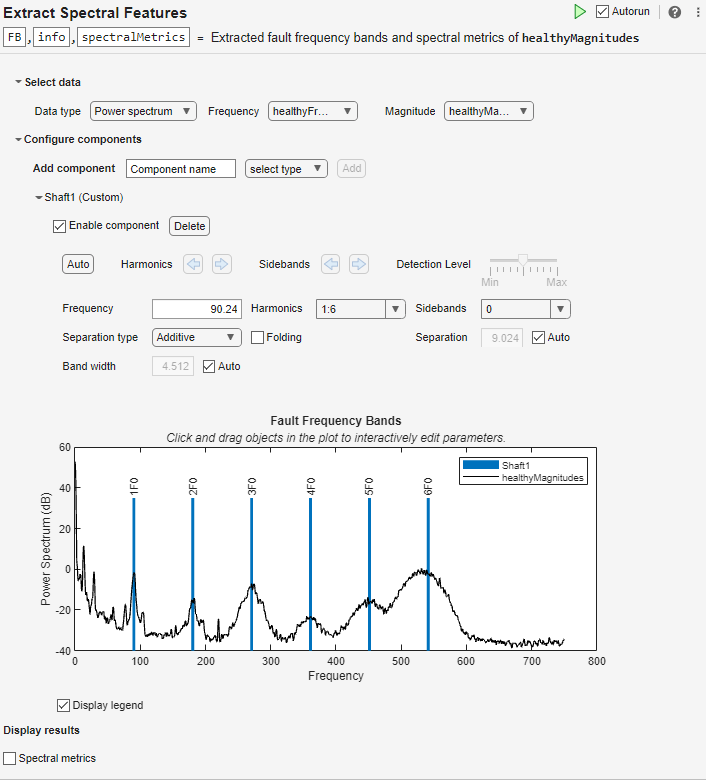

To add a component to represent the first rotating shaft in the servo, enter a name for the component, select its type as Custom, and press Add. Use the output speeds in the table above to choose the frequency of the shaft component. The output speeds were computed based on the measured speed of the output shaft and the known gear reductions in the setup.

The frequency of the first shaft is 90.24 Hz. After setting the frequency value of the shaft component, note that the fault frequency band overlaps with one of the peaks in the power spectrum data at around 90 Hz. You can therefore associate this peak in large part with the first shaft. Adding in several more harmonics of the first shaft's fundamental frequency creates more fault frequency bands that overlap other peaks in the data. Harmonic frequency bands are centered around integer multiples of the fundamental frequency and can still be associated with the same component. Set the harmonics of the first shaft to be the vector [1 2 3 4 5 6] so that the fault bands spread over most of the frequency range. The first shaft is rotates at the highest frequency, so power spectrum peaks at higher frequencies are due to this shaft's harmonics.

To account for smaller power spectrum peaks such as those around 13 Hz or 29 Hz, add in a component for the second rotating shaft. This component is also a custom component, and its fundamental frequency is 14.56 Hz. You do not need to add as many harmonics for the second shaft since most of the higher peak frequencies are largely accounted for by harmonics of the first shaft. Set the harmonics of the second shaft to be the vector [1 2 3 4]. The first, second, and fourth harmonics of this shaft frequency align nicely with peaks in the power spectrum plot. However since the third harmonic is less prominent in the data, you do not need to include this harmonic. Change the harmonics of the second shaft to be the vector [1 2 4].

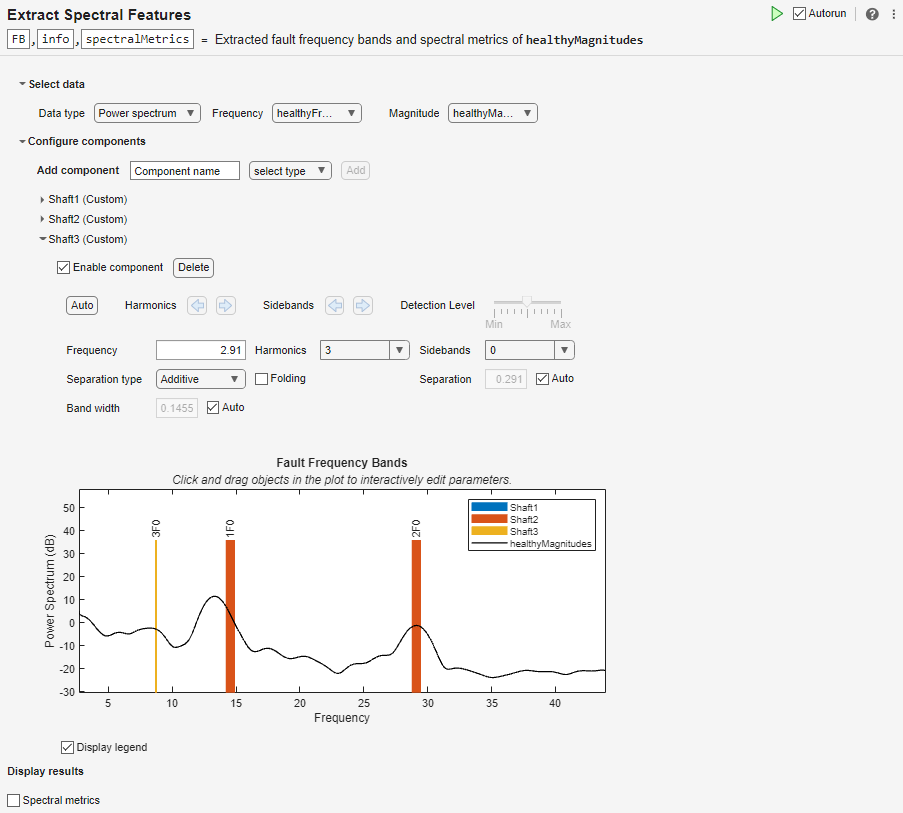

Similarly to the second shaft, add a component for the third rotating shaft. The fundamental frequency of this component is 2.91 Hz, as seen in the table. Start with the first four harmonics to determine if they align with any prominent peaks in the data. Note that the third harmonic of the third shaft matches a power spectrum spike around 8 Hz. The other harmonics are less prominent and can be removed. It might be the case that the frequency resolution of the power spectrum does not allow distinguishing lower frequencies. Set the harmonics of the third shaft component to be just the third harmonic.

Since the output speeds of the remaining shafts are also low frequencies that might not be distinguishable from the frequency resolution of the power spectrum, adding components for these shafts is not necessary to analyze the major peaks of the motor current data.

### Analyze Sideband Peaks

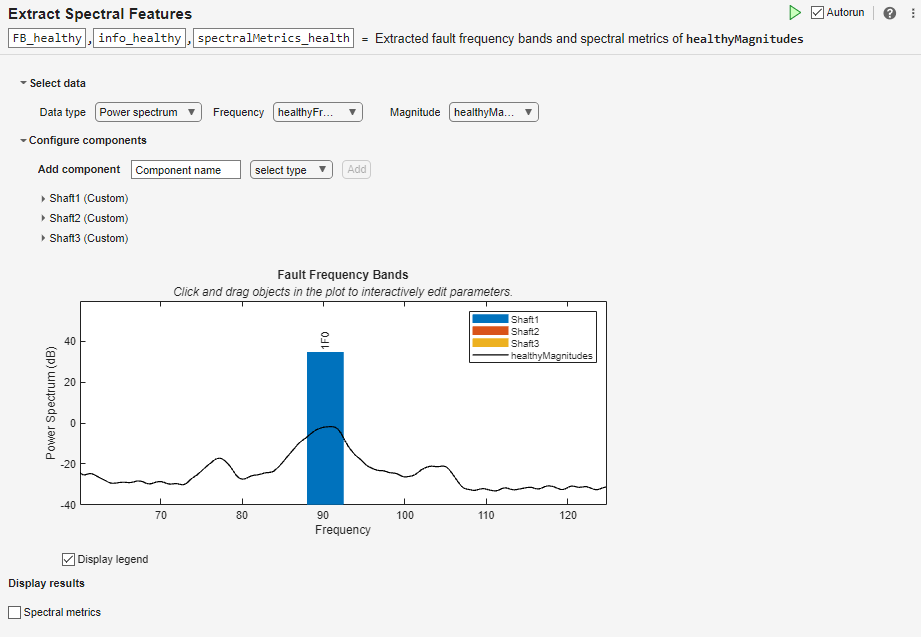

By zooming into the plot in the task, you can see that the power spectrum data contains side peaks next to some of the major peaks. For instance, smaller side peaks around 76 Hz and 104 Hz surround the peak at 90 Hz. These peaks are likely associated with sidebands of the first shaft component. Sidebands are caused by a second related frequency source impacting the primary harmonic frequency source. With the servo setup, this observation leads to the presumption that the sidebands for each shaft are caused by the next shaft in the gear train.

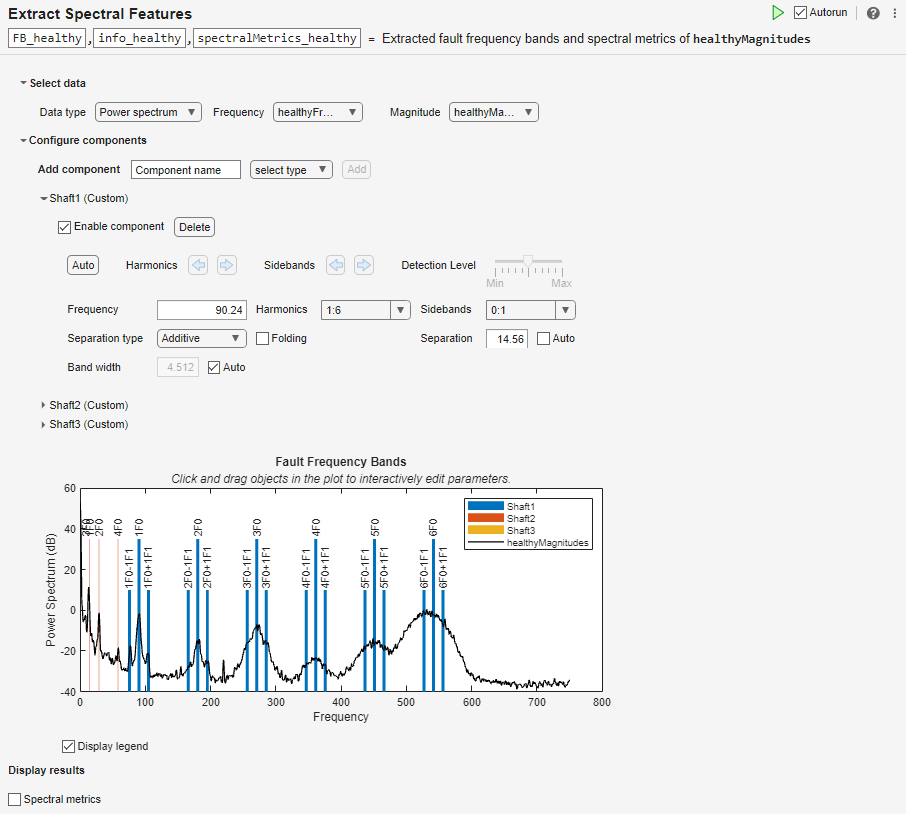

Edit the first two shaft components to include their first sideband. For the first shaft the sideband separation value should be equal to the nominal output frequency of the second shaft, 14.56 Hz.

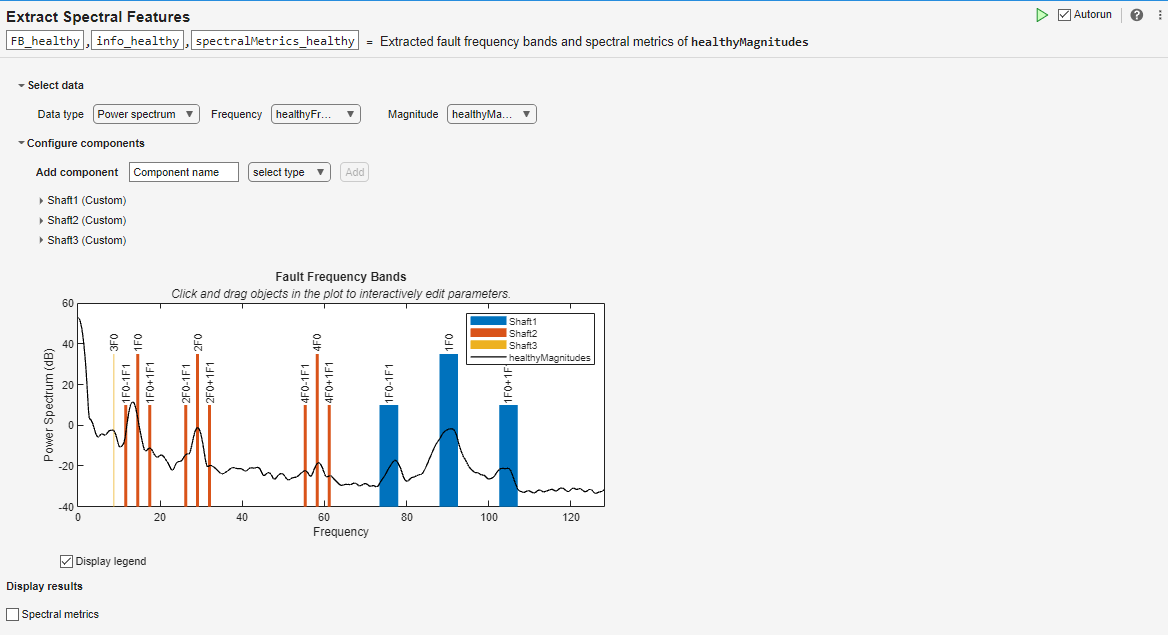

Similarly for the second shaft the sideband separation value should be equal to the nominal frequency of the third shaft, 2.91 Hz. Zooming in again on the plot shows that many of the new sidebands overlap well with side peaks in the data. This is easier to see at low frequencies such as between 0 Hz and 120 Hz.

### Extract Spectral Metrics to Detect Faults

The Extract Spectral Features Live Editor task generates various spectral metrics of the power spectrum data in fault frequency ranges. For each fault frequency band, compute the peak amplitude, peak frequency, and band power along with the total band power of all fault frequency bands.

```load('dataSample.mat') spectralMetrics_healthy```
```spectralMetrics_healthy=1×85 table PeakAmplitude1 PeakFrequency1 BandPower1 PeakAmplitude2 PeakFrequency2 BandPower2 PeakAmplitude3 PeakFrequency3 BandPower3 PeakAmplitude4 PeakFrequency4 BandPower4 PeakAmplitude5 PeakFrequency5 BandPower5 PeakAmplitude6 PeakFrequency6 BandPower6 PeakAmplitude7 PeakFrequency7 BandPower7 PeakAmplitude8 PeakFrequency8 BandPower8 PeakAmplitude9 PeakFrequency9 BandPower9 PeakAmplitude10 PeakFrequency10 BandPower10 PeakAmplitude11 PeakFrequency11 BandPower11 PeakAmplitude12 PeakFrequency12 BandPower12 PeakAmplitude13 PeakFrequency13 BandPower13 PeakAmplitude14 PeakFrequency14 BandPower14 PeakAmplitude15 PeakFrequency15 BandPower15 PeakAmplitude16 PeakFrequency16 BandPower16 PeakAmplitude17 PeakFrequency17 BandPower17 PeakAmplitude18 PeakFrequency18 BandPower18 PeakAmplitude19 PeakFrequency19 BandPower19 PeakAmplitude20 PeakFrequency20 BandPower20 PeakAmplitude21 PeakFrequency21 BandPower21 PeakAmplitude22 PeakFrequency22 BandPower22 PeakAmplitude23 PeakFrequency23 BandPower23 PeakAmplitude24 PeakFrequency24 BandPower24 PeakAmplitude25 PeakFrequency25 BandPower25 PeakAmplitude26 PeakFrequency26 BandPower26 PeakAmplitude27 PeakFrequency27 BandPower27 PeakAmplitude28 PeakFrequency28 BandPower28 TotalBandPower ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ ______________ 0.088268 77.179 0.031107 2.0259 91.37 1.4892 0.026872 104.74 0.017091 0.0040207 165.62 0.0040427 0.063531 178.99 0.088016 0.0079751 193.54 0.0093892 0.07461 254.61 0.080139 0.60862 270.72 0.42026 0.098992 284.09 0.08489 0.0068446 347.99 0.0072084 0.01066 362.09 0.013542 0.0059992 375.46 0.006807 0.055461 438.45 0.052725 0.071491 449.16 0.089713 0.0569 467.1 0.0561 2.0596 525.97 2.513 1.9851 539.52 2.3441 0.56849 554.81 0.64988 0.41738 11.627 0.083331 3.8511 14.557 0.67359 0.41719 17.487 0.060687 0.080245 26.184 0.03093 4.2605 29.114 0.70964 0.021784 32.043 0.0082336 0.018917 55.664 0.0047859 0.036751 58.594 0.01207 0.0087469 61.432 0.0022404 1.9068 8.6975 0.31922 9.862 ```

These metrics may prove useful in detecting faults in the servo setup. Significant changes in the power spectrum data often indicate that some component are changing or failing. If there is a shift in one of the peak frequencies or if a peak amplitude drops significantly over time, then this may be a sign of failure.

To examine this scenario, compute the power spectrum data for the faulty dataset.

`[faultyMagnitudes,faultyFrequencies] = pwelch(faultyData{:,1},16384,[],[],fs);`

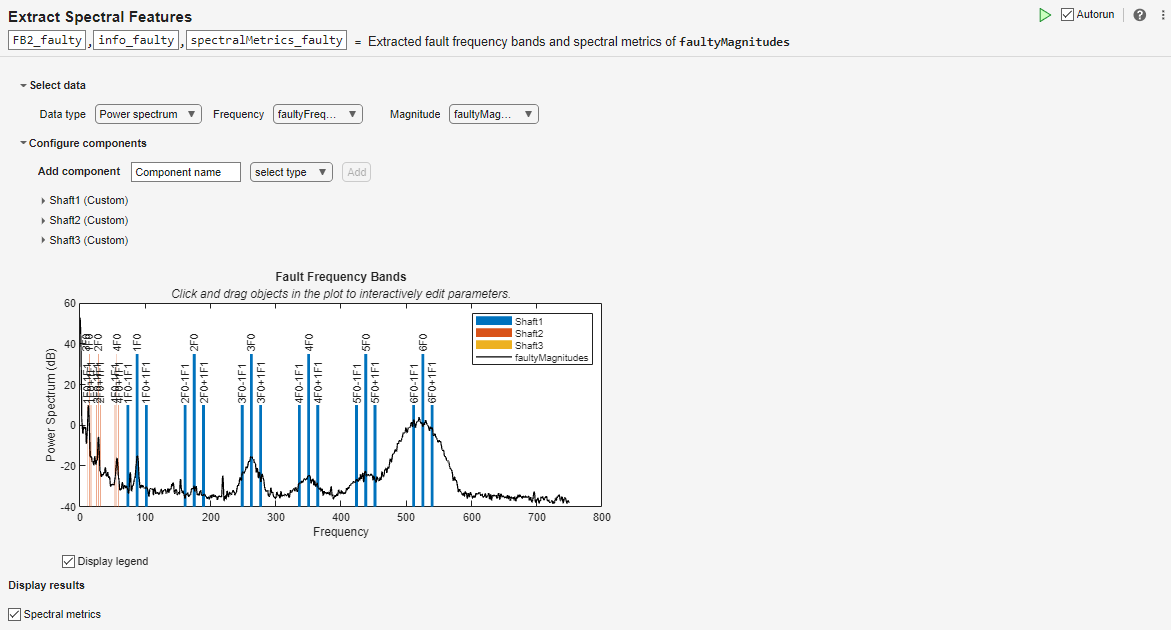

Plot the spectrum of faulty data in the task, and adjust the fundamental frequencies and sideband separation values of the shaft components based on the measured output speed of the servo setup.

```Fs = 1500; % 1500 Hz [outputSpeed,t] = tachorpm(faultyData.TachoPulse,Fs,'PulsesPerRev',16,'FitType','linear'); meanOutputSpeed = mean(outputSpeed)/60 % convert from rpm to Hz```
```meanOutputSpeed = 0.3150 ```
`shaft4Speed = meanOutputSpeed * 41 / 16 % 16 pinion teeth, 41 gear teeth`
```shaft4Speed = 0.8072 ```
`shaft3Speed = shaft4Speed * 35 / 10 % 10 pinion teeth, 35 gear teeth`
```shaft3Speed = 2.8251 ```
`shaft2Speed = shaft3Speed * 50 / 10 % 10 pinion teeth, 50 gear teeth`
```shaft2Speed = 14.1254 ```
`shaft1Speed = shaft2Speed * 62 / 10 % 10 pinion teeth, 62 gear teeth`
```shaft1Speed = 87.5772 ```

For the first shaft component, use `shaft1Speed` as the fundamental frequency and `shaft2Speed` as the sideband separation. For the second shaft component, use `shaft2Speed` as the fundamental frequency and `shaft3Speed` as the sideband separation. For the third shaft component, use `shaft3Speed` as the fundamental frequency.

As can be seen in the visualization of the faulty power spectrum data, several of the peaks have diminished in magnitude. For example, the peak aligned in the healthy dataset with the second harmonic of the first shaft around 180 Hz is almost negligible in the faulty dataset. Since it was previously determined that this peak is likely associated with the first shaft, this indicates a potential failure in the first shaft. Further examination of the spectral metrics table can provide more detailed information about the peak frequencies, peak amplitudes, and band powers.

`spectralMetrics_faulty`
```spectralMetrics_faulty=1×85 table PeakAmplitude1 PeakFrequency1 BandPower1 PeakAmplitude2 PeakFrequency2 BandPower2 PeakAmplitude3 PeakFrequency3 BandPower3 PeakAmplitude4 PeakFrequency4 BandPower4 PeakAmplitude5 PeakFrequency5 BandPower5 PeakAmplitude6 PeakFrequency6 BandPower6 PeakAmplitude7 PeakFrequency7 BandPower7 PeakAmplitude8 PeakFrequency8 BandPower8 PeakAmplitude9 PeakFrequency9 BandPower9 PeakAmplitude10 PeakFrequency10 BandPower10 PeakAmplitude11 PeakFrequency11 BandPower11 PeakAmplitude12 PeakFrequency12 BandPower12 PeakAmplitude13 PeakFrequency13 BandPower13 PeakAmplitude14 PeakFrequency14 BandPower14 PeakAmplitude15 PeakFrequency15 BandPower15 PeakAmplitude16 PeakFrequency16 BandPower16 PeakAmplitude17 PeakFrequency17 BandPower17 PeakAmplitude18 PeakFrequency18 BandPower18 PeakAmplitude19 PeakFrequency19 BandPower19 PeakAmplitude20 PeakFrequency20 BandPower20 PeakAmplitude21 PeakFrequency21 BandPower21 PeakAmplitude22 PeakFrequency22 BandPower22 PeakAmplitude23 PeakFrequency23 BandPower23 PeakAmplitude24 PeakFrequency24 BandPower24 PeakAmplitude25 PeakFrequency25 BandPower25 PeakAmplitude26 PeakFrequency26 BandPower26 PeakAmplitude27 PeakFrequency27 BandPower27 PeakAmplitude28 PeakFrequency28 BandPower28 TotalBandPower ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ ______________ 0.0015834 71.411 0.0017557 0.082928 88.806 0.070886 0.0023192 101.62 0.0028621 0.00094302 161.77 0.0010918 0.0030192 174.68 0.0024061 0.00071009 190.98 0.0011196 0.009749 248.84 0.0121 0.071268 261.84 0.077265 0.022904 274.84 0.011766 0.0039476 334.9 0.0043915 0.008027 348.91 0.010401 0.0032387 362.82 0.0032159 0.0044798 422.24 0.0065658 0.010303 436.98 0.013423 0.0062224 451.45 0.008025 3.7506 511.23 3.6514 4.8463 526.89 4.1478 2.4573 540.07 1.8774 1.8378 11.353 0.33072 1.085 14.099 0.4306 0.1326 16.937 0.021304 0.051885 25.452 0.012906 1.6184 28.29 0.25581 0.018916 31.128 0.0052321 0.0043149 53.741 0.0012379 0.058117 56.58 0.02 0.0057658 59.052 0.0022057 3.0935 8.5144 0.49943 11.483 ```

As an alternative to updating the spectral data in the Live Editor task, you can also use the automatically generated MATLAB code to detemine the spectral metrics of the faulty data. The code below was automatically generated when the Live Editor task was used to generate the healhty spectral metrics. Execute the code.

```% Generate the fault bands and information for each component [FB_Shaft1, info_Shaft1] = faultBands(90.24, 1:6, 14.56, 0:1); [FB_Shaft2, info_Shaft2] = faultBands(14.56, [1 2 4], 2.91, 0:1); [FB_Shaft3, info_Shaft3] = faultBands(2.91, 3); % Combine the fault bands of each component FB_healthy = [FB_Shaft1; ... FB_Shaft2; ... FB_Shaft3]; % Combine the information regarding the fault bands of each component info_healthy.Centers = [info_Shaft1.Centers, ... info_Shaft2.Centers, ... info_Shaft3.Centers]; info_healthy.Labels = [info_Shaft1.Labels, ... info_Shaft2.Labels, ... info_Shaft3.Labels]; info_healthy.FaultGroups = [info_Shaft1.HarmonicGroups, ... info_Shaft2.HarmonicGroups, ... info_Shaft3.HarmonicGroups]; % Clear temporary outputs from the workspace clear FB_Shaft1 info_Shaft1; clear FB_Shaft2 info_Shaft2; clear FB_Shaft3 info_Shaft3; % Compute fault band metrics of the power spectrum healthyMagnitudes spectralMetrics_healthy = faultBandMetrics(healthyMagnitudes, healthyFrequencies, FB_healthy)```
```spectralMetrics_healthy=1×85 table PeakAmplitude1 PeakFrequency1 BandPower1 PeakAmplitude2 PeakFrequency2 BandPower2 PeakAmplitude3 PeakFrequency3 BandPower3 PeakAmplitude4 PeakFrequency4 BandPower4 PeakAmplitude5 PeakFrequency5 BandPower5 PeakAmplitude6 PeakFrequency6 BandPower6 PeakAmplitude7 PeakFrequency7 BandPower7 PeakAmplitude8 PeakFrequency8 BandPower8 PeakAmplitude9 PeakFrequency9 BandPower9 PeakAmplitude10 PeakFrequency10 BandPower10 PeakAmplitude11 PeakFrequency11 BandPower11 PeakAmplitude12 PeakFrequency12 BandPower12 PeakAmplitude13 PeakFrequency13 BandPower13 PeakAmplitude14 PeakFrequency14 BandPower14 PeakAmplitude15 PeakFrequency15 BandPower15 PeakAmplitude16 PeakFrequency16 BandPower16 PeakAmplitude17 PeakFrequency17 BandPower17 PeakAmplitude18 PeakFrequency18 BandPower18 PeakAmplitude19 PeakFrequency19 BandPower19 PeakAmplitude20 PeakFrequency20 BandPower20 PeakAmplitude21 PeakFrequency21 BandPower21 PeakAmplitude22 PeakFrequency22 BandPower22 PeakAmplitude23 PeakFrequency23 BandPower23 PeakAmplitude24 PeakFrequency24 BandPower24 PeakAmplitude25 PeakFrequency25 BandPower25 PeakAmplitude26 PeakFrequency26 BandPower26 PeakAmplitude27 PeakFrequency27 BandPower27 PeakAmplitude28 PeakFrequency28 BandPower28 TotalBandPower ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ ______________ 0.088268 77.179 0.031107 2.0259 91.37 1.4892 0.026872 104.74 0.017091 0.0040207 165.62 0.0040427 0.063531 178.99 0.088016 0.0079751 193.54 0.0093892 0.07461 254.61 0.080139 0.60862 270.72 0.42026 0.098992 284.09 0.08489 0.0068446 347.99 0.0072084 0.01066 362.09 0.013542 0.0059992 375.46 0.006807 0.055461 438.45 0.052725 0.071491 449.16 0.089713 0.0569 467.1 0.0561 2.0596 525.97 2.513 1.9851 539.52 2.3441 0.56849 554.81 0.64988 0.41738 11.627 0.083331 3.8511 14.557 0.67359 0.41719 17.487 0.060687 0.080245 26.184 0.03093 4.2605 29.114 0.70964 0.021784 32.043 0.0082336 0.018917 55.664 0.0047859 0.036751 58.594 0.01207 0.0087469 61.432 0.0022404 1.9068 8.6975 0.31922 9.862 ```

This code can easily be adjusted for the new faulty dataset.

```% Generate the fault bands and information for each component [FB_Shaft1, info_Shaft1] = faultBands(shaft1Speed, 1:6, shaft2Speed, 0:1); [FB_Shaft2, info_Shaft2] = faultBands(shaft2Speed, [1 2 4], shaft3Speed, 0:1); [FB_Shaft3, info_Shaft3] = faultBands(shaft3Speed, 3); % Combine the fault bands of each component FB_faulty = [FB_Shaft1; ... FB_Shaft2; ... FB_Shaft3]; % Combine the information regarding the fault bands of each component info_faulty.Centers = [info_Shaft1.Centers, ... info_Shaft2.Centers, ... info_Shaft3.Centers]; info_faulty.Labels = [info_Shaft1.Labels, ... info_Shaft2.Labels, ... info_Shaft3.Labels]; info_faulty.FaultGroups = [info_Shaft1.HarmonicGroups, ... info_Shaft2.HarmonicGroups, ... info_Shaft3.HarmonicGroups]; % Clear temporary outputs from the workspace clear FB_Shaft1 info_Shaft1; clear FB_Shaft2 info_Shaft2; clear FB_Shaft3 info_Shaft3; % Compute fault band metrics of the power spectrum healthyMagnitudes spectralMetrics_faulty = faultBandMetrics(faultyMagnitudes, faultyFrequencies, FB_faulty)```
```spectralMetrics_faulty=1×85 table PeakAmplitude1 PeakFrequency1 BandPower1 PeakAmplitude2 PeakFrequency2 BandPower2 PeakAmplitude3 PeakFrequency3 BandPower3 PeakAmplitude4 PeakFrequency4 BandPower4 PeakAmplitude5 PeakFrequency5 BandPower5 PeakAmplitude6 PeakFrequency6 BandPower6 PeakAmplitude7 PeakFrequency7 BandPower7 PeakAmplitude8 PeakFrequency8 BandPower8 PeakAmplitude9 PeakFrequency9 BandPower9 PeakAmplitude10 PeakFrequency10 BandPower10 PeakAmplitude11 PeakFrequency11 BandPower11 PeakAmplitude12 PeakFrequency12 BandPower12 PeakAmplitude13 PeakFrequency13 BandPower13 PeakAmplitude14 PeakFrequency14 BandPower14 PeakAmplitude15 PeakFrequency15 BandPower15 PeakAmplitude16 PeakFrequency16 BandPower16 PeakAmplitude17 PeakFrequency17 BandPower17 PeakAmplitude18 PeakFrequency18 BandPower18 PeakAmplitude19 PeakFrequency19 BandPower19 PeakAmplitude20 PeakFrequency20 BandPower20 PeakAmplitude21 PeakFrequency21 BandPower21 PeakAmplitude22 PeakFrequency22 BandPower22 PeakAmplitude23 PeakFrequency23 BandPower23 PeakAmplitude24 PeakFrequency24 BandPower24 PeakAmplitude25 PeakFrequency25 BandPower25 PeakAmplitude26 PeakFrequency26 BandPower26 PeakAmplitude27 PeakFrequency27 BandPower27 PeakAmplitude28 PeakFrequency28 BandPower28 TotalBandPower ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ ______________ 0.0015834 71.411 0.0017557 0.082928 88.806 0.070886 0.0023192 101.62 0.0028621 0.00094302 161.77 0.0010918 0.0030192 174.68 0.0024061 0.00071009 190.98 0.0011196 0.009749 248.84 0.0121 0.071268 261.84 0.077265 0.022904 274.84 0.011766 0.0039476 334.9 0.0043915 0.008027 348.91 0.010401 0.0032387 362.82 0.0032159 0.0044798 422.24 0.0065658 0.010303 436.98 0.013423 0.0062224 451.45 0.008025 3.7506 511.23 3.6514 4.8463 526.89 4.1478 2.4573 540.07 1.8774 1.8378 11.353 0.33072 1.085 14.099 0.4306 0.1326 16.937 0.021304 0.051885 25.452 0.012906 1.6184 28.29 0.25581 0.018916 31.128 0.0052321 0.0043149 53.741 0.0012379 0.058117 56.58 0.02 0.0057658 59.052 0.0022057 3.0935 8.5144 0.49943 11.483 ```

Combining the healthy and faulty spectral metrics tables improves visibility into changes in peak amplitudes and band powers of the spectral data.

`spectralMetrics_total = [spectralMetrics_healthy; spectralMetrics_faulty]`
```spectralMetrics_total=2×85 table PeakAmplitude1 PeakFrequency1 BandPower1 PeakAmplitude2 PeakFrequency2 BandPower2 PeakAmplitude3 PeakFrequency3 BandPower3 PeakAmplitude4 PeakFrequency4 BandPower4 PeakAmplitude5 PeakFrequency5 BandPower5 PeakAmplitude6 PeakFrequency6 BandPower6 PeakAmplitude7 PeakFrequency7 BandPower7 PeakAmplitude8 PeakFrequency8 BandPower8 PeakAmplitude9 PeakFrequency9 BandPower9 PeakAmplitude10 PeakFrequency10 BandPower10 PeakAmplitude11 PeakFrequency11 BandPower11 PeakAmplitude12 PeakFrequency12 BandPower12 PeakAmplitude13 PeakFrequency13 BandPower13 PeakAmplitude14 PeakFrequency14 BandPower14 PeakAmplitude15 PeakFrequency15 BandPower15 PeakAmplitude16 PeakFrequency16 BandPower16 PeakAmplitude17 PeakFrequency17 BandPower17 PeakAmplitude18 PeakFrequency18 BandPower18 PeakAmplitude19 PeakFrequency19 BandPower19 PeakAmplitude20 PeakFrequency20 BandPower20 PeakAmplitude21 PeakFrequency21 BandPower21 PeakAmplitude22 PeakFrequency22 BandPower22 PeakAmplitude23 PeakFrequency23 BandPower23 PeakAmplitude24 PeakFrequency24 BandPower24 PeakAmplitude25 PeakFrequency25 BandPower25 PeakAmplitude26 PeakFrequency26 BandPower26 PeakAmplitude27 PeakFrequency27 BandPower27 PeakAmplitude28 PeakFrequency28 BandPower28 TotalBandPower ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ ______________ ______________ __________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ _______________ _______________ ___________ ______________ 0.088268 77.179 0.031107 2.0259 91.37 1.4892 0.026872 104.74 0.017091 0.0040207 165.62 0.0040427 0.063531 178.99 0.088016 0.0079751 193.54 0.0093892 0.07461 254.61 0.080139 0.60862 270.72 0.42026 0.098992 284.09 0.08489 0.0068446 347.99 0.0072084 0.01066 362.09 0.013542 0.0059992 375.46 0.006807 0.055461 438.45 0.052725 0.071491 449.16 0.089713 0.0569 467.1 0.0561 2.0596 525.97 2.513 1.9851 539.52 2.3441 0.56849 554.81 0.64988 0.41738 11.627 0.083331 3.8511 14.557 0.67359 0.41719 17.487 0.060687 0.080245 26.184 0.03093 4.2605 29.114 0.70964 0.021784 32.043 0.0082336 0.018917 55.664 0.0047859 0.036751 58.594 0.01207 0.0087469 61.432 0.0022404 1.9068 8.6975 0.31922 9.862 0.0015834 71.411 0.0017557 0.082928 88.806 0.070886 0.0023192 101.62 0.0028621 0.00094302 161.77 0.0010918 0.0030192 174.68 0.0024061 0.00071009 190.98 0.0011196 0.009749 248.84 0.0121 0.071268 261.84 0.077265 0.022904 274.84 0.011766 0.0039476 334.9 0.0043915 0.008027 348.91 0.010401 0.0032387 362.82 0.0032159 0.0044798 422.24 0.0065658 0.010303 436.98 0.013423 0.0062224 451.45 0.008025 3.7506 511.23 3.6514 4.8463 526.89 4.1478 2.4573 540.07 1.8774 1.8378 11.353 0.33072 1.085 14.099 0.4306 0.1326 16.937 0.021304 0.051885 25.452 0.012906 1.6184 28.29 0.25581 0.018916 31.128 0.0052321 0.0043149 53.741 0.0012379 0.058117 56.58 0.02 0.0057658 59.052 0.0022057 3.0935 8.5144 0.49943 11.483 ```

For example, if you look at `PeakAmplitude2` in the table, the amplitude of the power spectrum peak drops from 2.0259 to 0.0829. Using the `PeakFrequency2` value, you know that this drop occurs around 90 Hz. Plot the two power spectrums on the same axes to visualize the drop outside of the Live Editor task.

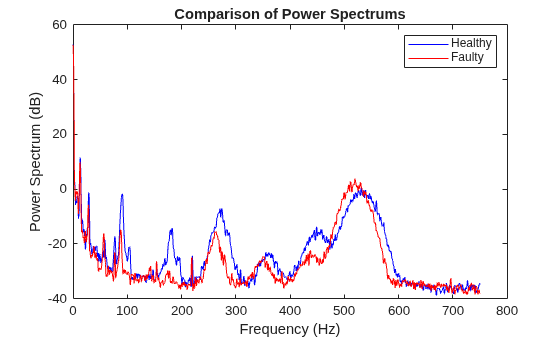

```plot(healthyFrequencies,10*log10(healthyMagnitudes),'b-'); % plot in decibels hold on; plot(faultyFrequencies,10*log10(faultyMagnitudes),'r-'); % plot in decibels legend('Healthy','Faulty') xlabel('Frequency (Hz)') ylabel('Power Spectrum (dB)') title('Comparison of Power Spectrums') hold off;```

As the metrics table showed, the peak around 90 Hz drops significantly in amplitude. To determine which component frequency caused this, check back in the previous Extract Spectral Feature Live Editor task.

The fault band around 90 Hz is the first harmonic of the first rotating shaft. Thus you know that something is changing in this shaft and it may be trending towards failure.

Plotting the healthy and faulty power spectrums together can be a useful way to highlight changes in peak amplitudes. In addition to the peak around 90 Hz for the first harmonic of the first shaft, other significant decreases in peak amplitudes can be seen such as with the second harmonic of this shaft around 180 Hz. This peak is essentially nonexistent in the faulty dataset.

Peak amplitudes from the healhty and faulty data can also be compared using a bar chart.

```PeakFrequencies = spectralMetrics_total(:,2:3:end-1).Variables'; PeakAmplitudes = spectralMetrics_total(:,1:3:end-1).Variables'; bar(PeakFrequencies, PeakAmplitudes); legend('Healthy','Faulty') xlabel('Frequency (Hz)') ylabel('Peak Amplitude') title('Peak Amplitudes of Healthy and Faulty Power Spectrum Data') ```

Zoom in to see the change in peak amplitude at the first harmonic of the first rotating shaft.

```xlim([87 93]) ylim([0 0.7])```

### Uses of the Extract Spectral Features Live Editor Task

As shown in this example the Extract Spectral Features Live Editor task can prove useful for several different applications. With the Live Editor task, you can easily match spectral peaks with known machine component frequencies. This helps you better understand your data and the mechanical components causing various features in the data.

Another application of the Extract Spectral Features Live Editor task is to generate metrics which characterize your spectral data in the frequency ranges of interest. The task produces an output table containing the peak amplitude, peak frequency, and band power of each fault frequency band, as well as the total band power of all fault bands. However, these metrics are specific to the power spectrum data input in the task.

To extend this use so that you can track metrics over time as new data sets are gathered, you can either update the power spectrum data in the task or use the automatically generated MATLAB code to produce the metrics table. Copying the generated MATLAB code is an easy way to continue computing fault band metrics for many new data sets.

A third use of the task combines the benefits of the two previously discussed uses. Since the task associates the various mechanical components with peaks in the spectral data, you can quickly determine which components cause significant changes in the spectral data and thus potential failures. For example, one common indicator of machine failure derived from spectral data is a change in the amplitude of spectral peaks. In the spectral metrics table, if you notice a significant drop in peak amplitude or band power over time you can trace the corresponding peak frequency back to the plot to see which component's fault frequency band aligns with that peak.
