findThermalProperties

Find thermal material properties assigned to a geometric region

Syntax

tmpa = findThermalProperties(thermalmodel.MaterialProperties,RegionType,RegionID)

Description

tmpa = findThermalProperties(thermalmodel.MaterialProperties,RegionType,RegionID) returns thermal material properties tmpa assigned to the specified region.

Examples

Find Thermal Conductivity, Mass Density, and Specific Heat for Faces of 2-D Geometry

Create a transient thermal model that has three faces.

thermalmodel = createpde('thermal','transient');
geometryFromEdges(thermalmodel,@lshapeg);

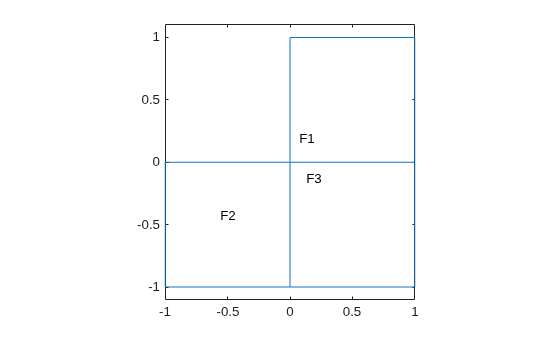

pdegplot(thermalmodel,'FaceLabels','on')
ylim([-1.1,1.1])
axis equal

For face 1, specify the following thermal properties:

• Thermal conductivity is $10\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathit{C}\right)$

• Mass density is $1\mathrm{kg}/{\mathrm{m}}^3$

• Specific heat is $0.1\mathrm{J}/\left(\mathrm{kg}{\cdot }^{\circ }\mathrm{C}\right)$

thermalProperties(thermalmodel,'ThermalConductivity',10,...
                               'MassDensity',1,...
                               'SpecificHeat',0.1,...
                               'Face',1);

For face 2, specify the following thermal properties:

• Thermal conductivity is $20\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathit{C}\right)$

• Mass density is $2\mathrm{kg}/{\mathrm{m}}^3$

• Specific heat is $0.2\mathrm{J}/\left(\mathrm{kg}{\cdot }^{\circ }\mathrm{C}\right)$

thermalProperties(thermalmodel,'ThermalConductivity',20,...
                               'MassDensity',2,...
                               'SpecificHeat',0.2,...
                               'Face',2);

For face 3, specify the following thermal properties:

• Thermal conductivity is $30\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathit{C}\right)$)

• Mass density is $3\mathrm{kg}/{\mathrm{m}}^3$

• Specific heat is $0.3\mathrm{J}/\left(\mathrm{kg}{\cdot }^{\circ }\mathrm{C}\right)$

thermalProperties(thermalmodel,'ThermalConductivity',30,...
                               'MassDensity',3,...
                               'SpecificHeat',0.3,...
                               'Face',3);

Check the material properties specification for face 1.

mpaFace1 = findThermalProperties(thermalmodel.MaterialProperties, ...
                                                        'Face',1)

mpaFace1 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 1
    ThermalConductivity: 10
            MassDensity: 1
           SpecificHeat: 0.1000

Check the heat source specification for faces 2 and 3.

mpa = findThermalProperties(thermalmodel.MaterialProperties, ...
                                              'Face',[2,3]);
mpaFace2 = mpa(1)

mpaFace2 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 2
    ThermalConductivity: 20
            MassDensity: 2
           SpecificHeat: 0.2000

mpaFace3 = mpa(2)

mpaFace3 =
  ThermalMaterialAssignment with properties:

             RegionType: 'face'
               RegionID: 3
    ThermalConductivity: 30
            MassDensity: 3
           SpecificHeat: 0.3000

Find Thermal Conductivity for Cells of 3-D Geometry

Create a geometry that consists of three stacked cylinders and include the geometry in a thermal model.

gm = multicylinder(10,[1 2 3],'ZOffset',[0 1 3])

gm =
  DiscreteGeometry with properties:

       NumCells: 3
       NumFaces: 7
       NumEdges: 4
    NumVertices: 4
       Vertices: [4x3 double]

thermalmodel = createpde('thermal');
thermalmodel.Geometry = gm;
pdegplot(thermalmodel,'CellLabels','on','FaceAlpha',0.5)

Thermal conductivity of the cylinder C1 is $10\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathrm{C}\right)$.

thermalProperties(thermalmodel,'ThermalConductivity',10,'Cell',1);

Thermal conductivity of the cylinder C2 is $20\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathrm{C}\right)$.

thermalProperties(thermalmodel,'ThermalConductivity',20,'Cell',2);

Thermal conductivity of the cylinder C3 is $30\mathrm{W}/\left(\mathrm{m}{\cdot }^{\circ }\mathrm{C}\right)$.

thermalProperties(thermalmodel,'ThermalConductivity',30,'Cell',3);

Check the material properties specification for cell 1:

mpaCell1 = findThermalProperties(thermalmodel.MaterialProperties, ...
                                                        'Cell',1)

mpaCell1 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 1
    ThermalConductivity: 10
            MassDensity: []
           SpecificHeat: []

Check the heat source specification for cells 2 and 3:

mpa = findThermalProperties(thermalmodel.MaterialProperties,'Cell',2:3);
mpaCell2 = mpa(1)

mpaCell2 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 2
    ThermalConductivity: 20
            MassDensity: []
           SpecificHeat: []

mpaCell3 = mpa(2)

mpaCell3 =
  ThermalMaterialAssignment with properties:

             RegionType: 'cell'
               RegionID: 3
    ThermalConductivity: 30
            MassDensity: []
           SpecificHeat: []

Input Arguments

thermalmodel.MaterialProperties — Material properties of the model

MaterialProperties property of a thermal model

Material properties of the model, specified as the MaterialProperties property of a thermal model.

Example: thermalmodel.MaterialProperties

RegionType — Geometric region type

'Face' for a 2-D model | 'Cell' for a 3-D model

Geometric region type, specified as 'Face' or 'Cell'.

Example: findThermalProperties(thermalmodel.MaterialProperties,'Cell',1)

Data Types: char | string

RegionID — Geometric region ID

vector of positive integers

Geometric region ID, specified as a vector of positive integers. Find the region IDs by using pdegplot.

Example: findThermalProperties(thermalmodel.MaterialProperties,'Face',1:3)

Data Types: double

Output Arguments

tmpa — Material properties assignment

ThermalMaterialAssignment object

Material properties assignment, returned as a ThermalMaterialAssignment object. See ThermalMaterialAssignment Properties.
