# interpolateMaxwellStressTensor

Interpolate Maxwell stress tensor at arbitrary spatial locations

Since R2024a

## Syntax

``MSTintrp = interpolateMaxwellStressTensor(results,xq,yq)``
``MSTintrp = interpolateMaxwellStressTensor(results,xq,yq,zq)``
``MSTintrp = interpolateMaxwellStressTensor(results,querypoints)``

## Description

example

````MSTintrp = interpolateMaxwellStressTensor(results,xq,yq)` returns the interpolated Maxwell stress tensor values at the 2-D points specified in `xq` and `yq`. To enable the interpolation, the `results` object must contain the Maxwell stress tensor data in its `MaxwellStressTensor` property.```

example

````MSTintrp = interpolateMaxwellStressTensor(results,xq,yq,zq)` uses the 3-D points specified in `xq`, `yq`, and `zq`.```
````MSTintrp = interpolateMaxwellStressTensor(results,querypoints)` uses the points specified in `querypoints`.```

## Examples

collapse all

Compute the Maxwell stress tensor at nodal locations, and then interpolate it to the specified grid.

Create a square geometry.

```R1 = [3,4,-1,1,1,-1,1,1,-1,-1]'; g = decsg(R1,'R1',('R1')');```

Create an `femodel` object for magnetostatic analysis. Include the square geometry.

```model = femodel(AnalysisType="magnetostatic", ... Geometry=g);```

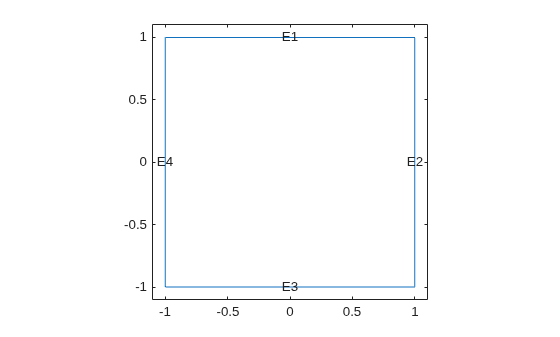

Plot the geometry with edge labels.

```pdegplot(model,EdgeLabels="on") xlim([-1.1 1.1]) ylim([-1.1 1.1])```

Specify the vacuum permeability in the SI system of units.

`model.VacuumPermeability = 1.2566370614e-6;`

Specify the relative permeability of the material.

```model.MaterialProperties = ... materialProperties(RelativePermeability=5000);```

Apply the magnetic potential boundary conditions on the sides of the square.

```model.EdgeBC([1 3]) = edgeBC(MagneticPotential=0); model.EdgeBC([2 4]) = edgeBC(MagneticPotential=0.01);```

Specify the current density for the entire geometry.

`model.FaceLoad = faceLoad(CurrentDensity=0.5);`

Generate the mesh. This assignment updates the mesh stored in the `Geometry` property of the model.

`model = generateMesh(model);`

Solve the model. The solution `R` is a `MagnetostaticResults` object. It does not include the Maxwell stress tensor by default.

`R = solve(model)`
```R = MagnetostaticResults with properties: MagneticPotential: [1529x1 double] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] ```

Generate the Maxwell stress tensor and store it as a property of the results object `R`.

`R = generateMaxwellStressTensor(R)`
```R = MagnetostaticResults with properties: MagneticPotential: [1529x1 double] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] MaxwellStressTensor: [2x2x1529 double] ```

Interpolate the resulting Maxwell stress tensor to a grid covering the central portion of the geometry, for `x` and `y` from `-0.5` to `0.5`.

```v = linspace(-0.5,0.5,51); [X,Y] = meshgrid(v); MSTintrp = interpolateMaxwellStressTensor(R,X,Y);```

Alternatively, you can specify the grid by using a matrix of query points.

```querypoints = [X(:),Y(:)]'; MSTintrp = interpolateMaxwellStressTensor(R,querypoints);```

Compute the Maxwell stress tensor at nodal locations, and then interpolate it to the specified grid.

Create an `femodel` object for electrostatic analysis. Include a geometry representing a plate with a hole.

```model = femodel(AnalysisType="electrostatic", ... Geometry="PlateHoleSolid.stl");```

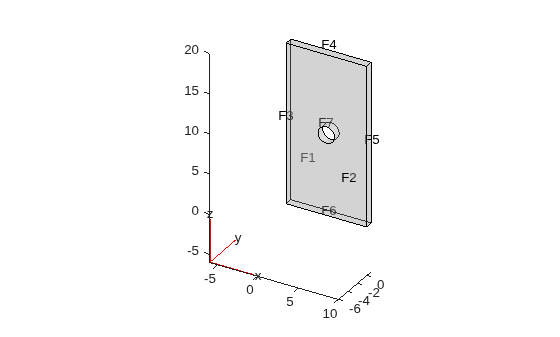

Plot the geometry of the plate with face labels.

`pdegplot(model,FaceLabels="on",FaceAlpha=0.3)`

Specify the vacuum permittivity in the SI system of units.

`model.VacuumPermittivity = 8.8541878128e-12;`

Specify the relative permittivity of the material

```model.MaterialProperties = ... materialProperties(RelativePermittivity=1);```

Specify the charge density for the entire geometry.

`model.CellLoad = cellLoad(ChargeDensity=5e-9);`

Apply the voltage boundary conditions on the side faces and the face bordering the hole.

```model.FaceBC(3:6) = faceBC(Voltage=0); model.FaceBC(7) = faceBC(Voltage=1000);```

Generate the mesh. This assignment updates the mesh stored in the `Geometry` property of the model.

`model = generateMesh(model);`

Solve the model. The solution `R` is an `ElectrostaticResults` object. It does not include the Maxwell stress tensor by default.

`R = solve(model)`
```R = ElectrostaticResults with properties: ElectricPotential: [4919x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] ```

Generate the Maxwell stress tensor and store it as a property of the results object `R`.

`R = generateMaxwellStressTensor(R)`
```R = ElectrostaticResults with properties: ElectricPotential: [4919x1 double] ElectricField: [1x1 FEStruct] ElectricFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh] MaxwellStressTensor: [3x3x4919 double] ```

Interpolate the resulting Maxwell stress tensor to a grid covering the entire geometry, for `x`, `y`, and `z`.

```x = linspace(0,10,11); y = linspace(0,1,5); z = linspace(0,20,11); [X,Y,Z] = meshgrid(x,y,z); MSTintrp = interpolateMaxwellStressTensor(R,X,Y,Z);```

Alternatively, you can specify the grid by using a matrix of query points.

```querypoints = [X(:),Y(:),Z(:)]'; MSTintrp = interpolateMaxwellStressTensor(R,querypoints);```

## Input Arguments

collapse all

Electrostatic or magnetostatic solution, specified as an `ElectrostaticResults` or `MagnetostaticResults` object containing the Maxwell stress tensor at mesh nodes in its `MaxwellStressTensor` property.

Create `results` by first using the `solve` function to solve an electrostatic or magnetostatic problem and then using `generateMaxwellStressTensor` to add the Maxwell stress tensor to the resulting object.

x-coordinate query points, specified as a real array. `interpolateMaxwellStressTensor` evaluates the Maxwell stress tensor at the 2-D coordinate points `[xq(i) yq(i)]` or at the 3-D coordinate points `[xq(i) yq(i) zq(i)]` for every `i`. Therefore, `xq`, `yq`, and (if present) `zq` must have the same number of entries.

Data Types: `double`

y-coordinate query points, specified as a real array. `interpolateMaxwellStressTensor` evaluates the Maxwell stress tensor at the 2-D coordinate points `[xq(i) yq(i)]` or at the 3-D coordinate points `[xq(i) yq(i) zq(i)]` for every `i`. Therefore, `xq`, `yq`, and (if present) `zq` must have the same number of entries.

Data Types: `double`

z-coordinate query points, specified as a real array. `interpolateMaxwellStressTensor` evaluates the Maxwell stress tensor at the 3-D coordinate points `[xq(i) yq(i) zq(i)]` for every `i`. Therefore, `xq`, `yq`, and `zq` must have the same number of entries.

Data Types: `double`

Query points, specified as a real matrix with either two rows for a 2-D geometry or three rows for a 3-D geometry. `interpolateMaxwellStressTensor` evaluates the Maxwell stress tensor at the coordinate points `querypoints(:,i)` for every `i`, so each column of `querypoints` contains exactly one 2-D or 3-D query point.

Data Types: `double`

## Output Arguments

collapse all

Maxwell stress tensor at query points, returned as a `2`-by-`2`-by-`N` real array for a 2-D geometry or a `3`-by-`3`-by-`N` real array for a 3-D geometry. Here, `N` is the number of query points. For query points `i` that are outside the geometry, `MSTintrp(:,:,i)` are `NaN`.

Data Types: `double`

## Tips

• Generate the Maxwell stress tensor at nodal locations by using `generateMaxwellStressTensor` before interpolating the Maxwell stress tensor at arbitrary spatial locations. The `interpolateMaxwellStressTensor` function errors if the `ElectrostaticResults` or `MagnetostaticResults` object does not have data in its `MaxwellStressTensor` property.

## Version History

Introduced in R2024a
