# DAC Testbench

**Libraries:**

Mixed-Signal Blockset /
DAC /
Measurements & Testbenches

## Description

The DAC Testbench block measures both DC and AC performance metrics of a DAC (digital to analog converter). DC performance metrics include offset error and gain error. AC performance metrics include signal-to-noise ratio (SNR), signal to noise and distortion radio (SINAD), spurious-free dynamic range (SFDR), effective number of bits (ENOB), and noise floor.

The DAC Testbench block generates the stimulus to drive the device under
test (DUT) from the **Stimulus** tab. The setup parameters for validating the
DUT are defined on the **Setup** tab. The target validation metrics are
defined on the **Target Metric** tab.

You can use the DAC Testbench block to validate the DAC architecture models provided in Mixed-Signal Blockset™, or you can validate a DAC of your own implementation.

## Examples

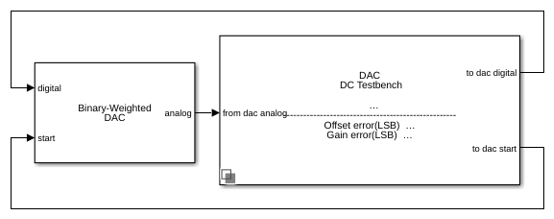

### Measure Offset and Gain Error of Binary Weighted DAC

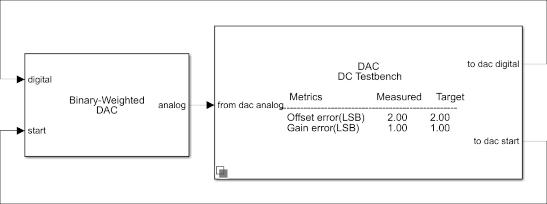

Find the offset and gain errors of a binary weighted DAC block.

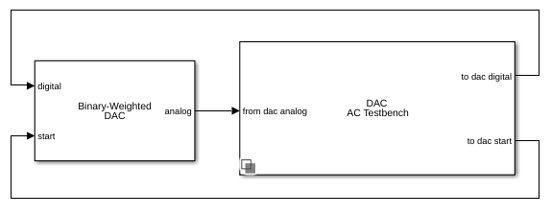

### Measure AC Performance Metrics of Binary Weighted DAC

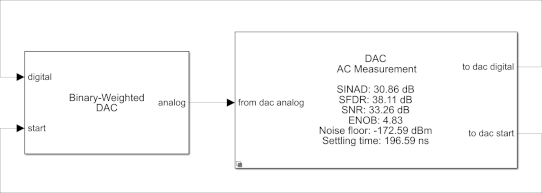

Find the AC performance metrics such as SNR, SINAD, SFDR, ENOB, noise floor and settling time of a binary weighted DAC block.

## Ports

### Input

**from dac analog** — Analog signal from DAC output

scalar

Analog input signal from the DAC output, specified as a scalar.

**Data Types: **`double`

### Output

**to dac digital** — Digital stimulus signal for DAC input

scalar

Digital output stimulus signal for the DAC input, returned as a scalar.

**Data Types: **`single`

| `double`

| `int8`

| `int16`

| `int32`

| `uint8`

| `uint16`

| `uint32`

| `fixed point`

**to dac start** — External start conversion clock for DAC

scalar

External start conversion clock for DAC, returned as a scalar. The rising edge of this signal starts the conversion process in the DAC block.

**Data Types: **`double`

## Parameters

**Measurement** — Select whether to measure DC or AC performance metrics

`DC`

(default) | `AC`

Select whether to measure static (DC) or dynamic (AC) performance metrics:

Select

`DC`

to measure offset error and gain error.Select

`AC`

to measure SNR, SINAD, SFDR, ENOB, and noise floor.

**Recommended min. simulation stop time (s)** — Minimum time simulation must run for meaningful result

`2.048e-02`

(default) | positive real scalar

Minimum time for which the simulation must run to obtain meaningful results, specified as a positive real scalar in seconds.

To measure DC performance, the simulation must run so that the DAC can sample each digital code 20 times. Based on this assumption, the

**Recommended min. simulation stop time (s)***T*is given by:$$T=\frac{\text{Samplesperbit}}{\left(StartFreq/{2}^{Nbits+1}\right)}+\text{Holdofftime}$$,

where

*StartFreq*is the frequency of the conversion-start clock and*Nbits*is the resolution of the DAC.The number of samples per bit is calculated using the equation:

$$\text{Samplesperbit=}\mathrm{max}\left(\frac{1}{\text{Errortolerance}},10\right)$$.

To measure AC performance, the simulation must run so that the DAC can generate six spectral updates of the DAC output. So, the

**Recommended min. simulation stop time (s)***T*is given by [1]:$$T=6\left(\frac{1.5}{RBW}+\text{Holdofftime}\right)$$,

where

*RBW*is the resolution bandwidth of the spectrum estimator inside the DAC Testbench block and is given by the equation: $$RBW=\left[\mathrm{min}\left(\text{Inputfrequency}\right)0.1\right]$$.

This parameter is only reported by the testbench and is not editable.

**Data Types: **`double`

**Set as model stop time** — Automatically set recommended min. simulation stop time as model stop time

button

Click to automatically set the **Recommended min. simulation stop time
(s)** as the stop time of the Simulink^{®} model.

**Endpoint** — Measure DNL, INL using endpoint method

on (default) | off

Measure the differential nonlinearity (DNL) error and integral nonlinearity (INL) error using the endpoint method. This method uses the endpoints of the actual transfer function to measure the DNL and INL errors.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

**Best fit** — Measure DNL, INL using best fit method

on (default) | off

Measure the differential nonlinearity (DNL) error and integral nonlinearity (INL) error using the best fit method. This method uses a standard curve-fitting technique to find the best fit to measure the DNL and INL errors.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

**Plot DC analysis result** — Plot DC analysis result

button

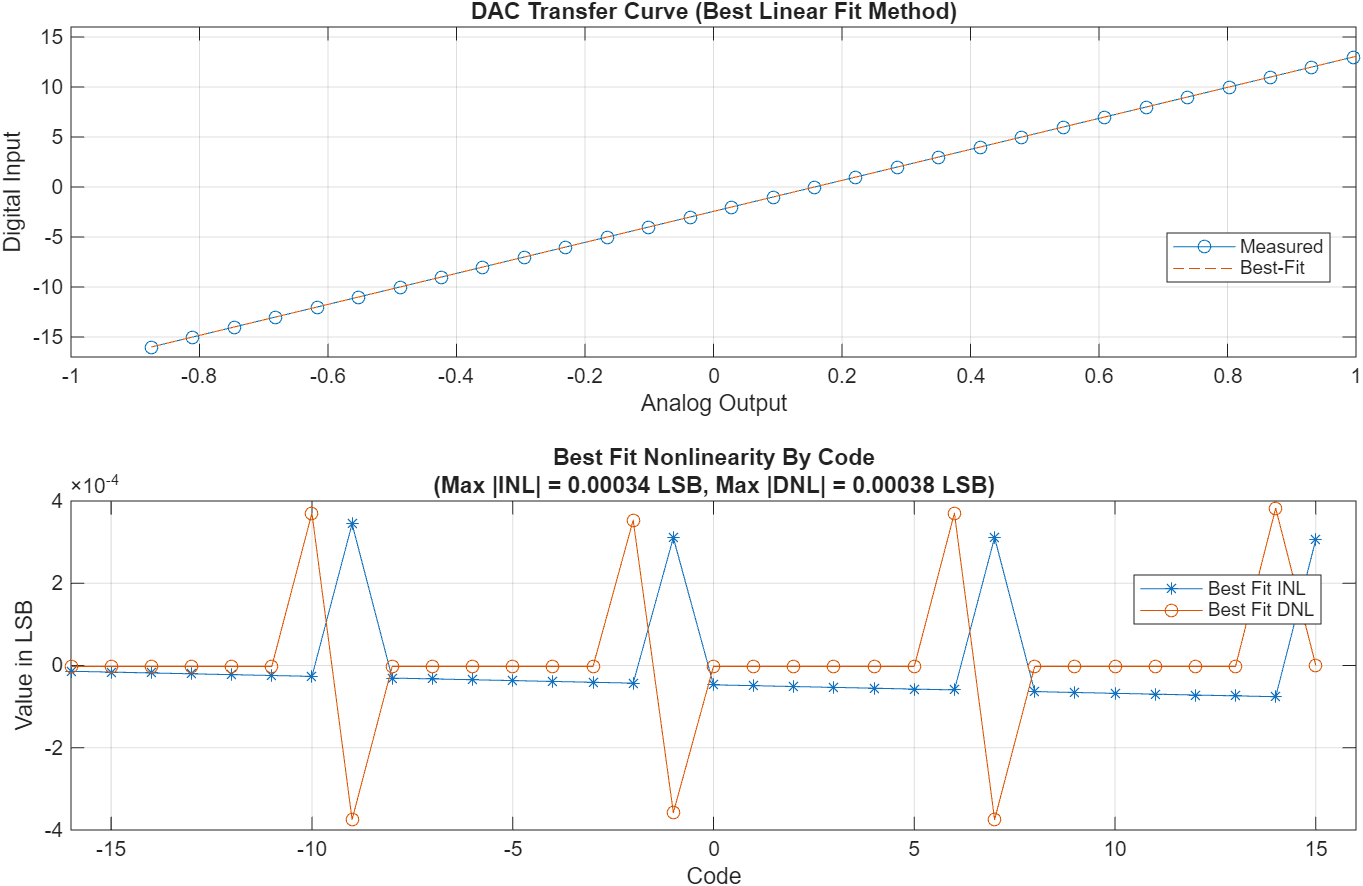

Click to plot DC analysis result for further analysis. To perform a complete DC analysis including integral nonlinearity (INL) and differential nonlinearity (DNL), use the DAC DC Measurement block.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

**Export measurement result** — Store detailed test results to base workspace

button

Click to store detailed test results to a spreadsheet (XLS file) or as comma-separated values (CSV file) for further processing.

### Stimulus

**Digital input frequency (Hz)** — Frequency of digital input signal to DAC

`1e4`

(default) | positive real scalar

Frequency of the digital input signal to the DAC block, specified
as a positive real scalar in hertz. **Digital input frequency (Hz)**
must match the input frequency of the DAC device under test.

**Digital input frequency (Hz)** needs to satisfy two
requirements:

All the output codes of the DAC must be activated.

The

**Digital input frequency (Hz)**must not share any common multiples other than 1 with the**Start conversion frequency (Hz)**.

#### Dependencies

To enable this parameter, set **Measurement** to
`AC`

.

#### Programmatic Use

Block parameter:
`InputFrequency` |

Type: character vector |

Values: positive real scalar |

Default:
`1e3` |

**Data Types: **`double`

**Start conversion frequency (Hz)** — Frequency of internal start-conversion clock

`1e6`

(default) | positive real scalar

Frequency of internal start-conversion clock, specified as a positive real scalar
in Hz. **Start conversion frequency (Hz)** determines the rate of the
DAC.

#### Programmatic Use

Block parameter:
`StartFreq` |

Type: character vector |

Values: positive real scalar |

Default:
`1e6` |

**Data Types: **`double`

**Error tolerance (LSB)** — Maximum difference between successive samples of digital signal

`0.1`

(default) | positive scalar in the range (`0, 1`

]

Maximum allowed difference in the amplitude of successive samples of the digital input signal, specified as a positive real scalar in least significant bit (LSB).

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

Block parameter:
`ErrorTolerance` |

Type: character vector |

Values: positive scalar in the range
(`0, 1` ] |

Default:
`0.1` |

**Data Types: **`double`

### Setup

**Autofill setup parameters** — Automatically propagate setup parameters from DAC

button

Click to automatically propagate setup parameters from the DAC.

#### Dependencies

The DAC must be a Binary Weighted DAC from the Mixed-Signal Blockset.

**Number of bits** — Number of bits in input word

`10`

(default) | positive real integer

Number of bits in the input word, specified as a unitless positive real integer.
**Number of bits** determines the resolution of the DAC.

#### Programmatic Use

Block parameter:
`NBits` |

Type: character vector |

Values: positive real integer |

Default:
`10` |

**Data Types: **`double`

**Input polarity** — Polarity of input signal to DAC

`Bipolar`

(default) | `Unipolar`

Polarity of the input signal to the DAC.

#### Programmatic Use

Block parameter:
`Polarity` |

Type: character vector |

Values:
`Bipolar` |`Unipolar` |

Default:
`Bipolar` |

**Reference (V)** — Reference voltage

`1`

(default) | real scalar

Reference voltage of the DAC, specified as a real scalar in volts.
**Reference (V)** helps determine the output from the input digital
code, **Number of bits**, and **Bias (V)** using the
equation:

$$\text{DACoutput=}\left(\left(\frac{\text{Digitalinputcode}}{{2}^{\text{Numberofbits}}}\right)\text{Reference}\right)+\text{Bias}$$.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

Block parameter:
`Ref` |

Type: character vector |

Values: real scalar |

Default:
`1` |

**Data Types: **`double`

**Bias (V)** — Bias voltage added to output

`0`

(default) | real scalar

Bias voltage added to the output of the DAC, specified as a real scalar in volts.
**Bias (V)** helps determine the output from the input digital
code, **Number of bits**, and **Reference (V)**
using the equation:

$$\text{DACoutput=}\left(\left(\frac{\text{Digitalinputcode}}{{2}^{\text{Numberofbits}}}\right)\text{Reference}\right)+\text{Bias}$$

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

Block parameter:
`Bias` |

Type: character vector |

Values: real scalar |

Default:
`0` |

**Data Types: **`double`

**Settling time (s)** — Time required for output to settle

`0.25/1e-6`

(default) | nonnegative real scalar

The time required for the output of the DAC to settle to within some fraction of its final value, specified as a nonnegative real scalar in seconds.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

Block parameter:
`SettlingTime` |

Type: character vector |

Values: real scalar |

Default:
`0.25/1e-6` |

**Data Types: **`double`

**Settling time tolerance (LSB)** — Tolerance for calculating settling time

`0.5`

(default) | positive real scalar

The tolerance allowed for calculating settling time, specified as a positive real
scalar in LSB. The output of the DAC must settle within the **Settling time
tolerance (LSB)** by **Settling time (s)**.

#### Dependencies

To enable this parameter, set **Measurement** to
`AC`

.

#### Programmatic Use

Block parameter:
`SettlingTimeTolerance` |

Type: character vector |

Values: positive real scalar |

Default:
`0.5` |

**Data Types: **`double`

**Hold off time (s)** — Delay before measurement analysis

`0`

(default) | nonnegative real scalar

Delay before measurement analysis to avoid corruption by transients, specified as a nonnegative real scalar in seconds.

#### Programmatic Use

Use

`get_param(gcb,'HoldOffTime')`

to view the current value of**Hold off time (s)**.Use

`set_param(gcb,'HoldOffTime',value)`

to set**Hold off time (s)**to a specific value.

**Data Types: **`double`

**Show spectrum analyzer during simulation** — Displays Spectrum Analyzer during simulation

off (default) | on

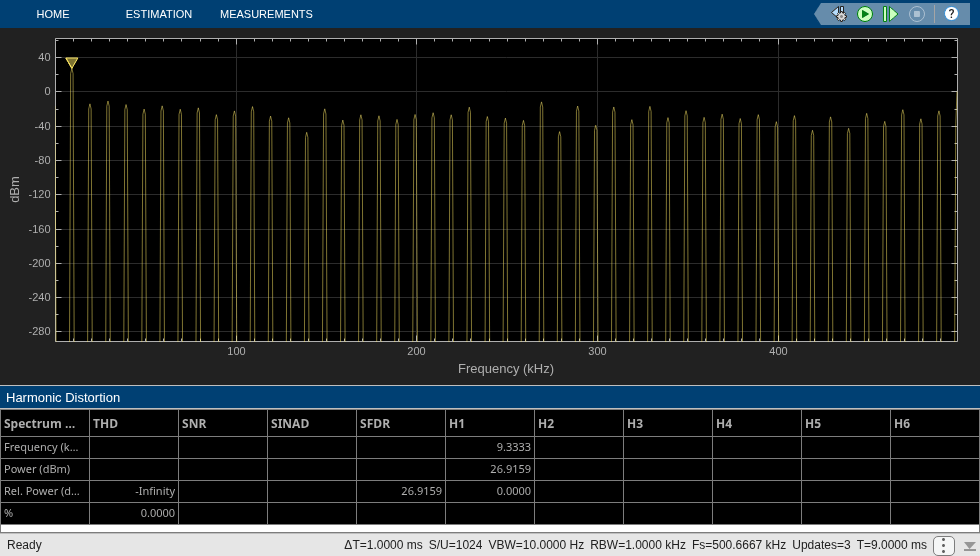

Select this parameter to display the Spectrum Analyzer window during simulation. By default, this parameter is deselected.

#### Dependencies

To enable this parameter, set **Measurement** to
`AC`

.

### Target Metric

**Autofill target metric** — Automatically propagate target metrics from DAC

button

Click to automatically propagate target metrics from the DAC.

#### Dependencies

To enable this parameter, set

**Measurement**to`DC`

.The DAC must be a Binary Weighted DAC from the Mixed-Signal Blockset.

**Offset error** — Shifts quantization steps by specific value

`0 LSB`

(default) | real scalar

Shifts quantization steps by a specific value, specified as a real scalar in %FS (percentage of full scale), FS (full scale), or LSB (least significant bit).

**Note**

The full scale range of the converter is defined as the difference between the last and first code on the +0.5 LSB compensated transfer curve. In a +0.5 LSB compensated transfer curve, first code is 0.5 LSB wide while the last code is 1.5 LSB wide. The input values must be considered within the full scale range of the converter.

**Note**

LSB is calculated by the equation $$\text{LSB=}\frac{\text{Fullscalerangeofconverter}}{{2}^{NBits}}$$.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

Block parameter:
`TargetOffsetError` |

Type: character vector |

Values: real scalar |

Default:
`0 LSB` |

**Data Types: **`double`

**Gain error** — Error in slope of DAC transfer curve

`0 LSB`

(default) | real scalar

Error in the slope of the straight line interpolating the DAC transfer curve, specified as a real scalar in %FS (percentage of full scale), FS (full scale), or LSB (least significant bit).

**Note**

The full scale range of the converter is defined as the difference between the last and first code on the +0.5 LSB compensated transfer curve. In a +0.5 LSB compensated transfer curve, first code is 0.5 LSB wide while the last code is 1.5 LSB wide. The input values must be considered within the full scale range of the converter.

**Note**

LSB is calculated by the equation $$\text{LSB=}\frac{\text{Fullscalerangeofconverter}}{{2}^{NBits}}$$.

#### Dependencies

To enable this parameter, set **Measurement** to
`DC`

.

#### Programmatic Use

#### Programmatic Use

Block parameter:
`TargetGainError` |

Type: character vector |

Values: real scalar |

Default:
`0 LSB` |

**Data Types: **`double`

## References

## Version History

**Introduced in R2020a**

## See Also

Binary Weighted DAC | DAC AC measurement | DAC DC measurement

## MATLAB 명령

다음 MATLAB 명령에 해당하는 링크를 클릭했습니다.

명령을 실행하려면 MATLAB 명령 창에 입력하십시오. 웹 브라우저는 MATLAB 명령을 지원하지 않습니다.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
