calculateSNR

Signal-to-noise ratio based on in-band bins of windowed FFT and location of input

Since R2026a

collapse all in page

Syntax

snr = calculateSNR(hwfft,f,nsig)

Description

snr = calculateSNR(hwfft,f,nsig) estimates the signal-to-noise ratio from given in-band bins of a Hann-windowed FFT and the location of the input signal.

Examples

collapse all

Open Live Script

Define a second-order delta-sigma modulator and the system parameters for the simulation.

order = 2;              % The "Order" of the modulator
OSR = 64;               % Oversampling Ratio (fs / 2*BW)
nlev = 2;               % Number of quantizer levels (2 = Binary: +1 or -1)
N = 2^14;               % Number of points for the FFT simulation (16,384)
test_freq = 5;          % The bin index for our test sine wave (must be an integer)

Determine the in-band frequency range for SNR calculation.

fB = floor(N/(2*OSR));

Synthesize the noise transfer function (NTF). This creates a mathematical filter that pushes noise to high frequencies.

ntf = synthesizeNTF(order, OSR);

Realize the NTF as a CIFB circuit topology.

[a, g, b, c] = realizeNTF(ntf, 'CIFB');

Create the state-space matrix for the simulator.

abcd = stuffABCD(a, g, b, c, 'CIFB');

Scale the ABCD matrix so that the internal voltages stay within the range of the quantizer.

[abcd_scaled, umax] = scaleABCD(abcd, nlev);

To set up the simulation, define a range of input amplitudes to test, from very quiet to loud. Run simulation.

amp_db = -110:10:-10;        % Decibels relative to Full Scale (dBFS)
amp_lin = 10.^(amp_db/20);   % Convert dB to linear voltage
snr_sim = zeros(size(amp_db)); % Pre-allocate space for results
for i = 1:length(amp_db)
    % Generate a test sine wave at the current amplitude
    t = 0:N-1;
    u = amp_lin(i) * sin(2*pi*test_freq/N * t);

    % Run the Delta-Sigma Modulator Simulation
    % Returns 'v', which is the high-speed 1-bit output bitstream.
    v = simulateDSM(u, abcd_scaled, nlev);

    % Spectral Analysis:
    % 1. Apply a Hann window to prevent spectral leakage
    w = ds_hann(N);
    % 2. Perform the FFT
    V = fft(v .* w);
    % 3. Calculate SNR of the in-band portion
    % calculateSNR sums signal power at 'test_freq' and noise in remaining bins.
    snr_sim(i) = calculateSNR(V(1:fB), test_freq);
end

Predict the theoretical SNR. Calculate a peak value to anchor the predicted SNR curve.

peak_snr_theory = 10*log10( ((2*order+1)/(2*pi^(2*order))) * (OSR^(2*order+1)) );
snr_pred = peak_snr_theory + amp_db;

Plot the predicted and simulated SNR.

figure('Color', 'w', 'Name', 'Delta-Sigma Performance');

% Plot the Theoretical Limit (The Blue Line)
plot(amp_db, snr_pred, 'b-', 'LineWidth', 2); hold on;

% Plot the Actual Simulated Results (The Red Dots)
plot(amp_db, snr_sim, 'ro', 'MarkerFaceColor', 'r', 'MarkerSize', 8);

% Formatting the plot
grid on;
axis([-125 5 -20 120]); % Set fixed view for comparison
xlabel('Input Amplitude (dBFS)');
ylabel('SNR (dB)');
title(sprintf('Order %d Delta-Sigma Modulator (OSR=%d)', order, OSR));
legend('Predicted Theory (Ideal)', 'Simulated Bitstream', 'Location', 'SouthEast');

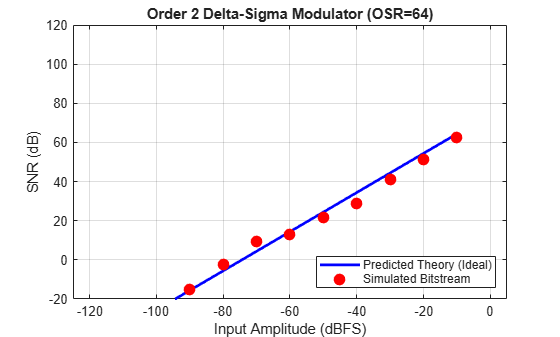

Figure Delta-Sigma Performance contains an axes object. The axes object with title Order 2 Delta-Sigma Modulator (OSR=64), xlabel Input Amplitude (dBFS), ylabel SNR (dB) contains 2 objects of type line. One or more of the lines displays its values using only markers These objects represent Predicted Theory (Ideal), Simulated Bitstream.

Input Arguments

collapse all

Input spectrum data, specified as a vector or array containing the frequency-domain coefficients. hwfft represents the in-band bins of the FFT of the output signal of the delta-sigma modulator.

Data Types: double

Input signal frequency adjusted to be an FFT bin, specified as a real scalar. f represents the location of the input test tone within the hwfft vector.

Data Types: double

Number of signal bins, specified as a positive integer scalar. nsig determines how many bins surrounding the peak index f are treated as signal power rather than noise. By default, the function assumes the signal power is contained within a three-bin window where nsig is set to 1. Increasing nsig by 1 adds one extra bin to each side of this window.

Data Types: double

Output Arguments

collapse all

Signal-to-noise ratio (SNR) of the delta-sigma modulator within the frequency range provided by the input spectrum, returned as a scalar.

Version History

Introduced in R2026a
