This example shows how to solve, using Simulink, an MPC problem in which some manipulated variables belong to a discrete set.
Fix the random generator seed for reproducibility.
Create a discrete-time strictly proper plant with 4 states, two inputs and one output.
plant = drss(4,1,2); plant.D = 0;
Increase the control authority of the first input, to better illustrate its control contribution.
Create an MPC controller with one second sampling time,
20 steps prediction horizon and
5 steps control horizon.
mpcobj = mpc(plant,0.1,20,5);
-->The "Weights.ManipulatedVariables" property of "mpc" object is empty. Assuming default 0.00000. -->The "Weights.ManipulatedVariablesRate" property of "mpc" object is empty. Assuming default 0.10000. -->The "Weights.OutputVariables" property of "mpc" object is empty. Assuming default 1.00000.
Specify the first manipulated variable as belonging to a discrete set of seven possible values. Note that you Could also specify it as an integer using the instruction
mpcobj.MV(1).Type = 'integer'; in which case the first manipulated variable will be constrained to be an integer.
mpcobj.MV(1).Type = [-1 -0.7 -0.3 0 0.2 0.5 1];
Use rate limits to enforce maximum increment and decrement values for the first manipulated variable.
mpcobj.MV(1).RateMin = -0.5; mpcobj.MV(1).RateMax = 0.5;
Set limits on the second manipulated variable, whose default type (continuous) has not been changed.
mpcobj.MV(2).Min = -2; mpcobj.MV(2).Max = 2;
Create an output reference signal equal to zero from steps
35 and equal to
0.6 before and after.
r = ones(1,50)*0.6; r(20:35) = 0;

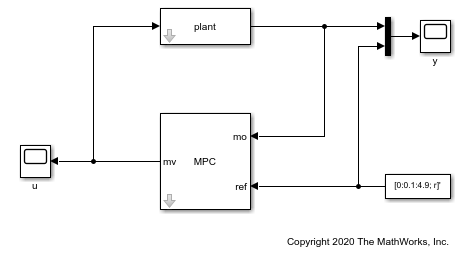

Create a Simulink closed loop simulation using the MPC Controller block, with the
mpcobj object passed as a parameter, to control the double integrator plant. For this example, open the pre-existing Simulink model
You can now run the model by clicking Run or by using the MATLAB command
-->No sample time provided for plant model. Assuming sample time = controller's sample time = 0.1. -->Assuming output disturbance added to measured output channel #1 is integrated white noise. -->The "Model.Noise" property of the "mpc" object is empty. Assuming white noise on each measured output channel.
ans = Simulink.SimulationOutput: tout: [51x1 double] SimulationMetadata: [1x1 Simulink.SimulationMetadata] ErrorMessage: [0x0 char]

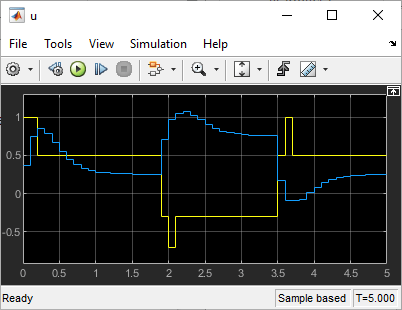

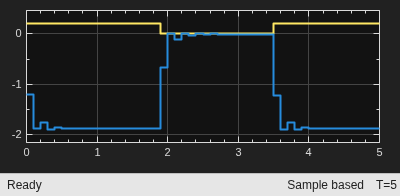

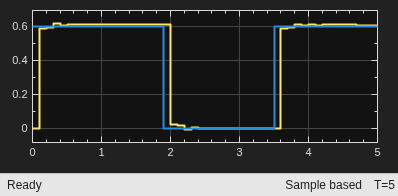

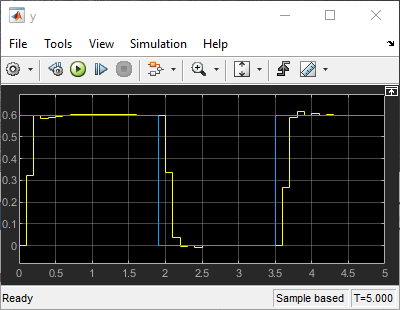

After the simulation, the plots of the two scopes show that the manipulated variable does not exceed the limit and the plant output tracks the reference signal after approximately half a second.
