How CustomDisplay Works

Steps to Display an Object

When displaying an object, MATLAB® determines the state of the object and calls the appropriate method for that state (see Object States That Affect Display).

For example, suppose obj is a valid scalar object of a class derived from CustomDisplay. If you type obj at the command line without terminating the statement with a semicolon:

>> obj

The following sequence results in the display of obj:

  1. MATLAB determines the class of obj and calls the disp method to display the object.

  2. disp calls size to determine if obj is scalar or nonscalar

  3. When obj is a scalar handle object, disp calls isvalid to determine if obj is the handle of a deleted object. Deleted handles in nonscalar arrays do not affect the display.

  4. disp calls the state handler method for an object of the state of obj. In this case, obj is a valid scalar that results in a call to:

  5. displayScalarObject calls the display part-builder methods to provide the respective header, property list, and footer.

    header = getHeader(obj);
    groups = getPropertyGroups(obj)
    footer = getFooter

MATLAB follows a similar sequence for nonscalar object arrays and empty object arrays.

In the case of scalar handles to deleted objects, disp calls the displayScalarHandleToDeletedObject method, which displays the default text for handles to deleted objects without calling any part-builder methods.

Methods Called for a Given Object State

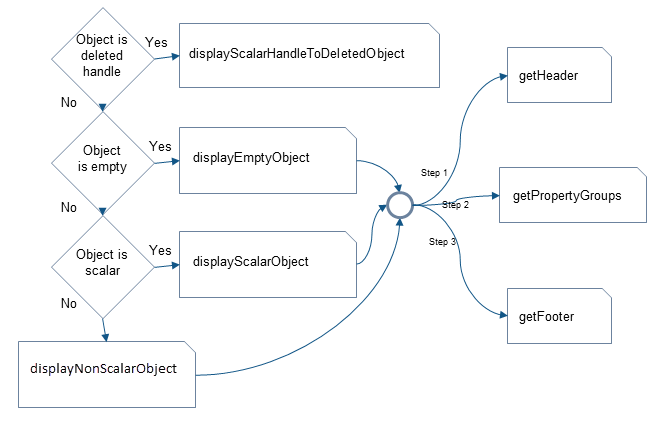

The following diagram illustrates the methods called to display an object that derives from CustomDisplay. The disp method calls the state handler method that is appropriate for the state of the object or object array being displayed.

Only an instance of a handle class can be in a state of scalar handle to a deleted object.

Decision chart for which display methods are called
