Set UTM Parameters Interactively

The easiest way to use the UTM projection is through a graphical user interface. You can create or modify a UTM area of interest with the axesmui projection control panel, and get further assistance form the utmzoneui control panel.

  1. You can Shift+click in the window of an axesm-based map, or type axesmui to display the projection control panel. Here you start from scratch:

    axesm utm

    The Map Projection field is set to cyln: Universal Transverse Mercator (UTM).


    For UTM and UPS maps, the Aspect field is set to normal and cannot be changed. If you attempt to specify transverse, an error results.

  2. Click the Zone button to open the utmzoneui panel. Click the map near your area of interest to pick the zone:

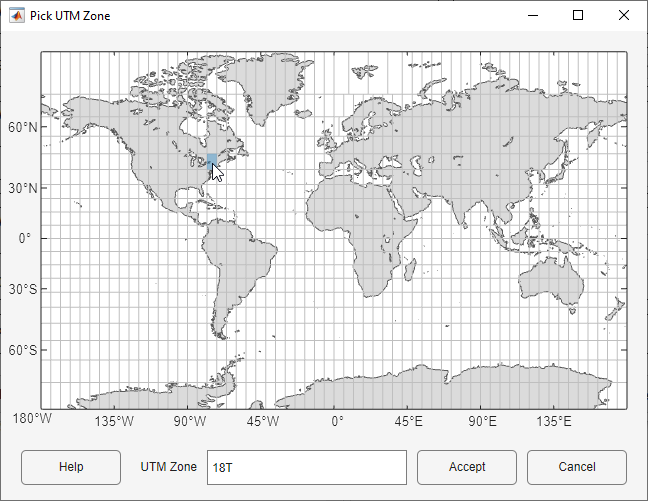

    Pick UTM Zone dialog box

    Note that while you can open the utmzoneui control panel from the command line, you then have to manually update the figure with the zone name it returns with a setm command:

  3. Click the Accept button.

    The utmzoneui panel closes, and the zone field is set to the one you picked. The map limits are updated accordingly, and the geoid parameters are automatically set to an appropriate ellipsoid definition for that zone. You can override the default choice by selecting another ellipsoid from the list or by typing the parameters in the Geoid field.

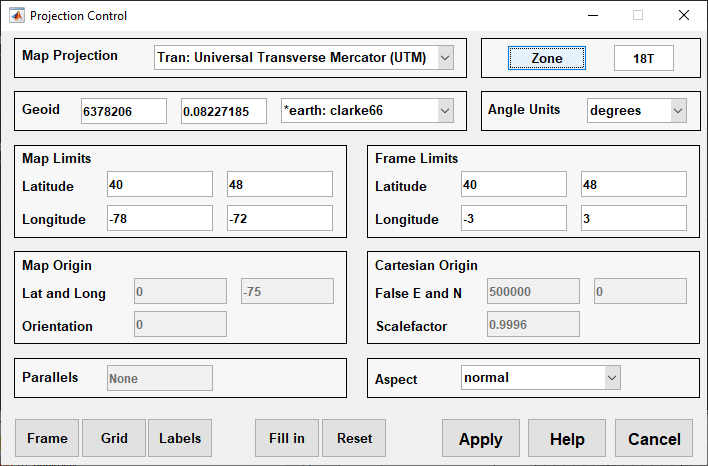

    Projection Control dialog box

  4. Click Apply to close the projection control panel.

    The projection is then ready for projection calculations or map display commands.

  5. Now view a choropleth base map from the usstatehi shapefile for the area within the zone that you just selected:

    states = shaperead('usastatehi.shp', 'UseGeoCoords', true);
    faceColors = makesymbolspec('Polygon',...
        {'INDEX', [1 numel(states)],...
         'FaceColor', polcmap(numel(states))});
    geoshow(states,'DisplayType', 'polygon',...
        'SymbolSpec', faceColors)

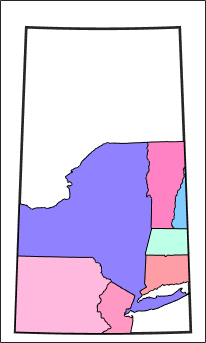

    Choropleth map for an area within a UTM zone

    What you see depends on the zone you selected. The preceding display is for zone 18T, which contains portions of New England and the Middle Atlantic states.

You can also calculate projected UTM grid coordinates from latitudes and longitudes:

[latlim, lonlim] = utmzone('15S')
latlim =

    32    40

lonlim =

   -96   -90
mstruct = gcm;
[x,y] = projfwd(mstruct, latlim, lonlim)
x =

   1.0e+06 *

   -1.5029   -0.7829

y =

   1.0e+06 *

    3.7403    4.5369
