LTE Receiver Using Software-Defined Radio

This example uses:

LTE Toolbox LTE Toolbox
Communications Toolbox Support Package for Analog Devices ADALM-PLUTO Radio Communications Toolbox Support Package for Analog Devices ADALM-PLUTO Radio
Communications Toolbox Support Package for USRP Embedded Series Radio Communications Toolbox Support Package for USRP Embedded Series Radio
Communications Toolbox Support Package for USRP Radio Communications Toolbox Support Package for USRP Radio
Wireless Testbench Support Package for NI USRP Radios Wireless Testbench Support Package for NI USRP Radios

This example shows how to recover the master information block (MIB) and basic system information from an over-the-air LTE downlink (DL) waveform. This example also shows how to receive an LTE waveform using a software-defined radio (SDR) with single or multiple antennas.

Introduction

In LTE, the broadcast channel (BCH) carries the MIB. The MIB provides basic cell-wide settings, including the system bandwidth and frame number. This example decodes the MIB from a burst of captured frames, and then decodes the control format indicator (CFI) for each subframe, which informs the user equipment (UE) of the control region size. The example then continues to decode the physical downlink control channel (PDCCH). A UE requires these steps to be associated with a cell. For an example showing the procedure for cell search and system information acquisition, see Cell Search, MIB and SIB1 Recovery.

An LTE transmission contains the BCH in the middle six resource blocks (RBs). Therefore, the captured waveform bandwidth needs to be only 1.92 MHz to decode the MIB, regardless of the cell bandwidth. Even though the MIB exists only in subframe 0 of a frame, this example demodulates each entire frame for visualization and analysis.

Required Hardware and Software

By default, this example runs using recorded data from a file. Optionally, you can receive signals over-the-air. For this, you also need one of the following:

ADALM-PLUTO radio and Communications Toolbox Support Package for Analog Devices® ADALM-PLUTO Radio. For more information, see ADALM-Pluto Radio.
USRP™ E310/E312 radio and Communications Toolbox Support Package for USRP™ Embedded Series Radio. For more information, see USRP Embedded Series Radio.
USRP™ 200 series radio and Communications Toolbox Support Package for USRP Radio. For more information, see USRP Radio and Supported Hardware and Required Software.
USRP™ N3xx series or X series radio and Wireless Testbench Support Package for NI USRP Radios. For more information, see Supported Radio Devices (Wireless Testbench).

Example Setup

Before running the example, ensure that you have installed the appropriate support package for the SDR that you intend to use and that you have set up the hardware.

The ReceiveOnSDR field of the rxsim structure determines whether the example receives a waveform off the air or imports a waveform from a MAT file.

rxsim.ReceiveOnSDR = false;

If you use an SDR for reception of LTE waveforms and the SDR detects no LTE waveforms, you can generate and transmit an LTE waveform by using the LTE Transmitter Using Software Defined Radio.

The parameters defined in the rxsim structure control the receiver. The sample rate of the receiver is 1.92 MHz, which is the standard sample rate for capturing an LTE bandwidth of 6 RBs. 6 RBs equates to a signal bandwidth of 1.4 MHz. To capture more frames, increase the rxsim.NumCaptures parameter value. By default, the example captures five LTE frames with each execution.

Specify the file name of a precaptured waveofrm in the fileName variable. Confirm that the MAT file contains a numCaptures variable, a radioSampleRate variable, and a capturedData variable. Each column of captureData represents one capture antenna and the third dimension of captureData represents the number of captures.

fileName = "capturedLTERCDLWaveform.mat";

If you select the ReceiveOnSDR field of the rxsim structure, configure the variables required for SDR reception. If you use an SDR device capable of multi-channel reception, try increasing rxsim.NumAntennas to a value supported by your SDR. If you are using an NI USRP radio with Wireless Testbench, click Update and select your saved radio setup configuration.

if rxsim.ReceiveOnSDR

    deviceNameOptions = hSDRBase.getDeviceNameOptions;
    rxsim.SDRDeviceName        = deviceNameOptions(1); % SDR that is used for waveform reception
    rxsim.Gain                 = 45; % Valid values of gain include 'AGC Fast Attack', 'AGC Slow Attack', or an integer value for the USRP Embedded, or ADALM-PLUTO radios. USRP radios only support integer values.
    rxsim.RadioSampleRate      = 1.92e6; % Configured for 1.92e6 Hz capture bandwidth
    rxsim.RadioCenterFrequency = 806000000; % Center frequency in Hz
    rxsim.FramesPerCapture     = 8; % Number of contiguous LTE frames to capture
    rxsim.NumCaptures          = 1; % Number of captures for the SDR to perform
    rxsim.NumAntennas          = 1; % Number of receive antennas

    % Derived parameter
    captureTime = milliseconds((rxsim.FramesPerCapture + 1)*10); % Increase capture frame by 1 to account for a full frame not being captured

else
    rx = load(fileName);

    rxsim.NumCaptures = rx.numCaptures;
    rxsim.RadioSampleRate = rx.radioSampleRate;

end

Receiver Design: System Architecture

Follow these steps to understand how the LTE receiver functions.

If using an SDR, capture a suitable number of frames of an LTE signal.
Determine and correct the frequency offset of the received signal.
Determine the cell identity by performing a blind cell search.
Synchronize the captured signal to the start of an LTE frame.
Extract an LTE resource grid by OFDM demodulating the received signal.
Perform a channel estimation for the received signal.
Determine the cell-wide settings by decoding the MIB for each captured frame.
Decode the CFI and PDCCH for each subframe within the captured signal.

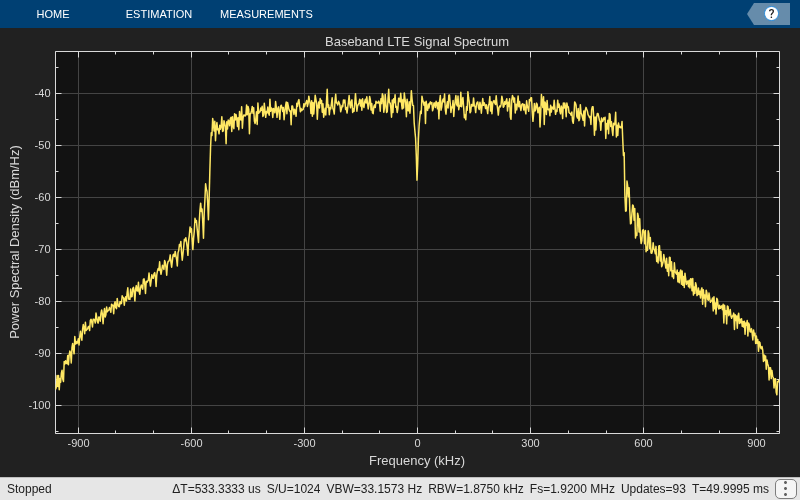

This example plots the power spectral density of the captured waveform and shows visualizations of the received LTE resource grid, estimated channel, and equalized PBCH symbols for each frame.

Configure SDR Hardware

This example communicates with the radio hardware by using the hSDRReceiver function to help create an object pertaining to the selected radio. For example, the USRP 200 series radios use the comm.SDRuReceiver object.

If you are capturing an LTE waveform with an SDR, set the relevant properties in the sdrReceiver object with the values configured in the rxsim structure.

if rxsim.ReceiveOnSDR
    sdrReceiver = hSDRReceiver(rxsim.SDRDeviceName);
    sdrReceiver.CenterFrequency = rxsim.RadioCenterFrequency;
    sdrReceiver.SampleRate = rxsim.RadioSampleRate;
    sdrReceiver.Gain = rxsim.Gain;
    sdrReceiver.ChannelMapping = 1:rxsim.NumAntennas;
end

Set up the spectrum analyzer to display the received waveform.

spectrumScope = spectrumAnalyzer( ...
    SampleRate=rxsim.RadioSampleRate, ...
    SpectrumType="power-density", ...
    Title="Baseband LTE Signal Spectrum", ...
    YLabel="Power Spectral Density");

LTE Setup

The enb structure contains the parameters for decoding the MIB. The example assumes frequency division duplexing (FDD), a normal cyclic prefix length, and four cell-specific reference ports (CellRefP) for the MIB decoding as these values are unknown. The MIB provides the actual value of CellRefP.

enb.DuplexMode = "FDD";
enb.CyclicPrefix = "Normal";
enb.CellRefP = 4;

The sample rate of the signal controls the captured bandwidth and the number of RBs in the waveform. The example uses a lookup table to determine the number of RBs.

% Bandwidth: {1.4 MHz, 3 MHz, 5 MHz, 10 MHz, 20 MHz}
SampleRateLUT = [1.92 3.84 7.68 15.36 30.72]*1e6;
NDLRBLUT = [6 15 25 50 100];
enb.NDLRB = NDLRBLUT(SampleRateLUT==rxsim.RadioSampleRate);
if rxsim.ReceiveOnSDR
    fprintf("\nSDR hardware sampling rate configured to capture %d LTE RBs.\n",enb.NDLRB);
end

The cec structure controls the channel estimation parameters. To minimize the effect of noise on pilot estimates, use a conservative 9-by-9 pilot averaging window.

cec.FreqWindow = 9;               % Frequency averaging window in resource elements (REs)
cec.TimeWindow = 9;               % Time averaging window in REs
cec.InterpType = "Cubic";         % Cubic interpolation
cec.PilotAverage = "UserDefined"; % Pilot averaging method
cec.InterpWindow = "Centred";     % Interpolation windowing method
cec.InterpWinSize = 3;            % Interpolate up to 3 subframes simultaneously

Signal Capture and Processing

To capture and decode bursts of LTE frames, the example uses a while loop. For each captured frame, the example decodes the MIB, and if decoding is successful, it decodes the CFI and the PDCCH for each subframe. For each successfully decoded subframe, the example displays the channel estimate and equalized PDCCH symbols.

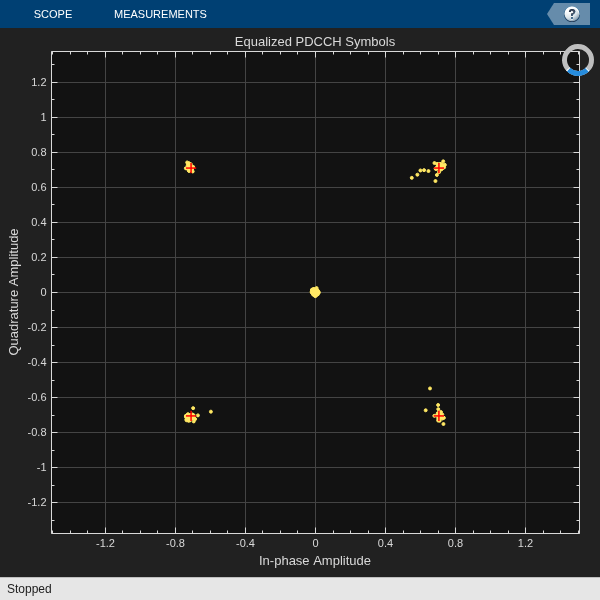

Set up the constellation diagram viewer for equalized PDCCH symbols and the figure handle for the channel estimate plots.

constellation = comm.ConstellationDiagram("Title","Equalized PDCCH Symbols") ;
channelEstimatePlot = figure("Visible","Off");

Store the default decoding parameters.

enbDefault = enb;
samplesPerFrame = 10e-3*rxsim.RadioSampleRate; % LTE frame period is 10 ms

Perform LTE receiver processing.

for i = 1:rxsim.NumCaptures
    % Set default LTE parameters
    enb = enbDefault;

    % rxWaveform holds |rxsim.FramesPerCapture| number of consecutive
    % frames worth of contiguous baseband LTE samples.
    if rxsim.ReceiveOnSDR
        % SDR Capture
        fprintf("\nStarting a new RF capture.\n")
        rxWaveform = capture(sdrReceiver,captureTime);
    else
        rxWaveform = rx.capturedData(:,:,i);
    end

    % Show power spectral density of captured burst
    spectrumScope(rxWaveform);
    release(spectrumScope);

    % Perform frequency offset correction
    frequencyOffset = lteFrequencyOffset(enb,rxWaveform);
    rxWaveform = lteFrequencyCorrect(enb,rxWaveform,frequencyOffset);
    fprintf("Corrected a frequency offset of %g Hz.\n",frequencyOffset)

    % Perform the blind cell search to obtain cell identity and timing
    % offset Use "PostFFT" secondary synchronization signal (SSS) detection
    % method to improve speed
    cellSearch.SSSDetection = "PostFFT";
    cellSearch.MaxCellCount = 1;
    [NCellID,frameOffset] = lteCellSearch(enb,rxWaveform,cellSearch);
    fprintf("Detected a cell identity of %i.\n", NCellID);
    enb.NCellID = NCellID; % From lteCellSearch

    % Sync the captured samples to the start of an LTE frame, and trim off
    % any samples that are part of an incomplete frame.
    rxWaveform = rxWaveform(frameOffset+1:end,:);
    tailSamples = mod(length(rxWaveform),samplesPerFrame);
    rxWaveform = rxWaveform(1:end-tailSamples,:);
    enb.NSubframe = 0;

    % OFDM demodulation
    rxGrid = lteOFDMDemodulate(enb,rxWaveform);

    % Perform channel estimation
    [hest,nest] = lteDLChannelEstimate(enb,cec,rxGrid);

    sfDims = lteResourceGridSize(enb);
    Lsf = sfDims(2); % OFDM symbols per subframe
    LFrame = 10*Lsf; % OFDM symbols per frame
    numFullFrames = length(rxWaveform)/samplesPerFrame;

    % For each frame, decode the MIB and CFI
    for frame = 0:(numFullFrames-1)
        fprintf("\nPerforming MIB decode for frame %i of %i in burst...\n", ...
            frame+1,numFullFrames)

        % Extract subframe 0 from each frame of the received resource grid
        % and channel estimate.
        enb.NSubframe = 0;
        rxsf = rxGrid(:,frame*LFrame+(1:Lsf),:);
        hestsf = hest(:,frame*LFrame+(1:Lsf),:,:);

        % PBCH demodulation. Extract REs corresponding to the PBCH from the
        % received grid and channel estimate grid for demodulation. Assume
        % 4 cell-specific reference signals for PBCH decode as initially
        % the value is unknown.
        enb.CellRefP = 4;
        pbchIndices = ltePBCHIndices(enb);
        [pbchRx,pbchHest] = lteExtractResources(pbchIndices,rxsf,hestsf);
        [~,~,nfmod4,mib,CellRefP] = ltePBCHDecode(enb,pbchRx,pbchHest,nest);

        % If PBCH decoding is not successful, go to next iteration of for-
        % loop
        if ~CellRefP
            fprintf("  No PBCH detected for frame = %d.\n",frame);
            continue;
        end

        % With successful PBCH decoding, decode the MIB and obtain system
        % information including system bandwidth
        enb = lteMIB(mib,enb);
        enb.CellRefP = CellRefP; % From ltePBCHDecode
        % Incorporate the nfmod4 value output from the function
        % ltePBCHDecode, as the NFrame value established from the MIB is
        % the system frame number modulo 4.
        enb.NFrame = enb.NFrame+nfmod4;
        fprintf("  Successful MIB Decode.\n")
        fprintf("  Frame number: %d.\n",enb.NFrame);

        % The eNodeB transmission bandwidth can be greater than the
        % captured bandwidth, so limit the bandwidth for processing
        enb.NDLRB = min(enbDefault.NDLRB,enb.NDLRB);

        % Process subframes within frame
        for sf = 0:9
            % Extract subframe
            enb.NSubframe = sf;
            rxsf = rxGrid(:,frame*LFrame+sf*Lsf+(1:Lsf));

            % Perform channel estimation with the correct number of
            % CellRefP
            [hestsf,nestsf] = lteDLChannelEstimate(enb,cec,rxsf);

            % Physical CFI channel (PCFICH) demodulation Extract REs
            % corresponding to the PCFICH from the received grid and
            % channel estimate for demodulation.
            pcfichIndices = ltePCFICHIndices(enb);
            [pcfichRx,pcfichHest] = lteExtractResources(pcfichIndices,rxsf,hestsf);
            [cfiBits,recsym] = ltePCFICHDecode(enb,pcfichRx,pcfichHest,nestsf);

            % CFI decoding
            enb.CFI = lteCFIDecode(cfiBits);
            fprintf("    Subframe %d, decoded CFI value: %d.\n",sf,enb.CFI);

            % PDCCH demodulation. Extract REs corresponding to the PDCCH
            % from the received grid and channel estimate for demodulation.
            pdcchIndices = ltePDCCHIndices(enb);
            [pdcchRx,pdcchHest] = lteExtractResources(pdcchIndices,rxsf,hestsf);
            [pdcchBits,pdcchEq] = ltePDCCHDecode(enb,pdcchRx,pdcchHest,nestsf);

            release(constellation);
            constellation(pdcchEq);
        end

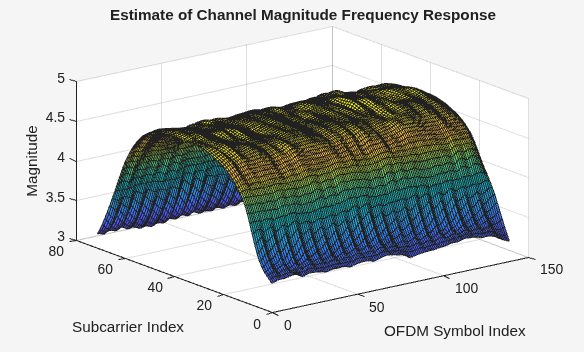

        % Plot channel estimate between CellRefP 0 and the receive antenna
        focalFrameIdx = frame*LFrame+(1:LFrame);
        figure(channelEstimatePlot);
        surf(abs(hest(:,focalFrameIdx,1,1)));
        xlabel("OFDM Symbol Index");
        ylabel("Subcarrier Index");
        zlabel("Magnitude");
        title("Estimate of Channel Magnitude Frequency Response");
    end
end

Corrected a frequency offset of -2.48294 Hz.

Detected a cell identity of 17.

Performing MIB decode for frame 1 of 4 in burst...

  Successful MIB Decode.

  Frame number: 705.

    Subframe 0, decoded CFI value: 3.
    Subframe 1, decoded CFI value: 3.
    Subframe 2, decoded CFI value: 3.
    Subframe 3, decoded CFI value: 3.
    Subframe 4, decoded CFI value: 3.
    Subframe 5, decoded CFI value: 3.
    Subframe 6, decoded CFI value: 3.
    Subframe 7, decoded CFI value: 3.
    Subframe 8, decoded CFI value: 3.
    Subframe 9, decoded CFI value: 3.

Performing MIB decode for frame 2 of 4 in burst...

  Successful MIB Decode.

  Frame number: 706.

    Subframe 0, decoded CFI value: 3.
    Subframe 1, decoded CFI value: 3.
    Subframe 2, decoded CFI value: 3.
    Subframe 3, decoded CFI value: 3.
    Subframe 4, decoded CFI value: 3.
    Subframe 5, decoded CFI value: 3.
    Subframe 6, decoded CFI value: 3.
    Subframe 7, decoded CFI value: 3.
    Subframe 8, decoded CFI value: 3.
    Subframe 9, decoded CFI value: 3.

Performing MIB decode for frame 3 of 4 in burst...

  Successful MIB Decode.

  Frame number: 707.

    Subframe 0, decoded CFI value: 3.
    Subframe 1, decoded CFI value: 3.
    Subframe 2, decoded CFI value: 3.
    Subframe 3, decoded CFI value: 3.
    Subframe 4, decoded CFI value: 3.
    Subframe 5, decoded CFI value: 3.
    Subframe 6, decoded CFI value: 3.
    Subframe 7, decoded CFI value: 3.
    Subframe 8, decoded CFI value: 3.
    Subframe 9, decoded CFI value: 3.

Performing MIB decode for frame 4 of 4 in burst...

  Successful MIB Decode.

  Frame number: 700.

    Subframe 0, decoded CFI value: 3.
    Subframe 1, decoded CFI value: 3.
    Subframe 2, decoded CFI value: 3.
    Subframe 3, decoded CFI value: 3.
    Subframe 4, decoded CFI value: 3.
    Subframe 5, decoded CFI value: 3.
    Subframe 6, decoded CFI value: 3.
    Subframe 7, decoded CFI value: 3.
    Subframe 8, decoded CFI value: 3.
    Subframe 9, decoded CFI value: 3.

Figure contains an axes object. The axes object with title Estimate of Channel Magnitude Frequency Response, xlabel OFDM Symbol Index, ylabel Subcarrier Index contains an object of type surface.

if rxsim.ReceiveOnSDR
    release(sdrReceiver);
end
release(constellation);  % Release constellation diagram object

Further Exploration

Transmit a standard compliant LTE waveform by using the LTE Transmitter Using Software Defined Radio. You can then decode the waveform using this example. In the companion example, try changing the cell identity and initial frame number, and observe the detected cell identity and frame number in this example. If using a supported multi-channel SDR, try increasing the number of antennas in the companion example to visualize the benefit of using multi-channel transmission/reception.
This example only decodes basic system information. For an example of how to robustly decode more physical channels, see the Cell Search, MIB and SIB1 Recovery example.
