Dishwasher Fault Analysis

This example shows how to model a dishwasher and introduce a fault in its operation. Observe the system response when a fault occurs in the water heater during operation. The electric motor switches off, and the dishwasher aborts operation.

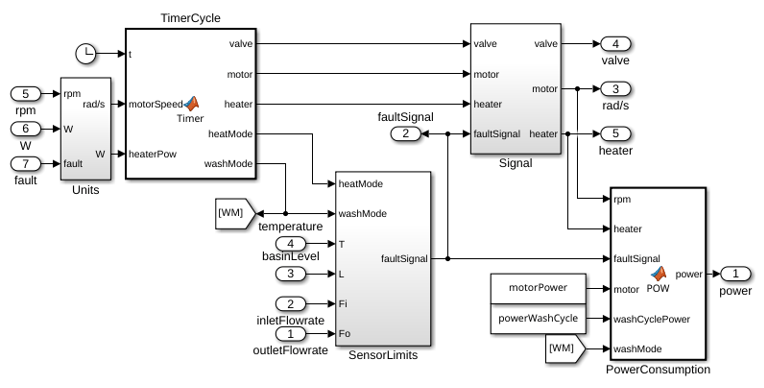

Machine Timer Subsystem

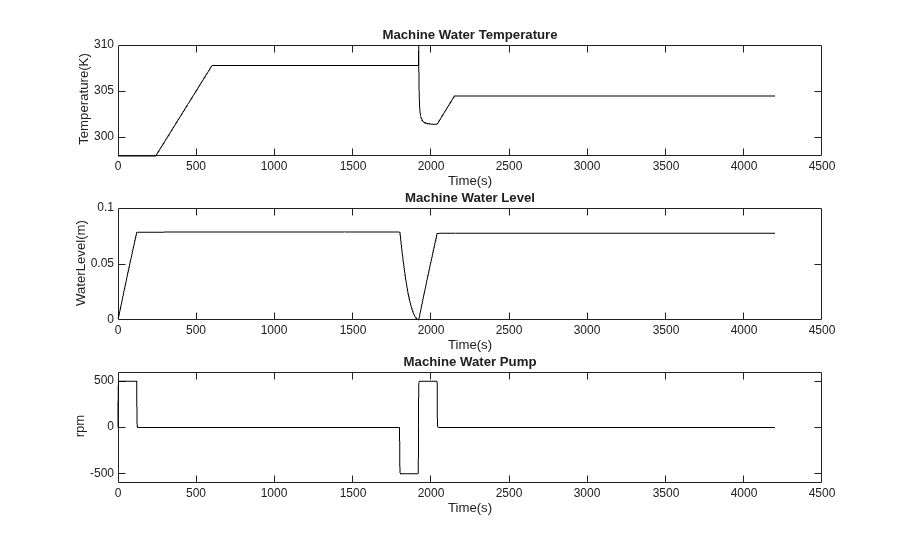

Simulation Results from Simscape™ Logging
