2-Position Valve Actuator
This example shows two valve actuators with different values for switching-on time and switching-off time. Valve Actuator 1 is set to start from the retracted position, while Valve Actuator 2 from the extended position. Both actuators are driven with the same pulse signal.
Model
Simulation Results from Simscape Logging

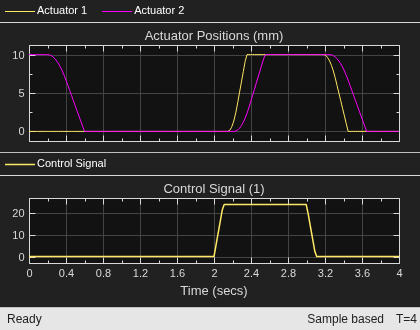

The plot below shows the behavior of two valve actuators with different values for switching-on time and switching-off time.
