# HDL Code Generation from a Non-Restoring Square Root System Object

This example shows how to check, generate and verify HDL code from MATLAB® code that instantiates a non-restoring square root System object™.

### MATLAB Design

The MATLAB code used in this example is a non-restoring square root engine suitable for implementation in an FPGA or ASIC. The engine uses a multiplier-free minimal area implementation based on [1] decision convolutional decoding, implemented as a System object. This example also shows a MATLAB test bench that tests the engine.

design_name = 'mlhdlc_sysobj_nonrestsqrt.m'; testbench_name = 'mlhdlc_sysobj_nonrestsqrt_tb.m'; sysobj_name = 'mlhdlc_msysobj_nonrestsqrt.m';

Look at the MATLAB design.

type(design_name);

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% % MATLAB design: Non-restoring Square Root % % Key Design pattern covered in this example: % (1) Using a user-defined system object % (2) Call the object only once per design iteration %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%% function [Q_o,Vld_o] = mlhdlc_sysobj_nonrestsqrt(D_i, Init_i) % Copyright 2014-2015 The MathWorks, Inc. persistent hSqrt; if isempty(hSqrt) hSqrt = mlhdlc_msysobj_nonrestsqrt(); end [Q_o,Vld_o] = hSqrt(D_i,Init_i); end

type(testbench_name);

% Nonrestoring Squareroot Testbench % Copyright 2014-2015 The MathWorks, Inc. % Generate some random data rng('default'); % set the random number generator to a consistent state nsamp = 100; %number of samples nbits = 32; % fixed-point word length nfrac = 31; % fixed-point fraction length data_i = fi(rand(1,nsamp), numerictype(0,nbits,nfrac)); % clear any persistent variables in the HDL function clear mlhdlc_sysobj_nonrestsqrt % Determine the "golden" sqrt results data_go = sqrt(data_i); % Commands for the sqrt engine LOAD_DATA = true; CALC_DATA = false; % Pre-allocate the result array data_o = zeros(1,nsamp, 'like', data_go); % Load in a sample, then iterate until the results are ready cyc_cnt = 0; for i = 1:nsamp % Load the new sample into the sqrt engine [~, vld] = mlhdlc_sysobj_nonrestsqrt(data_i(i),LOAD_DATA); cyc_cnt = cyc_cnt + 1; while(vld == false) % Iterate until the result has been found [data_o(i), vld] = mlhdlc_sysobj_nonrestsqrt(data_i(i),CALC_DATA); cyc_cnt = cyc_cnt + 1; end end % find the integer representation of the result data idt = numerictype(0,ceil(nbits/2),0); % find the error in terms of integer bits ierr = abs(double(reinterpretcast(data_o,idt))-double(reinterpretcast(data_go,idt))); % find the error in terms of real-world values derr = abs(double(data_o)- double(data_go)); pct_err = 100*derr ./ double(data_go); fprintf('Maximum Error: %d (%0.3f %%)\n', max(derr), max(pct_err)); fprintf('Maximum Error (as unsigned integer): %d\n', max(ierr)); fprintf('Number of cycles: %d ( %d per sample)\n', cyc_cnt, cyc_cnt / nsamp); %EOF

### Simulate the Design

Simulate the design with the testbench prior to code generation to make sure there are no runtime errors.

mlhdlc_sysobj_nonrestsqrt_tb

Maximum Error: 3.051758e-05 (0.028 %) Maximum Error (as unsigned integer): 1 Number of cycles: 2000 ( 20 per sample)

### Hardware Implementation of the Non-Restoring Square Root Algorithm

This algorithm implements the square root operation in a minimal area by using a single adder/subtractor with no mux (compared to a restoring algorithm that requires a mux). The square root is calculated using a series of shifts and adds/subs, so uses no multipliers (compared to other implementations which require a multiplier).

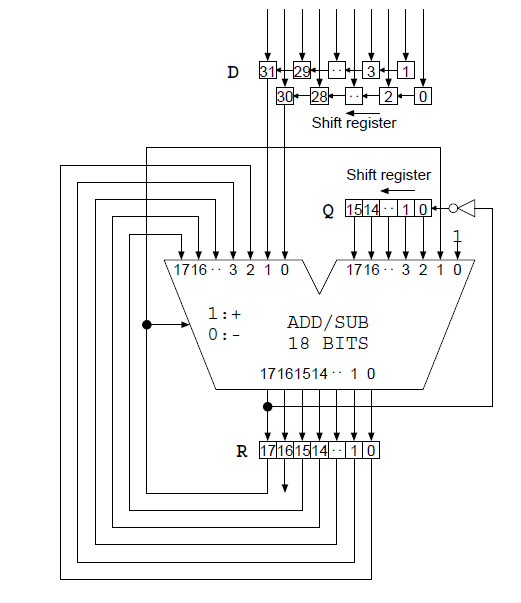

The overall architecture of the algorithm is shown below, as described in [1].

This implementation of the algorithm uses a minimal area approach that requires multiple cycles to calculate each result. The overall calculation time can be approximated as [Input Word Length / 2], with a few cycles of overhead to load the incoming data.

### Create a New HDL Coder Project

To create a new project, enter the following command:

coder -hdlcoder -new mlhdlc_nonrestsqrt

Next, add the file `mlhdlc_sysobj_nonrestsqrt.m`

to the project as the MATLAB function and `mlhdlc_sysobj_nonrestsqrt_tb.m`

as the MATLAB test bench.

For a more complete tutorial on creating and populating MATLAB HDL Coder projects, see Get Started with MATLAB to HDL Workflow.

### Skip Fixed-Point Conversion

As the design is already in fixed-point, we do not need to perform automatic conversion.

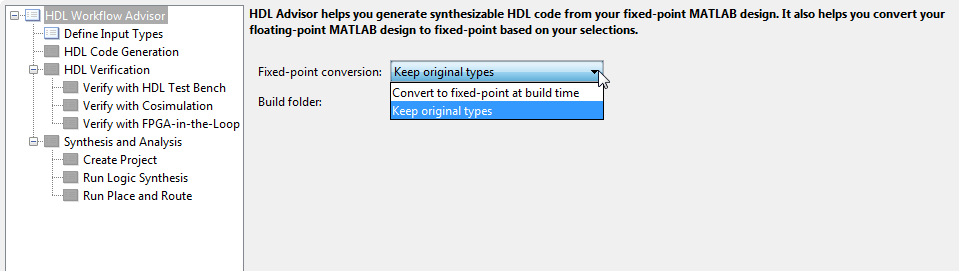

Launch the HDL Advisor and choose `Keep original types`

on the option **Fixed-point conversion**.

### Run HDL Code Generation

Launch the Workflow Advisor. In the Workflow Advisor, right-click the **Code Generation** step and choose the option **Run to selected task** to run all the steps from the beginning through HDL code generation.

Examine the generated HDL code by clicking the links in the log window.

### Supported System objects

For a list of System objects supported for HDL code generation, see Predefined System Objects Supported for HDL Code Generation.

### References

[1] Li, Y. and Chu, W. (1996) "A New Non-Restoring Square Root Algorithm and Its VLSI Implementations". IEEE International Conference on Computer Design: VLSI in Computers and Processors, ICCD '96 Austin, Texas USA (7-9 October, 1996), pp. 538-544. doi: 10.1109/ICCD.1996.563604
