A regression model with ARIMA errors has the following general form
(*t* = 1,...,*T*)

$$\begin{array}{c}{y}_{t}=c+{X}_{t}\beta +{u}_{t}\\ a\left(L\right)A\left(L\right){\left(1-L\right)}^{D}\left(1-{L}^{s}\right){u}_{t}=b\left(L\right)B\left(L\right){\epsilon}_{t},\end{array}$$ | (1) |

*t*= 1,...,*T*.*y*is the response series._{t}*X*is row_{t}*t*of*X*, which is the matrix of concatenated predictor data vectors. That is,*X*is observation_{t}*t*of each predictor series.*c*is the regression model intercept.*β*is the regression coefficient.*u*is the disturbance series._{t}*ε*is the innovations series._{t}$${L}^{j}{y}_{t}={y}_{t-j}.$$

$$a\left(L\right)=\left(1-{a}_{1}L-\mathrm{...}-{a}_{p}{L}^{p}\right),$$ which is the degree

*p*, nonseasonal autoregressive polynomial.$$A\left(L\right)=\left(1-{A}_{1}L-\mathrm{...}-{A}_{{p}_{s}}{L}^{{p}_{s}}\right),$$ which is the degree

*p*, seasonal autoregressive polynomial._{s}$${\left(1-L\right)}^{D},$$ which is the degree

*D*, nonseasonal integration polynomial.$$\left(1-{L}^{s}\right),$$ which is the degree

*s*, seasonal integration polynomial.$$b\left(L\right)=\left(1+{b}_{1}L+\mathrm{...}+{b}_{q}{L}^{q}\right),$$ which is the degree

*q*, nonseasonal moving average polynomial.$$B\left(L\right)=\left(1+{B}_{1}L+\mathrm{...}+{B}_{{q}_{s}}{L}^{{q}_{s}}\right),$$ which is the degree

*q*, seasonal moving average polynomial._{s}

If you specify that

*D*=*s*= 0 (i.e., you do not indicate seasonal or nonseasonal integration), then every parameter is identifiable. In other words, the likelihood objective function is sensitive to a change in a parameter, given the data.If you specify that

*D*> 0 or*s*> 0, and you want to estimate the intercept,*c*, then*c*is not identifiable.

You can show that this is true.

Consider Equation 1. Solve for

*u*in the second equation and substitute it into the first._{t}$${y}_{t}=c+{X}_{t}\beta +{{\rm H}}^{-1}(L){\rm N}(L){\epsilon}_{t},$$

where

$${\rm H}(L)=a(L){(1-L)}^{D}A(L)(1-{L}^{s}).$$

$${\rm N}(L)=b(L)B(L).$$

The likelihood function is based on the distribution of

*ε*. Solve for_{t}*ε*._{t}$${\epsilon}_{t}={{\rm N}}^{-1}(L){\rm H}(L){y}_{t}+{{\rm N}}^{-1}(L){\rm H}(L)c+{{\rm N}}^{-1}(L){\rm H}(L){X}_{t}\beta .$$

Note that

*L*^{j}*c*=*c*. The constant term contributes to the likelihood as follows.$$\begin{array}{c}{{\rm N}}^{-1}(L){\rm H}(L)c={{\rm N}}^{-1}(L)a(L)A(L){(}^{1}(1-{L}^{s})c\\ ={{\rm N}}^{-1}(L)a(L)A(L){(}^{1}(c-c)\\ =0\end{array}$$

or

$$\begin{array}{c}{{\rm N}}^{-1}(L){\rm H}(L)c={{\rm N}}^{-1}(L)a(L)A(L)(1-{L}^{s}){(}^{1}c\\ ={{\rm N}}^{-1}(L)a(L)A(L)(1-{L}^{s}){(}^{1}(1-L)c\\ ={{\rm N}}^{-1}(L)a(L)A(L)(1-{L}^{s}){(}^{1}(c-c)\\ =0.\end{array}$$

Therefore, when the ARIMA error model is integrated, the likelihood objective
function based on the distribution of *ε _{t}*
is invariant to the value of

In general, the effective constant in the equivalent ARIMAX representation of a
regression model with ARIMA errors is a function of the compound autoregressive
coefficients and the original intercept *c*, and incorporates a
nonlinear constraint. This constraint is seamlessly incorporated for applications
such as Monte Carlo simulation of integrated models with nonzero intercepts.
However, for estimation, the ARIMAX model is unable to identify the constant in the
presence of an integrated polynomial, and this results in spurious or unusual
parameter estimates.

You should exclude an intercept from integrated models in most applications.

As an illustration, consider the regression model with ARIMA(2,1,1) errors without predictors

$$\begin{array}{c}{y}_{t}=0.5+{u}_{t}\\ \left(1-0.8L+0.4{L}^{2}\right)(1-L){u}_{t}=(1+0.3L){\epsilon}_{t},\end{array}$$ | (2) |

$$\begin{array}{c}{y}_{t}=0.5+{u}_{t}\\ \left(1-1.8L+1.2{L}^{2}-0.4{L}^{3}\right){u}_{t}=(1+0.3L){\epsilon}_{t}.\end{array}$$ | (3) |

You can rewrite Equation 3 using substitution and some manipulation

$${y}_{t}=\left(1-1.8+1.2-0.4\right)0.5+1.8{y}_{t-1}-1.2{y}_{t-2}+0.4{y}_{t-3}+{\epsilon}_{t}+0.3{\epsilon}_{t-1}.$$

Note that

$$\left(1-1.8+1.2-0.4\right)0.5=0(0.5)=0.$$

Therefore, the regression model with ARIMA(2,1,1) errors in Equation 3 has an ARIMA(2,1,1) model representation

$${y}_{t}=1.8{y}_{t-1}-1.2{y}_{t-2}+0.4{y}_{t-3}+{\epsilon}_{t}+0.3{\epsilon}_{t-1}.$$

You can see that the constant is not present in the model (which implies its value is 0), even though the value of the regression model with ARIMA errors intercept is 0.5.

You can also simulate this behavior. Start by specifying the regression model with ARIMA(2,1,1) errors in Equation 3.

Mdl = regARIMA('D',1,'AR',{0.8 -0.4},'MA',0.3,... 'Intercept',0.5,'Variance', 0.2);

Simulate 1000 observations.

rng(1); T = 1000; y = simulate(Mdl, T);

Fit `Mdl`

to the data.

ToEstMdl = regARIMA('ARLags',1:2,'MALags',1,'D',1);... % "Empty" model to pass into estimate [EstMdl,EstParamCov] = estimate(ToEstMdl,y,'Display','params');

Warning: When ARIMA error model is integrated, the intercept is unidentifiable and cannot be estimated; a NaN is returned.

ARIMA(2,1,1) Error Model (Gaussian Distribution): Value StandardError TStatistic PValue ________ _____________ __________ ___________ Intercept NaN NaN NaN NaN AR{1} 0.89647 0.048507 18.481 2.921e-76 AR{2} -0.45101 0.038916 -11.59 4.6576e-31 MA{1} 0.18804 0.054505 3.45 0.00056068 Variance 0.19789 0.0083512 23.696 3.9373e-124

`estimate`

displays a warning to inform you that the intercept is
not identifiable, and sets its estimate, standard error, and
*t*-statistic to `NaN`

.

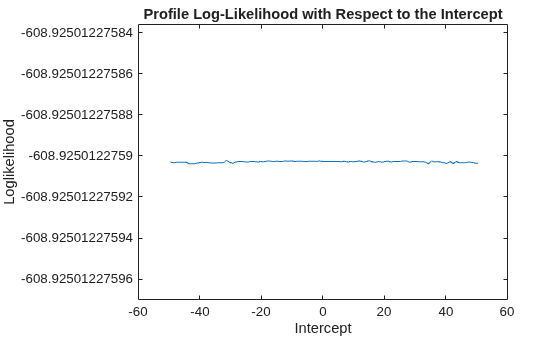

Plot the profile likelihood for the intercept.

c = linspace(Mdl.Intercept - 50,... Mdl.Intercept + 50,100); % Grid of intercepts logL = nan(numel(c),1); % For preallocation for i = 1:numel(logL) EstMdl.Intercept = c(i); [~,~,~,logL(i)] = infer(EstMdl,y); end figure plot(c,logL) title('Profile Log-Likelihood with Respect to the Intercept') xlabel('Intercept') ylabel('Loglikelihood')

The loglikelihood does not change over the grid of intercept values. The slight
oscillation is a result of the numerical routine used by
`infer`

.
