연결 주변기기

CAN, FDCAN, I2C, MQTT, SPI, UART/USART 및 TCP와 같은 연결 주변기기를 구성하고 사용

STM32 프로세서에서 사용 가능한 CAN, FDCAN, I2C, SPI, UART/USART, TCP 등의 연결 주변기기를 사용하여 Simulink^® 모델을 만듭니다. 모델 구성 파라미터를 사용하여 지원되는 타깃 하드웨어와 인터페이싱하도록 Simulink 모델을 구성합니다. 모델 구성 파라미터를 사용하여 지원되는 타깃 하드웨어와 인터페이싱하도록 Simulink 모델을 구성합니다.

Simulink에서의 STM32 프로세서 기반 보드에 대한 지원은 STM32CubeMX 그래픽 툴을 사용합니다. STM32CubeMX 툴은 STM32 프로세서의 주변기기를 구성하고 선택한 STM32 프로세서에 대한 주변기기 초기화 코드를 생성하는 데 사용할 수 있는 그래픽 인터페이스입니다. Simulink에서 STM32CubeMX 프로젝트를 사용하여 STM32 프로세서 기반 보드를 구성해 코드를 생성하고 해당 코드를 하드웨어에 배포할 수 있습니다.

블록

모두 확장

통신

CAN Read	Read message from CAN network (R2023a 이후)
CAN Write	Write data to the CAN Bus (R2023a 이후)
FDCAN Read	Read data from CAN FD Bus (R2023a 이후)
FDCAN Write	Write data to the FDCAN Bus (R2023a 이후)
I2C Controller Read	Read data from I2C peripheral device or I2C peripheral device register
I2C Controller Write	Write data to I2C peripheral device or I2C peripheral device register
SPI Receive	Receive data through Serial Peripheral Interface (SPI) on target (R2023a 이후)
SPI Transmit	Transmit data through Serial Peripheral Interface (SPI) on target (R2023a 이후)
SPI Controller Transfer	Write data to and read data from SPI peripheral device (R2023a 이후)
UART/USART Read	Read data from the Universal Asynchronous Receiver Transmitter (UART/USART) port (R2022a 이후)
UART/USART Write	Write serial data from the Universal Asynchronous Receiver Transmitter (UART/USART) port (R2022a 이후)
Modbus Read	Read data from server device register(s) over RS485 network (R2025a 이후)
Modbus Write	Write data to server device register(s) over RS485 network (R2025a 이후)

네트워크

TCP Receive	Receive data over TCP/IP network from remote host (R2022b 이후)
TCP Send	Send data over TCP/IP network to remote host (R2022b 이후)
UDP Receive	Receive UDP packets from UDP host (R2022b 이후)
UDP Send	Send UDP packets to UDP host (R2022b 이후)

사물 인터넷

MQTT Publish	Publish messages to MQTT broker on specified topic (R2024a 이후)
MQTT Subscribe	Receive messages from the MQTT broker for specified topic (R2024a 이후)

모델 설정

Model Configuration Parameters for STM32 Processor Based Boards

도움말 항목

Configure STM32 Processor-Based Boards using STM32CubeMX with Simulink
Configure the STM32 Processors-Based Boards to use STM32CubeMX project with Simulink.
Set Up Scheduling Options for STM32 Processor-Based Boards
Setting up scheduling options for STM32 processor based boards.
STM32CubeMX Configuration for Voltage Mode Control
Instructions for STM32CubeMX configuration.
Signal Monitoring and Parameter Tuning Over XCP on Serial and TCP/IP
Use your host computer to monitor and control an application running on the target hardware.
Configure Ethernet Options in STM32CubeMX for STM32 Processor Based Boards
Ethernet configuration in STM32CubeMX project.
Introduction to MQTT
Basics of the MQTT messaging protocol.

추천 예제

Communication Using CAN or FDCAN Blocks for STMicroelectronics STM32 Processor Based Boards

Use CAN or FDCAN blocks to communicate with the STM32 processor based boards using Embedded Coder® Support Package for STMicroelectronics® STM32 Processors Based Boards.

모델 열기

Getting Started with STM32H7xx-Based Dual-Core Boards

Use the Embedded Coder® Support Package for STMicroelectronics® STM32 Processors to run a Simulink® model on a STM32 H7xx-based dual-core board.

라이브 스크립트 열기

Signal Monitoring and Parameter Tuning Over XCP-based CAN Interface Using STM32 Processors

Monitor signals and tune parameters of a Simulink® model on STMicroelectronics® STM32 processor based board using XCP-based CAN Interface.

라이브 스크립트 열기

Using SPI to Read and Write Data to SPI EEPROM on STM32 Processor

Configure and use SPI blocks to read and write data using Embedded Coder® Support Package for STMicroelectronics® STM32 Processors.

모델 열기

Exchanging Ethernet Data with STM32xx Based Boards

Send and receive UDP and TCP messages on STM32xx processor based boards using Embedded Coder® Support Package for STMicroelectronics® STM32 Processors.

모델 열기

Using I2C to Read and Write Data to Accelerometer on STM32 Processor Board

Configure and use I2C Controller Read and Write blocks to get accelerometer data by using the Embedded Coder® Support Package for STMicroelectronics® STM32 Processors.

라이브 스크립트 열기

Process ECG Signals Using MQTT on STM32 Processor Boards

Use the STM32 Nucleo F767ZI board using Embedded Coder(R) Support Package for STMicroelectronics(R) STM32 Processors to process an ECG signal input from an ECG sensor, extract the heart rate in beats per minutes (BPM), and send the ECG signal and heart rate to the ThingSpeak internet of things (IoT) analytics platform service.

라이브 스크립트 열기

Read Accelerometer and Gyrometer Data from an STMicroelectronics STM32F401RE Board Using USART Blocks

Use Embedded Coder® Support Package for STMicroelectronics® STM32 Processors to send data to your computer from a STMicroelectronics® STM32F401RE board and read it using serial (USART) blocks.

스크립트 열기

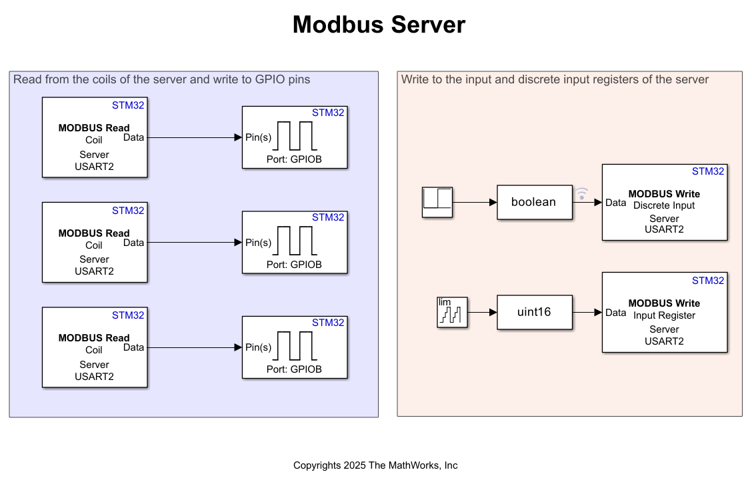

MODBUS Communication Between Client and Server Devices Using STMicroelectronics Nucleo Boards

Use the Embedded Coder® Coder™ Support Package for STMicroelectronics® STM32 Processor Boards to implement a MODBUS® asynchronous, serial communication between MODBUS client and server devices. It also shows the four modes of operation: Client Read, Client Write, Server Read, and Server Write.

스크립트 열기
