hide

Hide scope window

Syntax

hide(scope)

Description

hide(scope) hides the window of the scope.

Examples

Hide and Show Time Scope

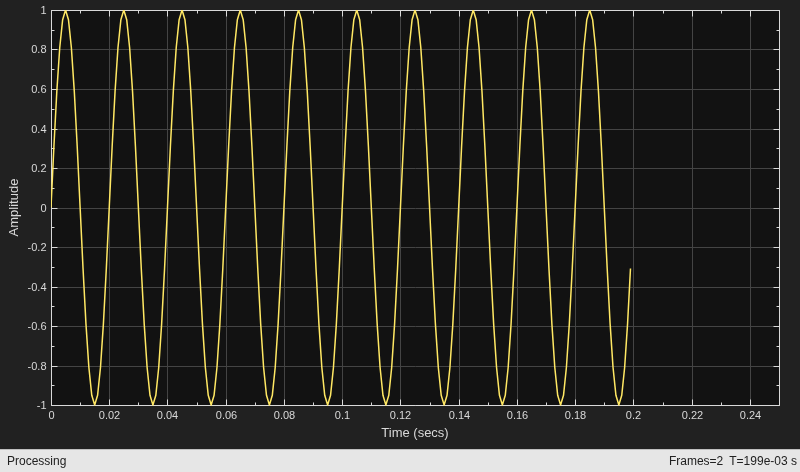

Create a sine wave signal and view it in the scope.

Fs = 1000;  % Sample rate
signal = dsp.SineWave(Frequency=50,SampleRate=Fs,...
    SamplesPerFrame=100);
scope = timescope(SampleRate=Fs,TimeSpanSource="property",...
    TimeSpan=0.25,YLimits=[-1 1]);
for ii = 1:2
     xsine = signal();
     scope(xsine)
end

Hide the scope window.

if(isVisible(scope))
    hide(scope)
end

Show the scope window.

if(~isVisible(scope))
    show(scope)
end

Clean up workspace variables.

clear scope Fs sine ii xsine

Input Arguments

scope — Scope object

scope object

Scope object, specified as one of the following:

• spectrumAnalyzer object

• dsp.ArrayPlot object

• dsp.LogicAnalyzer System object™

• timescope object

• dsp.DynamicFilterVisualizer object

Example: myScope = timescope; hide(myScope)

Version History

Introduced in R2011a

R2022a: Support for dsp.SpectrumAnalyzer object will be removed

The hide function will stop supporting the dsp.SpectrumAnalyzer object in a future release. Use the spectrumAnalyzer object instead.

Update Code

No updates to your code are required except replacing instances of dsp.SpectrumAnalyzer with spectrumAnalyzer.

This table shows how the hide function typically uses the dsp.SpectrumAnalyzer System object and explains how to update existing code to use the spectrumAnalyzer object.

Discouraged Usage	Recommended Replacement
scope = dsp.SpectrumAnalyzer; scope(randn(100000,1)) hide(scope)	scope = spectrumAnalyzer; scope(randn(100000,1)) hide(scope)
