Implement Unsupported Deep Learning Layer Blocks

The exportNetworkToSimulink function converts deep learning layer objects in a dlnetwork object to deep learning layer blocks in a Simulink model. For layer objects that do not have corresponding layer blocks, the function generates placeholder subsystems that contain a Stop Simulation block. This example shows how to manually edit the model to remove the Stop Simulation blocks and recreate the functionality of the input network.

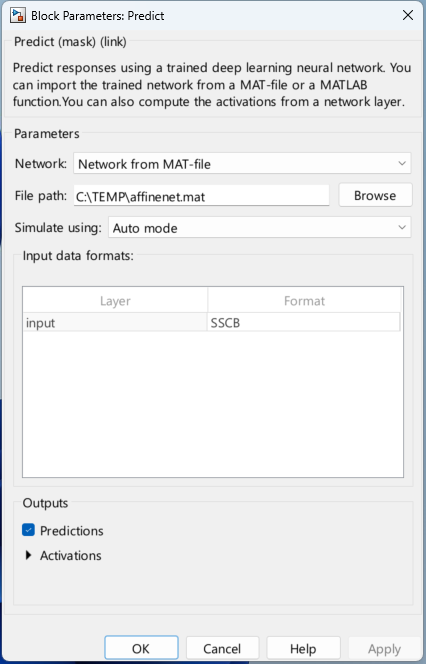

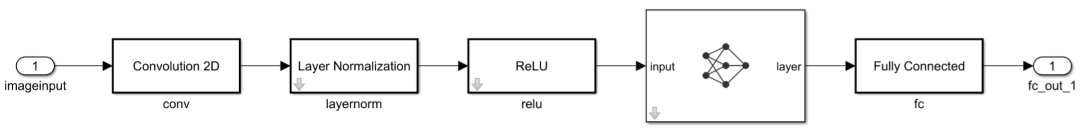

You can implement layers by using Simulink blocks or MATLAB code in a MATLAB Function block. Some layers are unsupported because they are not relevant to Simulink and can be removed.

Import and Analyze Network in MATLAB

Import the simplenet ONNX network to MATLAB as a dlnetwork object.

net = importNetworkFromONNX("simplenet.onnx");

The network contains nine layer objects. Analyze the network to view the layers and connections in the network.

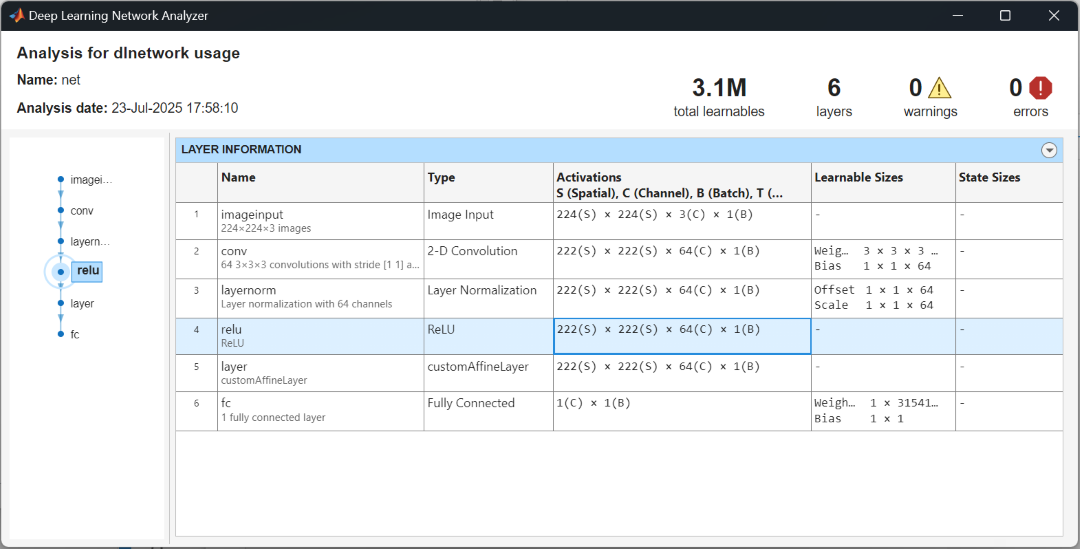

analyzeNetwork(net)

The network contains three layer objects that do not have corresponding layer blocks: imageinput_Sub (an Elementwise Affine layer), softmax_Flatten (an ONNX Flatten layer), and softmax1002Output (a Custom output layer).

Export Network to Simulink

Export the network to a Simulink model.

exportNetworkToSimulink(net);

Warning: nnet.onnx.layer.ElementwiseAffineLayer is not supported. A placeholder subsystem will be added for 'imageinput_Sub'.

Warning: nnet.onnx.layer.FlattenInto2dLayer is not supported. A placeholder subsystem will be added for 'softmax_Flatten'.

Warning: nnet.onnx.layer.CustomOutputLayer is not supported. A placeholder subsystem will be added for 'softmax1002Output'.

Warning: Failed to update the model. Check the model to resolve any issues.

The model contains a subsystem that contains the layer blocks. Open the subsystem.

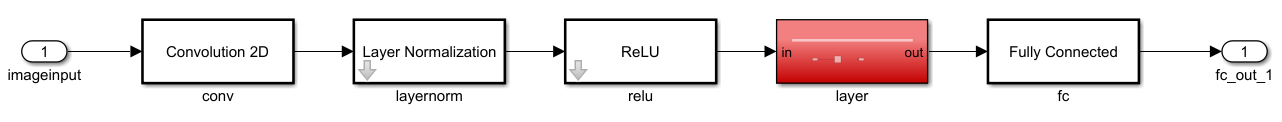

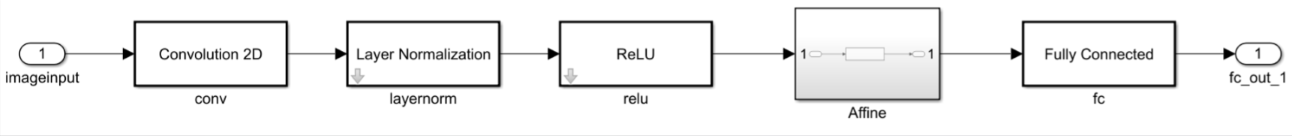

The subsystem contains a block for each layer in the network. For the layers that do not have corresponding layer blocks, the subsystem contains red placeholder subsystems. Each placeholder subsystem contains a Stop Simulation block. To use the model, you must manually replace or remove each Stop Simulation block.

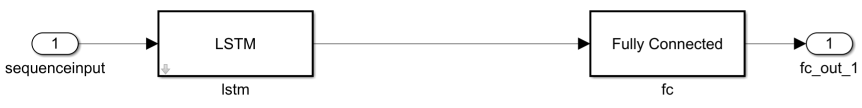

Remove Softmax Output Layer

The softmax1002Output subsystem represents a CustomOutputLayer object. The CustomOutputLayer object applies formatting to the dlarray that a dlnetwork object outputs. Because this does not apply to Simulink models, the subsystem is unnecessary. Remove the subsystem and connect the Softmax Layer block softmax1002 to the outport.

Implement ONNX Flatten Layer by Using MATLAB Code

The softmax_Flatten subsystem represents an ONNX Flatten layer. Open the subsystem.

You can implement the ONNX Flatten layer by using a MATLAB Function block. Replace the Stop Simulation block with a MATLAB Function block and connect it to the outport.

Place this code inside the MATLAB Function block.

function y = fcn(u)

y = reshape(permute(u, [2,3,1]),[],1);

Exit the softmax_Flatten subsystem.

Implement Elementwise Affine Layer by Using Simulink Blocks

The imageinput_Sub subsystem represents an Elementwise Affine layer. Open the subsystem.

The Elementwise Affine layer adds a constant bias to each element of the input matrix. The Offset property of the layer object contains the bias value to add. You can implement this functionality by using an Add Constant block. Replace the Stop Simulation block with an Add Constant block and connect it to the outport. Set the Bias parameter of the Add Constant block to net.Layers(2).Offset.

Exit the imageinput_Sub subsystem.

Run Model

The model now contains no Stop Simulation blocks. Run the model.
