General CRC Generator
Generate CRC code bits according to generator polynomial and append to input data frames
Libraries:
Communications Toolbox /
Error Detection and Correction /
CRC
Description
The General CRC Generator block generates cyclic redundancy check (CRC) code bits for each input data frame and appends them to the frame. For more information, see CRC Generator Operation.
Examples

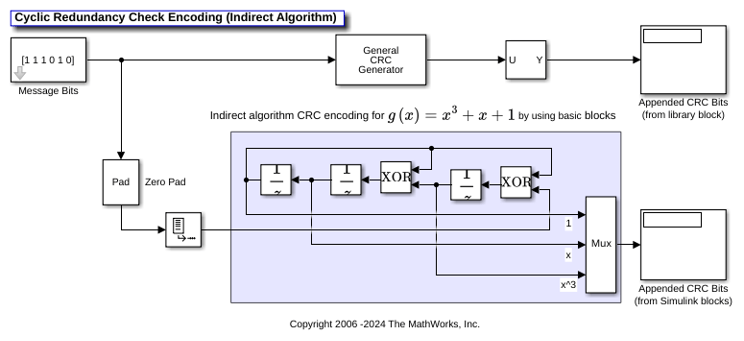

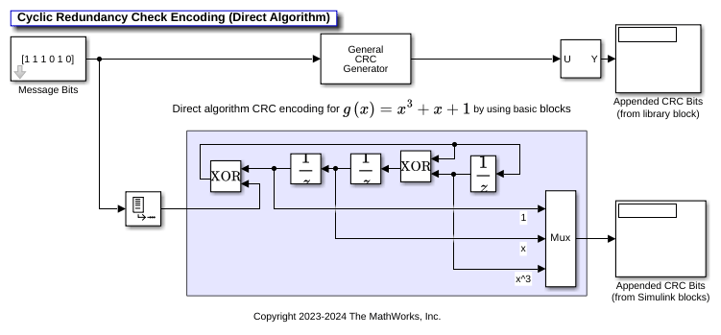

Cyclic Redundancy Check Encoding
Append CRC bits to a frame by building a g(x) = x³ + x + 1 generator polynomial using primitive Simulink® blocks and compare the results to the operation of the General CRC Generator block configured for the same generator polynomial.
For a known input message with a length of 6 bits, the model runs both CRC generators with a specific initial state of the register. The initial states are loaded into the workspace iniStates
by using the PreLoadFcn
callback function.
Running the simulation displays the appended CRC bits that are generated by using the General CRC Generator block and the CRC generated by using a generator polynomial built using primitive Simulink® blocks.
You can confirm the results of both implementations match with different message bits or with different initial states. To adjust the initial states, change the iniStates
workspace variable prior to running the simulation. Other changes to the primitive block polynomial generator, such as specifying a higher order polynomial, require revising the layout of the primitive blocks. Whereas reconfiguring the General CRC Generator block requires updates to parameter settings only.

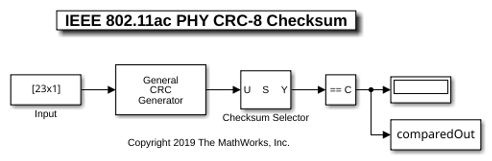

Generate CRC8 Checksum in Simulink
Generate a CRC8 checksum for the example shown in 802.11™2016, section 21.3.10.3 and compare with the expected CRC.
Explore the Model
To align with the CRC calculation in 802.112016, the General CRC Generator block mask sets the generator polynomial to , initial states to 1, final XOR parameter to 1, and selects direct method.
The simulation is configured to process one input frame modeling the example from the 802.112016 standard in section 21.3.10.3. In the example, the input bit stream {m0, … m22} is {1 0 0 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1} and the expected CRC checksum {c7, … c0} is {0 0 0 1 1 1 0 0}. The generated CRC checksum bits are compared to the expected bits and a 1
is output for each equal bit in the 8 bit CRC checksum.
comparedOut = 8x1 logical array 1 1 1 1 1 1 1 1
References
[1] IEEE Std 802.11™2016 IEEE Standard for Information Technology—Local and Metropolitan Area Networks—Specific Requirements Part 11: Wireless LAN MAC and PHY Specifications.
Ports
Input
In — Input signal
binary column vector
Input signal, specified as a binary column vector. The length of the input frame must be a multiple of the value of the Checksums per frame parameter.
Data Types: double
 Boolean
Output
Out — Output codeword frame
binary column vector
Output codeword frame, returned as a binary column vector that inherits the data type of the input signal. The output contains the input data frames with the CRC bit sequences appended to them.
The length of the output frame is m + k * r, where m is the size of the input frame, k is the number of checksums per frame, and r is the degree of the generator polynomial.
Parameters
To edit block parameters interactively, use the Property Inspector. From the Simulink^{®} Toolstrip, on the Simulation tab, in the Prepare gallery, select Property Inspector.
Generator polynomial — Generator polynomial
'z^16 + z^12 + z^5 + 1'
(default)  polynomial character vector  binary row vector  integer row vector
Generator polynomial for the CRC algorithm, specified as one of the following:
A polynomial character vector such as
'z^3 + z^2 + 1'
.A binary row vector that represents the coefficients of the generator polynomial in order of descending power. The length of this vector is (N+1), where N is the degree of the generator polynomial. For example,
[1 1 0 1]
represents the polynomial x^{3}+ z^{2}+ 1.An integer row vector containing the exponents of z for the nonzero terms in the polynomial in descending order. For example,
[3 2 0]
represents the polynomial z^{3 }+ z^{2 }+ 1.
For more information, see Representation of Polynomials in Communications Toolbox.
Some commonly used generator polynomials include:
CRC method  Generator polynomial

CRC32  'z^32 + z^26 + z^23 + z^22 + z^16 + z^12 + z^11 + z^10 + z^8 + z^7 + z^5 + z^4 + z^2 + z + 1'
CRC24  'z^24 + z^23 + z^14 + z^12 + z^8 + 1'
CRC16  'z^16 + z^15 + z^2 + 1'
Reversed CRC16  'z^16 + z^14 + z + 1'
CRC8  'z^8 + z^7 + z^6 + z^4 + z^2 + 1'
CRC4  'z^4 + z^3 + z^2 + z + 1'
Example: 'z^7 + z^2 + 1'
, [1 0 0 0 0 1 0
1]
, and [7 2 0]
represent the same
polynomial, p(z) =
z
^{7} + z
^{2} + 1.
Initial states — Initial states of internal shift register
0
(default)  1
 binary row vector
Initial states of the internal shift register, specified as a binary scalar or a binary row vector with a length equal to the degree of the generator polynomial. A scalar value is expanded to a row vector of equal length to the degree of the generator polynomial.
Direct method — Use direct algorithm for CRC checksum calculations
off
(default)  on
Select to use the direct algorithm for CRC checksum calculations. When cleared, the block uses the nondirect algorithm for CRC checksum calculations.
For more information on direct and nondirect algorithms, see Error Detection and Correction.
Reflect input bytes — Reflect input bytes
off
(default)  on
Select to flip the input data on a bytewise basis before entering the data
into the shift register. When Reflect input bytes is
selected, the input frame length divided by the value of the Checksums per frame parameter must be an
integer and a multiple of 8
. When Reflect input
bytes is cleared, the block does not flip the input
data.
Reflect checksums before final XOR — Reflect checksums before final XOR
off
(default)  on
Select to flip the CRC checksums around their centers after the input data are completely through the shift register. When Reflect checksums before final XOR is cleared, the block does not flip the CRC checksums.
Final XOR — Final XOR
0
(default)  1
 binary row vector
Final XOR, specified as a binary scalar or a binary row vector with a
length equal to the degree of the generator polynomial. The XOR operation
runs using the value of the Final XOR parameter the CRC
checksum before appending the CRC to the input data. A scalar value is
expanded to a row vector of equal length to the degree of the generator
polynomial. A setting of 0
is equivalent to no XOR
operation.
Checksums per frame — Number of checksums calculated for each frame
1
(default)  positive integer
Number of checksums calculated for each frame, specified as a positive integer.
Block Characteristics
Data Types

Multidimensional Signals

VariableSize Signals

More About
Cyclic Redundancy Check Coding
Cyclic redundancy check (CRC) coding is an errorcontrol coding technique for detecting errors that occur when a data frame is transmitted. Unlike block or convolutional codes, CRC codes do not have a builtin errorcorrection capability. Instead, when a communications system detects an error in a received codeword, the receiver requests the sender to retransmit the codeword.
In CRC coding, the transmitter applies a rule to each data frame to create extra CRC bits, called the checksum or syndrome, and then appends the checksum to the data frame. After receiving a transmitted codeword, the receiver applies the same rule to the received codeword. If the resulting checksum is nonzero, an error has occurred and the transmitter should resend the data frame.
When the number of checksums per frame is greater than 1, the input data frame is divided into subframes, the rule is applied to each data subframe, and individual checksums are appended to each subframe. The subframe codewords are concatenated to output one frame.
For a discussion of the supported CRC algorithms, see Cyclic Redundancy Check Codes.
CRC Generator Operation
The CRC generator appends CRC checksums to the input frame according to the specified generator polynomial and number of checksums per frame.
For a specific initial state of the internal shift register and k checksums per input frame:
The input signal is divided into k subframes of equal size.
Each of the k subframes are prefixed with the initial states vector.
The CRC algorithm is applied to each subframe.
The resulting checksums are appended to the end of each subframe.
The subframes are concatenated and output as a column vector.
For the scenario shown here, a 10bit frame is input, a third degree generator polynomial computes the CRC checksum, the initial state is 0, and the number of checksums per frame is 2.
The input frame is divided into two subframes of size 5 and checksums of size 3 are computed
and appended to each subframe. The initial states are not shown, because an initial state of
[0]
does not affect the output of the CRC algorithm. The output
transmitted codeword frame has the size 5 + 3 + 5 + 3 = 16.
References
[1] Sklar, Bernard. Digital Communications: Fundamentals and Applications. Englewood Cliffs, N.J.: PrenticeHall, 1988.
[2] Wicker, Stephen B. Error Control Systems for Digital Communication and Storage. Upper Saddle River, N.J.: Prentice Hall, 1995.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced before R2006a
