Link AUTOSAR Components to Simulink Requirements
If you have Requirements Toolbox™ software, you can link components in an AUTOSAR architecture model to Simulink® requirements. By linking model elements that implement requirements to the associated requirements, you can track implementation of the requirements. If a requirement or an implementation changes, you can make adjustments to keep them in sync.
To link a component to a requirement:
Open an architecture model, such as example model
autosar_tpc_composition. (To open the model in a local working folder, use
In the Apps tab, click Requirements Manager. In the model window, the Requirements tab opens, with the Requirements Browser docked at the bottom.
Create or open a requirements set. If you opened example model
autosar_tpc_composition, you can use the example requirements file
TPC_Requirements.slreqx, which is on the default MATLAB® search path. If you need to copy the requirements file to your working folder, enter this MATLAB command:
In the Requirements Browser, open the requirements file. The requirements set contains requirements for four components in the model.

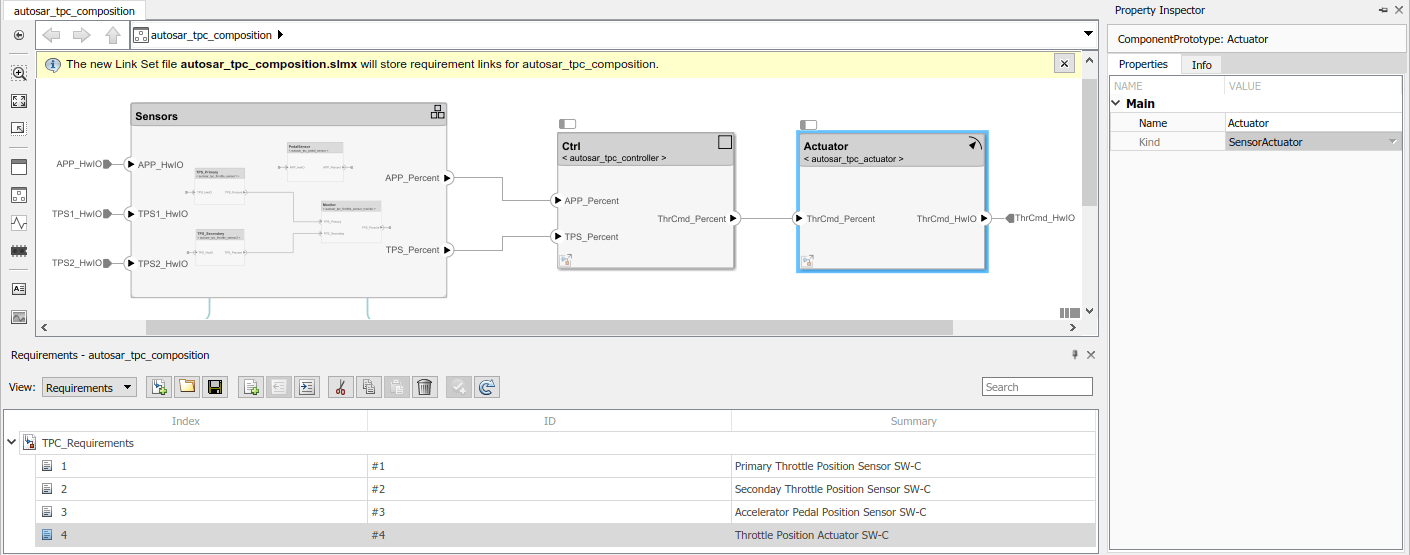

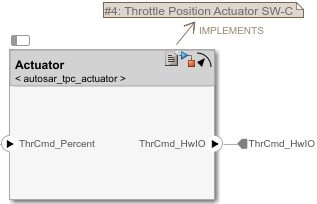

To link a requirement to an AUTOSAR component, drag the requirement from the Requirements Browser to the component block. For example, drag requirement 4 to the
