Simple Engine

Simplified engine model using lookup tables

  • Library:
  • Powertrain Blockset / Propulsion / Combustion Engines

    Vehicle Dynamics Blockset / Powertrain / Propulsion

  • Simple Engine block

Description

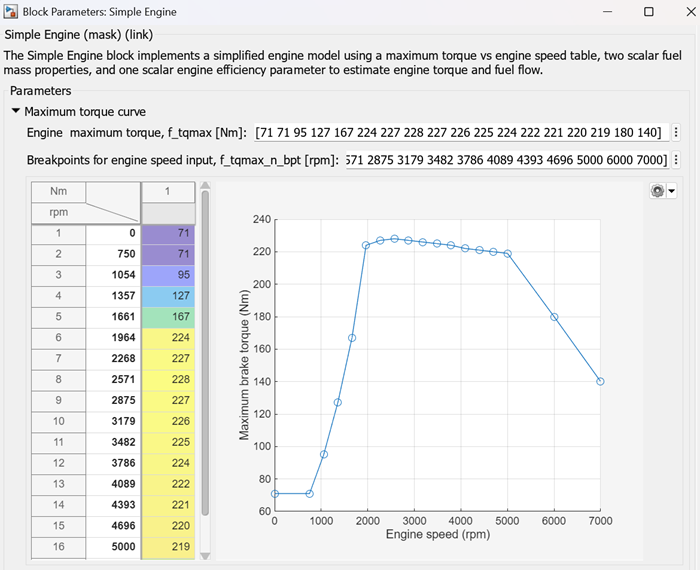

The Simple Engine block implements a simplified engine model using a maximum torque vs engine speed table, two scalar fuel mass properties, and one scalar engine efficiency parameter to estimate engine torque and fuel flow. You can use the block for:

  • Hardware-in-the-loop (HIL) engine control design

  • Vehicle-level fuel economy and performance simulations

Ports

Input

expand all

Torque, in N·m.

Engine speed, in rpm.

Output

expand all

Bus signal containing these block calculations.

SignalDescriptionUnits

IntkGasMassFlw (zeroed out intentionally)

Engine air mass flow output

kg/s

NrmlzdAirChrg (zeroed out intentionally)

Normalized engine cylinder air mass

N/A

Afr (zeroed out intentionally)

Air-fuel ratio (AFR)

N/A

FuelMassFlw

Engine fuel flow output

kg/s

FuelVolFlw

Volumetric fuel flow

m3/s

ExhManGasTemp (zeroed out intentionally)

Engine exhaust gas temperature

K

EngTrq

Engine torque output

N·m

EngSpd

Engine speed

rpm

CrkAng (zeroed out intentionally)

Engine crankshaft absolute angle

0(360)CpsEngSpd18030dθ

where Cps is crankshaft revolutions per power stroke.

degrees crank angle

Bsfc

Engine brake-specific fuel consumption (BSFC)

g/kWh

EoHC (zeroed out intentionally)

Engine out hydrocarbon emission mass flow

kg/s

EoCO (zeroed out intentionally)

Engine out carbon monoxide emission mass flow rate

kg/s

EoNOx (zeroed out intentionally)

Engine out nitric oxide and nitrogen dioxide emissions mass flow

kg/s

EoCO2 (zeroed out intentionally)

Engine out carbon dioxide emission mass flow

kg/s

EoPM (zeroed out intentionally)

Engine out particulate matter emission mass flow

kg/s

PwrInfoPwrTrnsfrdPwrCrkshft

Crankshaft power

W
PwrNotTrnsfrdPwrFuel

Fuel input power

W
PwrLoss

Power loss

W
PwrStored

Not used

Engine brake torque, in N·m.

Parameters

expand all

Breakpoints, in N·m.

Breakpoints, in rpm.

Fuel lower heating value, in J/kg.

Specific gravity of fuel, dimensionless.

Average brake specific fuel consumption, in g/kwh.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.

Introduced in R2021b
