getFilter

Return biquad filter object with design parameters set

Description

example

biquad = getFilter(obj) returns a dsp.BiquadFilter object, biquad. The SOSMatrix and ScaleValues properties of the biquad filter object are set as specified by the obj System object™.

Use getFilter for the design capabilities of the obj System object and the processing capabilities of the dsp.BiquadFilter System object.

Examples

collapse all

Create an octaveFilter System object™. Call getFilter on your object to return a dsp.BiquadFilter object with design parameters specified by your octaveFilter System object.

octFilt = octaveFilter;
biquad = getFilter(octFilt)
biquad =
  dsp.SOSFilter with properties:

            Structure: 'Direct form II transposed'
    CoefficientSource: 'Property'
            Numerator: [3x3 double]
          Denominator: [3x3 double]
       HasScaleValues: false

  Show all properties

Create a weightingFilter System object™.

weightFilt = weightingFilter;

Call getFilter on your object to return a dsp.BiquadFilter object with design parameters specified by your weightingFilter System object. Use fvtool to visualize the biquad filter.

biquad = getFilter(weightFilt)
biquad =
  dsp.SOSFilter with properties:

            Structure: 'Direct form II transposed'
    CoefficientSource: 'Property'
            Numerator: [3x3 double]
          Denominator: [3x3 double]
       HasScaleValues: true
          ScaleValues: [4x1 double]

  Show all properties

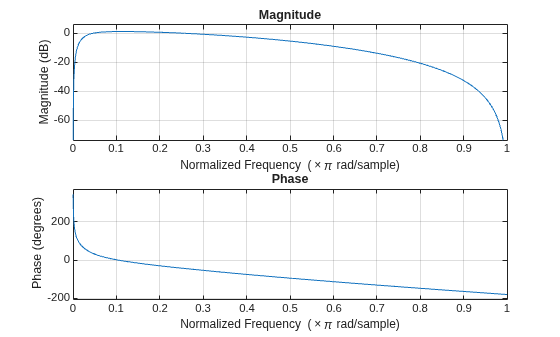

fvtool(biquad,'FrequencyScale','log')

Figure Filter Visualization Tool - Magnitude Response (dB) contains an axes object and other objects of type uitoolbar, uimenu. The axes object with title Magnitude Response (dB) contains an object of type line.

Input Arguments

collapse all

System object that you want to get a biquad filter object from.

Output Arguments

collapse all

Introduced in R2016b
