Impulse Response Measurer

Measure impulse response of audio system


The Impulse Response Measurer app enables you to acquire, analyze, and export impulse response and frequency response measurements through a user interface.

Using this app, you can:

  • Acquire impulse responses to create filters and generate models for offline simulations.

  • Determine whether audio devices (loudspeakers, for example) meet time and frequency specifications.

  • Optimize audio systems, such as automotive-acoustic systems, to match goal specifications.

  • Acquire accurate impulse response measurements for use in acoustic reporting.

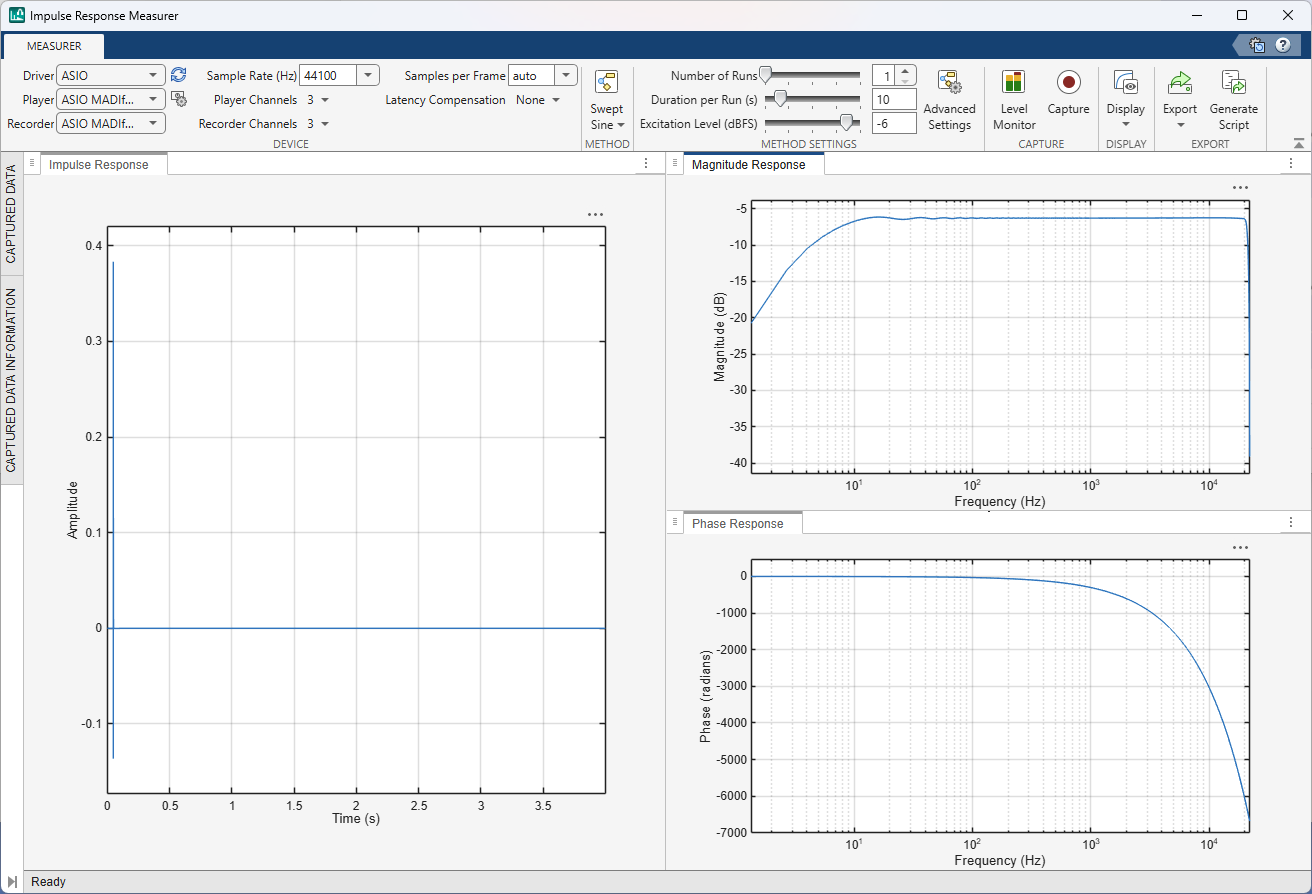

Impulse Response Measurer app

Open the Impulse Response Measurer App

MATLAB® Toolstrip: On the Apps tab, under Signal Processing and Communications, click the app icon.

MATLAB Command prompt: Enter impulseResponseMeasurer.


expand all

For large systems with multiple audio devices and multiple input and output channels, tracking how reported devices and channels correspond to physical devices can be difficult. The Impulse Response Measurer provides a level monitor so that you can verify your audio I/O configuration.

To open the level monitor, click Level Monitor, .

Choose a player and recorder channel, the test signal, and the output level. Verify that the level reported by the recorder reacts appropriately to level changes output by the player. Once you are satisfied that your system is configured correctly, close the level monitor and begin the impulse response capture.

Related Examples


Select the excitation signal algorithm used to generate an impulse response measurement:

  • MLS –– The maximum length sequence (MLS) technique is based on the excitation of the acoustical space by a periodic pseudorandom signal. The impulse response is obtained by circular cross-correlation between the measured output and the test tone. For more details, see [2].

  • Exponential Swept Sine –– The swept sine measurement technique uses an exponential time-growing frequency sweep as an output signal. The output signal is recorded, and deconvolution is used to recover the impulse response from the swept sine tone. For more details, see [1]. The swept sine technique enables you to modify additional Advanced Settings to control the excitation signal. The advanced settings apply per run:

    • Sweep start frequency

    • Sweep stop frequency

    • Sweep duration

    • End silence duration

    The value of the End silence duration is read-only and depends on the Sweep duration and Duration per Run (s): End silence duration = Duration per Run − Sweep duration


[1] Farina, Angelo. "Advancements in Impulse Response Measurements by Sine Sweeps." Presented at the Audio Engineering Society 122nd Convention, Vienna, Austria, 2007.

[2] Guy-Bart, Stan, Jean-Jacques Embrachts, and Dominique Archambeau. "Comparison of Different Impulse Response Measurement Techniques." Journal of Audio Engineering Society. Vol. 50, Issue 4, 2002, pp. 246–262.

[3] Armelloni, Enrico, Christian Giottoli, and Angelo Farina. "Implementation of Real-Time Partitioned Convolution on a DSP Board." Application of Signal Processing to Audio and Acoustics, 2003 IEEE Workshop, pp. 71–74. IEEE, 2003.
