Cone Antennas

Bicone, discone, monocone, strip bicone, and strip discone

Biconical antennas are broadband omnidirectional antennas that are widely used in Electorate Support Measurement (ESM). Discone antenna is an omnidirectional, vertically polarized, exceptionally wideband antenna offering a frequency range ratio of 10:1.

Cone Antenna Catalog


`bicone`	`discone`	`monocone`	`biconeStrip`	`disconeStrip`	Antenna Element Catalog

Apps

Antenna Designer	Design, visualize, and analyze antennas
Antenna Array Designer	Design, visualize, and analyze arrays

Objects

`bicone`	Create biconical antenna
`discone`	Create discone antenna
`monocone`	Create monocone antenna on circular ground plane (Since R2020a)
`biconeStrip`	Create stripped biconical antenna (Since R2020b)
`disconeStrip`	Create stripped discone antenna (Since R2020b)

Functions

`show`	Display antenna, array structures, shapes, or platform
`info`	Display information about antenna, array, or platform
`coneangle2size`	Calculates equivalent cone height, broad radius, and narrow radius (Since R2020a)
`design`	Design prototype antenna or arrays for resonance around specified frequency or create AI-based antenna from antenna catalog objects

Featured Examples

Design and Analyze VHF/UHF Biconical Antenna for Testing Applications

Design and analyze a wire biconical antenna that can be used in various testing applications. Wire biconical antennas are used as a standard victim in any compliance test lab in a variety of testing applications such as immunity testing, emission testing, spectrum monitoring, and shielding effectiveness etc.

Open Live Script

Discone Antenna for TV Broadcasting System

Discone antenna for TV broadcasting.

Open Live Script

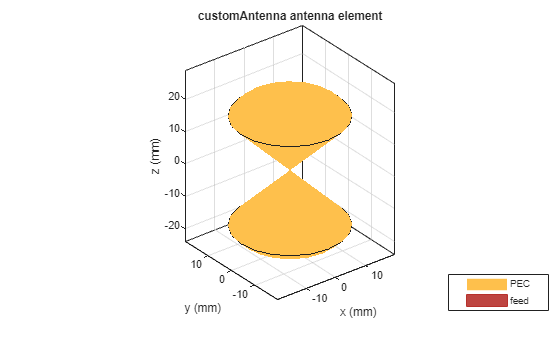

Design And Analyze Spherically Capped Biconical Antenna

Model and analyze a spherically capped biconical antenna using custom 3-D shapes. This antenna is a canonical broadband radiator used in practical ultra-wide-band communication systems. [1] The two cones of the antenna are connected by a cylindrical delta gap feed. The height and diameter of the cylindrical feed are equal. The location of the feed is chosen in between the two cone apex points as the gap between them can be considered as infinitesimally small, which nearly resembles an ideal antenna. Later, the effect of feed dimensions variation and mesh density variation near the delta gap is studied by comparing the antenna input impedance for two different feed diameters and mesh density. The antenna is analyzed in the frequency range of 900MHz to 15GHz.

Open Live Script
