MATLAB에서의 실행

독립 실행형 Stateflow^® 차트를 MATLAB^®의 객체로 실행

상태 차트를 사용하여 로직을 설계하고 해당 로직을 MATLAB 프로그램으로 실행합니다. Stateflow 편집기에서 차트를 실행하고 단위 테스트를 수행합니다. 차트를 통해 사용자 인터페이스의 동작 및 데이터 처리 응용 사례를 제어합니다.

함수

모두 확장

Stateflow 함수

`Stateflow.exportAsClass`	Export MATLAB class for standalone chart
`Stateflow.exportToVersion`	Export standalone chart for use in previous version of Stateflow

Stateflow 구문

모두 확장

연산자

변경 감지

`hasChanged`	Detect change in data since last time step
`hasChangedFrom`	Detect change in data from specified value
`hasChangedTo`	Detect change in data to specified value

시간 논리

`after`	이벤트 브로드캐스트 또는 지정된 시간 후에 차트 실행
`at`	이벤트 브로드캐스트 또는 지정된 시간에 차트 실행
`count`	Number of chart executions during which condition is valid
`elapsed`	상태가 활성화된 이후의 시간
`every`	Execute chart at regular intervals
`temporalCount`	Number of events, chart executions, or time since state became active

도움말 항목

Create Stateflow Charts for Execution as MATLAB Objects
Save standalone Stateflow charts outside of Simulink^® models.
Execute and Unit Test Stateflow Chart Objects
Run Stateflow charts in MATLAB or through the Stateflow Editor.
Execute Stateflow Chart Objects Through Scripts and Models
Create a MATLAB script or a Simulink model that invokes a standalone Stateflow chart.
MATLAB 코드를 Stateflow 플로우 차트로 변환하기
MATLAB 코드에서 플로우 차트를 생성합니다.

문제 해결

Debug a Standalone Stateflow Chart

Interrupt execution to step through each action in a Stateflow chart.

추천 예제

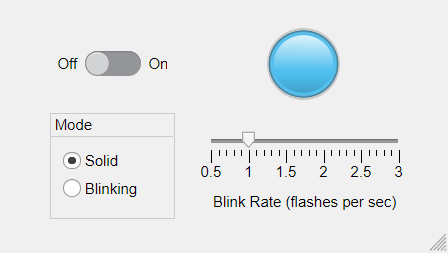

Design Human-Machine Interface Logic by Using Stateflow Charts

Model the logic of a lamp app in a standalone Stateflow chart.

예제 열기

Model a Communications Protocol by Using Chart Objects

Use a standalone Stateflow® chart to model a frame-synchronization and symbol-detection component in a communications system. Standalone charts implement classic chart semantics with MATLAB® as the action language. You can program the chart by using the full functionality of MATLAB, including those functions that are restricted for code generation in Simulink®. For more information, see Create Stateflow Charts for Execution as MATLAB Objects.

예제 열기

Implement a Financial Strategy by Using Stateflow

Use a standalone Stateflow® chart to model a financial trading strategy known as Bollinger Bands. Standalone charts implement classic chart semantics with MATLAB® as the action language. You can program the chart by using the full functionality of MATLAB, including those functions that are restricted for code generation in Simulink®. For more information, see Create Stateflow Charts for Execution as MATLAB Objects.

예제 열기
